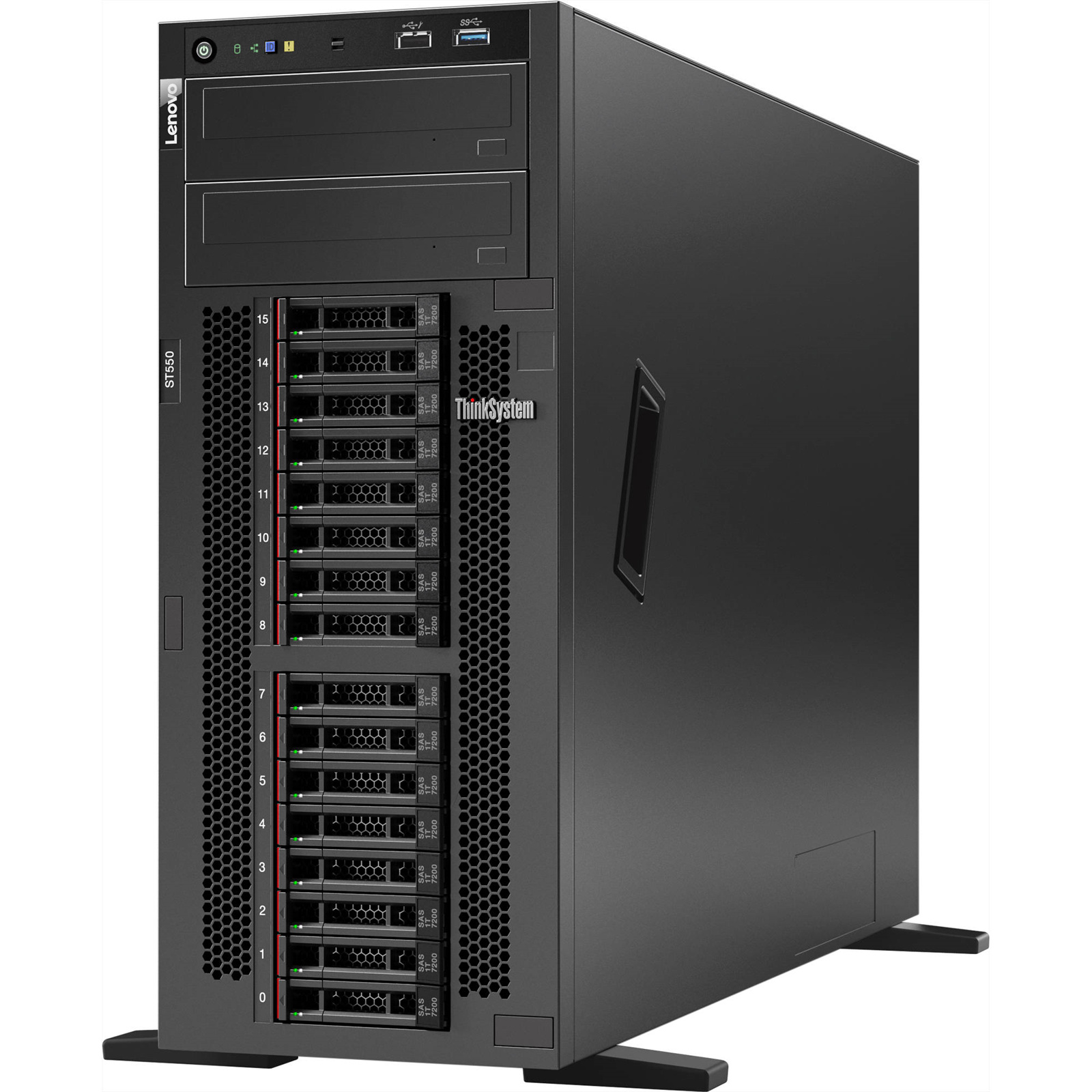

Lenovo ThinkSystem ST550 Tower Server Xeon-S 4208, 16GB RAM, 530-8i RAID controller, 8x SFF Bay (no drives), 750W PSU

Part #: SVRLEN710090
  • Brand: Lenovo
  • MPN: 7X10A0A9AU
  • Part #: SVRLEN710090
  • UPC:
  • Server Type: Barebone
  • Form Factor: ATX
  • CPU Sockets: 2
  • CPU Physical Cores: 8
  • DIMM Slots: 12
  • System Memory: 16GB
  • RAID Support: Not Specified
  • Power Supply: Single
  • View more

Features

Workload-optimized support

New second-generation Intel® Xeon® Scalable family CPUs offer increased performance of 36% over the previous generation*, support for faster 2933MHz TruDDR4 memory and Intel's Vector Neural Network Instruction (VNNI) which accelerates processor performance for the needs of growing higher data transmitting speed and advanced computing performance. Up to 6% increases in per-core performance and hardware security mitigations round out the enhanced capabilities featured in this next-generation processor technology from Intel.*

* Based on Intel internal testing, August 2018.



Accelerate data insights

ThinkSystem ST550 supports up to two NVIDIA graphic processing unit (GPUs) cards up to 250W. Processing is offloaded to the GPU to maximize computing power and application performance, and the server is optimized to process large blocks of data in parallel. This high-performance parallel computing makes the ST550 ideal for virtualization, VDI, and private cloud.



Flexible storage

Lenovo AnyBay design features a choice of drive interface type in the same drive bay: SAS drives, SATA drives, or U.2 NVMe PCIe drives. Freedom to configure some of the bays with PCIe SSDs and still use the remaining bays for capacity SAS drives provides the ability to upgrade to more PCIe SSDs in the future as needed.

Specifications

Form Factor/Height

4U rackable tower

Processor

Intel® Xeon®-S 4208 processors

Memory

16GB RAM
Up to 768GB in 12x DIMM slots using 64GB DIMMs; 2666 and 2933MHz TruDDR4

Expansion Slots

Up to 6x PCIe 3.0 (with 2x processors)

Drive Bays

Up to 16x 2.5" (including 4 NVMe) or 8x 3.5" bays; Plus up to 4x 2.5" and 2x internal M.2 boot

HBA/RAID Support

Software RAID (4x ports) standard; optional hardware RAID (up to 24x ports); up to 16-port HBAs

Security and Reliailability Features

Lenovo ThinkShield, lockable security bezel, Kensington lock slot, chassis intrusion switch, TPM 1.2/2.0, Predict Failure Analysis, hot-swap/redundant drives, redundant PSUs

Network Interface

2x 1GbE ports standard; See ST550 product guide for more options

Systems Management

XClarity Controller embedded management, XClarity Administrator centralized infrastructure delivery, XClarity Integrator plugins, and XClarity Energy Manager centralized server power management

Operating Systems Supported

Microsoft Windows Server, SUSE, Red Hat, VMware vSphere. Visit lenovopress.com/osig for details.

Manufacturer Part No:
7X10A0A9AU
Brand:
Product Type:
Tower Server
UPC
-
Product Family:
ThinkSystem
Shipping Weight:
36.9 kg
PB Part No:
SVRLEN710090
Product Model:
ST550
Warranty: 36 months *
