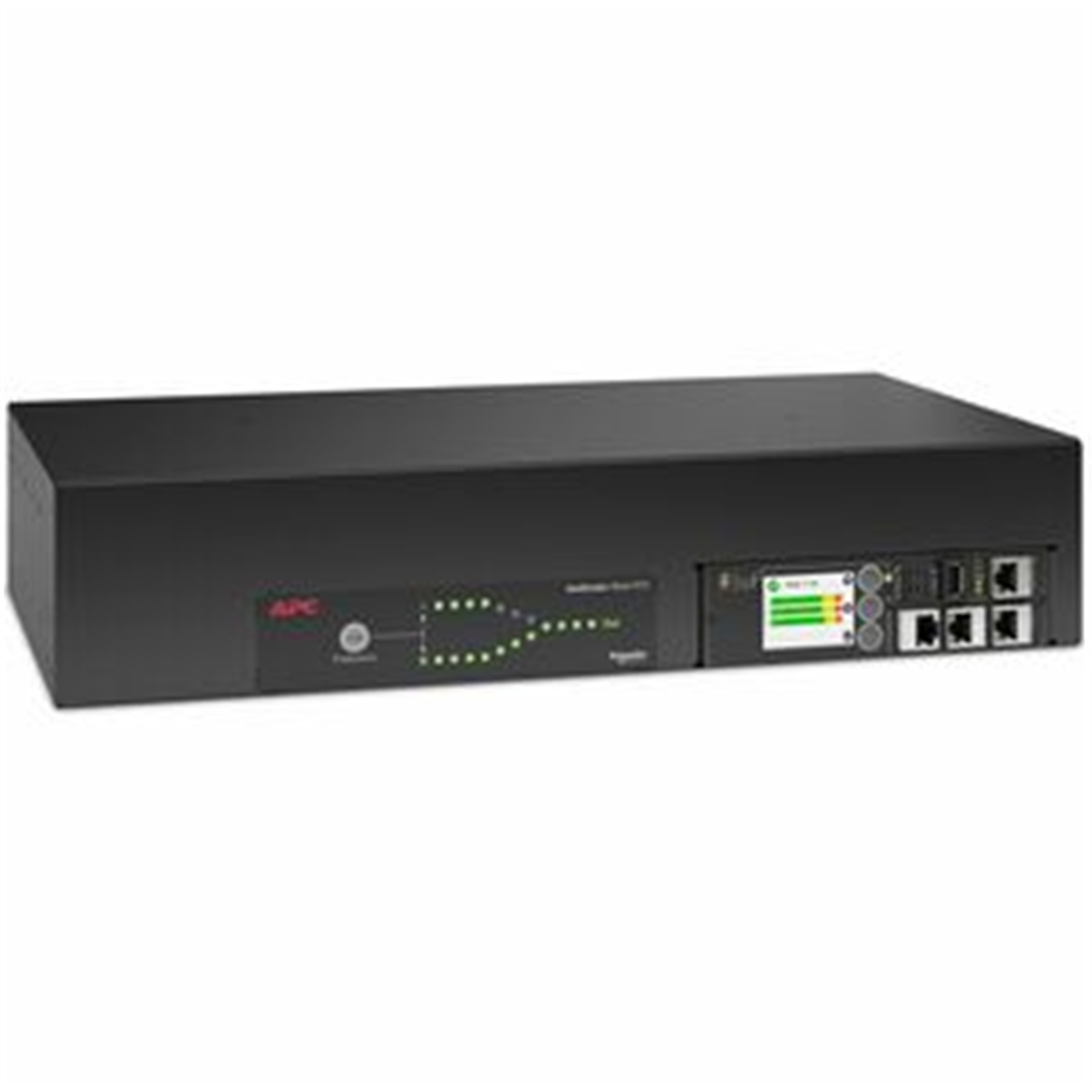

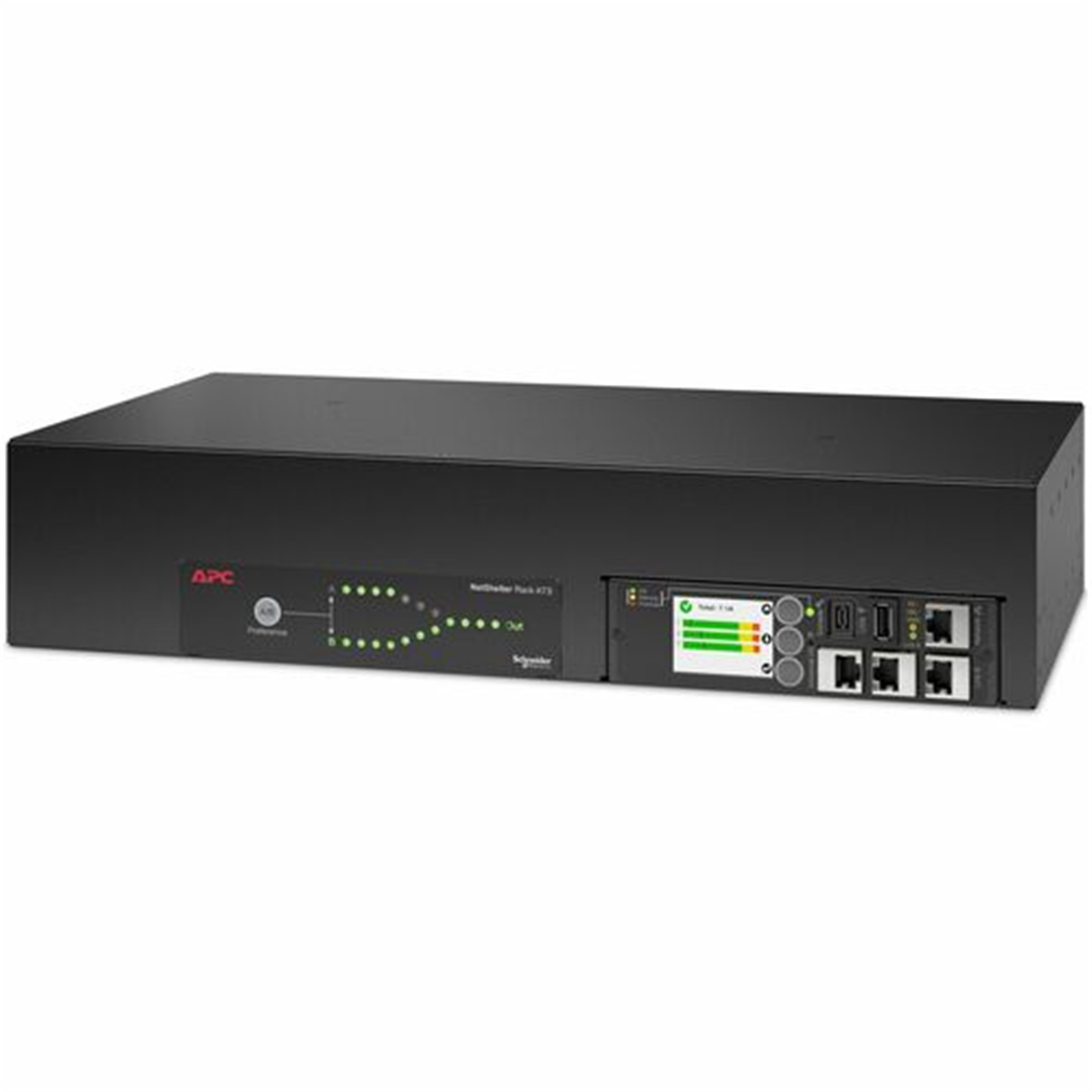

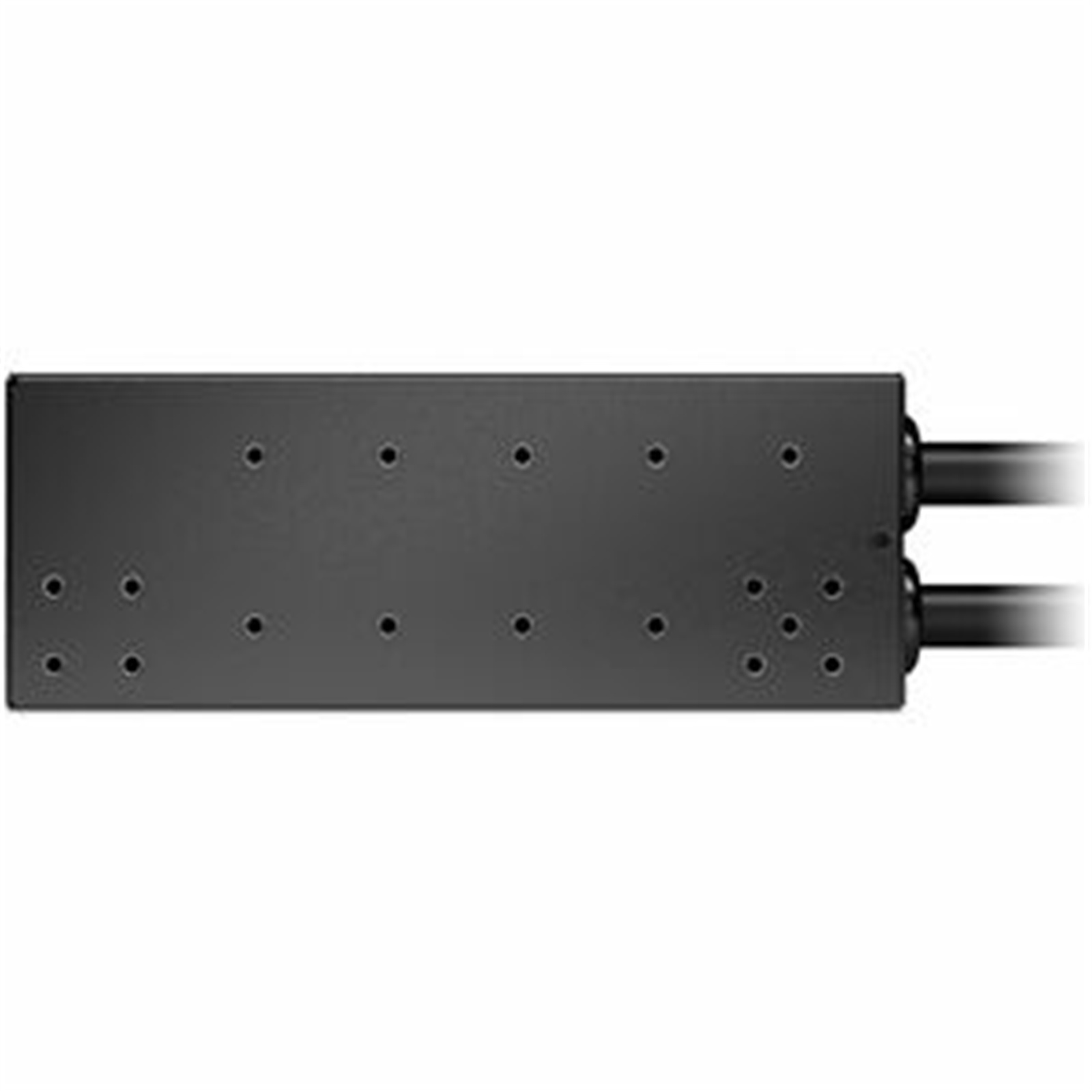

APC AP4424A by Schneider Electric NetShelter Automatic Transfer Switch - 16 x IEC 60320 C13, 2 x IEC 60320 C19 - 230 V AC - 32 A

PB Tech price
PB Tech price
$ 2,286 .02
 +GST
$ 2,628 .92
 inc GST

Out of stock

APC AP4424A by Schneider Electric NetShelter Automatic Transfer Switch - 16 x IEC 60320 C13, 2 x IEC 60320 C19 - 230 V AC - 32 A

  • Brand: APC
  • MPN: AP4424A
  • Part #: SWHAPC5925873
  • UPC:
PB Tech price
$ 2,286 .02 $ 2,628 .92
 +GST  inc GST

No store stock available.

Click & Collect: Collect unavailable
Delivery: Out of stock When will I receive it?
  • Brand: APC
  • MPN: AP4424A
  • Part #: SWHAPC5925873
  • UPC:

10 Gigabit

N/A

10 Gigabit Ports

N/A

Form Factor

N/A

Management Level

N/A

Number of Ports

N/A

PoE

No

PoE Ports

Not Specified

PoE Budget

Not Specified

Features

APC Netshelter Rack Automatic Transfer Switch, 2U, 32A, 230V, 2 IEC 309 IN, 16 C13, 2 C19 OUT, 50/60 Hz



- Minimized downtime disruption with Field-replaceable NMC
- Monitor temperature and humidity efficiently
- Dual input power cords to enhance uptime for critcal loads
- Connect and manage up to 32 Rack ATSs from one IP address
- Seamless switching with transfer time 10ms

Specifications

Main

Main Input Voltage

230 V AC 1 phase

Product or Component Type

Automatic transfer switch

Main Output Voltage

230 V AC 1 phase

Input Connection Type

IEC 60320 IEC 60309 32 A 2P+E
IEC 60320

Number of rack unit

2U

Cable length

8 ft (2.4 m)

Number of cables

2

Provided Equipment

Mounting Hardware
Rack Mounting brackets

Physical

Color

Black

Height

3.46 in (8.8 cm)

Width

17.01 in (43.2 cm)

Depth

9.29 in (23.6 cm)

Net Weight

15.30 lb(US) (6.94 kg)

Mounting Location

Front
Rear

Mounting preference

No preference

Mounting Mode

Rack-mounted

Mounting position

Horizontal

Input

Input Frequency

50/60 Hz

Acceptable Input Voltage

207…253 V

Load Capacity

7400 VA

Output

Max current draw

32 A

Number of power socket outlets

18

Protection Type

Circuit breaker

Conformance

Product Certifications

EN 55022 class A
FCC part 15 class A

Standards

EN 55022 Class A
FCC Part 15 class A

Environmental

Ambient Air Temperature for Operation

23…113 °F (-5…45 °C)

Relative Humidity

5…95 %

Operating altitude

0...10000 ft

Ambient Air Temperature for Storage

-13…149 °F (-25…65 °C)

Storage Relative Humidity

5…95 %

Manufacturer Part No:
AP4424A
Brand:
APC
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
3 kg
PB Part No:
SWHAPC5925873
Product Model:
AP4424A
Warranty: 12 months *
