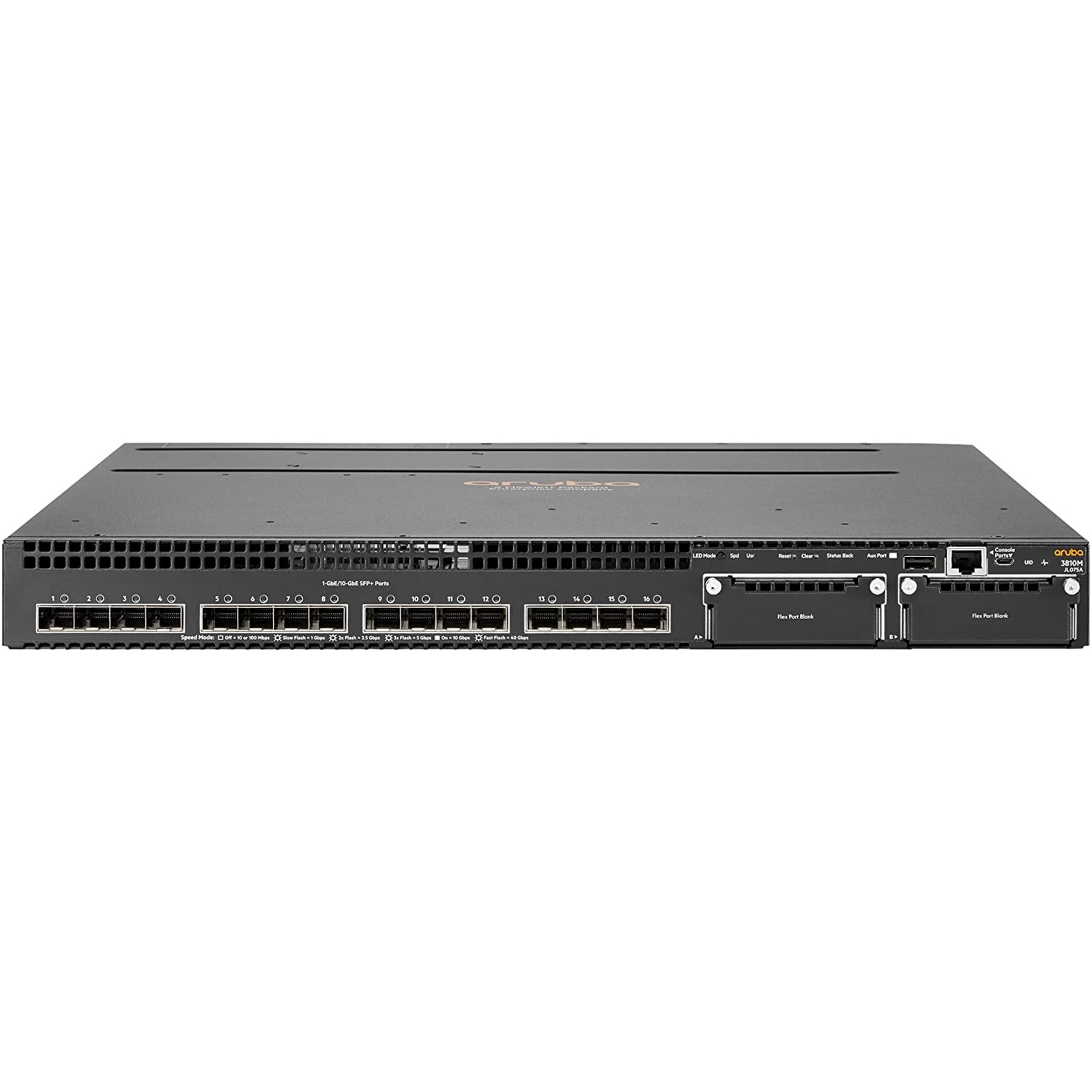

HPE 3810M 16SFP+ 2-slot Switch

PB Tech price
PB Tech price
$ 10,837 .39
 +GST
$ 12,463 .00
 inc GST

Out of stock

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

HPE 3810M 16SFP+ 2-slot Switch

  • Brand: HPE
  • MPN: JL075A
  • Part #: SWHAUB07512
  • UPC: 888793596616
PB Tech price
$ 10,837 .39 $ 12,463 .00
 +GST  inc GST

No store stock available.

Click & Collect: Collect unavailable
Delivery: Out of stock When will I receive it?
  • Brand: HPE
  • MPN: JL075A
  • Part #: SWHAUB07512
  • UPC: 888793596616

10 Gigabit

Yes

10 Gigabit Ports

16 Ports

Form Factor

1U Rack

Management Level

Smart / Web Managed

Number of Ports

16 Ports

PoE

No

PoE Ports

N/A

PoE Budget

N/A

Features

Aruba 3810M 16SFP+ 2-slot Switch

Aruba 3810 Switch Series provides performance and resiliency for enterprises, SMBs, and branch office networks. This JL075A has 16 x 1000/10000 SFP+ ports together with 2 x open module slots and a stacking module slot. It comes with a replaceable fan tray. It supports one or two power supplies. Power supplies are ordered separately. Available modules are: 4 x SFP+; 1 x 40GbE QSFP+; 2 x 40GbE QSFP+; 4 port stacking module.

Specifications

Type

Aruba 3810M 16SFP+ 2-slot Switch

Included accessories

1 Aruba 3810 Switch Fan Tray (JL088A)

I/O ports and slots

· 16 SFP+ fixed 1000/10000 SFP+ ports;
· Duplex: 100BASE-TX: half or full; 1000BASE-T: full only; Ports 1 - 16 support MACSec
· 2 open module slots
Supports a maximum of 8 SFP+ ports or 2 40GbE ports, with optional module

Additional ports and slots

· 1 stacking module slot
· 1 RJ-45 serial console port
· 1 RJ-45 out-of-band management port
· 1 dual-personality (RJ-45 or USB micro-B)

Power supplies

· 2 power supply slots
· 1 minimum power supply required (ordered separately)

Fan tray

·Includes: 1 x JL088A
1 fan tray slot
Switch ships with 1 JL088A fan tray installed. Spares ordered separately.

Physical characteristics

· Dimensions (H x W x D): 4.39 x 44.25 x 43.13 cm (1.73 x 17.42 x 16.98 in) (1U height)

Memory and processor

P2020 Dual Core @ 1.2 GHz, 4 GB DDR3 SDRAM, 1 GB SD Card
Dual ARM Coretex A9 @ 1 GHz, 2 GB DDR3 SDRAM; Packet buffer size: 13.5 MB Internal

Mounting and enclosure

Mounts in an EIA-standard 19 in.
telco rack or equipment cabinet (hardware included); Horizontal surface mounting only

Performance

· IPv6 Ready Certified
· 1000 Mb Latency: < 2.8 µs (FIFO 64-byte packets)
· 10 Gb/s Latency: < 1.8 µs (FIFO 64-byte packets)
· 40 Gb/s Latency: 1.5 µs (FIFO 64-byte packets)
· Throughput: Up to 285.7 Mp/s (64-byte packets)
· Routing/Switching capacity:480 Gb/s
· Switch fabric speed:508 Gb/s
· Routing table size: 10000 entries (IPv4), 5000 entries (IPv6)
· MAC address table size: 64000 entries

Environment

· Operating temperature: 0°C to 45°C (32°F to 113°F)
· Operating relative humidity: 15% to 95% @ 40°C (104°F), noncondensing
· Nonoperating/Storage temperature: -40°C to 70°C (-40°F to 158°F)
· Nonoperating/Storage relative humidity: 15% to 90% @ 65°C (149°F), noncondensing
· Altitude: Up to 10,000 ft (3 km)
· Acoustic: Power: 39 dB, Pressure: 22.3 dB

Safety

· EN 60950/IEC 60950
· UL 60950
· UL 60950-1
· CAN/CSA 22.2 No. 60950
· EN 60825
· CSA 22.2 60950-1
· EN62479:2010
· EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013
· EN62368-1, Ed. 2
· IEC 60825:2007
· IEC 60950-1:2005 Ed.2; Am 1:2009+A2:2013
· EN60850-1:2007 / IEC 60825-1: 2007 Class1 Class 1 Laser Products / Laser Klasse 1
· UL 62368-1 Ed.2

Emissions

· FCC Class A
· VCCI Class A
· EN 55022/CISPR 22 Class A
· EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013

Immunity

· Generic: EN55022: 2010
· EN: EN55024: 2010
· ESD: IEC 61000-4-2
· Radiated: IEC 61000-4-3; 3 V/m
· EFT/Burst: IEC 61000-4-4; 1.0 kV (power line), 0.5 kV (signal line)
· Surge: IEC 61000-4-5; 1 kV/2 kV AC
· Conducted: IEC 61000-4-6; 3 V
· Power frequency magnetic field: IEC 61000-4-8; 1 A/m, 50 or 60 Hz
· Voltage dips and interruptions: IEC 61000-4-11; >95% reductions, 0.5 period; 30% reduction, 25 periods
· Harmonics: EN61000-3-2:2006 +A1:2009 +A2:2009 Class A
· Flicker: EN61000-3-3:2008

Management

· Aruba AirWave Network Management
· IMC - Intelligent Management Center
· Command-line interface
· Web browser
· Configuration menu;
· Out-of-band management (RJ-45 Ethernet)
· In-line and out-ofband
· Out-of-band management (serial RS-232c or micro usb)

Manufacturer Part No:
JL075A
Brand:
HPE
Product Type:
-
UPC
888793596616
Product Family:
-
Shipping Weight:
9.587 kg
PB Part No:
SWHAUB07512
Product Model:
-
Warranty: 60 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
