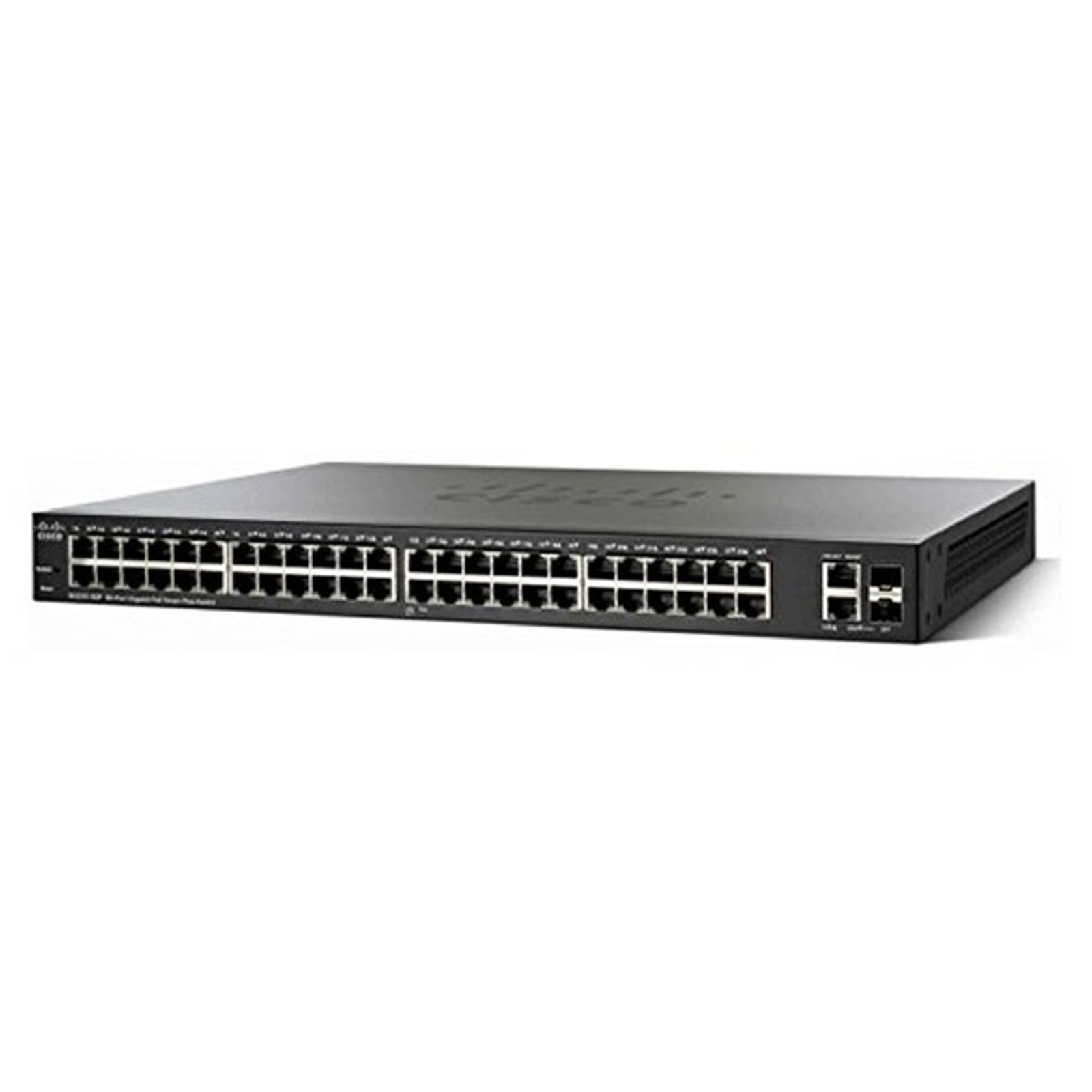

Cisco 220 Series Smart Plus Managed Switch, PoE+, 48 Ports GbE RJ-45 (48 Ports PoE+, Max 375W), 2 Ports GbE Combo RJ-45 or SFP, Limited Lifetime Warranty

PB Tech price
PB Tech price
$ 788 .18
 +GST
$ 906 .41
 inc GST

Out of stock

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

Cisco 220 Series Smart Plus Managed Switch, PoE+, 48 Ports GbE RJ-45 (48 Ports PoE+, Max 375W), 2 Ports GbE Combo RJ-45 or SFP, Limited Lifetime Warranty

  • Brand: Cisco
  • MPN: SG220-50P-K9-AU
  • Part #: SWHCIS2703553
  • UPC: 882658624926
CLEARANCE
PB Tech price
$ 788 .18 $ 906 .41
 +GST  inc GST

No store stock available. See in-stock alternatives

Click & Collect: Collect unavailable
Delivery: Out of stock When will I receive it?
  • Brand: Cisco
  • MPN: SG220-50P-K9-AU
  • Part #: SWHCIS2703553
  • UPC: 882658624926

Form Factor

1U Rackmount

10 Gigabit

No

10 Gigabit Ports

0 Ports

Management Level

Managed L2

Number of Ports

50 Ports

PoE

Yes

PoE Ports

48 Ports

PoE Budget

375 Watts

Product is out of stock. View similar products in-stock at PB Tech

Features

Exceptional performance and affordability

Cisco Small Business 220 Series Smart Plus Switches bridge the gap between managed and smart switches to offer customers the best of both worlds. Combining powerful performance with reliability, they provide the higher levels of security, management, and scalability you expect from managed switches, affordably priced like smart switches.


220 Series models

The 220 Series switches provide the management capabilities, enhanced security, and quality-of-service features needed to support business-class data, voice, security, and wireless services. Choose the best model for your needs.


Value

Enjoy the affordability of smart switches while getting the higher levels of security, management, and scalability found only in managed switches.


Enhanced security

The 220 Series offers several security capabilities, including advanced threat defense, access control lists (ACLs), and 802.1X. You can be confident that you have the protection you need.


Easy setup and management

Intuitive browser-based tools simplify setup and configuration. Advanced command-line interface (CLI) management options are also available.


Power over Ethernet (PoE)

PoE and PoE+ streamline the deployment of wireless access points, IP telephony, and video surveillance by allowing power and data to run over a single network cable.

Specifications

Forwarding rate in millions of packets per second (mpps; 64-byte packets)
74.40

Switching capacity in Gigabits per second
100

MAC Table
Up to 8192 MAC addresses

Spanning Tree Protocol (STP)
Standard 802.1d Spanning Tree support, enabled by default
Fast convergence using 802.1w (Rapid Spanning Tree [RSTP])
Multiple Spanning Tree instances using 802.1s (MSTP)
16 instances are supported

Port Grouping

Support for IEEE 802.3ad Link Aggregation Control Protocol (LACP)
-  Up to 8 groups
-  Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregation
Load balance based on source and destination MAC address, or source and destination MAC/IP

VLAN

Support for up to 256 VLANs simultaneously
Port-based and 802.1Q tag-based VLANs
Management VLAN
Guest VLAN

Auto Voice VLAN
Voice traffic is automatically assigned to a voice-specific VLAN and treated with appropriate levels of QoS

QinQ VLAN
VLANs transparently cross a service provider network while isolating traffic among customers

Generic VLAN Registration Protocol (GVRP) and Generic Attribute Registration Protocol (GARP)

Protocols for automatically propagating and configuring VLANs in a bridged domain

Head-of-Line (HOL) Blocking

HOL blocking prevention

Jumbo Frame
Frame sizes up to 9216 supported

Loopback Detection

Loopback detection provides protection against loops by transmitting loop protocol packets out of ports on which loop protection has been enabled. It operates independently of STP.

PoE Power Budget
375W

Number of Ports That Support PoE
48

Pre-Standard PoE
Support Cisco Pre-Standard PoE

Intelligent PoE Power Management

Support the granular power negotiation with CDP/LLDP communication with PD devices after IEEE classification

Buttons
Reset button

Cabling Type

Unshielded twisted pair (UTP) Category 5 or better for 10BASE-T/100BASE-TX; UTP Category 5
Ethernet or better for 1000BASE-T

LEDs

System, Link/Act, Speed

Flash
32 MB

CPU Memory
128 MB

Total System Ports
50 Gigabit Ethernet

RJ-45 Ports
48 Gigabit Ethernet

Uplink Ports
2 Gigabit Ethernet combo

Packet Buffer
12 MB

Dimensions (W x H x D)
5.28 kg

Power
100-240 V, 50-60 Hz, Internal

Certification
UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, C-tick

Operating Temperature
0-50° C

Storage Temperature

-20° C to +70° C

Operating Humidity
10% to 90%, relative, noncondensing

Storage Humidity

10% to 90%, relative, noncondensing

Manufacturer Part No:
SG220-50P-K9-AU
Brand:
Product Type:
-
UPC
882658624926
Product Family:
220 Series
Shipping Weight:
4.5 kg
PB Part No:
SWHCIS2703553
Product Model:
-
Warranty: 60 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
