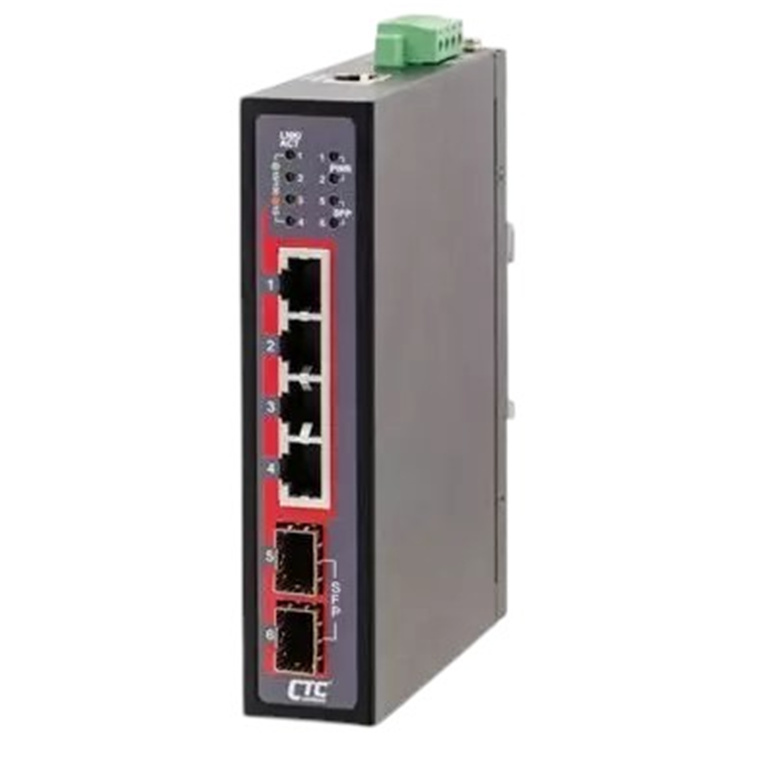

CTC Union 4 Port Gigabit Unmanaged Compact Switch. -10C +60C. 4x 10/100/1000Base-T, plus 2x100/1000Base-X SFP (Total 6 ports). 4KV Surge Protection. Din Rail with Screws Included.
CTC Union 4 Port Gigabit Unmanaged Compact Switch. -10C +60C. 4x 10/100/1000Base-T, plus 2x100/1000Base-X SFP (Total 6 ports). 4KV Surge Protection. Din Rail with Screws Included.
- Brand: CTC Union
- MPN: IGS402CS
- Part #: SWHCTC1062
- UPC:
- Brand: CTC Union
- MPN: IGS402CS
- Part #: SWHCTC1062
- UPC:
Similar in-stock products available at PB Tech right now
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Switches





CTC Union 4 Port Gigabit Unmanaged Compact Switch. -10C +60C. 4x 10/100/1000Base-T, plus 2x100/1000Base-X SFP (Total 6 ports). 4KV Surge Protection. Din Rail with Screws Included.
- Brand: CTC Union
- MPN: IGS402CS
- Part #: SWHCTC1062

Product URL: https://www.pbtech.co.nz/product/SWHCTC1062/CTC-Union-4-Port-Gigabit-Unmanaged-Compact-Switch
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
The industrial compact size Gigabit Ethernet switch IGS-402CS, plug and play easy to use, features 4 ports Gigabit UTP and equipped with 2 100/1000Base-X SFP slots for fiber optic connections to meet the requirements for extended transmission distance, fanless design, high MTBF, supports wide operating temperature, and redundant 12/24/48VDC power input, it is suitable for heavy-duty applications in harsh environments such as industrial factory automation and data centers, intelligent transportation systems, military and utility market applications where environmental conditions exceed commercial product specifications.
- 12/24/48VDC (9.6~60VDC) redundant dual power input
- Supports DIP switch to set broadcast storm protection, SFP Auto/Force Mode, SFP 100M/1000M ; RJ45 Auto/force mode, 10M/100M, Full/half.
- Supports flow control
- Provides broadcast storm protection
- DIN Rail mounting or wall mounting
Specifications
Model Name
IGS-402CS
Total Port
6
RJ45
10/100/1000 Temperature Base-T: 4
SFP
100/1000 Base-X: 2
Input Power
Redundant: 12/24/48VDC
Standard
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX and 100Base-FX Fast Ethernet
IEEE 802.3ab 1000Base-T Gbit/s Ethernet over twisted pair
IEEE 802.3z 1000Base-X Gigabit Ethernet over fiber-optic
IEEE 802.3x Flow Control and Back Pressure
Operating Humidity
5% to 95% (Non-condensing)
Storage Temperature
-40 ~ 85°C
Operating Temperature
-10~60°C
Housing
Rugged metal, IP30 Protection and fanless
Dimensions
106 x 31.6 x 142mm (D x W x H)
Weight
420g
Installation
Mounting DIN Rail mounting or wall mounting
MTBF
862,267Hours (MIL-HDBK-217)
Certification
EN62368-1EN50121-4
EN61000-6-2
EN61000-6-4
CE
FCC
