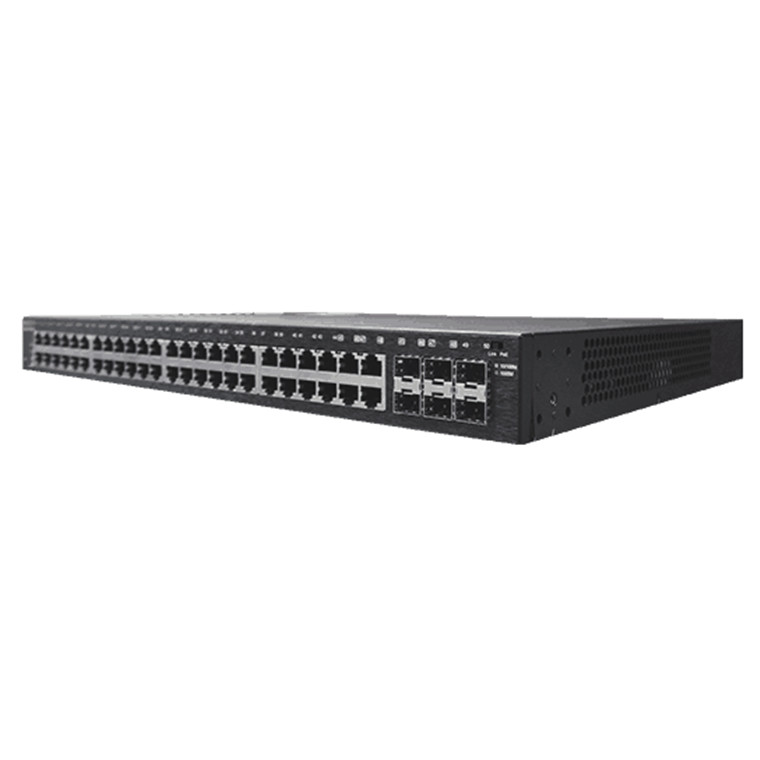

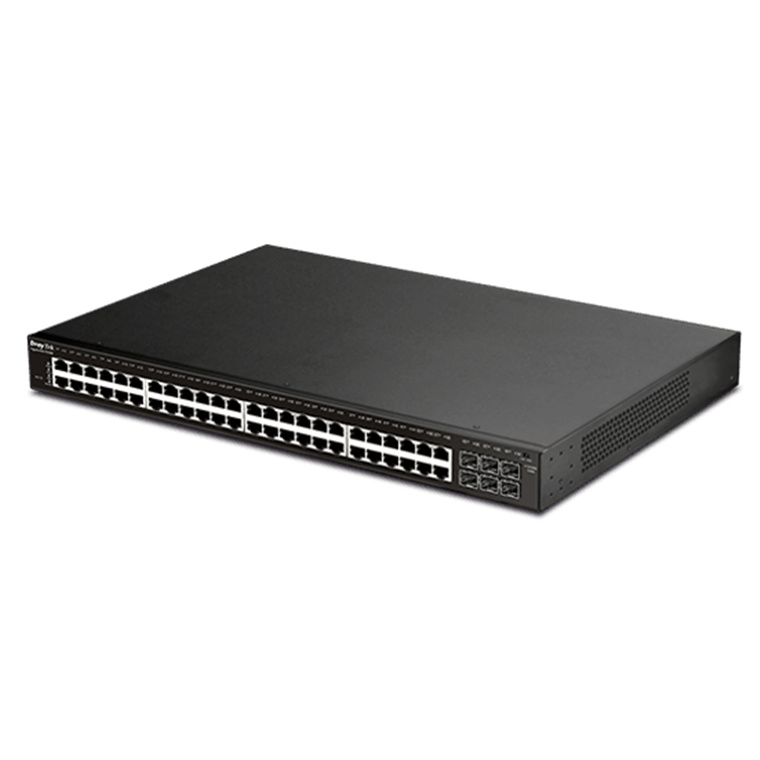

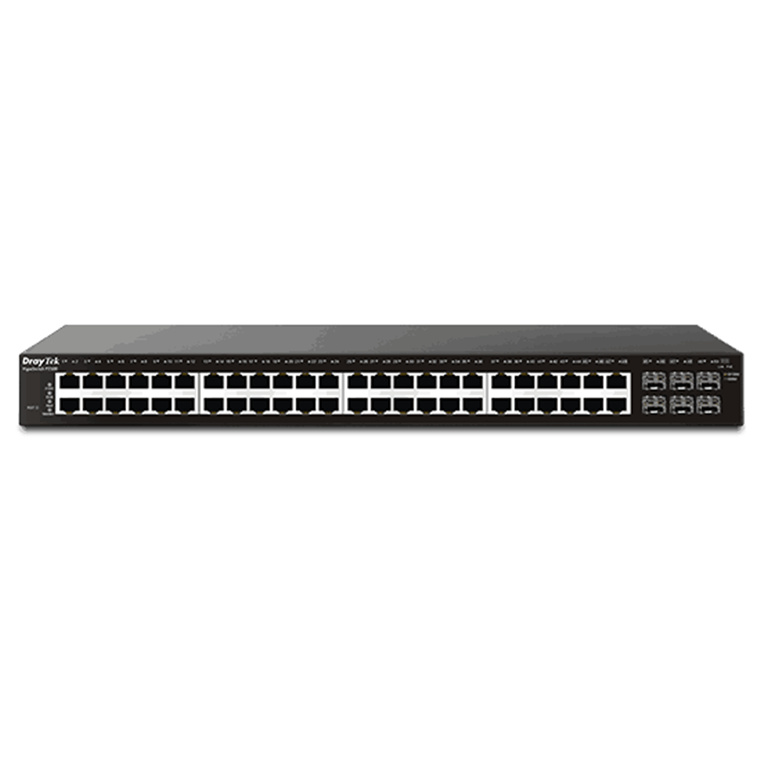

DrayTek VigorSwitch P2500 50-Port Gigabit Managed PoE+ Switch with 44 x PoE/PoE+ (Max 405W) and 2 x SFP, 4 x SFP/RJ-45 Combo Ports

DrayTek VigorSwitch P2500 50-Port Gigabit Managed PoE+ Switch with 44 x PoE/PoE+ (Max 405W) and 2 x SFP, 4 x SFP/RJ-45 Combo Ports
PB Tech price: PB Tech price:
$1,836 67  +GST $2,112 17  inc GST

Generating Print Page

DrayTek VigorSwitch P2500 50-Port Gigabit Managed PoE+ Switch with 44 x PoE/PoE+ (Max 405W) and 2 x SFP, 4 x SFP/RJ-45 Combo Ports

Rackmountable, 802.3af/at
Part #: SWHDTK2500
PB Tech price: PB Tech price:
$1,836 67 $2,112 17
 +GST  inc GST

Click & Collect: Click & Collect unavailable
Delivery: Order now and it ships on 05/10/2021 When will I receive it?

Pay only $925.54 and then five easy payments of $250.00 per week*

Laybuy lets you spread the cost of your purchase over 6, interest-free, weekly payments.

Click the button below or select Laybuy as your payment method during the checkout process.

If you do not have a Laybuy account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about Laybuy

Pay only $455.11 and then 25 easy payments of $72.12 per fortnight*

humm lets you spread the cost of your purchase over 26 interest free payments.

Click the button below or select humm as your payment method during the checkout process.

If you do not have a humm account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about humm

Finance from $18.79 per week*

Get what you want at a price you can afford. Choose a finance term below to see the weekly repayment amount and apply online during checkout or in-store.

Choose a Finance Term

*Repayments shown above are indicitive only and may vary. Ts and Cs and lending criteria apply.
Learn more about Finance Now

No payments or interest for 12 months available*

Q Card / Mastercard is your perfect shopping partner, combining the benefits of a credit card with the added ability to access a range of interest-free deals and payment holidays.

Learn more about Q Mastercard, apply online for one now, or email to chat with our finance team.

*Ts and Cs and lending criteria apply.
Learn more about Q Card

  • Brand: DrayTek
  • MPN: P2500
  • Part #: SWHDTK2500
  • UPC:
  • 10 Gigabit: No
  • 10 Gigabit Ports: 44 Ports
  • Form Factor: 1U Rackmount
  • Management Level: Managed L2
  • Number of Ports: 50 Ports
  • PoE: Yes
  • PoE Ports: 44 Ports
  • PoE Budget: 408 Watts
  • View more


A Switch for Business with Big PoE Demands

DrayTek VigorSwitch P2500 is a Layer 2 Managed Gigabit PoE switch. It has 44x Gigabit Ethernet PoE/PoE+ ports with a power budget of 405 watts. Perfect for a business network has big PoE deploy plans. There are also 4x GbE/SFP combo ports without PoE and 2x SFP ports for high-speed uplinks to the network backbone. The model provides enterprise-level features to help businesses to improve network security and stability.


- PoE (Power over Ethernet): Deliver power and data over one ethernet cable, turn on/off the PoE device periodically with PoE Schedule.
- PoE Device Check: Enable Ping Watchdog for all PoE devices, if they lose their network connection, automatically restart them by a power cycle.
- Auto Surveillance & Voice VLAN: Recognize traffic from IP cameras and IP phones automatically and add CoS tag for QoS prioritization.
- IP Conflict Prevention: Improve network stability by avoiding IP conflicts caused by a misconfigured or malicious host. Learn more
- Access Control: VigorSwitch P2500 supports ACL by IP/MAC and 802.1x port access control with RADIUS to filter unauthorized hosts.
- ONVIF-Friendly: Recognize the ONVIF devices, display surveillance topology, provide UI for video streaming and device maintenance. Learn more
- QoS (Quality of Service): Improve the performance of critical traffic by prioritizing the traffic with CoS, DSCP, and IP Precedence tag.
- IPv6 Ready: VigorSwitch P2500 supports IPv6 by offering MLD Snooping, IPv6 ACL, and IPv6 DNS Resolver.
- Multiple Admin Accounts: Multiple Admin accounts with two levels of administrator privilege.
- Central Switch Management: Set up VLAN easily from the router and get a centralized hierarchy view of the switches. Learn more
- Energy-Efficient Ethernet: Compliant with IEEE 802.3az to reduce power consumption.

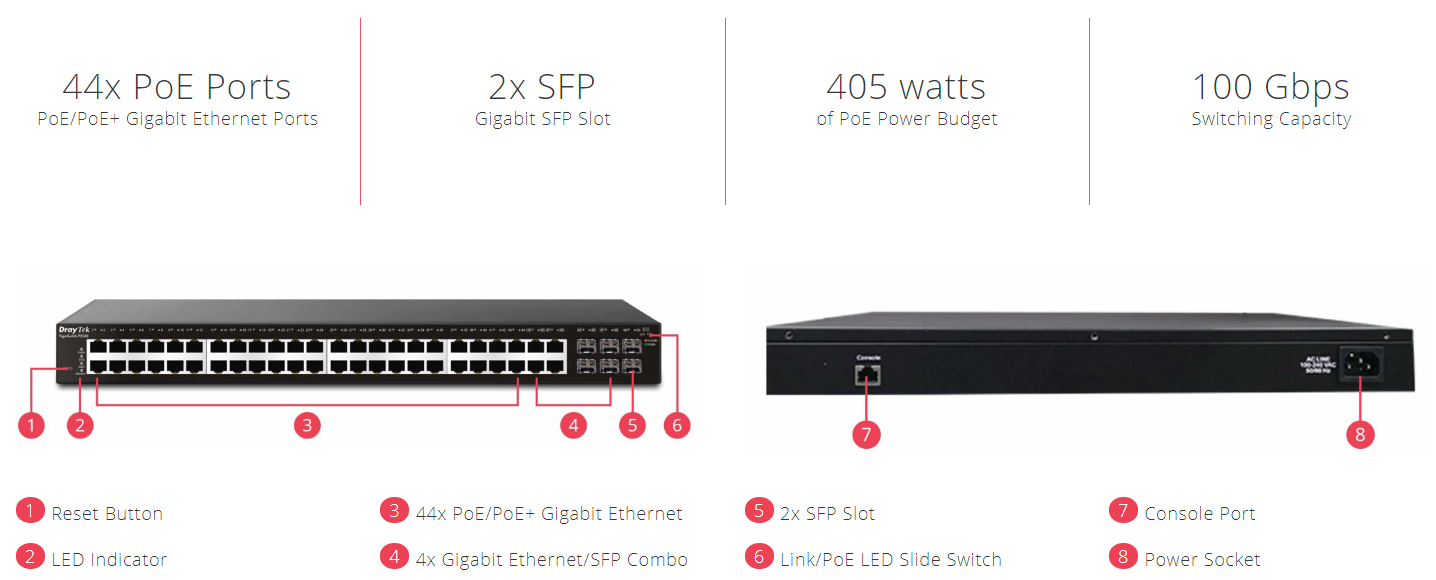

LAN Port

44x 10/100/1000Base-T, RJ-45
4x Combo 10/100/1000Bast-T / SFP
2x 100/1000Mbps Fiber SFP

Console Port

1x Gigabit Ethernet

Slide Switch

1 (Port/PoE LED)

Factory Reset Button



PoE/PoE+ (802.3af/802.3at) Port


PoE Power Budget

405 watts

Power Limit


Scheduled On/Off


Power Cycle on Port

Manual, Ping Watchdog


Buffer Size

12 Mbit

Switching Capacity

100 Gbps

Forwarding Rate

74.4 Mpps (64 bytes)

MAC Address Table


Jumbo Frame

Up to 12KB

Networking Standards

IP Version

IPv4, IPv6

Ethernet Standards

802.3af PoE
802.3at PoE+
802.3 10Base-T
802.3u 100Base-T
802.3ab 1000Base-T
802.1q Tag-based VLAN
802.3x Flow Control
802.3 Auto-Negotiation
802.1p Class of Service
802.1d STP
802.1w RSTP
802.1s MSTP
802.3ad LACP
802.1x Port Access Control
802.1AB LLDP
802.3az EEE


Max.Number of VLAN


VLAN Type

802.1q Tag-based
Management VLAN
Voice VLAN
Surveillance VLAN

Port Isolation (Protected Port)






ONVIF Surveillance



Surveillance Topology


Real-Time Video Streaming


ONVIF Device Maintenance

Firmware Upgrade, Configuration Backup, Reset Factory Default, Time Settings, Reboot


Number of QoS Queues


Rate Limit

Port-Based Ingress and Egress

Queue Scheduling


CoS (Class of Service)

802.1p CoS, DSCP, CoS-DSCP, IP Precedence


Access Control List

MAC, IPv4, IPv6

Storm Control

Broadcast, Unknown Multicast, Unknown Unicast

DoS Defense


802.1x Port Access Control


IP Source Guard


IP Conflict Prevention


Loop Protection


Dynamic ARP Inspection


DHCP Snooping with Option 82


Link Aggregation

Max. Number of Group


Max. Number of Member in Each Group



Static, LACP

Traffic Load Balancing

MAC Address, IP/MAC Address


IGMP Snooping

v2, v3(BISS)

IGMP Querier

v2, v3(BISS)

MLD Snooping

v1, v2

Max. Number of Multicast Group


Group Throttling


Group Filtering


MVR (Multicast VLAN Registration)



Web Interface


Command Line Interface

Telnet, SSH

OpenVPN Client

Certificate-based authentication

User Authentication

Local Database, RADIUS, TACACS+


v1, v2c, v3

RMON Group

1, 2, 3, 9


LLDP-MED, Media Endpoint Discovery Extension

Mail Alert

Port Status, Port Speed, System Restart, IP Conflict



2-Level Admin Privilege


Multiple Admin Accounts


Managed by Vigor Router SWM


Config File Export/Import


Dual Image


SNTP (Simple Network Time Protocol)


Diagnostics Tools

Port Mirroring, Ping, Cable Test


19-inch Rack Mountable

Yes, Mouting Kit Included

Max. Power Consumption

480 watts

Dimension (mm)

440 x 330 x 44.5


6.75 kg (14.9 lb)


Variable-speed Fan

Operating Temperature

0 to 45°C

Storage Temperature

-20 to 70°C

Operating Humidity

10 to 90% non-condensing

Storage Humidity

5 to 90% non-condensing



Manufacturer Part No:
Product Type:
Product Family:
Shipping Weight:
3 kg
PB Part No:
Product Model:
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
