Edgecore 5 Port Lite L2 Smart Gigabit Web Managed PoE Switch with 4 PoE Ports (30W). 120WPowerBudget. 6KV Power Surge Protection. Fanless Design.

PB Tech price
PB Tech price
$ 227 .76
 +GST
$ 261 .92
 inc GST

Out of stock

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

Edgecore 5 Port Lite L2 Smart Gigabit Web Managed PoE Switch with 4 PoE Ports (30W). 120WPowerBudget. 6KV Power Surge Protection. Fanless Design.

  • Brand: Edgecore
  • MPN: ECS1100-5P
  • Part #: SWHEDG1100
  • UPC:
PB Tech price
$ 227 .76 $ 261 .92
 +GST  inc GST

No store stock available. See in-stock alternatives

Click & Collect: Collect unavailable
Delivery: Out of stock When will I receive it?
  • Brand: Edgecore
  • MPN: ECS1100-5P
  • Part #: SWHEDG1100
  • UPC:

10 Gigabit

No

10 Gigabit Ports

0 Ports

Management Level

Managed

Number of Ports

5 Ports

PoE

Yes

PoE Ports

4 Ports

PoE Budget

120 Watts

Stacking

Not Specified

Product is out of stock. View similar products in-stock at PB Tech

Features

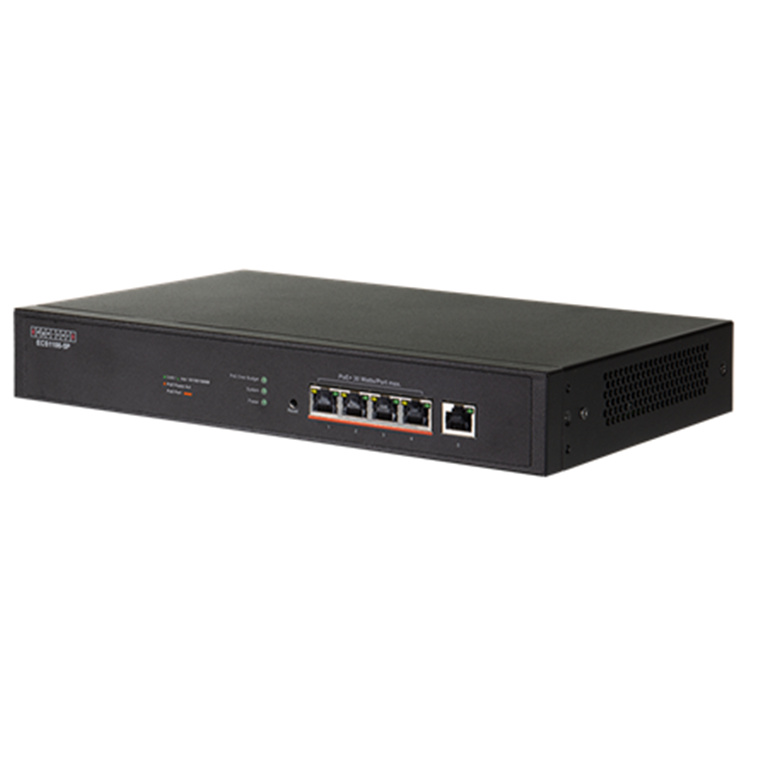

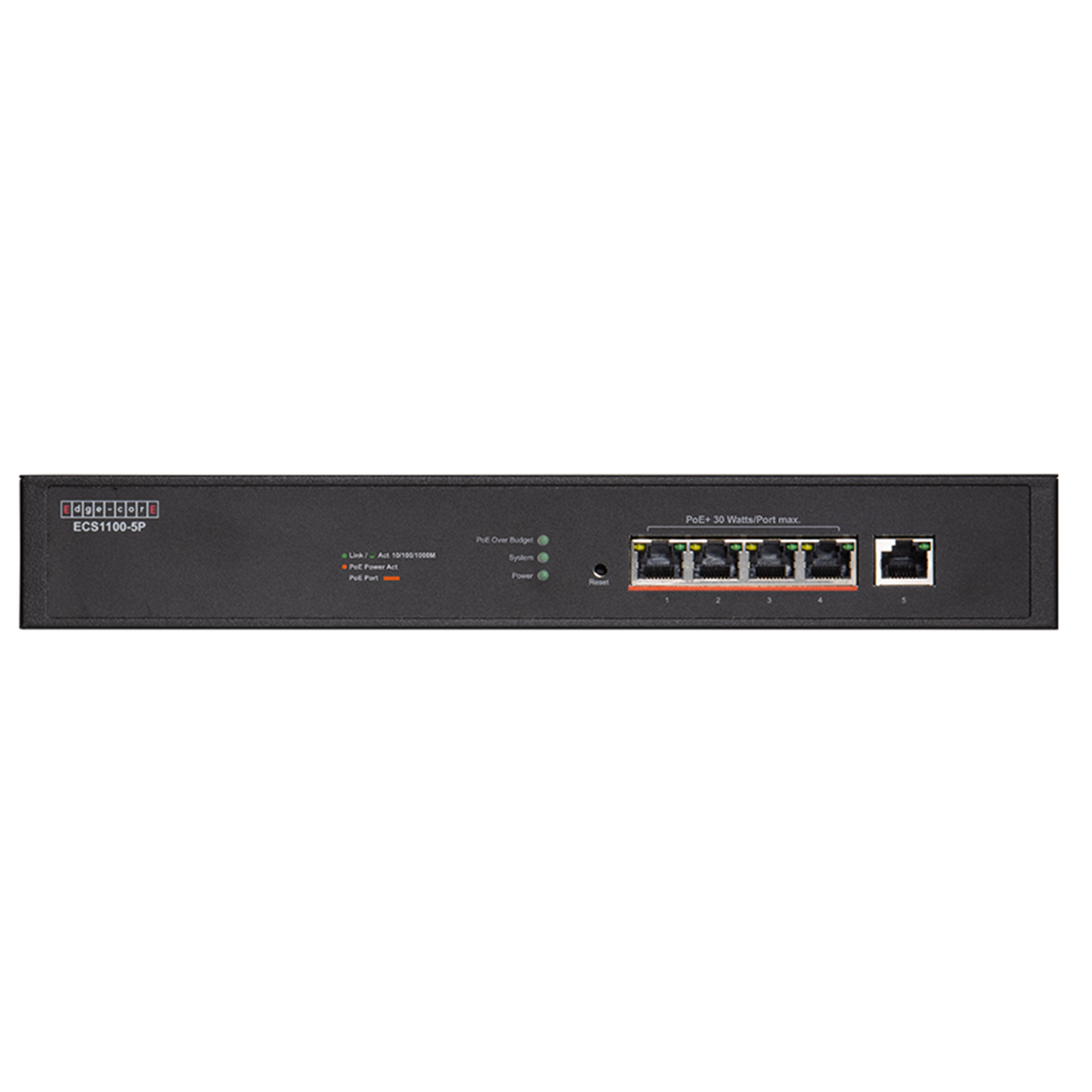

EDGECORE 5 Port Lite L2 Smart Gigabit Web Managed PoE Switch

The ECS1100 Series is Edgecore's latest generation of cost-effective smart switches. The ECS1100 Series is designed for SMB and enterprise markets with complete solutions from 5 to 28 ports, including 802.3af/at/bt PoE options. The switches comply with the IEEE 802.3az Energy Efficient Ethernet standard and support IPv4 management features.

The ECS1100-5P is a rack-mountable PoE switch featuring a fanless design. It supports four ports, each delivering up to 30W, addressing the growing power requirements of users.

The switches comply with the IEEE 802.3az Energy Efficient Ethernet standard and support IPv4 management features.

- 1 x RJ-45 10/100/1000 Uplink Port
- 4 x RJ-45 PoE Ports
- af/at 120W
- 10 Gbps Switching Capacity
- Support ecCLOUD

Network Application

Specifications

Product Model

ECS1100-5P

Port

RJ-45 10/100/1000 Ports

5

100/1000 SFP Ports

0

Performance

Switching Capacity

10 Gbps

Forwarding Rate

7.44 Mpps

Flash Memory

8 MB

SRAM (Built-In)

256 KB

Packet Buffer Size

4 Mbits

MAC Address Table Size

8 K

Jumbo Frames

15 KB

Auto-negotiation, Auto-MDI/MDIX

Yes

Surge Protection

6KV (RJ-45), 6KV (Power)

MTBF

= 200,000 hrs

Heat Dissipation

477.7

Acoustic Noise

0

PoE

PoE Ports

4

PoE++ based on IEEE 802.3bt (up to 90 W)

No

PoE+ based on IEEE 802.3at/802.3af

Yes

Auto Disable a?ter Exceeding Power Budget

Yes

Dynamic Power Allocation

Yes

PoE Power Budget

120 W

Mechanical

Dimension (W x D x H)

294 x 180 x 44 mm

Weight

1.44 kg (3.17 lb)

Power Supply

100-240 VAC, 50-60 Hz

Yes

Max System Power Consumption (Watts)

140 W

Environmental

Operating Temperature

0 - 50ºC

Storage Temperature

-40 - 70ºC

Operating Humidity (non-condensing)

10% to 90%

Storage Temperature (non-condensing)

10% to 90%

WEEE

Yes

RoHS

Yes

Certification

FCC Class A

Yes

CE

Yes

Safety Compliance: LVD

Yes

VCCI/BSMI

Yes

UKCA

Yes

Manufacturer Part No:
ECS1100-5P
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
3 kg
PB Part No:
SWHEDG1100
Product Model:
-
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
