Grandstream GWN7802P-PRO 16-Port 10G L2+ Managed PoE Switch(250W) 10G SFP+ x2 / 1GbE x16
Grandstream GWN7802P-PRO 16-Port 10G L2+ Managed PoE Switch(250W) 10G SFP+ x2 / 1GbE x16
- Brand: Grandstream
- MPN: GWN7802P-PRO
- Part #: SWHGSM9942149
- UPC:
- Brand: Grandstream
- MPN: GWN7802P-PRO
- Part #: SWHGSM9942149
- UPC:
Features
Enterprise Layer 2++ Managed Network Switches
The next generation of Grandstream's layer 2 network switches is here. The GWN7800 Pro Series is ideal for demanding businesses as it provides maximum layer 2++ performance thanks to high-speed SFP or SFP+ ports that enable network speeds up to 10Gbps.
- All models include high-speed SFP or SFP+ ports
- Offers double the RAM and CPU of the GWN7800 Series
- Smart power control to support dynamic PoE/PoE+/PoE++ (on select models) and power allocation per port for the PoE-capable models
- ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
- Flexible management options include the controller embedded in their WebUI, GDMS Networking (cloud), GWN Manager (software), GWN Series Routers, and CLI

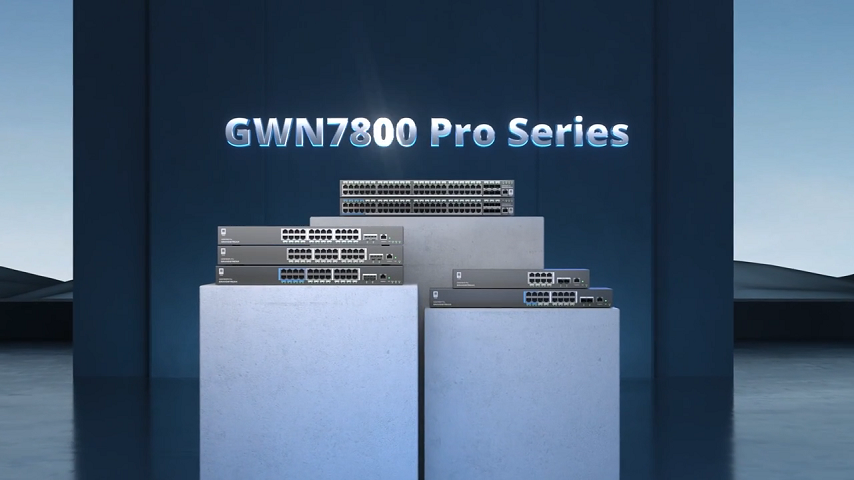

The Next Generation of Grandstream Switches
The new generation of Grandstream's layer 2 network switches is here. The GWN7800 Pro Series is ideal for demanding businesses as it provides maximum performance and network speeds.

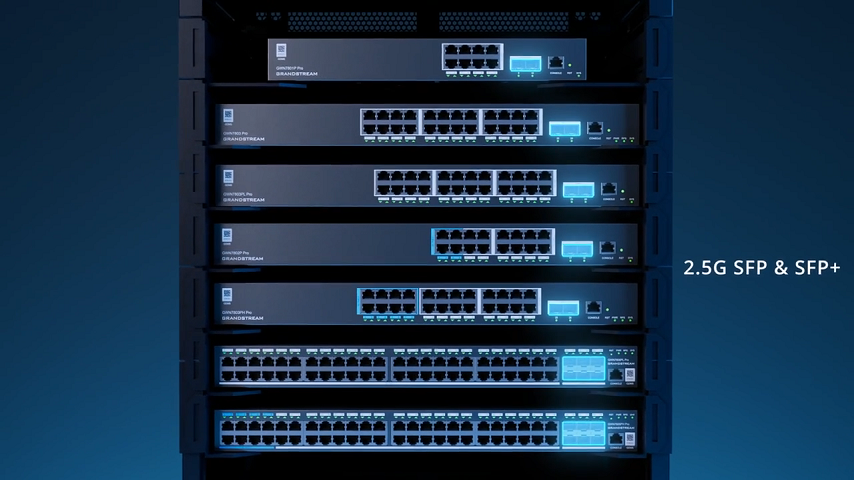

Maximum Network Speeds
With built-in SFP+ (10 Gbps) and SFP (2.5 Gbps) ports, the GWN7800 Pro Series is ideal for demanding network environments.
Double the Power and Memory
The GWN7800 Pro Series provides double the CPU and RAM of Grandstream's previous generation of Layer 2+ switches.

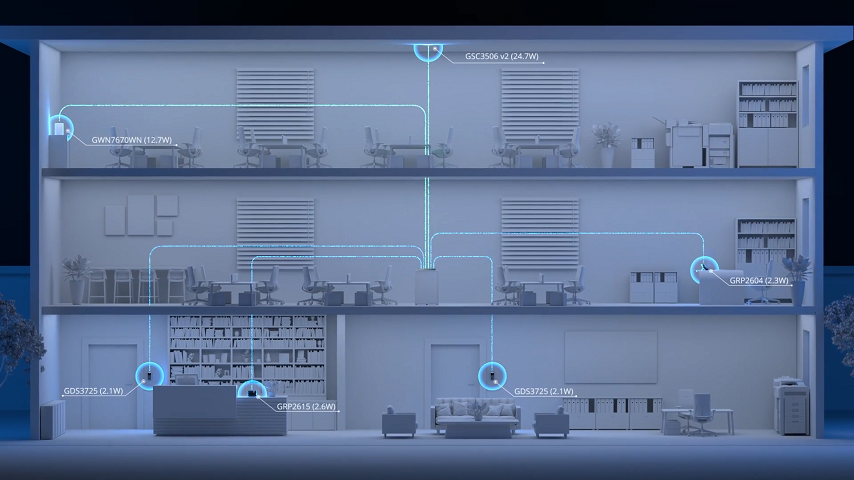

Intelligent and Efficient Power Management
Available with PoE++ and PoE+ ports, the GWN7800 Pro Series intelligently provides power as needed to maximize energy efficiency.

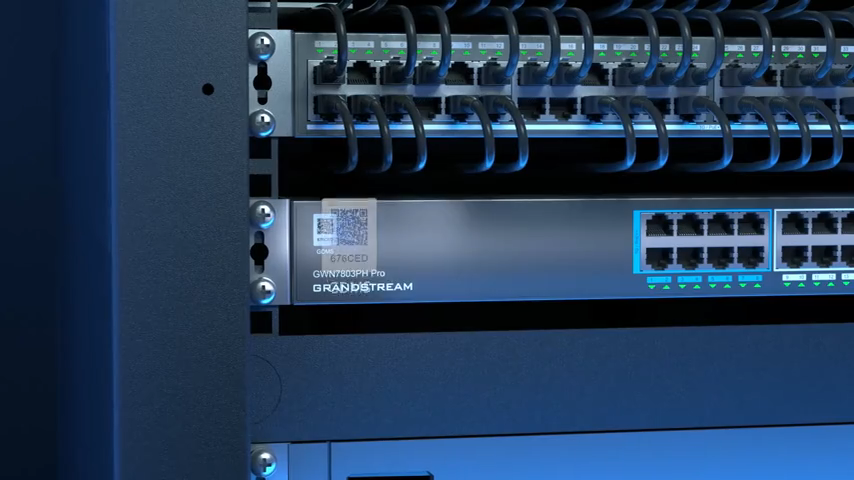

Setup in Seconds
Simply scan the QR code on any GWN7800 Pro Series device to add it to your GDMS or GWN Manager account for easy management.
Ideal for Demanding Networking Environments
Ideal for enterprises, education, medical, and hospitality deployments, the GWN7800Pro Series provides the speeds and capacity to support the most demanding networks.
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-7 working days and tracking links for these deliveries can take a few days to generate.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Related Promotions
Popular Enterprise Switches
Ubiquiti Unifi USW-Pro-XG-8-PoE 10-Port 10G L3 Managed...
Ubiquiti Unifi USW-Pro-XG-10-PoE 12-Port 10G L3 Managed...
Grandstream GWN7821P 10-Port 10G L3 Managed PoE Switch (240W) -...
Grandstream GWN7822P 28-Port 10G L3 Managed PoE Switch (360W) -...
Ubiquiti UniFi ECS-24-POE 26-Port 25G L3 Managed PoE Switch ...
Grandstream GWN7802P-PRO 16-Port 10G L2+ Managed PoE Switch(250W) 10G SFP+ x2 / 1GbE x16
- Brand: Grandstream
- MPN: GWN7802P-PRO
- Part #: SWHGSM9942149
Product URL: https://www.pbtech.co.nz/product/SWHGSM9942149/Grandstream-GWN7802P-PRO-16-Port-10G-L2-Managed-Po
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
Enterprise Layer 2++ Managed Network Switches
The next generation of Grandstream's layer 2 network switches is here. The GWN7800 Pro Series is ideal for demanding businesses as it provides maximum layer 2++ performance thanks to high-speed SFP or SFP+ ports that enable network speeds up to 10Gbps.
- All models include high-speed SFP or SFP+ ports
- Offers double the RAM and CPU of the GWN7800 Series
- Smart power control to support dynamic PoE/PoE+/PoE++ (on select models) and power allocation per port for the PoE-capable models
- ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
- Flexible management options include the controller embedded in their WebUI, GDMS Networking (cloud), GWN Manager (software), GWN Series Routers, and CLI
The Next Generation of Grandstream Switches
The new generation of Grandstream's layer 2 network switches is here. The GWN7800 Pro Series is ideal for demanding businesses as it provides maximum performance and network speeds.
Maximum Network Speeds
With built-in SFP+ (10 Gbps) and SFP (2.5 Gbps) ports, the GWN7800 Pro Series is ideal for demanding network environments.
Double the Power and Memory
The GWN7800 Pro Series provides double the CPU and RAM of Grandstream's previous generation of Layer 2+ switches.
Intelligent and Efficient Power Management
Available with PoE++ and PoE+ ports, the GWN7800 Pro Series intelligently provides power as needed to maximize energy efficiency.
Setup in Seconds
Simply scan the QR code on any GWN7800 Pro Series device to add it to your GDMS or GWN Manager account for easy management.
Ideal for Demanding Networking Environments
Ideal for enterprises, education, medical, and hospitality deployments, the GWN7800Pro Series provides the speeds and capacity to support the most demanding networks.
Specifications
MPN
GWN7802P-PRO
Gigabit Ethernet Ports
16
SFP/SFP+ Ports
2x SFP+
Maximum Amount of Supported Modules
SM-10G: 2, MM-10G: 2, RJ45-10G: 2
MGMT Ports
1x Console port
Auxiliary Ports
1x Reset Pinhole
System LEDs
1x tri-color LED for device tracking and status indication
Data Transferring LEDs
18x green-color LEDs
PoE Supply LEDs
16x yellow-color LEDs
Flash
32MB Nor Flash
RAM
256MB RAM
CPU
Single-core, MIPS interAptiveTM 1GHz
Forwarding Mode
Store-and-forward
Total non-blocking throughput
36Gbps
Switching Capability
72Gbps
Forwarding Rate
53.568Mpps
Packet Buffer
8.4Mb
Network Latency
<4µs
Power Supply
100-240V~ 50/60Hz
Max Power Consumption
21.8W, 294.4W(PoE 250W)
Max Output Power
294.4W
PoE Standards
IEEE 802.3af/at/bt
Number of PoE Ports
16
Max Output Power per PoE Port
60W
Max Total PoE
Output Power 250W
Network Protocol
IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af/at/bt, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1d, IEEE 802.1w, IEEE 802.1s, IEEE 802.1x
Stacking
No
Switching
Jumbo frame (maximum length: 12288), 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, QinQ, MAC-based VLAN, Protocol-based VLAN, Voice VLAN including auto voice VLAN, tagged OUI and untagged OUI, GVRP(pending), ERPS(pending), Spanning tree, support STP/RSTP/MSTP/PVST(+)/RPVST(+), 16 instances for MSTP/PVST(+)/RPVST(+), 16K MAC addresses including static, dynamic and filtering MAC address, Link aggregation, including static and LACP, Up to max 8 LAG groups and up to 8 members per LAG group
IP Service
DHCP client, DHCP server, DHCP relay and DHCP snooping, DHCPv6 client and DHCPv6 snooping, ND snooping, DNS, 64 ARP/NDP, including static and dynamic ARP/NDP, dynamic ARP/NDP, 16 VLAN virtual interfaces with 9216 MTU
Unit Dimension
440mm(L) × 200mm(W) × 44mm(H)
Unit Weight
2.9kg
Mounting
Desktop, Wall-Mount, or Rack-Mount (rack-mounting kits included)
Temperature
Operation 0°C to 45°C, Storage: -10°C to 60°C
Humdity
Operation 10% to 90% RH(Non-condensing), Storage: 5% to 95% RH(Non-condensing)
MTBF
70,000H
Fan
2
CPU Monitoring
Montioring CPU usage, over-CPU usage alarming
Memory Usage
Monitoring memery usage, over-memory usage alarming
Power Supply Monitoring
Monitoring of power supply model and status, Power supply failure alarming
Fan Monitoring
Automatic speed adjustment, Fan failure alarming
Temperature Monitoring
Temperature monitoring, over-temperature alarming
Management Platform
Local Web GUI: embedded controller, GDMS Networking: free cloud management platform for unlimited GWN7800 Pro series switches, GWN Manager: premise-based software controller, GWN APP: integrated GDMS Networking and GWN Manager to manage GWN7800 Pro series switches via the APP, Management Protocol: SNMP, RMON, TR-069 (pending)
Surge Protection
± 6KV CM for power, ± 4KV CM for network ports
ESD
± 12KV for contact discharge
Compliance
FCC, CE, RCM, IC
