HiLook NS-0106P-35 6-Port 10/100M Unmanaged PoE Switch, 4-Port PoE (Max 35W)

HiLook NS-0106P-35 6-Port 10/100M Unmanaged PoE Switch, 4-Port PoE (Max 35W)

  • Brand: HiLook
  • MPN: NS-0106P-35
  • Part #: SWHHLK0106
  • UPC:

Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 30 Sep When will I receive it?
Sign in to your commercial account or apply online now to view the price and order this product
  • Brand: HiLook
  • MPN: NS-0106P-35
  • Part #: SWHHLK0106
  • UPC:

10 Gigabit

N/A

10 Gigabit Ports

N/A

Form Factor

Not Specified

Management Level

Unmanaged

Number of Ports

6 Ports

PoE

Yes

PoE Ports

4 Ports

PoE Budget

35 Watts

Similar in-stock products available at PB Tech right now

Features

NS-0106P-35 switches are layer 2 unmanaged PoE switches, providing advanced PoE power supply technology based on high-performance access to ensure stable data upload. The switches support long-range functions.

- 4x 10/100Mbps PoE ports, and and 2x 10/100Mbps RJ45 ports
- IEEE 802.3at/af standard for PoE ports (Max. 35W PoE output)
- IEEE 802.3, IEEE 802.3u, and IEEE 802.3x standard
- 6kV surge protection for PoE ports
- Up to 250m long-range transmission
- Wire-speed forwarding
- Store-and-forward switching
- Solid high-strength metal shell
- Reliable fan-free design

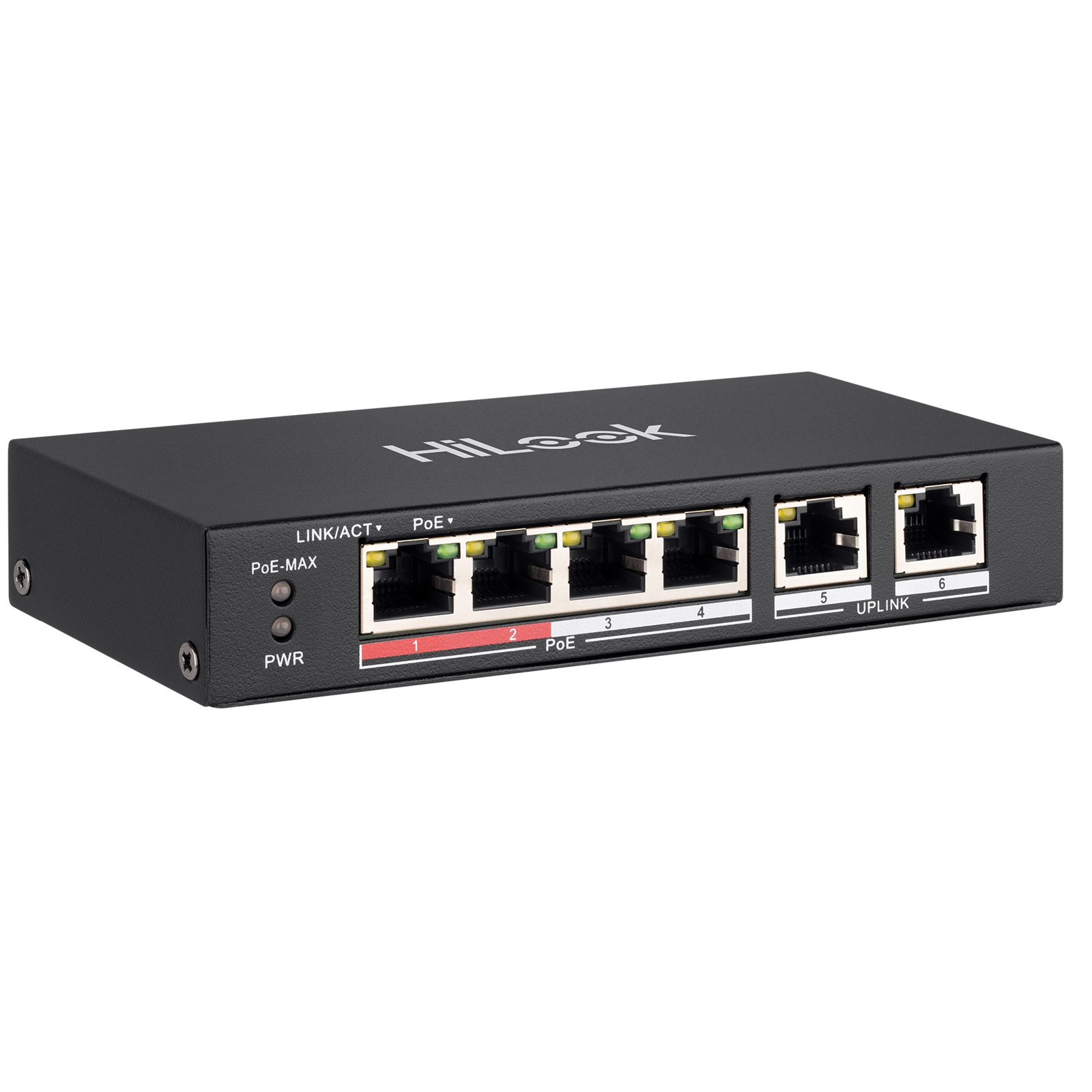

Front panel

Back panel

Dimension (unit: mm)

Specifications

General

Model

NS-0106P-35

Shell

Metal material, fan-free design

Net Weight

0.265

Dimension (L × H × D)

145 mm × 68.45 mm × 25.6 mm (5.71" × 2.69"  × 1.01" )

Operating Temperature

-10°C to 40°C (14°F to 104°F)

Storage Temperature

-40°C to 85°C (-40°F to 185°F)

Operating Humidity

5% to 95% (no condensation)

Storage Humidity

5% to 95% (no condensation)

Power Supply

48 VDC, 0.8 A

Power Consumption in Idle

< 5 W

Power Souce

38 W

Max. Power Consumption

38 W

PoE Power Supply

PoE Standard

Ports 1 to 4: IEEE 802.3af, IEEE 802.3at

PoE Power Pin

Ports 1 to 4: Ethernet cables 1/2/3/6 and 4/5/7/8 provide power supply simultaneously.

PoE Port

Ports 1 to 4

Max. Port Power

Ports 1 to 4: 30 W

PoE Power Budget

35 W

Network Parameters

Port Number

4 x 10/100Mbps PoE ports, and and 2 × 10/100Mbps RJ45 ports

Port Type

RJ45 port, full duplex, MDI/MDI-X adaptive

Standard

IEEE 802.3, IEEE 802.3u, IEEE 802.3x

Forwarding Mode

Store-and-forward switching

High priority ports

Ports 1 and 2

Ports for Long-Distance Transmission

Ports 1 to 4

MAC Address Table

4 K

Switching Capacity

1.6 Gbps

Packet Forwarding Rate

0.8928 Mpps

Internal Cache

768 Kbits

Dialing Function

Long Range

Ports 1 to 4: up to 250m.

Approval

EMC

FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000- 3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)

Safety

UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CELVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)

Chemistry

CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Manufacturer Part No:
NS-0106P-35
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
3 kg
PB Part No:
SWHHLK0106
Product Model:
NS-0106P-35
