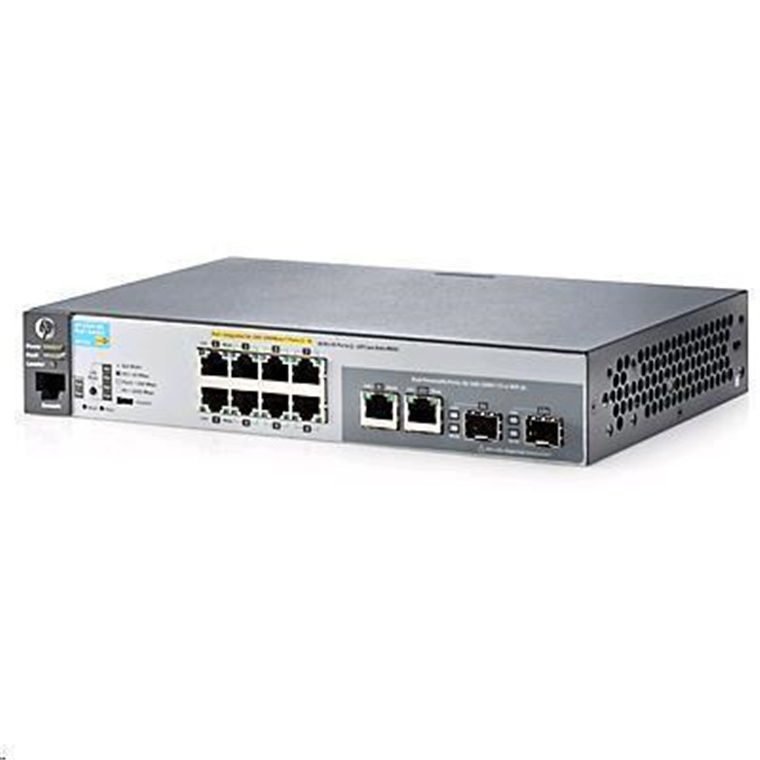

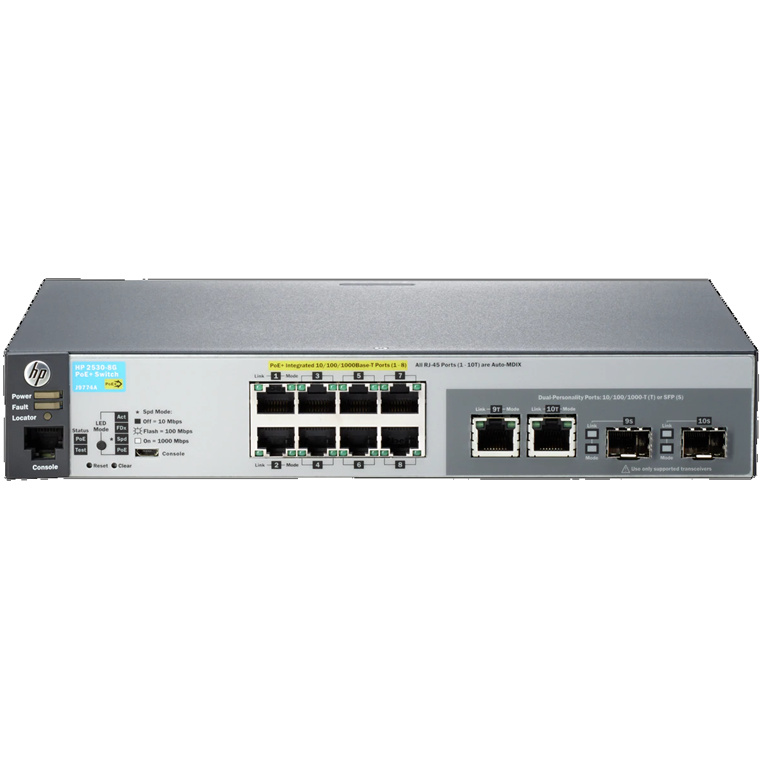

HPE 2530 8G PoE+ L2 Managed Ethernet Switch, 8 Port RJ-45 GbE PoE+ (67W Total Budget), 2 Port Combo (1G RJ-45 or SFP), Lifetime Warranty
Out of stock
HPE 2530 8G PoE+ L2 Managed Ethernet Switch, 8 Port RJ-45 GbE PoE+ (67W Total Budget), 2 Port Combo (1G RJ-45 or SFP), Lifetime Warranty
- Brand: HPE
- MPN: J9774A
- Part #: SWHHPC0405
- UPC: 886112457976
- Brand: HPE
- MPN: J9774A
- Part #: SWHHPC0405
- UPC: 886112457976
Features
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Switches
Ubiquiti UniFi USW-Flex-Mini 5-Port Gigabit L2 Managed Switch -...
TP-Link TL-SG1005D 5-Port Gigabit Desktop Switch
TP-Link TL-SG108PE 8-Port Gigabit Easy Smart PoE Switch with 4...
Ubiquiti UniFi USW-Lite-8-POE 8-Port Gigabit L2 Managed PoE...
TP-Link TL-SG105 5-Port 10/100/1000Mbps Desktop Switch
HPE 2530 8G PoE+ L2 Managed Ethernet Switch, 8 Port RJ-45 GbE PoE+ (67W Total Budget), 2 Port Combo (1G RJ-45 or SFP), Lifetime Warranty
- Brand: HPE
- MPN: J9774A
- Part #: SWHHPC0405
- UPC:886112457976
Product URL: https://www.pbtech.co.nz/product/SWHHPC0405/HPE-2530-8G-PoE-L2-Managed-Ethernet-Switch-8-Port
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Newmarket | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
Cost-Effective, Reliable and Secure Access Layer Switches
The HP 2530 Switch Series provides secure, reliable and ease of use for enterprise edge, branch office, and SMB deployments. Fully managed switches deliver full Layer 2 capabilities with optional PoE+, 10GbE uplinks, enhanced access security, traffic prioritization, sFlow, IPv6 host support, and include Lifetime Warranty 2.0. Right size deployment with choice of 8, 24, and 48 port models available with Gigabit or Fast Ethernet ports, optional PoE+ and optional 10GbE uplinks. Power savings with fanless models, Energy Efficient Ethernet (IEEE 802.3az), and ability to disable LEDs and enable port low power mode. Lifetime Warranty 2.0 with 3 years 24x7 phone support and no software licensing required.
Security and Quality of Service
The HP 2530 Switch Series supports flexible authentication methods including 802.1X, MAC, and Web Authentication for greater security and policy-driven application authentication. Advanced denial of service (DOS) protection, such as DHCP Protection, Dynamic ARP protection, and Dynamic IP lockdown, and flexible traffic controls include ACLs and QoS. Traffic prioritization with IEEE 802.1p allows real-time traffic classification with support for eight priority levels mapped to either two or four queues; uses weighted deficit round robin (WDRR) or strict priority (SP).
Simple Deployment and Management
The HP 2530 Switch Series supports choice of management interface with Web GUI, command-line interface (CLI) and Simple Network Management Protocol (SNMP), using console or micro USB ports. Quiet operation with fanless and variable speed fan models. Flexible deployment with wall, table, and rack mounting options.
Single View of the Network
The HP 2530 Switch Series can be seamlessly managed with HP Intelligent Management Center (IMC) to provide end-to-end network transparency with consistent network experience through comprehensive configuration, compliance and policy management. RMON, and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms and events.
Access control lists (ACLs): accommodates IPv4/IPv6 port and VLAN-based ACLs (IPv6 ACL is supported only on Gigabit Ethernet and 48-port models). Source-port filtering: allows only specified ports to communicate with each other. RADIUS/TACACS+: eases switch management security administration by using a password authentication server. Secure Sockets Layer (SSL): encrypts all HTTP traffic, allowing secure access to the browser-based management GUI in the switch. Port security: allows access only to specified MAC addresses, which can be learned or specified by the administrator.
LLDP-MED (Media Endpoint Discovery): defines a standard extension of LLDP that stores values for parameters such as QoS and VLAN to automatically configure network devices such as IP phones. IP multicast (data-driven IGMP): prevents flooding of IP multicast traffic. IEEE 802.1AB Link Layer Discovery Protocol (LLDP): facilitates easy mapping using network management applications with LLDP automated device discovery protocol. PoE and PoE+ allocations: support multiple method (automatic, IEEE 802.3at dynamic, LLDP-MED fine grain, IEEE 802.3af device class, or user specified) to allocate and manage PoE/PoE+ power for more efficient energy use. Voice VLAN: uses LLDP-MED to automatically configure a VLAN for IP phones.
Port trunking and link aggregation: Trunking: supports up to eight links per trunk to increase bandwidth and create redundant connections; supports L2, L3, and L4 trunk load-balancing algorithm (L4 trunk load balancing is supported only on Gigabit Ethernet and 48-port models). IEEE 802.3ad Link Aggregation Protocol (LACP): eases configuration of trunks through automatic configuration. IEEE 802.1s Multiple Spanning Tree: provides high link availability in multiple VLAN environments by allowing multiple spanning trees; provides legacy support for IEEE 802.1d and IEEE 802.1w.
Specifications
Address table size
16000 entries
Form Factor
1U height
Input Frequency
50/60 Hz
Input Operating Current
1.4 A
Input Voltage
100 - 127 / 200 - 240 VAC
Management features
IMC - Intelligent Management Center; command-line interface; Web browser; configuration menu; out-of-band management (serial RS-232C or Micro USB); IEEE 802.3 Ethernet MIB; Repeater MIB; Ethernet Interface MIB
Manufacturer Warranty
Lifetime, advance replacement, next business day, phone support, software releases
Ports
8 RJ-45 autosensing 10/100/1000 PoE+ ports; 2 dual-personality ports; Included
Power consumption
86 W (maximum)
Product dimensions (W x D x H)
10 x 6.28 x 1.75 in
Technical Notes
When using SFPs with this product, SFPs with revision "B" or later (product number ends with the letter "B" or later, e.g., J4858B, J4859C) are required.
Weight ( Metric )
1 kg
Interfaces/Ports Modular
No
Total Number of Network Ports
8
Bypass
No
Token Ring Port
No
LRE Port
No
USB
No
Management Port
Yes
Number of PoE+ (RJ-45) Ports
8
Number of Network (RJ-45) Ports
2
Port/Expansion Slot Details
10 x Gigabit Ethernet Network
2 x Gigabit Ethernet Expansion Slot
Network Technology
10/100/1000Base-T
Media Type
Supported Twisted Pair
Ethernet Technology
Gigabit Ethernet
I/O Expansions
Number of Total Expansion Slots
2
Number of SFP Slots
2
Expansion Slot Type
SFP
Shared SFP Slot
Yes
Network & Communication
Layer Supported
2
Management & Protocols
Manageable
Yes
Management
MIB II
Command Line Interface (CLI)
SNMP v1/2c/3
QoS
VLAN
Web-based Management
DHCP
Telnet
RMON
Intelligent Management Center
sFlow
Memory
Standard Memory
256 MB
Memory Technology
DDR3 SDRAM
Flash Memory
128 MB
Power Description
PoE (RJ-45) Port
No
Input Voltage
110 V AC
220 V AC
Power Source
Power Supply
Physical Characteristics
Compatible Rack Unit
1U
Form Factor
Rack-mountable
Wall Mountable
Desktop
Height
1.8"
Width
10"
Weight (Approximate)
2.20 lb
Depth
6.3"
Miscellaneous
Certifications & Standards FCC
Class A certified
CISPR 22 Class A
CISPR 24
EN 61000-3-2
IEC 61000-3-2
IEC 61000-3-3
IEC 61000-4-11
IEC 61000-4-2
IEC 61000-4-3
IEC 61000-4-4
IEC 61000-4-5
IEC 61000-4-6
IEC 61000-4-8
VCCI Class A ITE
EN 61000-3-3
EN55024
EN55022 Class A
UL 60950-1
IEC 60950-1
EN 60950-1
EN 60825
CSA C22.2 No. 60950-1
Warranty
Limited Warranty Lifetime
