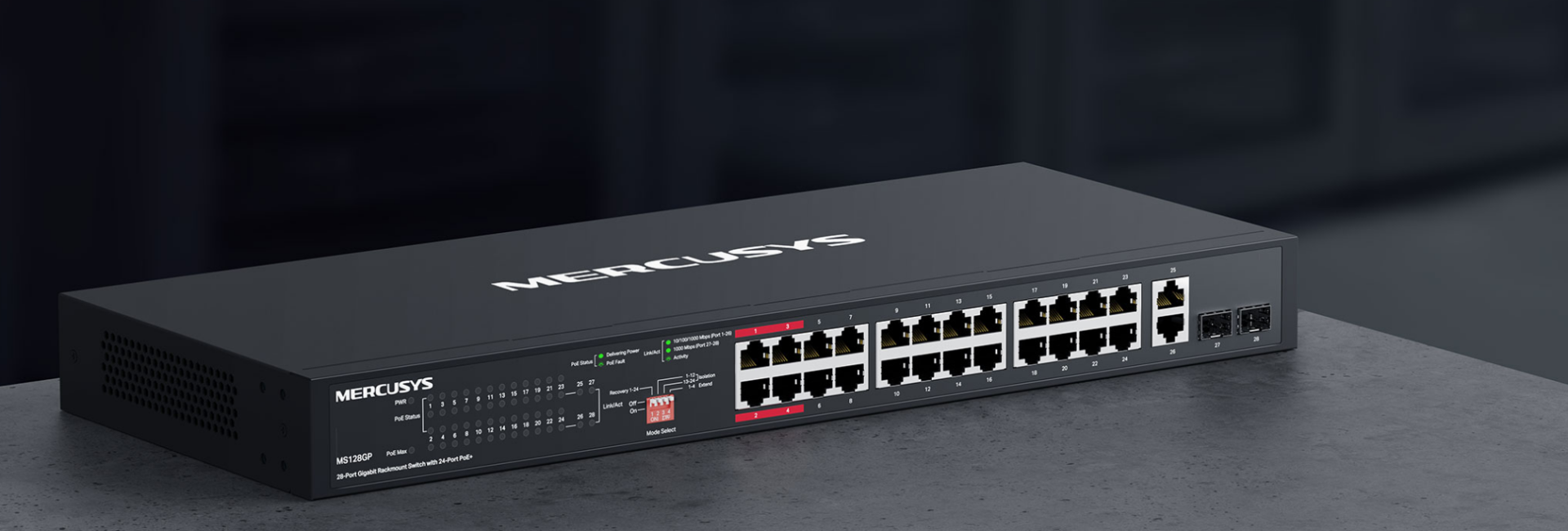

Mercusys MS128GP 28-Port Gigabit Rackmount Switch with 24-Port PoE+ (Max 295W), Long-Range Mode up to 250 m

PB Tech price
PB Tech price
$ 303 .48
 +GST
$ 349 .00
 inc GST

Out of stock

Mercusys MS128GP 28-Port Gigabit Rackmount Switch with 24-Port PoE+ (Max 295W), Long-Range Mode up to 250 m

  • Brand: Mercusys
  • MPN: MS128GP
  • Part #: SWHMES1128
  • UPC:
PB Tech price
$ 303 .48 $ 349 .00
 +GST  inc GST

No store stock available. See in-stock alternatives

Click & Collect: Collect unavailable
Delivery: Out of stock When will I receive it?
  • Brand: Mercusys
  • MPN: MS128GP
  • Part #: SWHMES1128
  • UPC:

Multi-Gigabit Support

No

10 Gigabit Ports

0 Port

2.5 Gigabit Ports

0 Port

Management Level

Not Specified

Number of Ports

28 Ports

PoE

Yes

PoE Ports

24 Ports

PoE Budget

295 Watts

Product is out of stock. View similar products in-stock at PB Tech

Features

28-Port Gigabit Rackmount Switch with 24-Port PoE+

- Full Gigabit Ports: 24× Gigabit PoE+ ports, 2× Gigabit uplink ports, and 2× Gigabit SFP slots

- High Power PoE+: Support PoE Power up to 30 W for each PoE port and 295 W for all PoE ports.* Working with IEEE 802.3af/at compliant PDs

- Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode**

- Isolation Mode: One click to divide traffic for specific ports for stability and security

- Priority Mode: Guarantees the quality of sensitive applications like video monitor

- PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices

- Plug and Play: No configuration or central management required

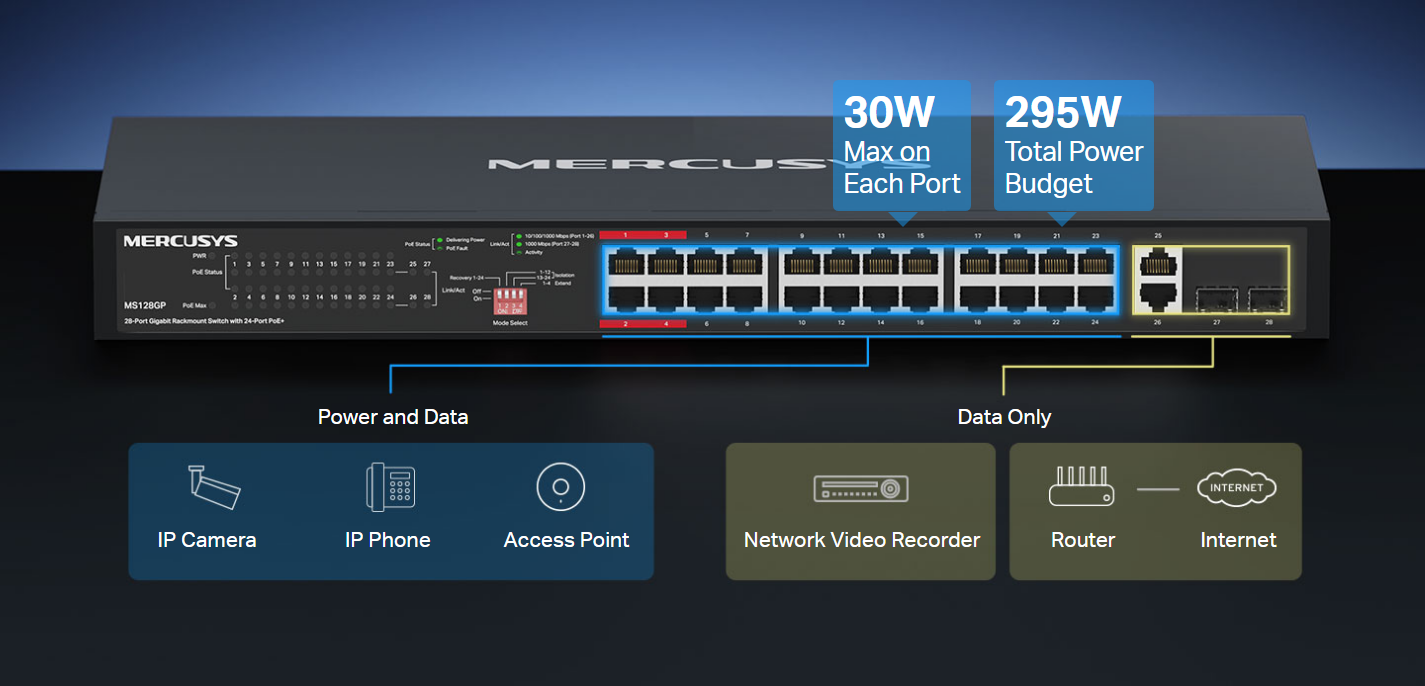

24 PoE+ Ports (295 W Budget) for Network Deployment

Compliant with the 802.3af/at Powered Devices, each of the 24 PoE+ ports supports a maximum power supply of 30 W. The total 295 W PoE power budget* can be applied in various scenarios, including surveillance, offices, and small businesses, since MS128GP is fully compatible with devices such as IP cameras, access points, IP phones, PCs, video recorders, and etc.

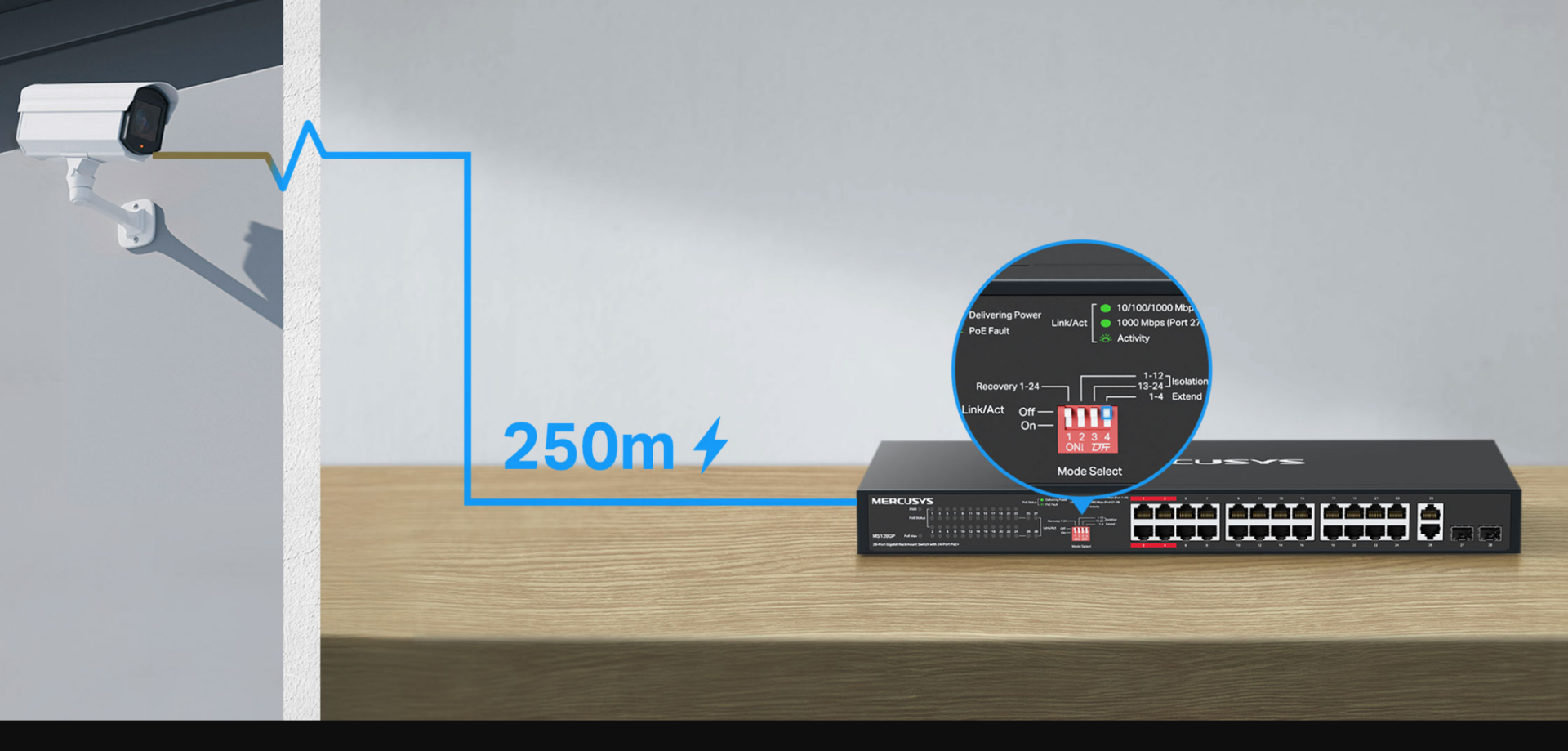

Long-Range up to 250 m with Extend Mode**

Extend Mode** increases PoE transmission distance to 250 m. MS128GP has four long-range ports with PoE+. Turn on the Extend Mode and make it ideal for installing surveillance cameras over wide areas.

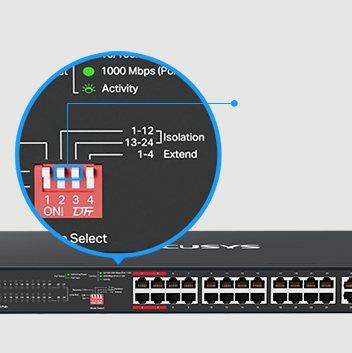

Traffic Separation

Isolation Mode easily divides traffic for ports 1-12 & 13-24 to avoid snooping/tampering and isolates broadcast storm for higher security.

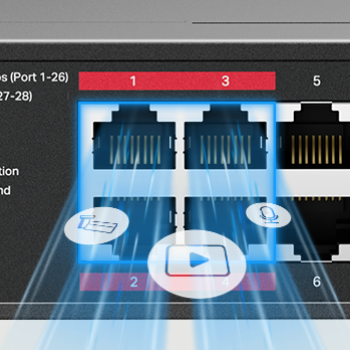

Port Prioritization

Prioritizing the data of specific ports would ensure the high quality of delicate applications, such as voice and video.

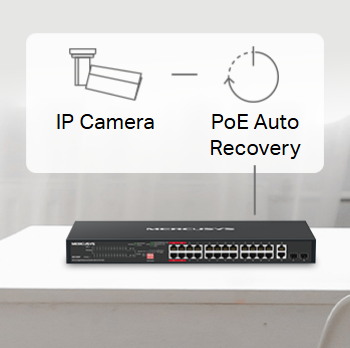

PoE Auto Recovery

When a PoE-powered device stops sending data packets to the switch for an extended length of time, the switch will reboot it automatically.

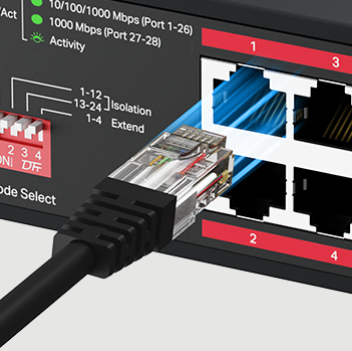

Plug and Play

MS128GP offers auto-negotiation and automated MDI/MDIX. There is no additional configuration needed. It is simple to use and saves time and effort.

Durable and Flexible

MS128GP's durable metal case allows for efficient heat dissipation, excellent signal interference prevention, reliable equipment stability, and a long network life. And you can put the switch on desk or rack mount to meet your demand.

Specifications

Hardware

Supported Protocols

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z, IEEE 802.3af, IEEE 802.3at

Dimensions

Physical Dimensions

17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)

PoE Ports

Standard

Compatible with 802.3af/at PDs

PoE Ports

Ports 1-24, up to 30 W per port

PoE Power Budget

295 W

Interfaces

Ports

24× 10/100/1000 Mbps PoE+ RJ45 Ports
2× 10/100/1000 Mbps RJ45 Ports
2× Gigabit SFP Slots

Transmission Medium

10BASE-T

2-pair UTP/STP of Cat. 3 or above (≤100 m)

100BASE-TX

2-pair UTP/STP of Cat. 5 or above (≤100 m)

1000BASE-T

4-pair UTP/STP of Cat. 5e or above (≤100 m)

1000BASE-X

MMF, SMF

Fan Quantity

2 Fans

Physical Security Lock

Yes

Switching Capacity

56 Gbps

LED

Power
Link/Act
PoE Status
PoE Max

MAC Address Table

8 K

Max Power Consumption

350.14 W (110V/60 Hz @ 25 °C, with 295 W PD connected)
336.58 W (220V/50 Hz @ 25 °C, with 295 W PD connected)

Max Heat Dissipation

1193.98 BTU/hr (110V/60 Hz @ 25 °C, with 295 W PD connected)
1147.74 BTU/hr (220V/50 Hz @ 25 °C, with 295 W PD connected)

Software

Transfer Method

Store and Forward

Advanced Features

Compatible with IEEE 802.3at/af Compliant PDs
Extend Mode (Up to 250m PoE power supply and data transmission)
Priority Mode (Ports 1-4)
Isolation Mode (Ports 1-12, 13-24)
PoE Auto Recovery (Ports 1-24)
MAC Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control

Others

Certifications

CE, RoHS

Package Contents

MS128GP
Power Cord
Installation Guide
Mounting Brackets and Fittings

Environment

Operating Temperature: -10°C to 45°C (14°F to 113°F)
Storage Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Humidity: 10% to 90% RH, non-condensing
Storage Humidity: 5% to 90% RH, non-condensing

Manufacturer Part No:
MS128GP
Brand:
Mercusys
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
0.8 kg
PB Part No:
SWHMES1128
Product Model:
MS128GP
Warranty: 36 months *
