MikroTik CRS328-24P-4S+RM 24 Port Router Switch 802.3af + Passive PoE Switch 4 SFP

PB Tech price
PB Tech price
$ 933 .91
 +GST
$ 1,074 .00
 inc GST
$933.91  +GST
$1,074.00

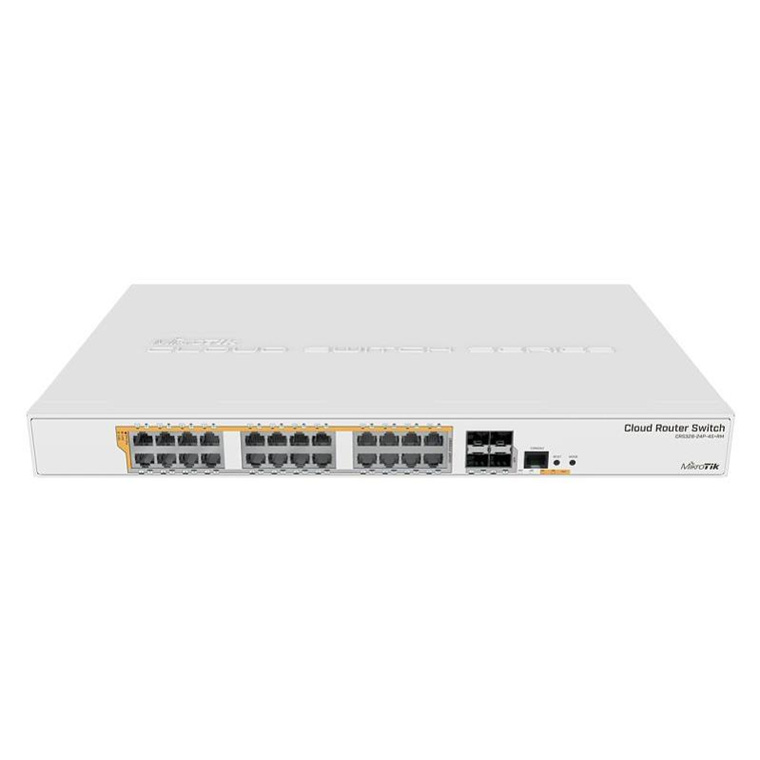

MikroTik CRS328-24P-4S+RM 24 Port Router Switch 802.3af + Passive PoE Switch 4 SFP

  • Brand: MikroTik
  • MPN: CRS328-24P-4S+RM
  • Part #: SWHMKT690045
  • UPC:
PB Tech price
$ 933 .91 $ 1,074 .00
 +GST  inc GST


Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 21 Jan When will I receive it?
$933.91  +GST
$1,074.00

Four payments of $271.18 per fortnight*

Afterpay lets you spread the cost of your purchase over 4, interest-free, fortnightly payments.

Click the button below or select Afterpay as your payment method during the checkout process.

If you do not have a Afterpay account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.

Learn more about Afterpay

Finance from $10.20 per week*

Get what you want at a price you can afford. Choose a finance term below to see the weekly repayment amount and apply online during checkout or in-store.

Choose a Finance Term

*Weekly payments are indicative only and based on a retail price of over a loan term of months at an interest rate of % p.a. and include a monthly service fee and a establishment fee (excludes optional Payment Protection Insurance).The total amount payable over the term of the loan is . Details of finance (including weekly payments, the total amount repayable over the term of the loan, interest rate and any applicable fees) can be confirmed with a detailed quote. Full disclosure of all of the terms of your finance will also be provided to you in the Finance Now disclosure statement for your consideration prior to confirmation of your purchase. All finance is subject to Finance Now terms and conditions and approval criteria.

Learn more about Finance Now

12 months interest free from $21.71 per week*

Q Card / Mastercard is your perfect shopping partner, combining the benefits of a credit card with the added ability to access a range of interest-free deals and payment holidays.

Learn more about Q Mastercard, apply online for one now, or email [email protected] to chat with our team.

*12 Months No Payments & No Interest (“Payment Holiday”) is available on Long Term Finance (LTF) for in-store & online purchases. Min Spend $200. Lending criteria, $50 annual Account Fee, fees, Ts&Cs apply. $55 Establishment Fee applies to your first LTF transaction, $35 Advance Fee applies to subsequent LTF transactions. Standard Interest Rate currently 28.95% p.a. applies at the end of LTF Interest Free Period. Rates and fees correct as at date of publication, subject to change. Other interest rates and fees may apply. See qcard.co.nz for full details. Credit provided by Columbus Financial Services Limited. Excludes vouchers, gift cards, software licenses, game activation codes, pre-orders, Customized-to-Order (CTO) Apple Mac, and backorders.

*See here for full T&C

  • Brand: MikroTik
  • MPN: CRS328-24P-4S+RM
  • Part #: SWHMKT690045
  • UPC:

10 Gigabit

No

10 Gigabit Ports

0 Ports

Form Factor

Not Specified

Management Level

Not Specified

Number of Ports

24 Ports

PoE

No

PoE Ports

0 Ports

PoE Budget

N/A

Similar in-stock products available at PB Tech right now

Features

MikroTik CRS CRS328-24P-4S+RM 802.3af + Passive PoE Switch. The MikroTik CRS328-24P-4S+RM is a 28 independent port switch, it has 24 Gigabit Ethernet ports, which offer different power output options: Passive PoE, low voltage PoE, 802.3af/at (Type 1 "PoE" / Type 2 "PoE+") with auto-sensing. PoE-Out is passed over mode B pins (4,5+)(7,8-). The four SFP+ ports provide up to 10 Gbps connectivity options via either optical fibre or Ethernet modules (not included).

The CRS328-24P-4S+RM comes in a 1U rackmount case with 100-240 V AC 500 W power supply built-in. The device consumes up to 44 W leaving guaranteed 450 W (3x150 W per every 8 Ethernet ports) to power your PoE devices. Each port can provide up to 30 W of power with any power output option you choose.

The device has a "Dual boot" feature that allows you to choose between two operating systems - RouterOS or SwOS. If you prefer to have a simplified operating system with only switch specific features, use SwOS. If you would like the ability to use routing and other Layer 3 features in your CRS, use RouterOS. You can select the desired operating system from RouterOS, from SwOS or from the RouterBOOT loader settings. All the feature set comes with disruptive price, providing best price/performance on the market.

Key Features

- 24 Gigabit Ethernet ports
- 4 SFP+ ports
- RJ45 serial console port
- Non-Blocking throughput: 64 Gbps
- Switching capacity: 128 Gbps
- Forwarding rate: 95.2 Mpps
- Maximum power consumption: 44 W (without PoE devices connected)
- Supports PoE+ IEEE 802.3at/af and 26 V Passive PoE)
- Temperature based fan control
- 1U rackmount
- Selectable power output per port (26 / 53 V)
- Non-blocking Layer 2 switching capacity
- 16K host table
- IEEE 802.1Q VLAN
- Supports up to 4K simultaneous VLANs
- Port isolation
- Port security
- Broadcast storm control
- Port mirroring of ingress/egress traffic
- STP / RSTP / MSTP
- Access Control List
- MikroTik neighbour discovery
- SNMP
- 10218-byte jumbo frames support
- IGMP snooping
- IEEE 802.3ad and static link aggregation

Specifications

Product code

CRS328-24P-4S+RM

CPU

98DX3236A1 800 MHz

RAM

512 MB

Storage type

Flash

Storage size

16 MB

Switch chip model

98DX3236A1

10/100/1000 Ethernet ports

24

SFP+ cages

4

Operating system

SwOS / RouterOS (Dual boot)

Supported input voltage

100 - 240 V AC

Dimensions

443 x 305 x 44 mm

Operating temperature

-20°C .. +60°C tested

Max power consumption

44 W

Serial port

RJ45

License level

5

Manufacturer Part No:
CRS328-24P-4S+RM
Brand:
Product Type:
24 Port Router Switch
UPC
-
Product Family:
-
Shipping Weight:
4.341 kg
PB Part No:
SWHMKT690045
Product Model:
CRS328-24P-4S+RM
