NETGEAR 10-Port PoE Multi-Gigabit/10G Smart Switch (MS510TXPP) - Managed with 8 x PoE+ 180W, 1 x 10G SFP+, Desktop/, and ProSAFE Limited Lifetime Protection MS510TXPP-100AUS

NETGEAR 10-Port PoE Multi-Gigabit/10G Smart Switch (MS510TXPP) - Managed with 8 x PoE+ 180W, 1 x 10G SFP+, Desktop/, and ProSAFE Limited Lifetime Protection MS510TXPP-100AUS

Generating Print Page
Home Networking Switches NETGEAR 10-Port PoE Multi-Gigabit...
Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

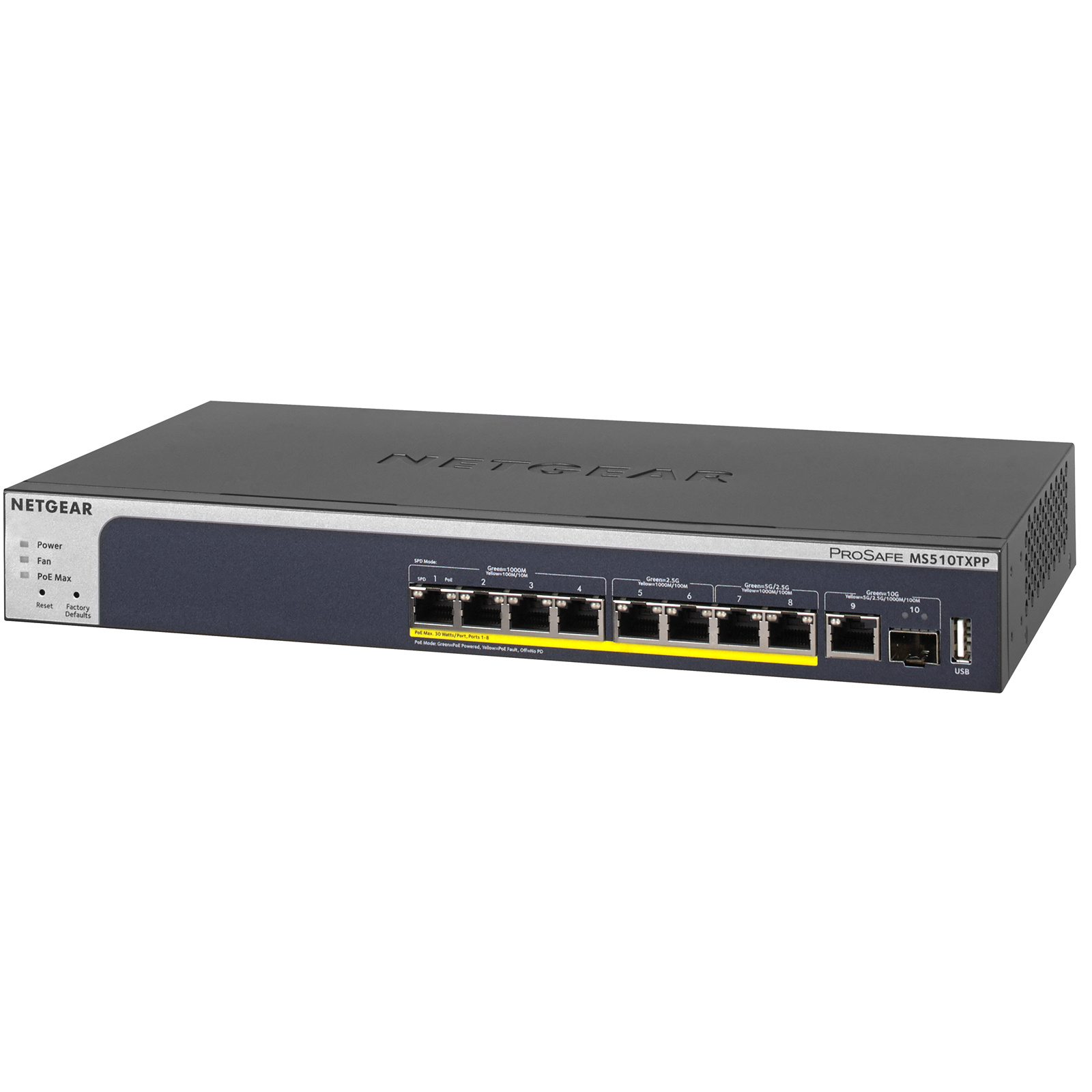

NETGEAR 10-Port PoE Multi-Gigabit/10G Smart Switch (MS510TXPP) - Managed with 8 x PoE+ 180W, 1 x 10G SFP+, Desktop/, and ProSAFE Limited Lifetime Protection MS510TXPP-100AUS

Rackmount
Part #: SWHNGR3210180
  • Brand: Netgear
  • MPN: MS510TXPP-100AJS
  • Part #: SWHNGR3210180
  • UPC: 606449120950
  • Form Factor: 1U Rackmount
  • 10 Gigabit: Yes
  • 10 Gigabit Ports: 2 Ports
  • Management Level: Managed
  • Number of Ports: 8 Ports
  • PoE: Yes
  • PoE Ports: 8 Ports
  • PoE Budget: 180 Watts
  • View more

Features

Plenty of headroom with 1G, 2.5G, 5G and even 10G!

Businesses need to be ready for future expansion: with incoming new multispeed devices, their wired network needs to expand its reach and scope to support speeds greater than 1 Gigabit. The IEEE 802.3bz standard paved the way for new 2.5 Gigabit and 5 Gigabit speeds in addition to legacy 1 Gigabit and 10 Gigabit per second. New servers, workstations, storage devices, and motherboards are coming with 802.3bz (NBASE-T) Multi-Gigabit Ethernet for 2.5X to 5X faster speeds up to 100 meters (323 feet) on legacy Cat5E / Cat6 cables.

That is why NETGEAR launched its new 8-Port Multi-Gigabit Smart Managed Pro Switches with 10G Copper/Fiber Uplinks. Each port automatically detects which speed is needed by the connected device and provides the adequate speed. As opposed to regular 10-Gigabit switches that will only provide 1-Gigabit connectivity to any device that require less than 10-Gigabit, the MS510TX and MS510TXPP give the exact speed required, with no downgrade. Also, the new NETGEAR Multi-speed switch ports can connect regular CAT5e Ethernet cables, without the need to upgrade to CAT6 wiring, therefore reducing wiring costs and hassle.



Access, Aggregation or Collapsed Core

You can now have your PCs, printers and routers/firewalls connected at 1G and aggregate Multi-Gigabit Ethernet new devices on the same switch, all line-rate. 10G copper and fiber ports are ready for local servers and storage, or high-speed aggregation to your network core.



Multi-Gigabit for Future-Proof Deployments

With or without PoE, the switches provide two Multi-Gigabit RJ-45 ports that support 5G, 2.5G, and 1G; another two Multi-Gigabit RJ-45 ports that support 2.5G and 1G; four 1G RJ-45 ports; one dedicated 10G RJ-45 uplink port (which also supports 5G, 2.5G and 1G); and one dedicated SFP+ fiber uplink port that supports 10G and 1G.



Comprehensive L2+/Layer 3 Lite Features

NETGEAR Smart Managed Pro Switches offer powerful L2+ and Layer 3 Lite features, enhanced performance and usability. They are purposely designed for converged networks where voice, video, data are all carried on a single network platform. These switches are optimized for network efficiency, operational cost savings, and ease of management. Advanced features such as IPv4/IPv6 Layer 3 static routing, DiffServ QoS, LACP link aggregation and Spanning Tree will satisfy even the most advanced small business networks.



Smart IT, not Big IT

No need for an IT expert or a complicated user manual, just configure your network with the user-friendly NETGEAR Smart Managed Pro Web browser-based management GUI. The MS510TX and MS510TXPP are backed by NETGEAR ProSAFE Lifetime Limited Warranty and 24/7 support including lifetime chat.

Specifications

Model Description

8-Port PoE+ Multi-Gigabit Smart Managed Pro Switch with 10G Copper/Fiber Uplinks (MS510TXPP)

Gigabit ports

4 (10M/100M/1G)

2.5-Gigabit ports

2 (100M/1G/2.5G)

5-Gigabit ports

2 (100M/1G/2.5G/5G)

10-Gigabit copper ports

1 (100M/1G/2.5G/5G/10GBASE-T)

10-Gigabit fiber SFP+ ports

1 (1G/10GBASE-X SFP+)

Switching fabric

78 Gbps line rate

Number of PoE ports

8

PoE+ (802.3at)

8

Total PoE Power budget (Watts)

180W

Max MAC entries

16K

Buffer size

3MB

VLAN (Number Supported)

256

VLAN routing

Yes

Dynamic VLAN assignment

Yes

MLD Snooping

Yes

Static route

Yes (32 IPv4 + 32 IPv6)

Host ARP table

Yes (512)

EEE

Yes

DoS Prevention

Yes

Internal/External

Internal 100-240VAC 50-60Hz

Max consumption (Watts)

234.31W

FAN

1

Acoustic Noise Level @25C (dBA)

28.8

Operating Temperature

0° to 50° C

MTBF at 25° C

376,434 hrs

Weight (kg)

1.9 kg

Dimensions (WxDxH) mm

328 x 169 x 43 mm

Manufacturer Part No:
MS510TXPP-100AJS
Brand:
Product Type:
-
UPC
606449120950
Product Family:
-
Shipping Weight:
2.592 kg
PB Part No:
SWHNGR3210180
Product Model:
-
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
