NETGEAR AV Line M4250-26G4F-PoE+ 24x1G PoE+ 300W 2x1G and 4xSFP Managed Switch (GSM4230P-100AJS)
NETGEAR AV Line M4250-26G4F-PoE+ 24x1G PoE+ 300W 2x1G and 4xSFP Managed Switch (GSM4230P-100AJS)
- Brand: Netgear
- MPN: GSM4230P-100AJS
- Part #: SWHNGR42300
- UPC:
- Brand: Netgear
- MPN: GSM4230P-100AJS
- Part #: SWHNGR42300
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Enterprise Switches
NETGEAR AV Line M4250-26G4F-PoE+ 24x1G PoE+ 300W 2x1G and 4xSFP Managed Switch (GSM4230P-100AJS)
- Brand: Netgear
- MPN: GSM4230P-100AJS
- Part #: SWHNGR42300
Product URL: https://www.pbtech.co.nz/product/SWHNGR42300/NETGEAR-AV-Line-M4250-26G4F-PoE-24x1G-PoE-300W-2x1
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
POWERFUL AV SWITCHES MADE SIMPLE
Pre-configured to get you up and running faster

Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.
Multicast in an Instant
NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.
Sleek, Quiet Design
Less fan noise, and mounting ears included for under-table or wall mounting.
Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4250 (and M4300) switches.

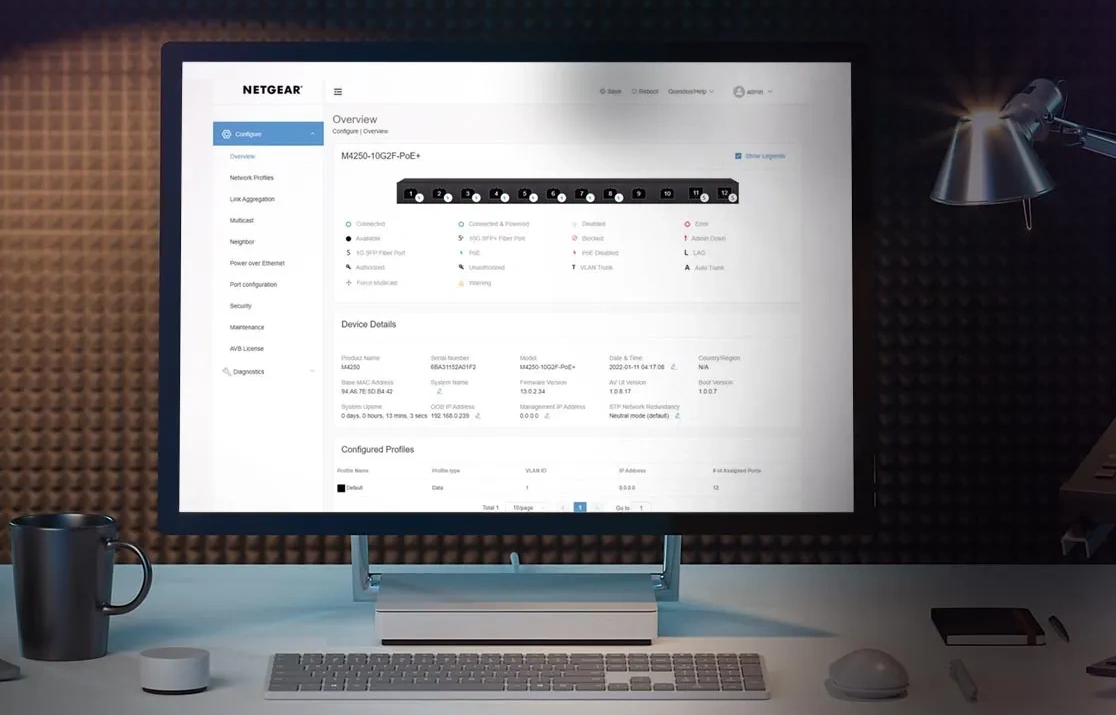

FAST, EASY CONFIGURATION FOR AV PROS
A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.

FOCUS ON THE EVENT NOT FAN NOISE
Most models have quiet mode which greatly reduces fan noise, and some models are even fanless.

DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOX
With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.

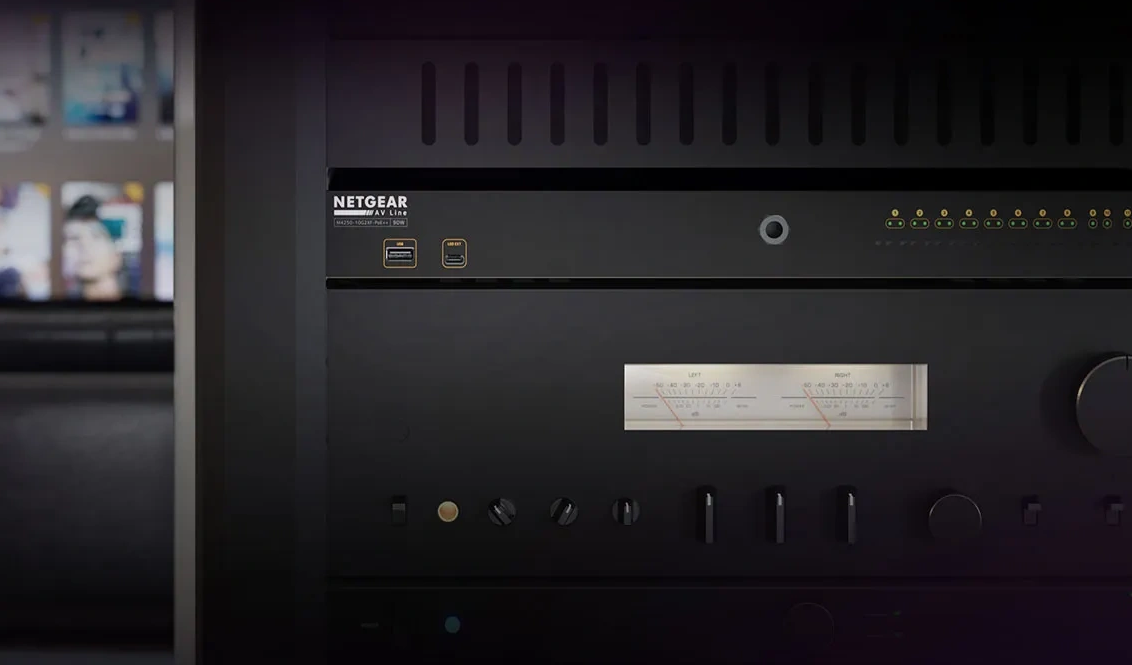

REFINED DESIGN PROVIDES MOUNTING FLEXIBILITY
Clean lines and port activity status is featured in the front of the switch, while cabling is neatly in the back. Universal mounting options allow VESA mounting or in standard racks.

Specifications
Physical Specification
Dimensions (WxDxH)
440 x 257 x 43.2 mm
Weight
4.3Kg (9.47lb)
Technical Specs
Primary Port Speed
1 Gigabit
Number of Ports
30 (24x 1G PoE+, 2x 1G, 4x SFP)
PoE Ports / Budget
24 PoE+ (30W/port), 300W Budget
IGMP Support
Enhanced (NETGEAR IGMP Plus™)
Jumbo Frame Support
Yes, up to 12kb
AVB Support
Yes. Electronic license required, activation key sent via email (AVB4230P-10000S).
Acoustics
Fanless or 34dB@25ºC
Power Consumption
With PoE: 401W/1369.01Btu/hr
Without PoE: 35.8W/122.22Btu/hr
Standby without any port connection: 23.4W/79.89Btu/hr
What's in the box
Contents
M4250-26G4F-PoE+ (GSM4230P)
Power cord(s)
Console USB Type-C and RJ45-DB9 cables
Rack-mounting standard brackets
Longer brackets for recessed mounting
Rubber footpads for tabletop installation
Installation guide
