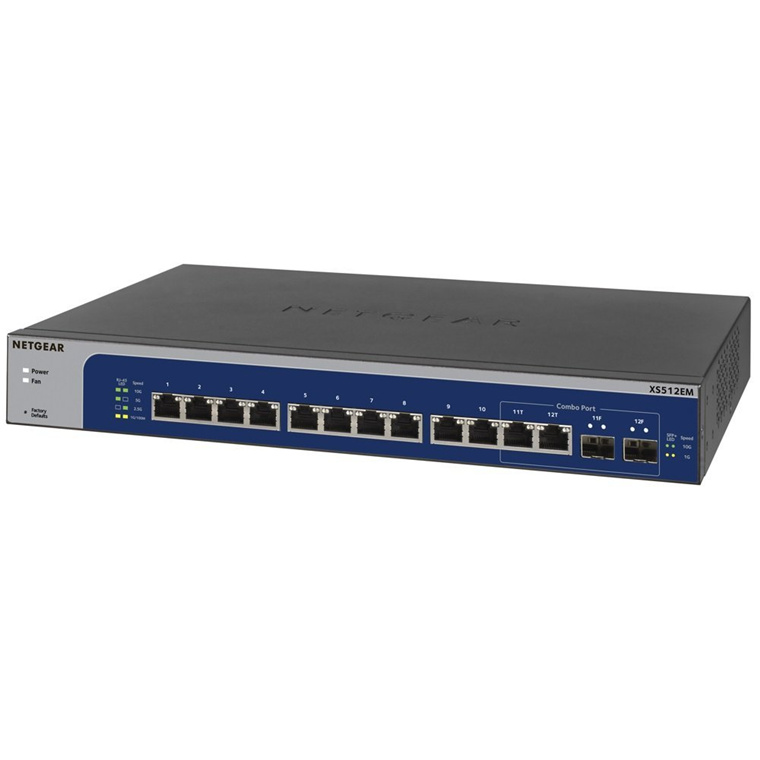

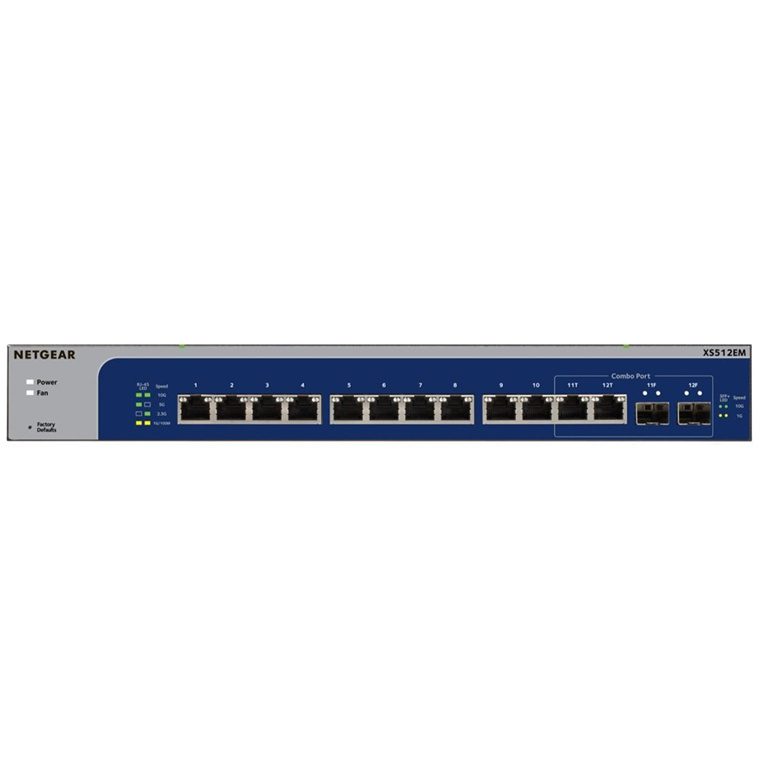

NETGEAR 12-Port 10G Multi-Gigabit Plus Switch (XS512EM) - with 2 x 10G SFP+, Desktop/Rackmount, and ProSAFE Limited Lifetime Protection

PB Tech price
PB Tech price
$ 2,223 .02
 +GST
$ 2,556 .47
 inc GST

Out of stock

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

NETGEAR 12-Port 10G Multi-Gigabit Plus Switch (XS512EM) - with 2 x 10G SFP+, Desktop/Rackmount, and ProSAFE Limited Lifetime Protection

Rackmount/Desktop
  • Brand: Netgear
  • MPN: XS512EM-100AJS
  • Part #: SWHNGR612101
  • UPC:
PB Tech price
$ 2,223 .02 $ 2,556 .47
 +GST  inc GST

No store stock available. See in-stock alternatives

Click & Collect: Collect unavailable
Delivery: Out of stock When will I receive it?
  • Brand: Netgear
  • MPN: XS512EM-100AJS
  • Part #: SWHNGR612101
  • UPC:

Form Factor

N/A

10 Gigabit

Yes

10 Gigabit Ports

12 Ports

Management Level

Smart / Web Managed

Number of Ports

12 Ports

PoE

No

PoE Ports

0 Ports

PoE Budget

N/A

Product is out of stock. View similar products in-stock at PB Tech

Features

Unlock your Network Potential with 10-Gigabit/ Multi-Gigabit 5-Speed Networking Switches

Revolutionary 5-speed 10-Gigabit/Multi-Gigabit technology built in the NETGEAR multi-speed switches allows your devices to speed past the Gigabit barrier.

With the growth of virtualization, flash Storage, 4K videos , video streaming and IP surveillance, SMB networks need to extend beyond 1 Gigabit barrier.
The 10-Gigabit/Multi-Gigabit Smart Managed Plus series from NETGEAR presents the right solution for this requirement; delivering unprecedented 10-Gigabit/Multi-Gigabit bandwith at an affordable cost.

Specifications

100M/1G/2.5G/5G/10G RJ-45 copper ports
12

10G SFP+ ports
2 (shared)

Form Factor
Desktop/Rackmount

Packet buffer memory (Dynamically shared across only used ports)
3MB

Forwarding modes
Store-and-forward

Bandwidth
240 Gbps

MAC Address database size (48-bit MAC addresses)
32K

Packet forwarding rate (64 byte packet size) (Mfps or Mpps)
178.6

Speed / Latency
10G : AVG 4.3us
5G: AVG 5.2us
2.5G : AVG 7.1us
1G : AVG 3.76us
100M: AVG 13.63us

Jumbo frame support
Up to 9K packet size

Acoustic noise level @ 25° C (dBA) (ANSI-S10.12)
Idle : 29.13dB@25dC/ Full load :40.85dB@50dC

Mean Time Between Failures (MTBF) @ 25° C
1,113,477Hrs

VLAN (# Supported)
64

Port-based VLANs (physical)
Yes

IEEE 802.1Q VLAN Tagging
Yes

Broadcast, multicast, unknown unicast storm control
Yes

Static Manual LAGs (Port Trunking)
Yes

LACP
Yes

IEEE 802.3x (full duplex and flow control)
Yes

IGMP snooping (v1, v2, and v3)
Yes

IGMP snooping querier
No

Block unknown multicast
Yes

Static multicast router port
Yes

DHCP client
Yes

Static Manual LAGs (Port Trunking)
Yes

LACP
Yes

# of Static LAGs / # of members in each LAG
8 LAGs with max 8 members in each LAG

Port-based rate limiting
Ingress and egress

Port-based QoS
Yes

IEEE 802.1p COS
Yes

IPv4 DSCP
Yes

IPv4 ToS
Yes

TCP/UDP-based
No

Weighted Round Robin (WRR)
Yes

Strict priority queue technology
No

Password management
Yes

Web browser-based graphical user interface (GUI)
Yes

ProSAFE Plus Configuration Utility (PCU) for multi-switch management
Yes

Firmware upgrade
TFTP (Plus Utility) / HTTP (Web GUI)

Config file transfers (backup, restore)
Plus Utility or Web GUI

Firmware upgrade through Plus Utility (TFTP)
Yes

Config download (to switch) through Plus Utility
Yes

Config upload (to server) through Plus Utility
Yes

Firmware upgrade through web GUI (HTTP)
Yes

Config download (to switch) through web GUI (HTTP)
Yes

Config upload (to server) through web GUI (HTTP)
Yes

Cable test utility
Yes

Per port
Speed, Link, Activity

Per device
Power, Fan

Manufacturer Part No:
XS512EM-100AJS
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
3 kg
PB Part No:
SWHNGR612101
Product Model:
-
Warranty: 60 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
