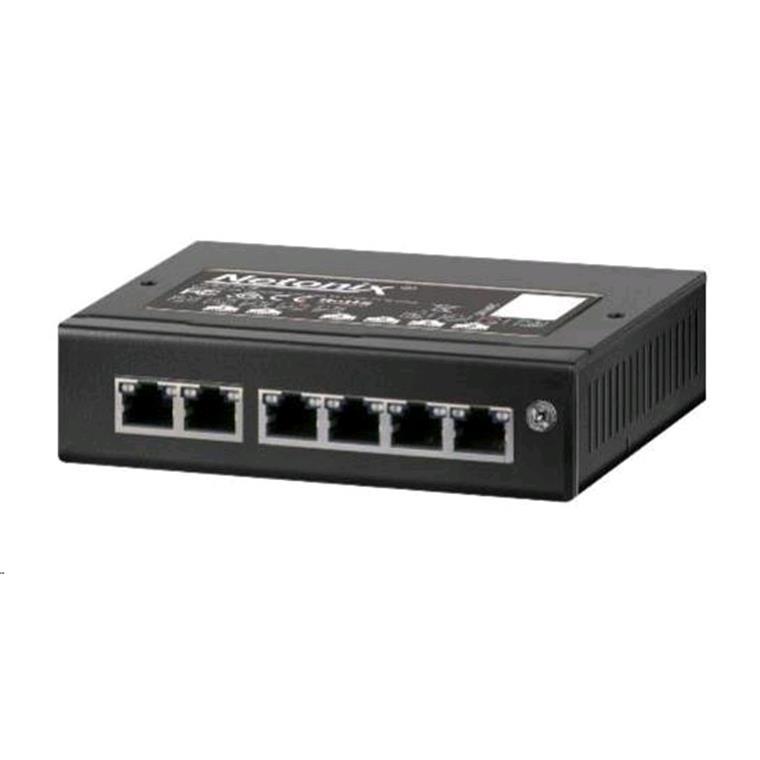

Netonix WS-6-MINI Passive PoE

PB Tech price
PB Tech price
$ 456 .52
 +GST
$ 525 .00
 inc GST

Out of stock

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

Netonix WS-6-MINI Passive PoE

  • Brand: Netonix
  • MPN: WS-6-MINI
  • Part #: SWHNTN1007
  • UPC: 858827005087
PB Tech price
$ 456 .52 $ 525 .00
 +GST  inc GST

No store stock available. See in-stock alternatives

Click & Collect: Collect unavailable
Delivery: Out of stock When will I receive it?
  • Brand: Netonix
  • MPN: WS-6-MINI
  • Part #: SWHNTN1007
  • UPC: 858827005087

Form Factor

Desktop

10 Gigabit

No

Management Level

N/A

Number of Ports

6 Ports

PoE

Yes

PoE Ports

0 Ports

PoE Budget

N/A

Stacking

No

Product is out of stock. View similar products in-stock at PB Tech

Features

The Netonix WISP Switch model WS-6-MINI is designed specifically for the WISP industry with a rugged chassis and extended operating temperature range. It features a simple yet powerful user interface providing the software features WISPs need in a switch.
Important: Check device POE type and pinout before enabling 24VH or 48VH Settings! i.e. 24VH Ports should only be used for devices like AF-5X, 48VH Ports should only be used by airFiber (AF24, AF5) and Mimosa (B5, B5c).

- Highest density of PASSIVE POE ports per cubic inch on the market for those small equipment boxes
- The only switch line on the market that can deliver 1.5A of 24V or 48V on all 4 pairs (24VH and 48VH)
- The only switch line on the market that has current sensors on all passive POE ports
- Port 1 will accept passive 48VH (48-53V) using all 4 pairs like a POE injector used to power an airFIBER 24 GHz
- DO NOT power the WS-6-MINI with a standard passive POE adapter that only supplies 48V power on 2 pairs
- If powering the WS-6-MINI with a 48-53V barrel connector power supply port 1 has no POE options, it is just a standard Ethernet port
- If powering the WS-6-MINI with a barrel connector power supply be sure to connect the ground screw to Earth Ground for ESD protection.

Specifications

Operating Temperature
-25 to 55°C

24V PoE Ports Pins 4,5 (+) Pins 7,8 (-)
Ports 03-06

48V PoE Ports Pins 4,5 (+) Pins 7,8 (-)
Ports 03-06

24VH PoE Ports Pins 1,2,4,5 (+) Pins 3,6,7,8 (-)
Port 02

48VH PoE Ports Pins 1,2,4,5 (+) Pins 3,6,7,8 (-)
Port 02

Dimensions
127mm x 118mm x 32mm

Manufacturer Part No:
WS-6-MINI
Brand:
Netonix
Product Type:
-
UPC
858827005087
Product Family:
-
Shipping Weight:
1.088 kg
PB Part No:
SWHNTN1007
Product Model:
-
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
