StarTech.com IES101GP2SFW Industrial 8 Port Gigabit PoE+ Switch w/2 SFP MSA Slots - 30W - Layer/L2 Switch Hardened GbE Managed - Rugged High Power Gigabit Ethernet Network Switch IP-30/-40 C to 75 C
StarTech.com IES101GP2SFW Industrial 8 Port Gigabit PoE+ Switch w/2 SFP MSA Slots - 30W - Layer/L2 Switch Hardened GbE Managed - Rugged High Power Gigabit Ethernet Network Switch IP-30/-40 C to 75 C
- Brand: StarTech.com
- MPN: IES101GP2SFW
- Part #: SWHSTT3663077
- UPC: 065030871198
- Brand: StarTech.com
- MPN: IES101GP2SFW
- Part #: SWHSTT3663077
- UPC: 065030871198
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Switches
StarTech.com IES101GP2SFW Industrial 8 Port Gigabit PoE+ Switch w/2 SFP MSA Slots - 30W - Layer/L2 Switch Hardened GbE Managed - Rugged High Power Gigabit Ethernet Network Switch IP-30/-40 C to 75 C
- Brand: StarTech.com
- MPN: IES101GP2SFW
- Part #: SWHSTT3663077
- UPC:065030871198
Product URL: https://www.pbtech.co.nz/product/SWHSTT3663077/StarTechcom-IES101GP2SFW-Industrial-8-Port-Gigabit
Branch | New Stock | On Display |
---|---|---|
Albany | 0 | |
Glenfield | 0 | |
Queen Street | 0 | |
Auckland Uni | 0 | |
Newmarket | 0 | |
Westgate | 0 | |
Penrose | 0 | |
Henderson (Express) | 0 | |
St Lukes | 0 | |
Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Head Office | 0 | |
Hornby | 0 | |
Christchurch Central | 0 |
Features

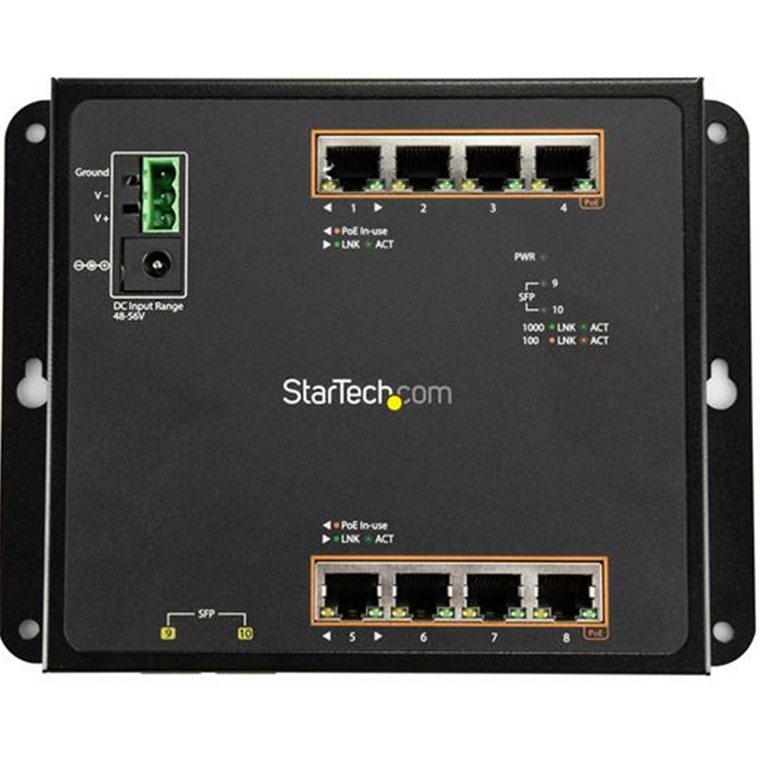

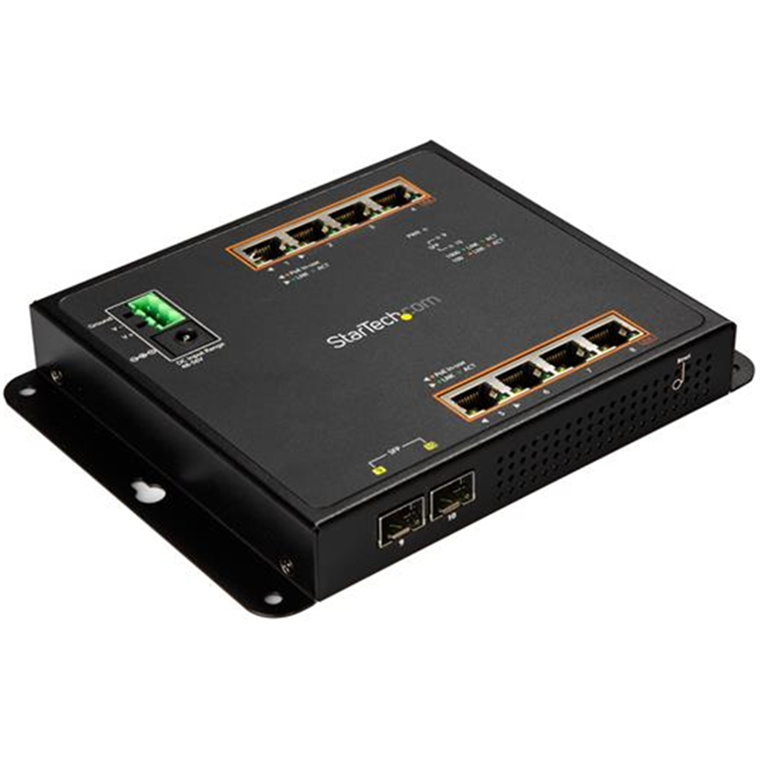

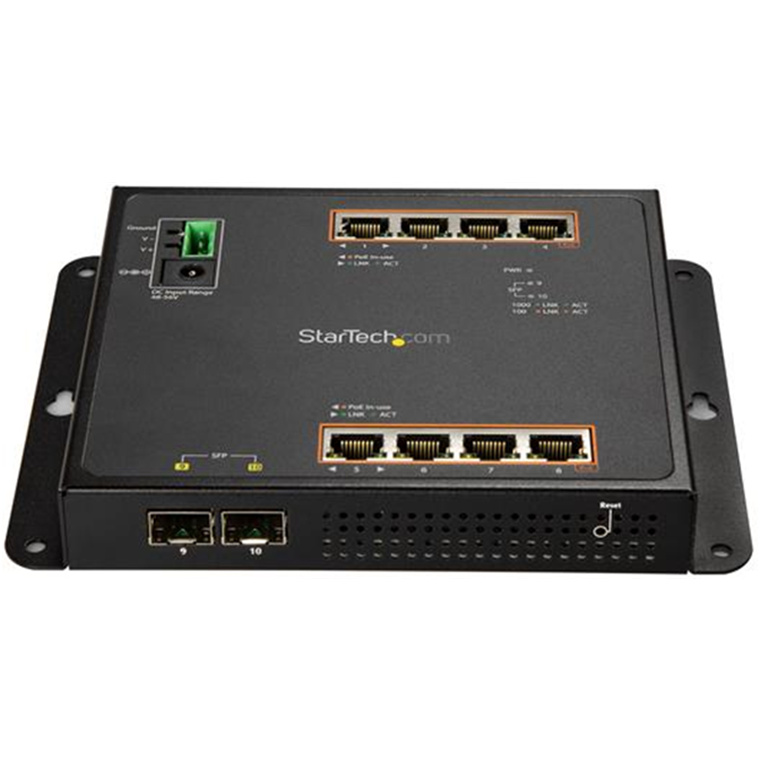

Easily deploy or scale your network with this Gigabit Ethernet switch, by adding eight copper Gigabit Ethernet ports (PoE+) and two fiber-optic SFP slots. This IP30 industrial network switch provides intelligent Layer 2 management. Its rugged, compact design and wall-mount option with front access make it ideal for demanding applications, even where space is limited.
Expand your network
This versatile switch adapts to your network needs by providing two open SFP slots and eight RJ45 Ethernet ports (PoE+), providing both fiber and copper connections in a single network device. The MSA compliant SFP ports are compatible with 100/1000Mbps networks. The network switch enables you to connect up to eight RJ45 PoE+ devices, so different users can share files and devices, such as printers and scanners, over a LAN connection.
Supports PoE+ for flexible use
Dual power input (terminal block and DC plug) provides flexible power options. The switch gives you the freedom to place your equipment in locations where power outlets are not available, with support for Power over Ethernet Plus. The network switch provides abundant PoE power, with up to 30 watts for each PoE port (200W budget).
Wall-mountable with front access
Wall-mount the compact Gigabit switch to provide convenient front access to ports and indicators. It's ideal for a wide range of applications, including tight installation areas with significant electromagnetic interference, such as control cabinets and panels. The network switch is also DIN-rail mountable.
Efficient Layer 2 management
The switch delivers efficient and stable performance, with Layer 2 management capabilities. This lets you control packet traffic on a busy network, and customize your settings to achieve optimal network performance, offering improved efficiency and reliability.
Rugged IP30 industrial design
This rugged network switch features an IP30-rated metal housing and extended temperature range of -40°C to 75°C, which makes it ideal for a wide range of operating conditions. The sturdy metal enclosure offers durability, even in harsh industrial environments.
Reliable connection for seamless network performance
With support for 10/100/1000Mbps transfer speeds, this managed switch supports full/half-duplex auto-negotiation, jumbo frames and auto MDI/MDIX operation. This lets you connect your network devices quickly and easily, with little to no configuration required.
Specifications
HARDWARE
Industry Standards
IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T
IEEE 802.3z 1000Base-SX/LX
IEEE 802.3az Energy-Efficient Ethernet, IEEE 802.3x Flow Control, IEEE 802.1q VLAN Tagging, IEEE 802.1p QoS, IEEE 802.1x Port-Based Network Access Control, IEEE802.3ad Link Aggregation, IEEE 802.1d Spanning Tree Protocol, IEEE 802.1w Rapid Spanning Tree Protocol
Interface
RJ45 (Gigabit Ethernet)
Fiber Ethernet
Ports
10
PERFORMANCE
Auto MDIX
Yes
Buffer Size
512 KB
Compatible Networks
10/100/1000 Mbps
Flow Control
IEEE 802.3x pause frame for full-duplex, back pressure for half-duplex
Full Duplex Support
Yes
Jumbo Frame Support
9K max.
Maximum Cable Length
328 ft [100 m]
Maximum Data Transfer Rate
2 Gbps (Full-Duplex)
MTBF
> 100,000 hrs @ 25 degrees C
Surge Protection
6kV ESD, 6kV EFT
Switching Architecture
Store-and-Forward
CONNECTOR(S)
Connector Type(s)
8 - RJ-45 (PoE+) Female
2 - SFP Slot Female
1 - Terminal Block (3 Wire) Male
INDICATORS
LED Indicators
1 - Power
8 - PoE Active (yellow)
Link/Activity (green)
2 - 100Mbps Link/Activity (yellow)
1000Mbps Link/Activity (green)
POWER
Input Current
1A minimum
Input Voltage
48 ~ 56V DC
Plug Type
M
Power Source
Terminal Block
ENVIRONMENTAL
Humidity
5~95% RH (Non-Condensing)
Operating Temperature
-40°C to 75°C (-40°F to 167°F)
Storage Temperature
-40°C to 90°C (-40°F to 194°F)
PHYSICAL CHARACTERISTICS
Color
Black
Enclosure Type
Steel
Product Height
1 in [25 mm]
Product Length
5.3 in [134 mm]
Product Weight
21.8 oz [618 g]
Product Width
7 in [178 mm]
WHAT'S IN THE BOX
Included in Package
1 - network switch
1 - terminal block connector
4 - screw anchors
4 - screws
4 - attaching pins
4 - locking pins
4 - washers
4 - magnets
1 - DIN rail
3 - DIN-rail screws
8 - RJ45 dust caps
2 - SFP dust caps
1 - quick-start guide
