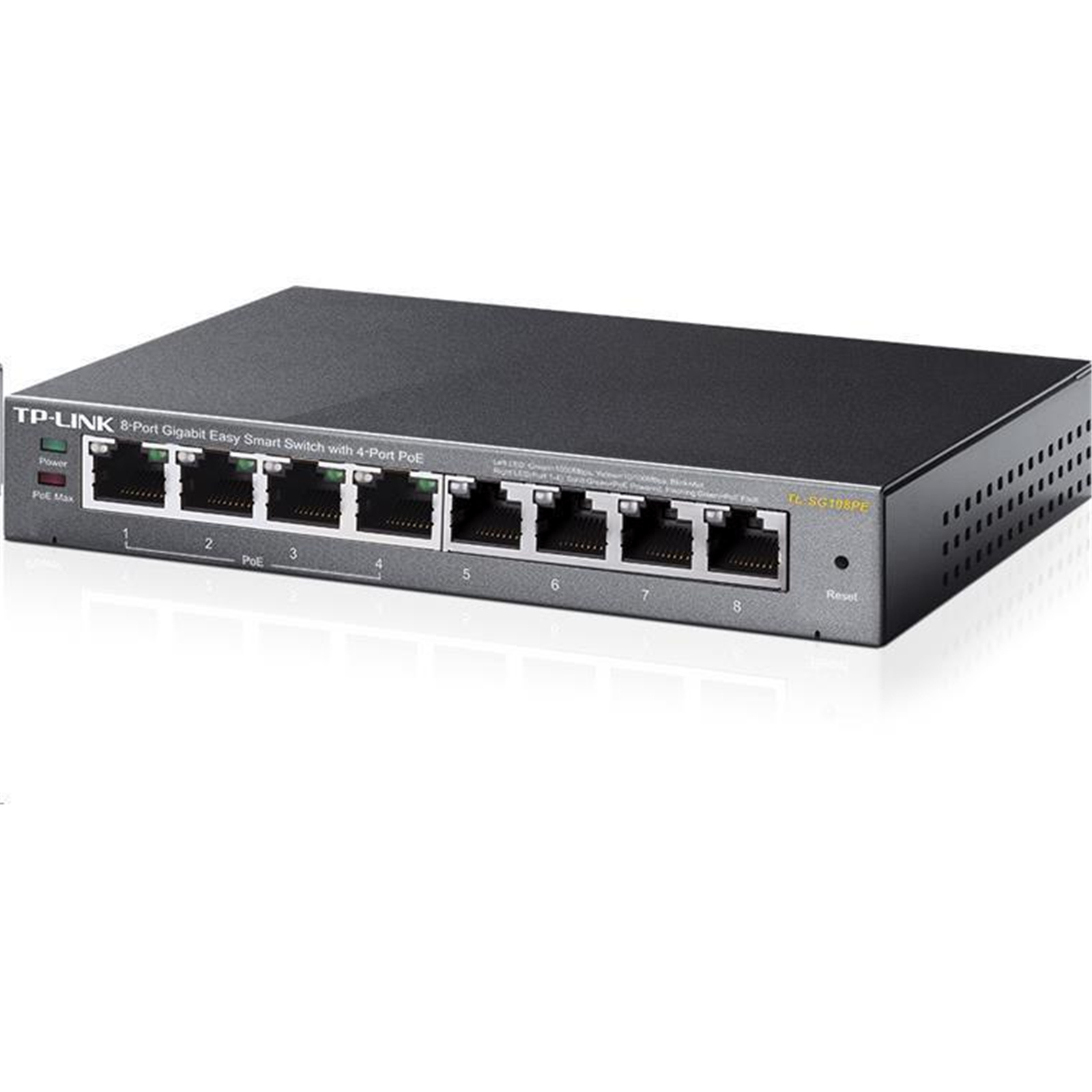

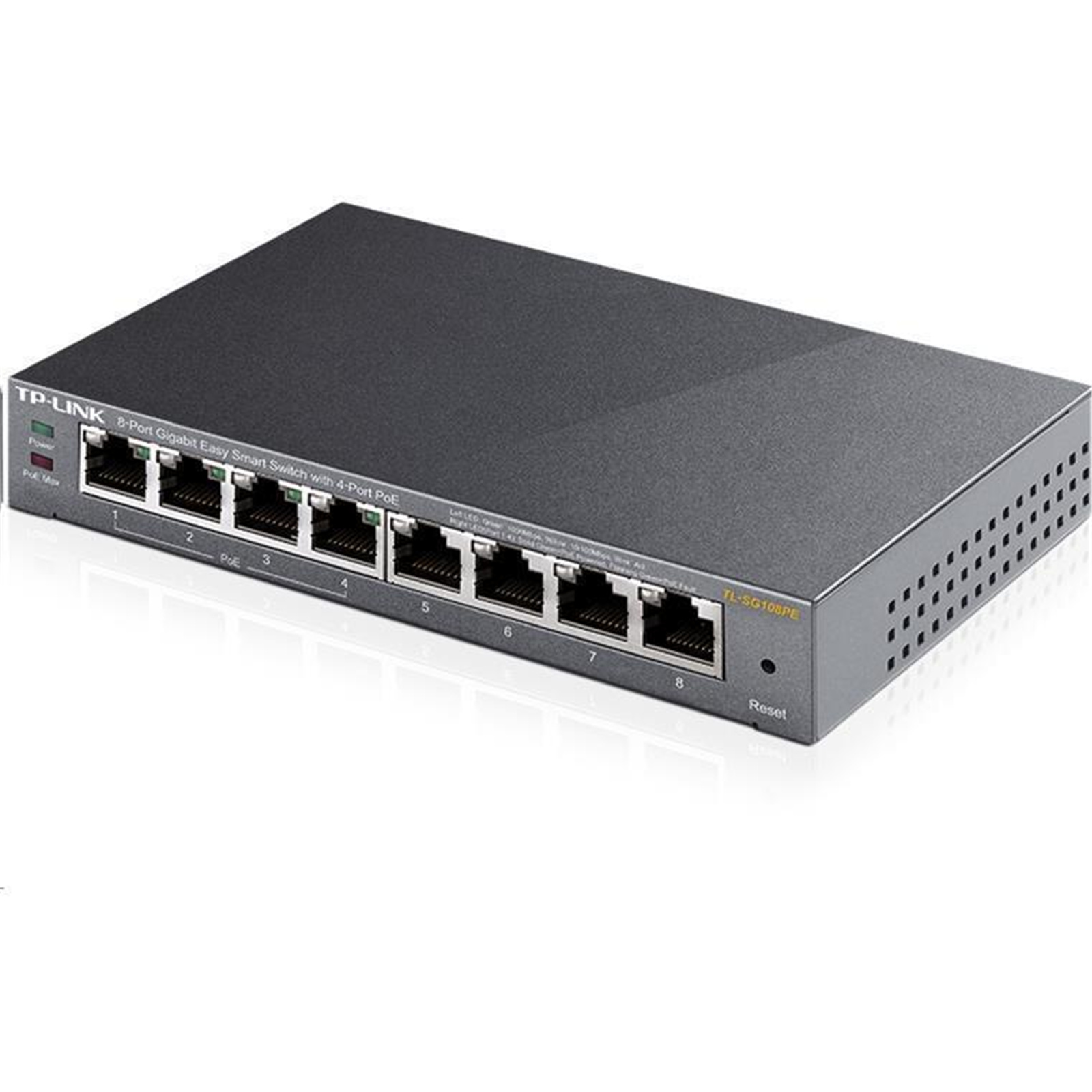

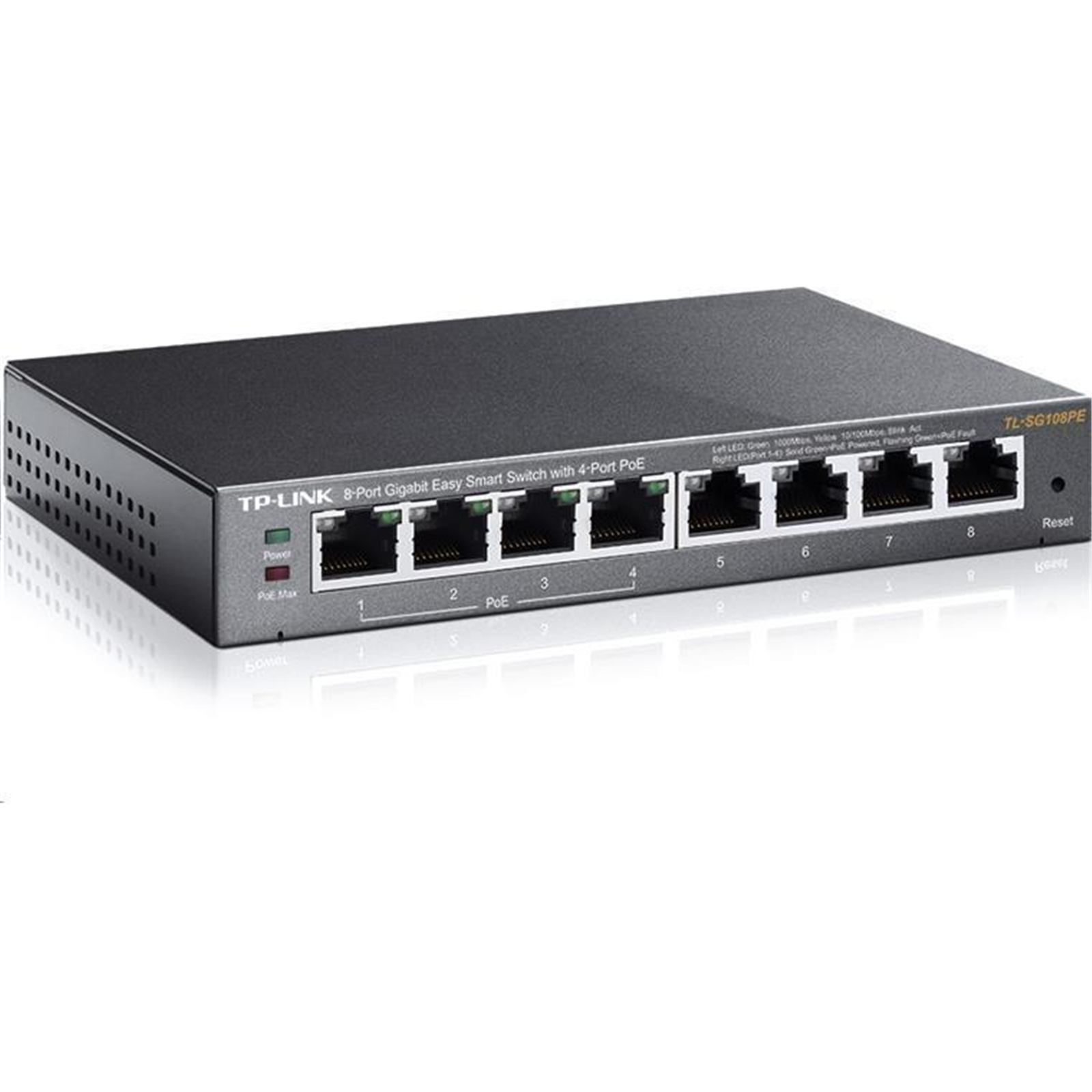

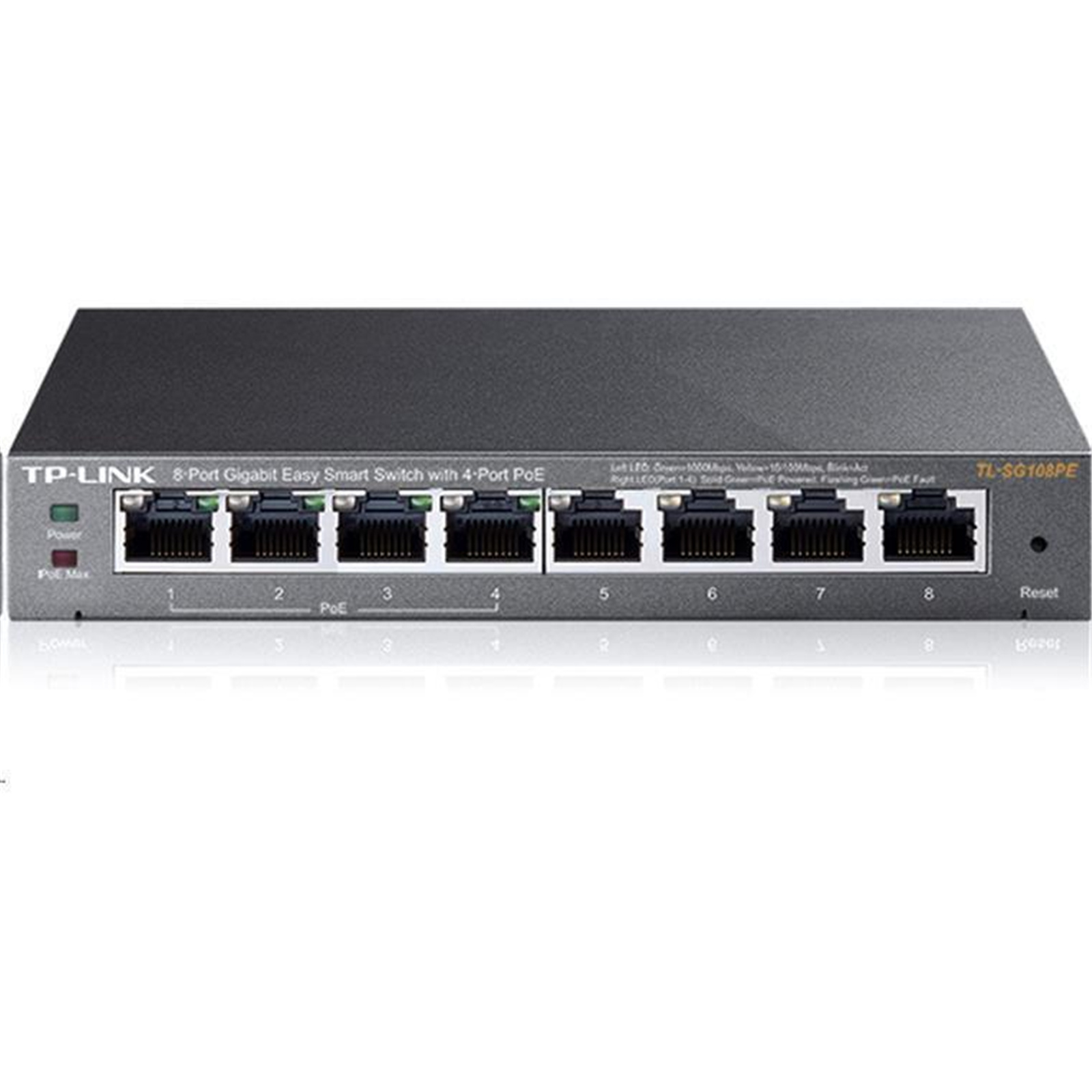

TP-Link TL-SG108PE 8-Port Gigabit Easy Smart PoE Switch, 4-Port PoE (Max 64W)

Special price
Special price
$ 113 .34
 +GST
$ 130 .34
 inc GST
$113.34  +GST
$130.34  inc GST

TP-Link TL-SG108PE 8-Port Gigabit Easy Smart PoE Switch, 4-Port PoE (Max 64W)

Effortless setup, excellent performance - experience superior PoE+ connectivity!
  • Brand: TP-Link
  • MPN: TL-SG108PE
  • Part #: SWHTPL1001
  • UPC:
BEST VALUE
19
Special price
$ 113 .34 $ 130 .34
 +GST  inc GST
Tax free price $120.14


Click & Collect: Available from 11 stores.
Select your store to check availability
Delivery: Order now and it ships tomorrow When will I receive it?
$113.34  +GST
$130.34  inc GST

Six easy payments of $22.38 per week*

Laybuy lets you spread the cost of your purchase over 6, interest-free, weekly payments.

Click the button below or select Laybuy as your payment method during the checkout process.

If you do not have a Laybuy account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.

Learn more about Laybuy

Four payments of $33.40 per fortnight*

Klarna lets you spread the cost of your purchase over 4 interest free fortnightly payments.

Click the button below or select Klarna as your payment method during the checkout process.

If you do not have a Klarna account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.

Learn more about Klarna

  • Brand: TP-Link
  • MPN: TL-SG108PE
  • Part #: SWHTPL1001
  • UPC:

Form Factor

1U Rackmount

10 Gigabit

No

10 Gigabit Ports

0 Ports

Management Level

Smart / Web Managed

Number of Ports

8 Ports

PoE

Yes

PoE Ports

4 Ports

PoE Budget

64 Watts

What PB Tech customers are saying about this product...

See More Reviews

"A solid little unit that works well straight out of the box. Although not specified it does PoE+ which was a happy surprise. Recommended"

W
By: WaveF 13/06/23
Verified Owner

"Got for my PoE security cameras and work fine and for a good price"

1
By: 1AH1 31/05/23
Verified Owner

"A good set of features for the price. I've got it setup running vlans and trunking to my PoE Access Points. Working great!"

G
By: Guest 08/05/23

COMBO DEALS: Buy Together and SAVE!

Save even more by creating your own combo deal with any of the items below and the TP-Link TL-SG108PE 8-Port Gigabit Easy Smart PoE Switch, 4-Port PoE ...
TP-Link TL-SG108PE 8-Port Gigabit Easy Smart PoE Switch, 4-Port PoE (Max 64W)
Total:
$ 229 .65
 +GST
$ 264 .10
 inc GST
Buy together and save $4.33 $4.98
Samsung EVO PLUS 128GB Micro SDXC with Adapter, up to 130MB/s Read
Samsung EVO PLUS 128GB Micro SDXC with Adapter, up to 130MB/s Read
$25.21 $28.99

$21.73  +GST

$24.99  inc GST

You save 13% You save 13%
Dynamix 5m Cat6 Black UTP Patch Lead (T568A Specification) 250MHz 24AWG Slimline Snagless Moulding. RJ45 Unshielded Connector with 50µ Inch Gold Plate.
Dynamix 5m Cat6 Black UTP Patch Lead (T568A Specification) 250MHz 24AWG Slimline Snagless Moulding. RJ45 Unshielded Connector with 50µ Inch Gold Plate.

$8.77  +GST

$10.09  inc GST

You save 6% You save 6%
Logitech MK270r Wireless Desktop Keyboard & Mouse Combo
Logitech MK270r Wireless Desktop Keyboard & Mouse Combo

Logitech MK270r Wireless Desktop Keyboard & Mouse Combo

Collect from 18 stores by 9:30am tomorrow
Ships tomorrow

$51.30  +GST

$59.00  inc GST

TP-Link TL-POE150S Gigabit PoE Injector, 802.3af / 15.4W
TP-Link TL-POE150S Gigabit PoE Injector, 802.3af / 15.4W

TP-Link TL-POE150S Gigabit PoE Injector, 802.3af / 15.4W

Collect from 17 stores by 9:30am tomorrow
Ships tomorrow

$34.51  +GST

$39.69  inc GST

Features



8-Port Gigabit Easy Smart Switch with 4-Port PoE

- 8 10/100/1000Mbps RJ45 ports
- With 4 PoE ports, data and power can be transferred on one single cable
- Provides network monitoring, traffic prioritization and VLAN features
- Simple network set-up on top of plug-and-play connectivity
- Web-based user interface and Easy Smart Configuration Utility simplify configuration




What This Product Does

The TL-SG108PE is an 8-port Gigabit Easy Smart Switch with 4 PoE ports, represents a powerful upgrade from an unmanaged switch. It is designed specifically for small businesses that require simple network management and PoE function. The TL-SG108PE can connect and power up to four PoE devices, such as wireless access points (APs), IP cameras, and IP phones. Through its web-based user interface and management utility, the TL-SG108PE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS. Additionally, with port-based, tag-based and MTU VLAN, TL-SG108PE can improve security and meet more network segmentation requirements.

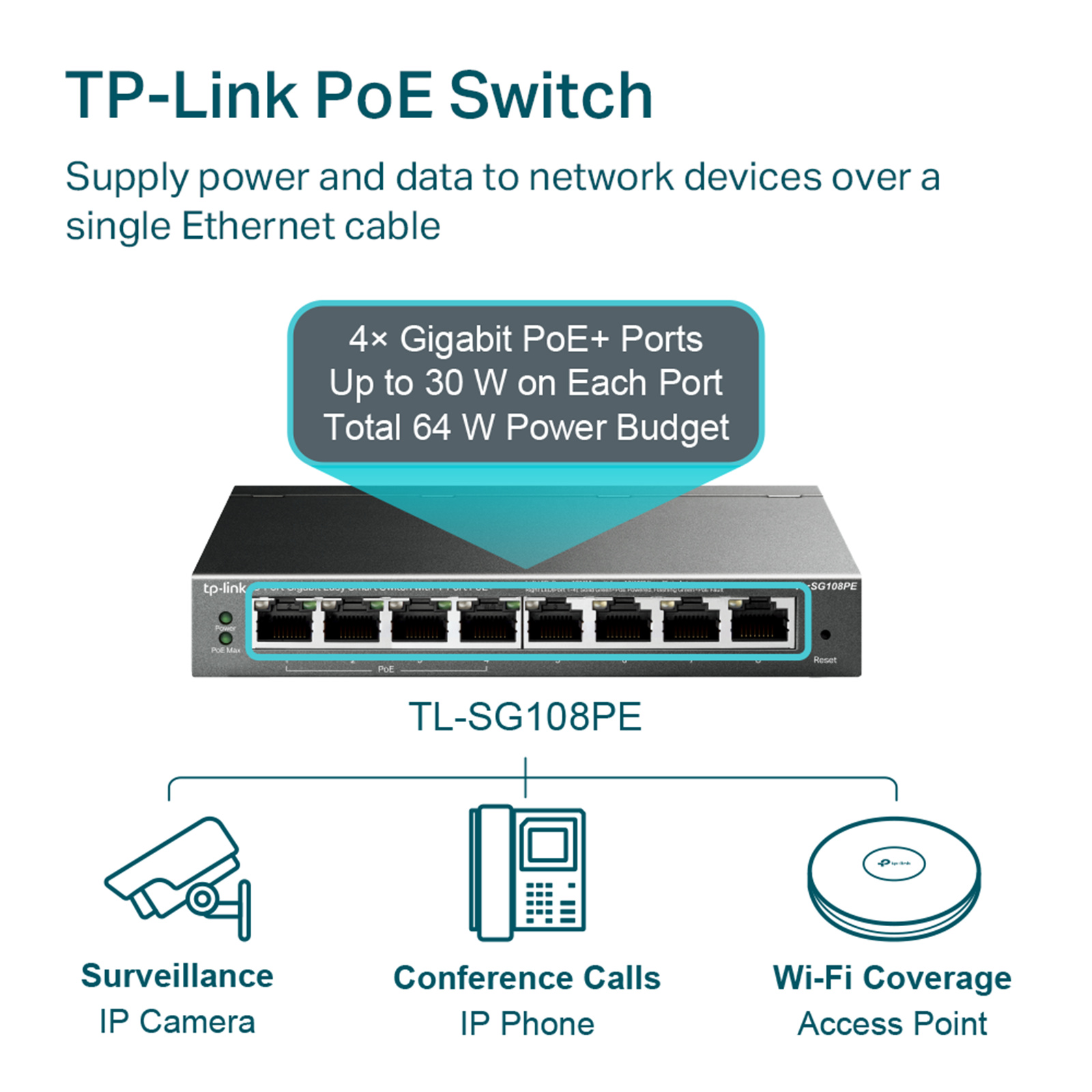

Multiple Application Scenarios

The TL-SG108PE is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices, such as PCs, printers, and IPTV.

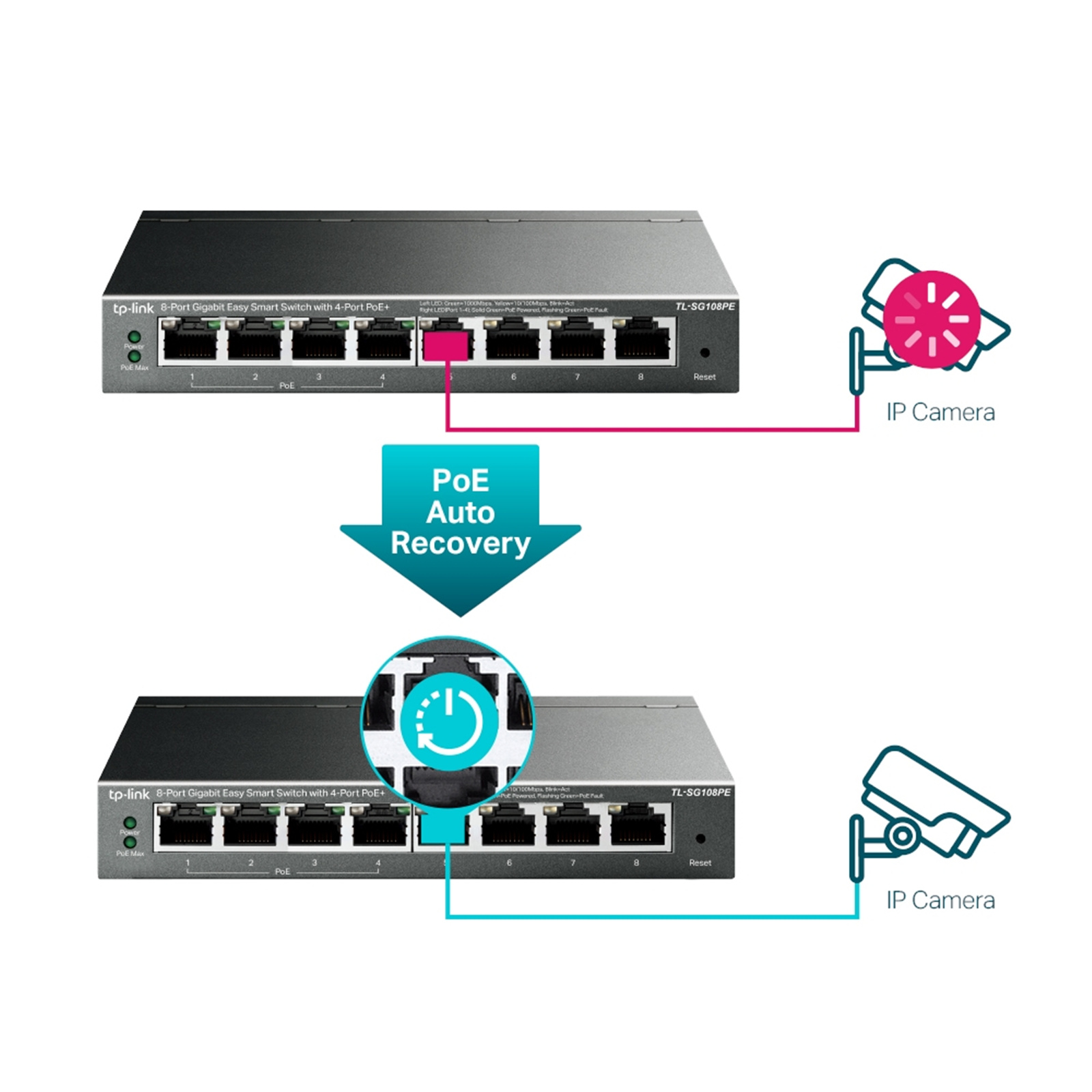

Power Over Ethernet

4 of the 8 Auto-Negotiation RJ45 ports (port 1 to port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).




Effective Management

TL-SG108PE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG108PE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS. With Port Mirroring, Loop Prevention and Cable Diagnostics features, TL-SG108PE can identify and even locate connection problems on your business network. Moreover, administrators can designate the priority of the traffic based on Port Priority, 802.1P Priority and DSCP Priority, to ensure that voice and video are always clear, smooth and lag-free. Additionally, to improve security and network performance, TL-SG108PE supports MTU VLAN, port-based VLAN and 802.1Q-based VLAN functions. TL-SG108PE is an upgrade from the plug-and-play Unmanaged Switch, delivering great value while empowering your network and similarly delivering great value to the end user.

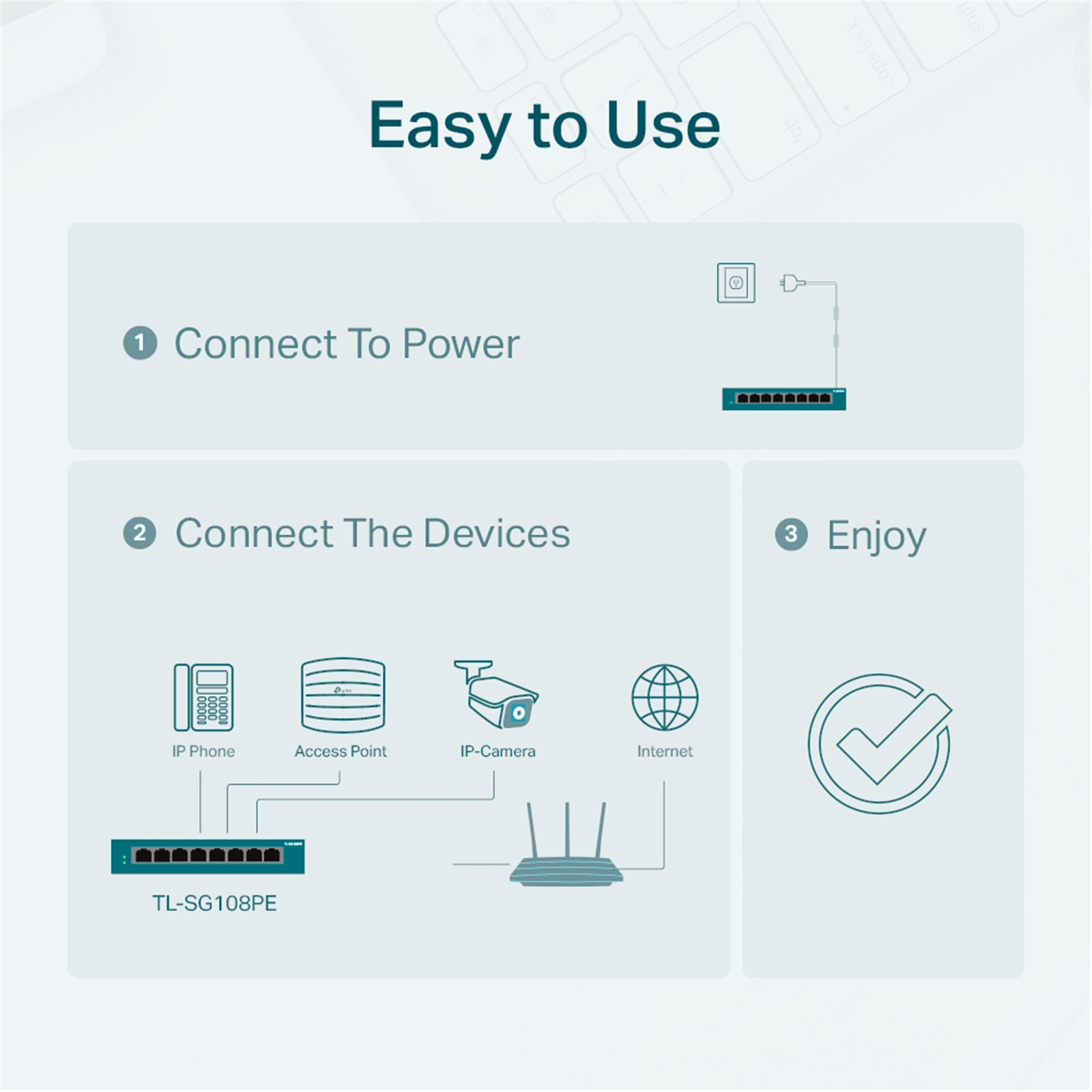

Easy to Use

The TL-SG108PE is easy to use and manage. Auto MDI/MDI-X crossover on all ports eliminates the need for crossover cables and uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adapts to promote compatibility and optimize performance. The convenient, compact size makes it ideal for desktops with limited space. Active LED indicators provide real-time status feedback and basic error diagnostics.



Making Management Easy

TL-SG108PE offers network monitoring for users to observe traffic behaviour. Through its web-based user interface and management utility, the TL-SG108PE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.



Durable Metal Casing

The interior components of TL-SG108PE are protected by a high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG108PE delivers switching performance you can depend on.


Code Model Features
Speed Total Ports PoE PoE+ Power Budget Management SFP
SWHTPL1027 TL-SF1005P 100Mbps 5 4 - 58W No N/A
SWHTPL1011 TL-SF1008P 100Mbps 8 4 - 57W No N/A
SWHTPL1028 TL-SG1005P Gigabit 5 4 - 56W No N/A
SWHTPL1020 TL-SG1008P Gigabit 8 4 - 55W No N/A
SWHTPL1001 TL-SG108PE Gigabit 8 4 - 55W Yes N/A
SWHTPL1012 TL-SG1008PE Gigabit 8 - 8 126W No N/A
SWHTPL1021 TL-SG1016PE Gigabit 16 - 8 110W Yes N/A
SWHTPL2210P T1500G-10PS Gigabit 10 8 - 53W Yes 2
SWHTPL1500 T1500G-10MPS Gigabit 10 - 8 116W Yes 2
NETTPL0028 T2500G-10MPS Gigabit 10 - 8 116W Yes 2
SWHTPL2425 T1600G-28PS Gigabit 28 - 24 180W Yes 4
SWHTPL3425 T2600G-28MPS Gigabit 28 - 24 384W Yes 4
SWHTPL1016 T1600G-52PS Gigabit 52 - 48 384W Yes 4

Specifications

HARDWARE FEATURES

Standards and Protocols

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,
IEEE 802.3x, IEEE 802.1q, IEEE 802.1p

Interface

8 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX

Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)

Fan Quantity

Fanless

Power Supply

External Power Adapter(Output: 48VDC / 1.25A)

Power Consumption

Maximum (PoE on): 65.2W (220V/50Hz)
Maximum (PoE off): 5.2W (220V/50Hz)

PoE Ports (RJ45)

Standard: 802.3 af compliant
PoE Ports: Port 1- Port 4
PoE Power Budget: 55W

Dimensions ( W x D x H )

6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm)

Max Power Consumption

5.41 W (220V/50Hz with no PD connected)
74.27 W (220V/50Hz with 64 W PD connected)

Max Heat Dissipation

18.45 BTU/h (with no PD connected)
253.26 BTU/h (with 64 W PD connected)

PERFORMANCE

Switching Capacity

16Gbps

Packet Forwarding Rate

11.9Mpps

MAC Address Table

4K

Packet Buffer Memory

1.5Mb

Jumbo Frame

15KB

SOFTWARE FEATURES

Quality of Service

Support Port-Based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control

L2 Features

IGMP Snooping V1/V2/V3
Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention

VLAN

Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN

Management

Web-based GUI
Easy Smart Configuration Utility

Transmission Method

Store-And-Forward

OTHERS

Certification

FCC, CE, RoHS

Package Contents

TL-SG108PE
Power Adapter
Installation Guide
Resource CD
Rubber Feet

System Requirements

Microsoft® Windows® for running Utility

Environment

Operating Temperature: 0~40C (32~104F)
Storage Temperature: -40~70C (-40~158F)
Operating Humidity: 10%~90%RH non-condensing
Storage Humidity: 5%~95%RH non-condensing

Manufacturer Part No:
TL-SG108PE
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
0.617 kg
PB Part No:
SWHTPL1001
Product Model:
TL-SG108PE
Warranty: 36 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.

Reviews

4.8 out of 5 Stars Based on 19 Reviews
5 Stars
15
4 Stars
4
3 Stars
0
2 Stars
0
1 Stars
0

Do you own this product?

Write a review and go into the monthly draw Win A $100 PB Tech Gift Card!

Solid, reliable, simple.

Well constructed switch, with simple plug and play or configurable via web interface or software executable.

Have been using for a month since upgrading to Orcon Gigabit Fibre.

Currently used to connect two laptops and a wireless AP to the main router. Not using the PoE at present.

Pros: Reliable, Plug&Play or reasonably configurable if required, wall mountable.
Con: Procrastination caused by staring at the blinking lights.

D
By: DavidN5 03/05/20
Verified Owner
2 out of 2 users found this review helpful
Did you find it helpful?

Good value

A solid little unit that works well straight out of the box. Although not specified it does PoE+ which was a happy surprise. Recommended

W
By: WaveF 13/06/23
Verified Owner
1 out of 1 user found this review helpful
Did you find it helpful?

Great

Got for my PoE security cameras and work fine and for a good price

1
By: 1AH1 31/05/23
Verified Owner
0 out of 0 users found this review helpful
Did you find it helpful?

Great little switch

A good set of features for the price. I've got it setup running vlans and trunking to my PoE Access Points. Working great!

G
By: Guest 08/05/23
0 out of 0 users found this review helpful
Did you find it helpful?

Does what I need it to do

Fairly straight-forward to configure and seems to do an excellent job.

G
By: Guest 17/11/22
0 out of 0 users found this review helpful
Did you find it helpful?

My customer was pleased with the result

Not bad unit.

G
By: Guest 23/07/20
0 out of 0 users found this review helpful
Did you find it helpful?

Good little gadget

Plugged them, they worked, no hassle

G
By: Guest 02/06/20
0 out of 0 users found this review helpful
Did you find it helpful?

works well

good value, does as advertised. silent and fast

G
By: Guest 29/12/19
0 out of 0 users found this review helpful
Did you find it helpful?

Good PoE switch

Solid construction, good price. Used to power a tp-link PoE access point.

R
By: RobertA85 15/11/19
Verified Owner
0 out of 0 users found this review helpful
Did you find it helpful?

Great

Great little switch, was plug and play for what I needed it to do, easy.

M
By: MightyMoose 08/07/19
Verified Owner
0 out of 0 users found this review helpful
Did you find it helpful?

Excellent bang for buck

Unmanaged, but a web interface that allows for easy setup and management. PoE setup was easy and options for passive bonding is included. Overall I'm very impressed for the price.

G
By: Guest 13/09/18
0 out of 0 users found this review helpful
Did you find it helpful?

Great Product

Works as advertised, great price point. Have it running 4 Hikvision cameras no problem.

G
By: Guest 01/08/18
0 out of 0 users found this review helpful
Did you find it helpful?

Delivery & Pick-up

Potential courier delays: Please note that due to the high volumes currently within the NZ courier network there is potential for some deliveries to be delayed.

Delivery Estimates

The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.

Next Day Delivery

Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.

Same Day Delivery

Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.

Shipping Costs

Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.

To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.

Shipping Security & Insurance

All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.

1 Hour Store Pick-up / Click & Collect

You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.

Overseas Shipments

PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com

Returns & Warranty

7 day right of exchange

If you change your mind after making a purchase, or realise you have ordered the incorrect item, you can enjoy the peace of mind that we offer a 7 day exchange policy.

To exchange a product, goods must be sealed / unopened, with packaging in original condition, and accompanied by a valid receipt dated no more than 7 calendar days from when you request an exchange.

If there is not a suitable product that can be exchanged for your returned item you will be offered a credit on your account or gift card based on the value paid at the time of purchase.

Please note, items purchased on finance cannot be exchanged for a gift card.



Hassle free warranty service

If your product develops a fault within the manufacturer warranty period, you can either contact the manufacturer directly (some manufacturers provide a high level of warranty service - including free pickup or in some cases onsite repair), or return to one of our services centres / stores. Where the product has been directly imported by PB Tech, you need to contact us directly or present the product at any one of our service centres / stores together with your proof of purchase.

If your product develops a fault outside of the manufacturer warranty or PB Tech warranty period, we offer a full repair service and are an authorised repair agent for leading brands such as Samsung, HP, Toshiba, Lenovo and more.



Returning a product / making a warranty claim

To contact the manufacturer directly to troubleshoot your product or to request a warranty repair, please view the list of manufacturer / brand warranty contacts (for products imported directly by PB Tech please return to us directly by completing our request a return form).

To return a product to PB Tech directly, please complete our request a return form.

Or view our returns policy for more information.

TP-Link TL-SG108PE 8-Port Gigabit Easy Smart PoE Switch, 4-Port PoE (Max 64W)

Effortless setup, excellent performance - experience superior PoE+ connectivity!
  • Brand: TP-Link
  • MPN: TL-SG108PE
  • Part #: SWHTPL1001
Special price $113.34 Excluding GST Special price $130.34 Including GST

Date Created: 17:25, 04-03-2024
Product URL: https://www.pbtech.co.nz/product/SWHTPL1001/TP-Link-TL-SG108PE-8-Port-Gigabit-Easy-Smart-PoE-S
Branch New Stock On Display
Albany 0
Glenfield 7
Queen Street 4
Auckland Uni 0
Newmarket 4
Westgate 0
Penrose 12
Henderson (Express) 4
St Lukes 4
Manukau 3
Hamilton 0
Tauranga 0
New Plymouth 1
Palmerston North 0
Petone 3
Wellington 5
Head Office 15
Hornby 4
Christchurch Central 0

Features



8-Port Gigabit Easy Smart Switch with 4-Port PoE

- 8 10/100/1000Mbps RJ45 ports
- With 4 PoE ports, data and power can be transferred on one single cable
- Provides network monitoring, traffic prioritization and VLAN features
- Simple network set-up on top of plug-and-play connectivity
- Web-based user interface and Easy Smart Configuration Utility simplify configuration




What This Product Does

The TL-SG108PE is an 8-port Gigabit Easy Smart Switch with 4 PoE ports, represents a powerful upgrade from an unmanaged switch. It is designed specifically for small businesses that require simple network management and PoE function. The TL-SG108PE can connect and power up to four PoE devices, such as wireless access points (APs), IP cameras, and IP phones. Through its web-based user interface and management utility, the TL-SG108PE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS. Additionally, with port-based, tag-based and MTU VLAN, TL-SG108PE can improve security and meet more network segmentation requirements.



Multiple Application Scenarios

The TL-SG108PE is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices, such as PCs, printers, and IPTV.




Power Over Ethernet

4 of the 8 Auto-Negotiation RJ45 ports (port 1 to port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).




Effective Management

TL-SG108PE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG108PE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS. With Port Mirroring, Loop Prevention and Cable Diagnostics features, TL-SG108PE can identify and even locate connection problems on your business network. Moreover, administrators can designate the priority of the traffic based on Port Priority, 802.1P Priority and DSCP Priority, to ensure that voice and video are always clear, smooth and lag-free. Additionally, to improve security and network performance, TL-SG108PE supports MTU VLAN, port-based VLAN and 802.1Q-based VLAN functions. TL-SG108PE is an upgrade from the plug-and-play Unmanaged Switch, delivering great value while empowering your network and similarly delivering great value to the end user.


Easy to Use

The TL-SG108PE is easy to use and manage. Auto MDI/MDI-X crossover on all ports eliminates the need for crossover cables and uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adapts to promote compatibility and optimize performance. The convenient, compact size makes it ideal for desktops with limited space. Active LED indicators provide real-time status feedback and basic error diagnostics.



Making Management Easy

TL-SG108PE offers network monitoring for users to observe traffic behaviour. Through its web-based user interface and management utility, the TL-SG108PE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.



Durable Metal Casing

The interior components of TL-SG108PE are protected by a high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG108PE delivers switching performance you can depend on.


Code Model Features
Speed Total Ports PoE PoE+ Power Budget Management SFP
SWHTPL1027 TL-SF1005P 100Mbps 5 4 - 58W No N/A
SWHTPL1011 TL-SF1008P 100Mbps 8 4 - 57W No N/A
SWHTPL1028 TL-SG1005P Gigabit 5 4 - 56W No N/A
SWHTPL1020 TL-SG1008P Gigabit 8 4 - 55W No N/A
SWHTPL1001 TL-SG108PE Gigabit 8 4 - 55W Yes N/A
SWHTPL1012 TL-SG1008PE Gigabit 8 - 8 126W No N/A
SWHTPL1021 TL-SG1016PE Gigabit 16 - 8 110W Yes N/A
SWHTPL2210P T1500G-10PS Gigabit 10 8 - 53W Yes 2
SWHTPL1500 T1500G-10MPS Gigabit 10 - 8 116W Yes 2
NETTPL0028 T2500G-10MPS Gigabit 10 - 8 116W Yes 2
SWHTPL2425 T1600G-28PS Gigabit 28 - 24 180W Yes 4
SWHTPL3425 T2600G-28MPS Gigabit 28 - 24 384W Yes 4
SWHTPL1016 T1600G-52PS Gigabit 52 - 48 384W Yes 4

Specifications

HARDWARE FEATURES

Standards and Protocols

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,
IEEE 802.3x, IEEE 802.1q, IEEE 802.1p

Interface

8 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX

Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)

Fan Quantity

Fanless

Power Supply

External Power Adapter(Output: 48VDC / 1.25A)

Power Consumption

Maximum (PoE on): 65.2W (220V/50Hz)
Maximum (PoE off): 5.2W (220V/50Hz)

PoE Ports (RJ45)

Standard: 802.3 af compliant
PoE Ports: Port 1- Port 4
PoE Power Budget: 55W

Dimensions ( W x D x H )

6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm)

Max Power Consumption

5.41 W (220V/50Hz with no PD connected)
74.27 W (220V/50Hz with 64 W PD connected)

Max Heat Dissipation

18.45 BTU/h (with no PD connected)
253.26 BTU/h (with 64 W PD connected)

PERFORMANCE

Switching Capacity

16Gbps

Packet Forwarding Rate

11.9Mpps

MAC Address Table

4K

Packet Buffer Memory

1.5Mb

Jumbo Frame

15KB

SOFTWARE FEATURES

Quality of Service

Support Port-Based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control

L2 Features

IGMP Snooping V1/V2/V3
Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention

VLAN

Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN

Management

Web-based GUI
Easy Smart Configuration Utility

Transmission Method

Store-And-Forward

OTHERS

Certification

FCC, CE, RoHS

Package Contents

TL-SG108PE
Power Adapter
Installation Guide
Resource CD
Rubber Feet

System Requirements

Microsoft® Windows® for running Utility

Environment

Operating Temperature: 0~40C (32~104F)
Storage Temperature: -40~70C (-40~158F)
Operating Humidity: 10%~90%RH non-condensing
Storage Humidity: 5%~95%RH non-condensing

Date Created: 17:25, 04-03-2024
Product URL: https://www.pbtech.co.nz/product/SWHTPL1001/TP-Link-TL-SG108PE-8-Port-Gigabit-Easy-Smart-PoE-S
