TP-Link TL-SF1005LP 5-Port 10/100Mbps Desktop PoE Switch with 4-Port PoE (Max 41W)

PB Tech price
PB Tech price
$ 51 .30
 +GST
$ 59 .00
 inc GST

Out of stock

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

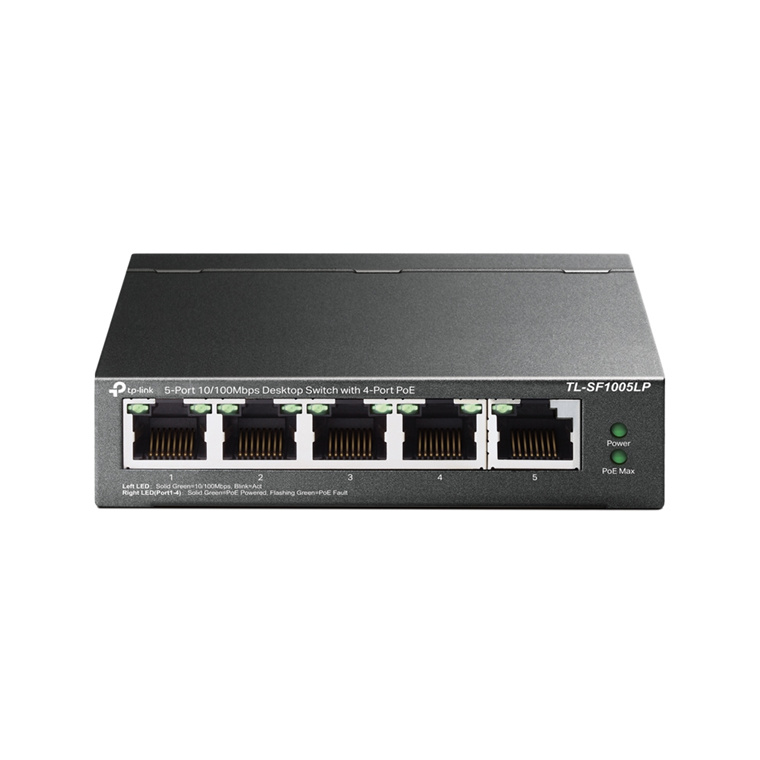

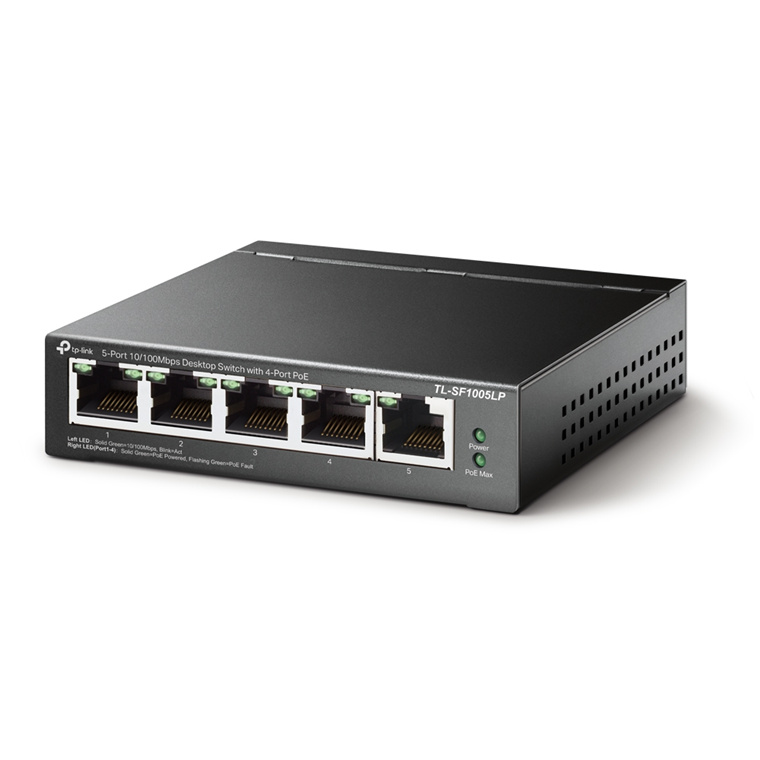

TP-Link TL-SF1005LP 5-Port 10/100Mbps Desktop PoE Switch with 4-Port PoE (Max 41W)

  • Brand: TP-Link
  • MPN: TL-SF1005LP
  • Part #: SWHTPL10051
  • UPC:
PB Tech price
$ 51 .30 $ 59 .00
 +GST  inc GST

No store stock available. See in-stock alternatives

Click & Collect: Collect unavailable
Delivery: Out of stock When will I receive it?
  • Brand: TP-Link
  • MPN: TL-SF1005LP
  • Part #: SWHTPL10051
  • UPC:

10 Gigabit

No

10 Gigabit Ports

0 Ports

Form Factor

Desktop

Management Level

Not Specified

Number of Ports

5 Ports

PoE

Yes

PoE Ports

4 Ports

PoE Budget

Not Specified

Product is out of stock. View similar products in-stock at PB Tech

Features

TL-SF1005LP 5-Port 10/100Mbps Desktop PoE Switch with 4-Port PoE

- 5x 10/100 Mbps RJ45 ports
- 4x PoE ports transfer data and power on individual cables
- Works with IEEE 802.3af compliant PDs
- Up to 250 m data and power transmitting range under Extend Mode**
- Priority Mode ensures high priority of ports 1-2 to guarantee the quality of sensitive application
- Supports PoE Power up to 41 W for all PoE ports*
- Plug and play with no configuration required



Professional Fast Ethernet Switch with 4 PoE Ports

Plug and Play, with PoE Transmission for Surveillance up to 250 m

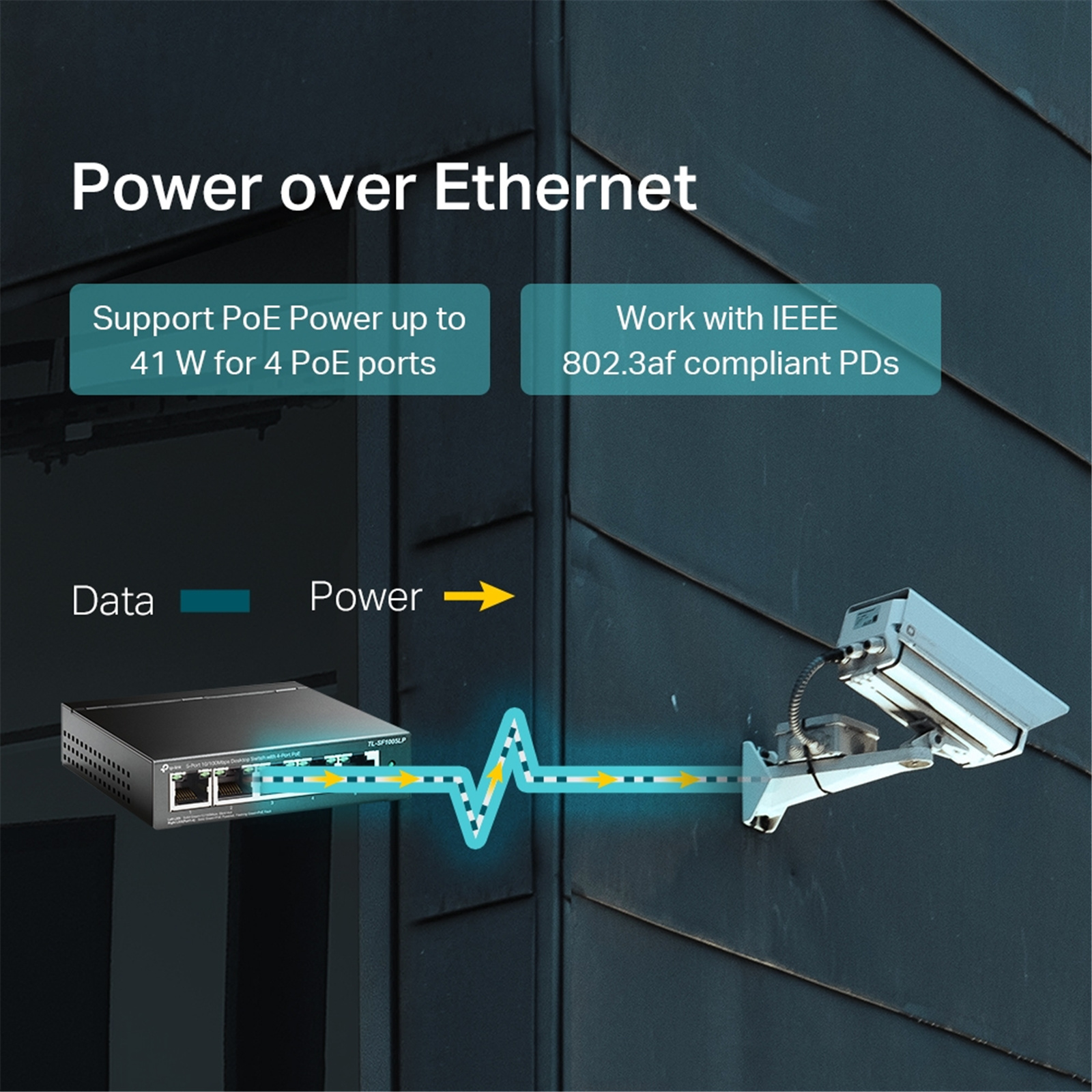

Dedicated 4-Port PoE Switch (41 W Budget) for Numerous Applications

Compliance with the 802.3af PoE standard supports up to 15.4 W on each PoE port. The total 41 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

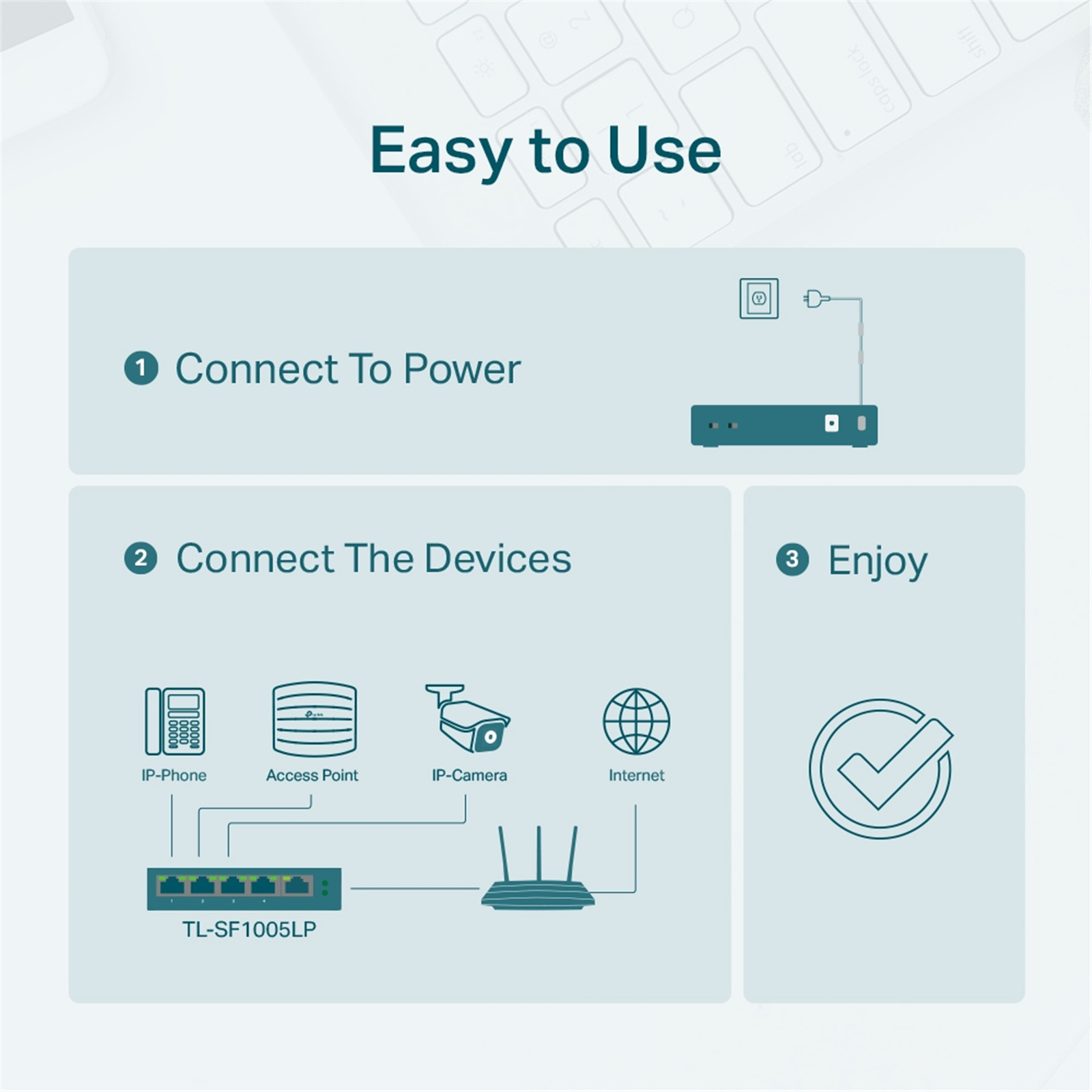

Plug and Play, No Configuration Required



Ideal for IP Surveillance -Up to 250 m Transmissions

With extend mode, the PoE transmission distance reaches up to 250 m**-perfect for IP Camera deployment in large areas.

**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.



Priority Video, Quality Guaranteed

Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1-2 when one-touch Priority Mode is on.



Intelligent Power Management

When total power consumption exceeds 41 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port's power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.



Durable Metal Casing

The interior components of TL-SF1005LP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1005LP delivers switching performance you can depend on.



*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.

Specifications

HARDWARE FEATURES

Interface

5× 10/100 Mbps RJ45 Ports (Ports 1-4 support 802.3af PoE)
AUTO Negotiation
AUTO MDI/MDIX

Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)

Fan Quantity

Fanless

Physical Security Lock

Yes

External Power Supply

External Power Adapter (Output: 53.5 V DC / 0.81 A)

Packet Forwarding Rate

0.744 Mpps

PoE Ports (RJ45)

Standard: 802.3 af compliant
PoE Ports: Ports 1-4
Power Supply: 41 W

Mac Address Table

2K

Jumbo Frame

2 KB

Switching Capacity

1 Gbps

Dimensions ( W x D x H )

3.9 x 3.9 x 1.0 in (100 x 98 x 25 mm)

Max Power Consumption

1.9 W (220 V / 50 Hz, no PD connected)
47 W (220 V / 50 Hz, with 41 W PD connected)

Max Heat Dissipation

6.48 BTU/h(no PD connected)
160.27 BTU/h(with 41 W PD connected)

SOFTWARE FEATURES

Transmission Method

Store-And-Forward

Advanced Functions

Compatible With IEEE 802.3af/at Compliant PDs
Extend Mode Button (Ports 1-4)
Priority Mode Button (Ports 1-2)
Mac Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode

OTHERS

Certification

FCC, CE, RoHS

Package Contents

TL-SF1005LP
Power Adapter
Installation Guide

Environment

Operating Temperature: 0-40 ? (32-104 ?)
Storage Temperature: -40-70 ? (-40-158 ?)
Operating Humidity: 10-90% RH non-condensing
Storage Humidity: 5-90% RH non-condensing

Manufacturer Part No:
TL-SF1005LP
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1.2 kg
PB Part No:
SWHTPL10051
Product Model:
TL-SF1005LP
Warranty: 36 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
