TP-Link TL-SG1005P 5-Port Gigabit Unmanaged PoE Switch, 4-Port PoE (Max 56W)

PB Tech price: PB Tech price:
$86 08  +GST $98 99  inc GST
  • Overview
  • Features
  • Specifications
  • Reviews
  • Q & A

Generating Print Page

TP-Link TL-SG1005P 5-Port Gigabit Unmanaged PoE Switch, 4-Port PoE (Max 56W)

TP-Link TL-SG1005P 5-Port Gigabit Unmanaged PoE Switch, 4-Port PoE (Max 56W)

  • Brand: TP-Link
  • MPN: TL-SG1005P
  • Part #: SWHTPL1028
  • UPC:
  • Form Factor:Desktop
  • 10 Gigabit:No
  • Management Level:Unmanaged
  • Number of Ports:5 Ports
  • PoE:Yes
  • PoE Ports:4 Ports
  • PoE Budget:56 Watts
  • Stacking:No
PB Tech price:PB Tech price:
$8608$9899
 +GST  inc GST

Store Pickup: Select your store to check availability
Delivery: Order now and it ships tomorrow
When will I receive it?
View delivery cut-off times over the Holiday period
Add To Compare

Four easy payments of $25.49 per fortnight*

Oxipay lets you spread the cost of your purchase over 4 fortnightly payments.

Click the button below or select Oxipay as your payment method during the checkout process.

If you do not have an Oxipay account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about Oxipay

Six easy payments of $16.99 per week*

Laybuy lets you spread the cost of your purchase over 6, interest-free, weekly payments.

Click the button below or select Laybuy as your payment method during the checkout process.

If you do not have a Laybuy account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about Laybuy

What PB Tech customers are saying about this product...See More Reviews

"I am using this for
Ubiquiti UniFi UAP-AC-IW Dual-band AC1200 (300+867Mbps) In-Wall Wi-Fi Access Point with PoE Passthrough Port 3 x Gigabit LAN, 802.3at

Works well"
 Shankar S. ~ 24-11-19
"Easy to set up and has solved internet problems. very happy."
 BarryL ~ 24-05-19
"Nice compact and with excellent through put"
 Eric B. ~ 12-04-19

Features

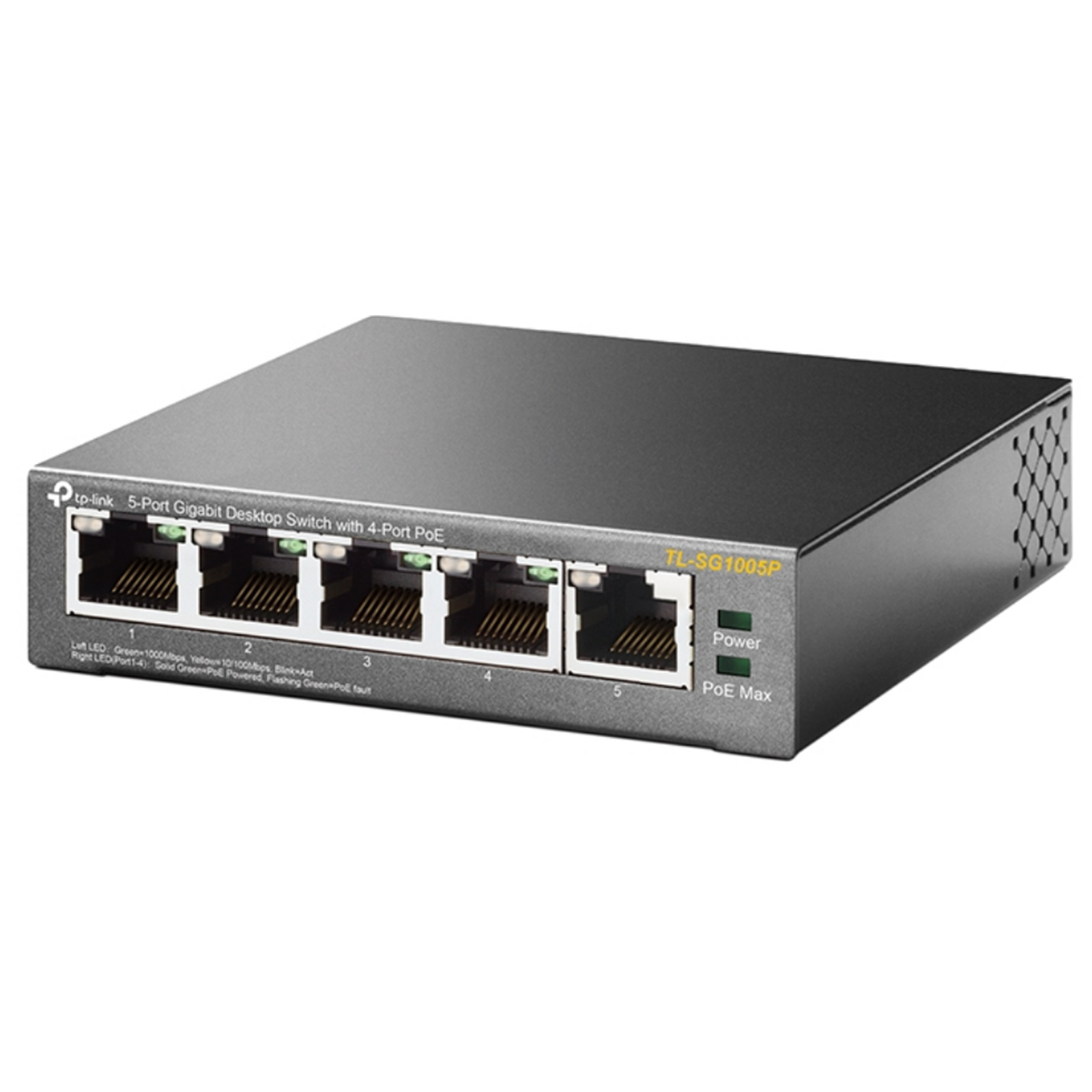

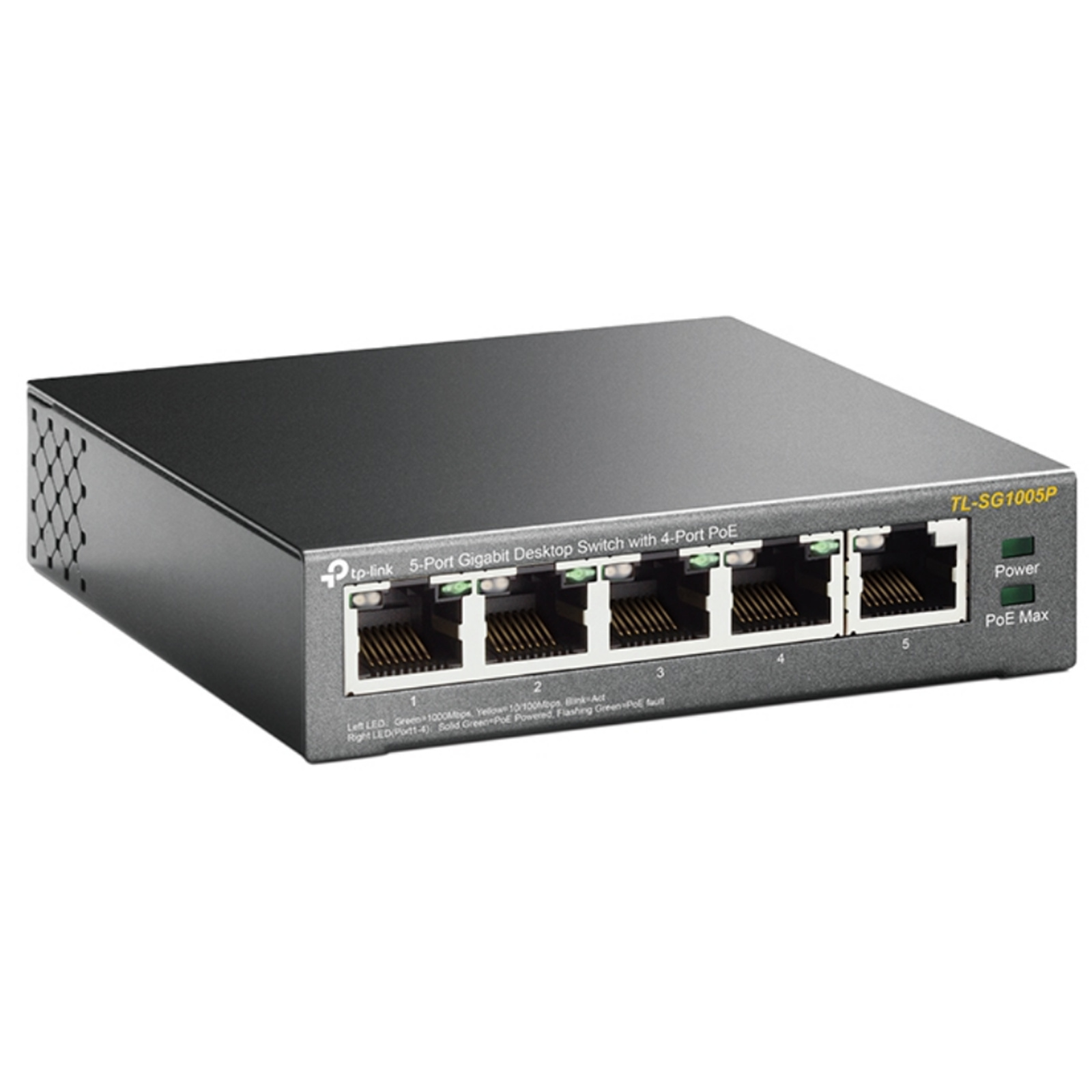

5-Port Gigabit Desktop Switch with 4-Port PoE

TL-SG1005P is a 5 10/100/1000Mbps ports unmanaged switch that requires no configuration and provides 4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.

- 5 10/100/1000Mbps RJ45 ports
- With four PoE ports, transfers data and power on one single cable
- Working with IEEE 802.3af compliant PDs, expands home and office network
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
 Supports PoE Power up to 15.4W for each PoE port
- Supports PoE Power up to 56W for all PoE ports
- Requires no configuration and installation


Power over Ethernet

4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).


Overload Arrangement

TL-SG1005P has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is >= 56W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.


Port Priority Function

Priority (Port 1=Port 2=Port 3>Port 4): This function will help to ensure the normal operation of the system, it means Port 4 will be cut off when all total PoE PDs power consumption exceed 56W. For an example, Port 1, 2 and 4 is using 15.4W (maximum power for per port is 15.4W); the system power is 46.2W in total. If there is an additional PD inserted to Port 3 with 10W, and then the system will cut off the power of Port 4 because of the overloaded power, this means Port 1, 2 will use 15.4W, and Port3 will use 10W, no power will be supplied to Port 4.


Easy To Use

TL-SG1005P is easy to install and use. It requires no configuration and installation. With desktop design, outstanding performance and quality, the TP-Link's TL-SG1005P 5-Port Gigabit Desktop Switch with 4-Port PoE is an ideal choice for expanding your home or office network.


Code Model Features
Speed Total Ports PoE PoE+ Power Budget Management SFP
SWHTPL1027 TL-SF1005P 100Mbps 5 4 - 58W No N/A
SWHTPL1011 TL-SF1008P 100Mbps 8 4 - 57W No N/A
SWHTPL1028 TL-SG1005P Gigabit 5 4 - 56W No N/A
SWHTPL1020 TL-SG1008P Gigabit 8 4 - 55W No N/A
SWHTPL1001 TL-SG108PE Gigabit 8 4 - 55W Yes N/A
SWHTPL1012 TL-SG1008PE Gigabit 8 - 8 126W No N/A
SWHTPL1021 TL-SG1016PE Gigabit 16 - 8 110W Yes N/A
SWHTPL2210P T1500G-10PS Gigabit 10 8 - 53W Yes 2
SWHTPL1500 T1500G-10MPS Gigabit 10 - 8 116W Yes 2
NETTPL0028 T2500G-10MPS Gigabit 10 - 8 116W Yes 2
SWHTPL2425 T1600G-28PS Gigabit 28 - 24 180W Yes 4
SWHTPL3425 T2600G-28MPS Gigabit 28 - 24 384W Yes 4
SWHTPL1016 T1600G-52PS Gigabit 52 - 48 384W Yes 4

Specifications

HARDWARE FEATURES

Interface
5 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
Fan Quantity
Fanless
Power Consumption
63.31W (max. with 56w PoE device connected)
4.26W (max. no PoE device connected)
External Power Supply
External Power Adapter(Output: 48VDC / 1.25A)
PoE Ports (RJ45)
Standard: 802.3 af compliant
PoE Ports: Port1- Port4
Power Supply: 56W
Backbound Bandwidth
10Gbps
Mac Address Table
2K
Dimensions ( W x D x H )
3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25 mm)

SOFTWARE FEATURES


Advanced Features
Compatible With IEEE 802.3af Compliant PDs
Priority Function
Mac Address Auto-Learning And Auto-Aging
EEE802.3x Flow Control
802.1p/DSCP QoS
IGMP Snooping
Transfer Method
Store-And-Forward

OTHERS


Certification
FCC, CE, RoHS
Package Contents
TL-SG1005P, Power Adapter, Installation Guide
Consumption
4.26 watts (max. no PD connected)
63.31 watts (max. with 56w PD connected)
Environment
Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90%RH non-condensing
Storage Humidity: 5%~90%RH non-condensing
Manufacturer Part No: TL-SG1005P Brand: TP-Link Product Type: -
UPC - Product Family: - Shipping Weight: 0.836 kg
PB Part No: SWHTPL1028 Product Model: TL-SG1005P

Warranty: 36 months local warranty *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.

Reviews

5 out of 5 StarsBased on 5 Reviews

5 Stars
5
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0

Filter Results

Do you own this product?

Write a review and go into the draw to win great prizes each month! Learn more WRITE A REVIEW
Displaying 1 - 5 of 5 reviews
Shankar S.

Brilliant product

24 November 2019
I am using this for
Ubiquiti UniFi UAP-AC-IW Dual-band AC1200 (300+867Mbps) In-Wall Wi-Fi Access Point with PoE Passthrough Port 3 x Gigabit LAN, 802.3at

Works well
Did you find it helpful?
0 out of 0 users found this review helpful
BarryL

Great

24 May 2019
Easy to set up and has solved internet problems. very happy.
Did you find it helpful?
0 out of 0 users found this review helpful
Eric B.

TP-Link Gigabit Switch

12 April 2019
Nice compact and with excellent through put
Did you find it helpful?
0 out of 0 users found this review helpful
Cameron

Great little POE Switch

30 January 2019
A nice small form factor and good performance. Plugged in to APs and everything just worked.

Just make sure you consider the 8 port option if there's any chance you'll need more ports.
Did you find it helpful?
0 out of 0 users found this review helpful
Marie M.

TP-Link TL-SG1005P 5 Port

15 March 2018
We are installing CCTV into a 4-story building.
My electrician recommended this product as it would allow us to minimalize cabling and carry power to the cameras as well.
It has only been installed one month now and we are very pleased with the results.
I did my homework on price and found PD Tech very price competitive. There overnight delivery service was also excellent.
More than happy to recommend PB Tech service and product, both 5 stars.
Did you find it helpful?
0 out of 0 users found this review helpful
