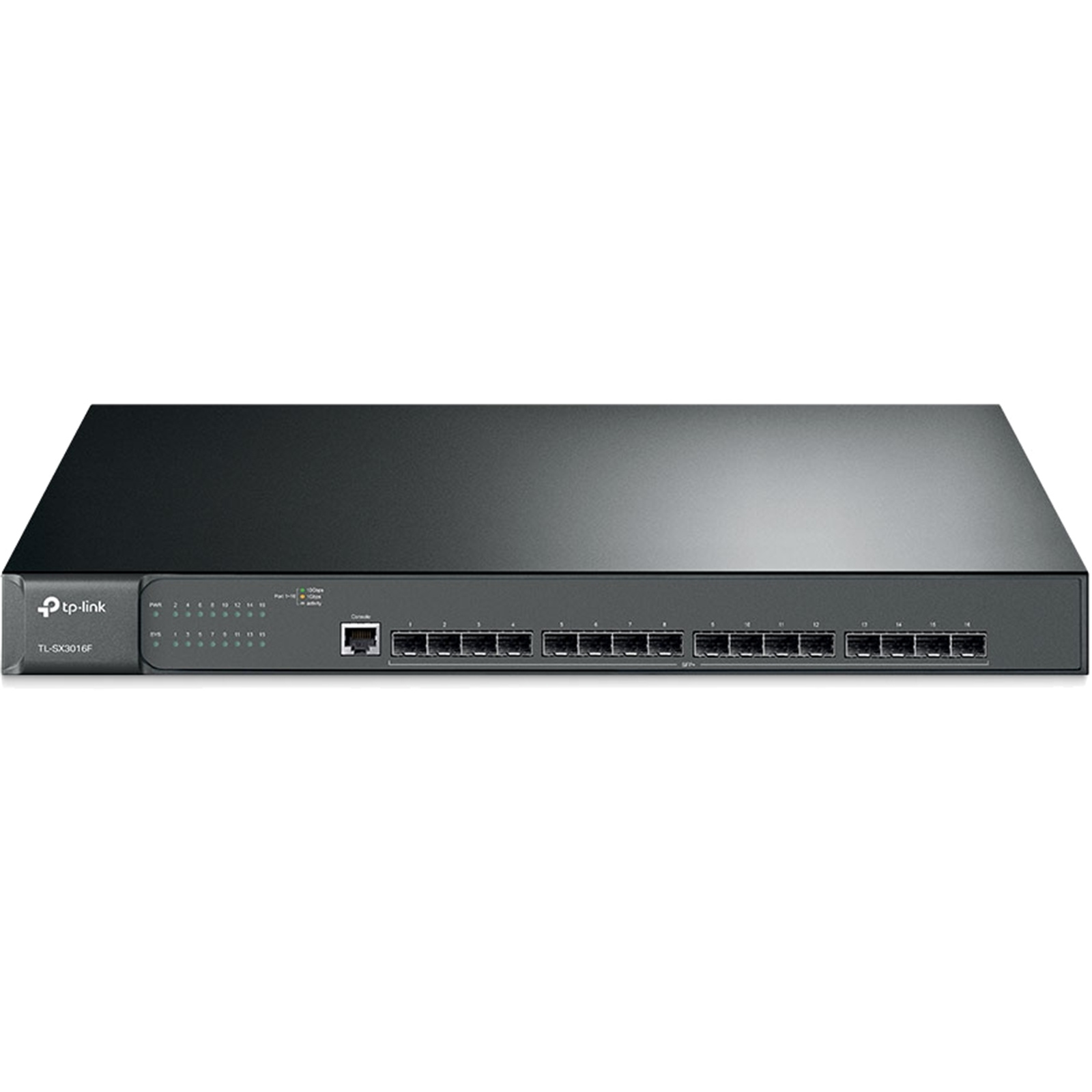

TP-Link Omada SX3016F 16-Port 10GE SFP+ L2+ Managed Switch
TP-Link Omada SX3016F 16-Port 10GE SFP+ L2+ Managed Switch
- Brand: TP-Link
- MPN: SX3016F
- Part #: SWHTPL103016
- UPC:
- Brand: TP-Link
- MPN: SX3016F
- Part #: SWHTPL103016
- UPC:
COMBO DEALS: Buy Together and SAVE!
TP-Link Tapo L930-5 Smart Light Strip -5M, RGB Multicolour, Dimmable
$73.04 +GST
$84.00
TP-Link Tapo L530E Smart Wi-Fi RGB LED Light Bulb E27 - 2 Pack
$27.26 +GST
$31.35
Features
TL-SX3016F - JetStream 16-Port 10GE SFP+ L2+ Managed Switch
- 16x Full 10 Gbps SFP+ Slots - Lightning-fast full 10 Gbps SFP+ slots provide high-bandwidth aggregation connectivity
- Centralized Cloud Management - Integrates into Omada SDN for cloud access and remote management
- Abundant L2 and L2+ Features - Supports a complete lineup of L2 and L2+ features including Static Routing, enterprise-level QoS, IGMP Snooping, and more
- Robust Security Strategies - Helps protect LAN area investment with integrated IP-MAC-Port Binding, ACL, Port Security, 802.1X Authentication, and more
View detailed datasheet: https://static.tp-link.com/upload/product-overview/2021/202109/20210909/SDN%2010-Gigabit%20L2%2b%20Managed%20Switch.pdf
Specifications
Reviews
Accessories
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Switches
Ubiquiti UniFi USW-Flex-Mini 5-Port Gigabit L2 Managed Switch -...
TP-Link TL-SG1005D 5-Port Gigabit Desktop Switch
TP-Link TL-SG105 5-Port 10/100/1000Mbps Desktop Switch
TP-Link TL-SG108PE 8-Port Gigabit Easy Smart PoE Switch with 4...
Ubiquiti UniFi USW-Lite-8-POE 8-Port Gigabit L2 Managed PoE...
TP-Link Omada SX3016F 16-Port 10GE SFP+ L2+ Managed Switch
- Brand: TP-Link
- MPN: SX3016F
- Part #: SWHTPL103016
Product URL: https://www.pbtech.co.nz/product/SWHTPL103016/TP-Link-Omada-SX3016F-16-Port-10GE-SFP-L2-Managed
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Newmarket | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
TL-SX3016F - JetStream 16-Port 10GE SFP+ L2+ Managed Switch
- 16x Full 10 Gbps SFP+ Slots - Lightning-fast full 10 Gbps SFP+ slots provide high-bandwidth aggregation connectivity
- Centralized Cloud Management - Integrates into Omada SDN for cloud access and remote management
- Abundant L2 and L2+ Features - Supports a complete lineup of L2 and L2+ features including Static Routing, enterprise-level QoS, IGMP Snooping, and more
- Robust Security Strategies - Helps protect LAN area investment with integrated IP-MAC-Port Binding, ACL, Port Security, 802.1X Authentication, and more
View detailed datasheet: https://static.tp-link.com/upload/product-overview/2021/202109/20210909/SDN%2010-Gigabit%20L2%2b%20Managed%20Switch.pdf
Specifications
Model
TL-SX3016F
General
Interface
16 10GE SFP+ Slots
Console
1 RJ45 Console Port, 1 Micro-USB Console Port
Flash
32 MB
DRAM
256 MB
Port Standard
IEEE 802.3z: 1000BASE-X Gigabit Ethernet (Optical fiber)
IEEE 802.3ae: 10 Gigabit Ethernet over fiber
Performance
Switching Capacity
320 Gbps
Packet Forwarding Rate
238.08 Mpps
MAC Address Table
32K
Packet Buffer
24 Mbit
Transmission Method
Store and Forward
Number of IP Interfaces
16
Number of Static Routers
48 (IPv4, IPv6)
Jumbo Frame
9 KB
Physical & Environment
Dual Redundant Power Supply
2 Fixed AC Power Supply
Power Supply
100-240 V AC~50/60 Hz
Max Power Consumption
32.74 W (220 V/50 Hz)
Max Heat Dissipation
111.71 BTU/hr (220 V/50 Hz)
Standby Power Consumption
13.33 W (110 V/60 Hz)
Dimensions (W x D x H)
17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm)
Fan Quantity
1
Installation
Rack Mountable
Operating Temperature
0 °C to 45 °C (32 °F to 113 °F)
Storage Temperature
-40 °C to 70 °C (-40 °F to 158 °F)
Operation Humidity
10% to 90% RH, non-condensing
Storage Humidity
5% to 90% RH, non-condensing
Certification
CE, FCC, RoHS
Software Features
SDN Support
- Support Omada Hardware Controller (OC200/OC300), Software Controller
- Automatic Device Discovery
- Batch Configuration
- Batch Firmware Upgrading
- Intelligent Network Monitoring
- Abnormal Event Warnings
- Unified Configuration
- Reboot Schedule
L3 Features
- 16 IPv4/IPv6 Interfaces
- Static Routing
- 48 static routes
- Static ARP
- 128 static entries
- 512 ARP Entries
- Proxy ARP
- Gratuitous ARP
- DHCP Server
- DHCP Relay
- DHCP interface relay
- DHCP VLAN relay
- DHCP L2 Relay
L2 Features
- Link Aggregation
- Static link aggregation
- 802.3ad LACP
- Up to 8 aggregation groups and up to 8 ports per group
- Spanning Tree Protocol
- 802.1d STP
- 802.1w RSTP
- 802.1s MSTP
- STP Security: TC Protect, BPDU Filter, BPDU Protect, Root Protect, Loop Protect
- Loopback Detection
- Port based
- VLAN based
- Flow Control
- 802.3x Flow Control
- HOL Blocking Prevention
- Mirroring
- Port Mirroring
- CPU Mirroring
- One-to-One
- Many-to-One
- Tx/Rx/Both
L2 Multicast
- Supports 1000 (IPv4, IPv6) IGMP groups
- IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
- IGMP Snooping Querier
- IGMP Authentication
- IGMP Authentication
- MVR
- MLD Snooping
- MLD v1/v2 Snooping
- Fast Leave
- MLD Snooping Querier
- Static Group Config
- Limited IP Multicast
- Multicast Filtering: 256 profiles and 16 entries per profile
VLAN
- VLAN Group (802.1q VLAN)
- Max 4K VLAN Groups
- 802.1Q Tagged VLAN
- MAC VLAN: 30 entries (10 entries for TL-SG3210XHP-M2)
- Protocol VLAN: Protocol Template 16, Protocol VLAN 16 (Protocol Template 16 and Protocol VLAN 12 for TL-SX3008F and TL-SX3016F)
- Private VLAN
- GVRP
- VLAN VPN
- VLAN Mapping
- VLAN Replace
- Voice VLAN
QoS
- 8 priority queues
- 802.1p CoS/DSCP priority
- Queue scheduling
- SP (Strict Priority)
- WRR (Weighted Round Robin)
- SP+WRR
- Bandwidth Control
- Port/Flow based Rating Limiting
- Smoother Performance
- Action for Flows
- QoS remark (802.1P Remark, DSCP Remark)
ACL
- MAC ACL
- Source MAC
- Destination MAC
- VLAN ID
- User Priority
- Ether Type
- IP ACL
-Source IP
- Destination IP
- Fragment
- IP Protocol
- TCP Flag
- TCP/UDP Port
- DSCP/IP TOS
- Combined ACL
- IPv6 ACL
- Policy
- Mirroring
- Redirect
- Rate Limit
- QoS Remark
- ACL apply to Port/VLAN
- Time-based ACL
Security
- IP-MAC-Port Binding
-512 Entries
- DHCP Snooping
- ARP Inspection
- IPv4 Source Guard
- IPv6-MAC
-Port Binding
-512 Entries
- DHCPv6 Snooping
- ND Detection
- ND Snooping
- IPv6 Source Guard
- DoS Defend
- DHCP Filter
- Static/Dynamic Port Security
- Up to 64 MAC addresses per port
- Broadcast/Multicast/Unknown-unicast Storm Control
- kbps/ratio/pps control mode
- 802.1X
- Port base authentication
- Mac base authentication
- VLAN Assignment
- MAB
- Guest VLAN
- Support RADIUS authentication and accountability
- AAA (including TACACS+)
- Port Isolation
- Secure web management through HTTPS with SSLv3/TLS 1.2
- Secure Command Line Interface (CLI) management with SSHv1/SSHv2
- IP/Port/MAC based access control
ISP Features
- 802.3ah Ethernet Link OAM
- L2PT (Layer 2 Protocol Tunneling)
- PPPoE ID Insertion
- Device Link Detect Protocol (DLDP)
- sFlow
- DDM
Management
- Web-based GUI
- Command Line Interface (CLI) through consoleport, telnet
- SNMPv1/v2c/v3
- Trap/Inform
- RMON (1, 2, 3, 9 groups)
- SDM Template
- DHCP/BOOTP Client
- 802.1ab LLDP/LLDP-MED
- DHCP Auto Install
- Dual Image, Dual Configuration
- CPU Monitoring
- Cable Diagnostics
- Password Recovery
- SNTP
- System Log
IPv6 Support
- IPv6 Dual IPv4/IPv6
- Multicast Listener Discovery (MLD) Snooping
- IPv6 ACL
- IPv6 Interface
- Static IPv6 Routing
- IPv6 neighbor discovery (ND)
- Path maximum transmission unit (MTU) discovery
- Internet Control Message Protocol (ICMP) version 6
- TCPv6/UDPv6
- IPv6 applications
- DHCPv6 Client
- Ping6
- Tracert6
- Telnet (v6)
- IPv6 SNMP
- IPv6 SSH
- IPv6 SSL
- Http/Https
- IPv6 TFTP
MIBs
- MIB II (RFC1213)
- Interface MIB (RFC2233)
- Ethernet Interface MIB (RFC1643)
- Bridge MIB (RFC1493)
- P/Q-Bridge MIB (RFC2674)
- RMON MIB (RFC2819)
- RMON2 MIB (RFC2021)
- RADIUS Accounting Client MIB (RFC2620)
- RADIUS Authentication Client MIB (RFC2618)
- Remote Ping, Traceroute MIB (RFC2925)
- Support TP-Link Private MIB
