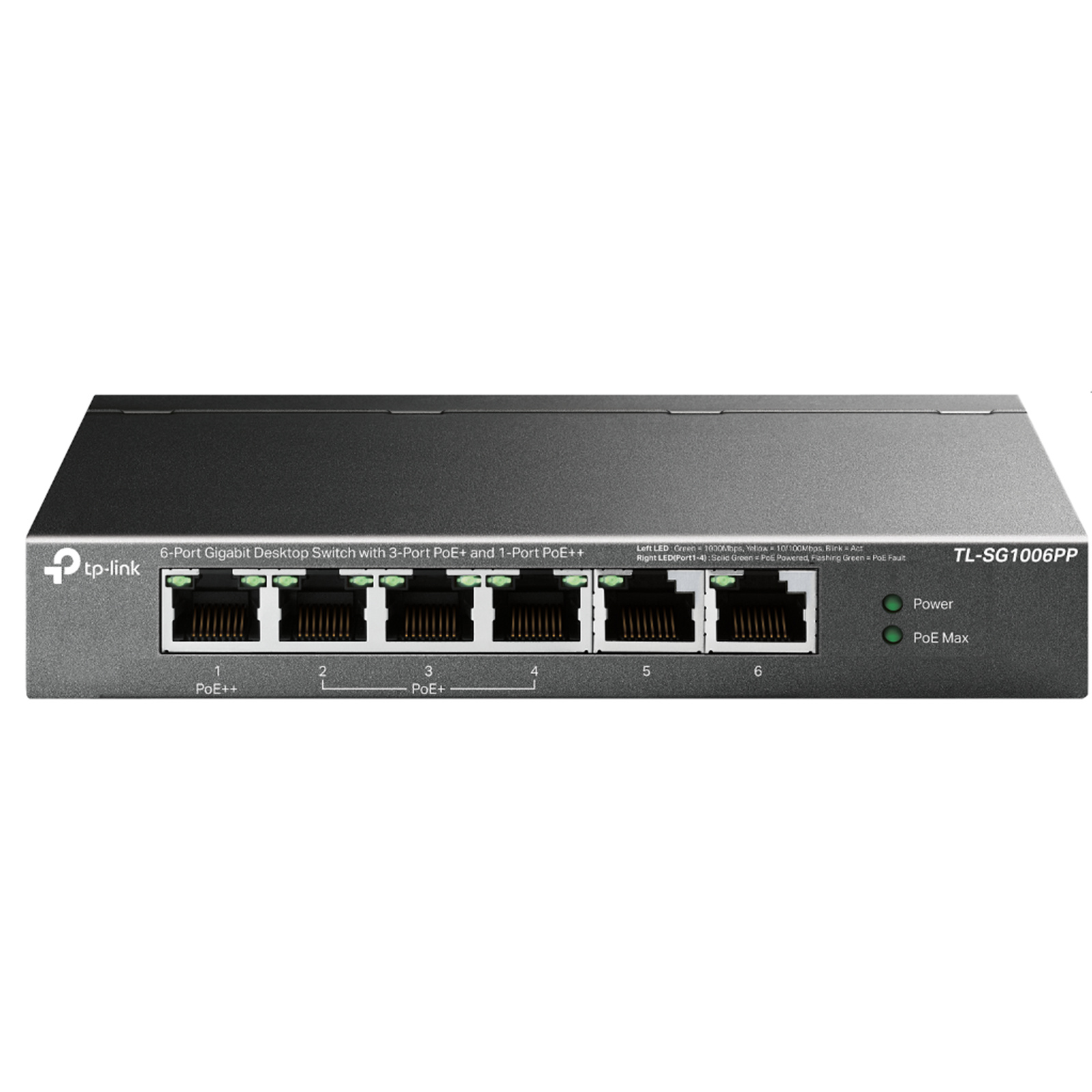

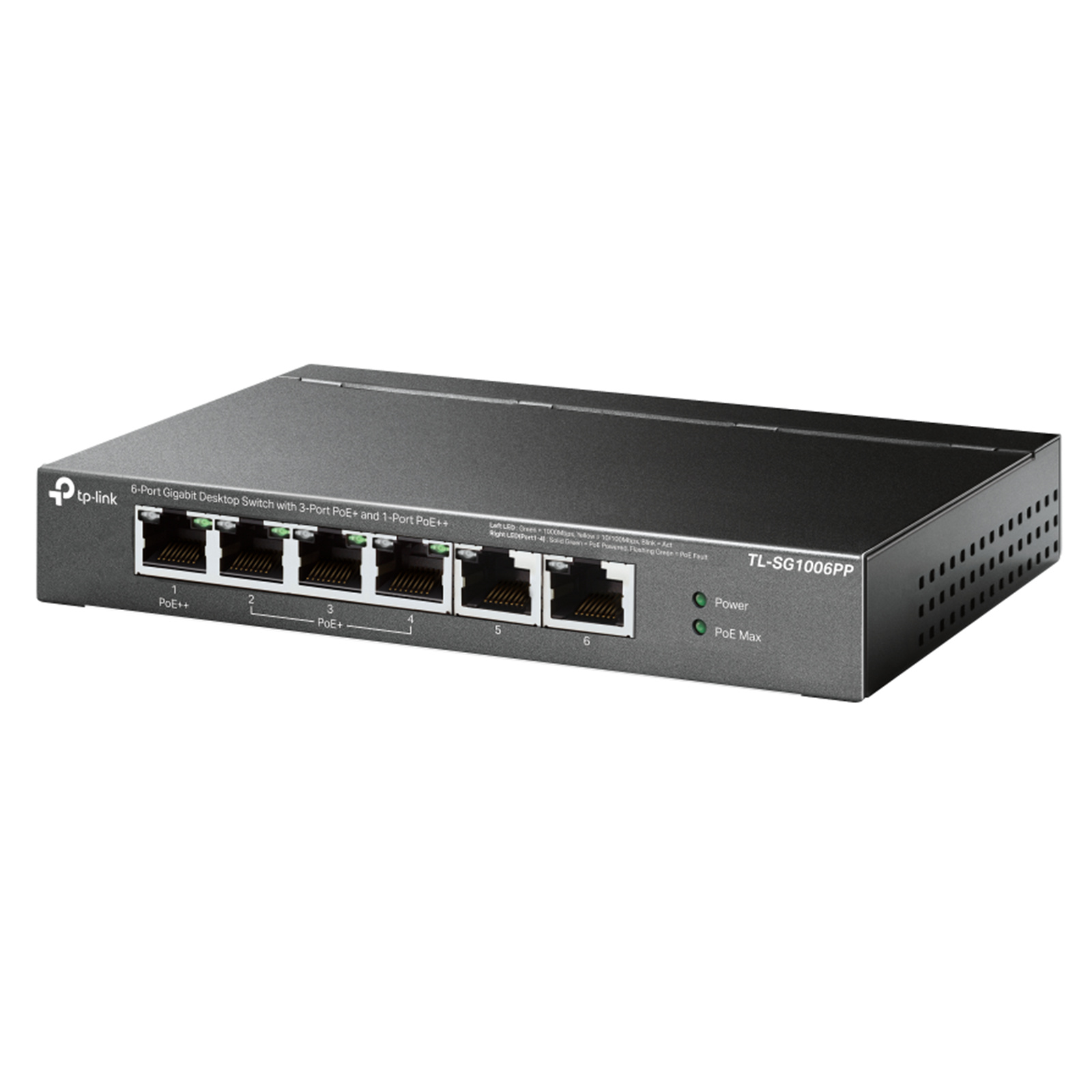

TP-Link TL-SG1006PP 6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++ (Max 64W)

PB Tech price
PB Tech price
$ 88 .70
 +GST
$ 102 .00
 inc GST

Out of stock

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

TP-Link TL-SG1006PP 6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++ (Max 64W)

  • Brand: TP-Link
  • MPN: TL-SG1006PP
  • Part #: SWHTPL1066
  • UPC:
PB Tech price
$ 88 .70 $ 102 .00
 +GST  inc GST

No store stock available. See in-stock alternatives

Click & Collect: Collect unavailable
Delivery: Out of stock When will I receive it?
  • Brand: TP-Link
  • MPN: TL-SG1006PP
  • Part #: SWHTPL1066
  • UPC:

10 Gigabit

Not Specified

10 Gigabit Ports

6 Ports

Form Factor

Not Specified

Management Level

Not Specified

Number of Ports

6 Ports

PoE

Yes

PoE Ports

4 Ports

PoE Budget

Not Specified

Product is out of stock. View similar products in-stock at PB Tech

Features

Dedicated 1 PoE++ and 3 PoE+ Ports (64 W Budget) for Numerous Applications

Port 1 complies with the 802.3af/at/bt PoE++ to supply ample power up to 60 W, and ports 2-4 compliance with 802.3af/at PoE+ support up to 30 W on each PoE+ port. The total 64 W PoE power budget* for all PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

Ideal for IP Surveillance
-Up to 250 m Transmissions

With extend mode, the PoE transmission distance reaches up to 250 m*-perfect for IP Camera deployment in large areas.

System Self-Healing
with PoE Auto Recovery

The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without need for manual monitoring and restart.

Intelligent Power Management

When total power consumption exceeds 64 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port's power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

Durable Metal Casing

The interior components of TL-SG1006PP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG1006PP delivers switching performance you can depend on.

Specifications

HARDWARE FEATURES

Interface

- 6× 10/100/1000Mbps RJ45 Ports
- AUTO Negotiation
- AUTO MDI/MDIX

Network Media

- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100O STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100O STP (maximum 100m)
- 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
- EIA/TIA-568 100O STP (maximum 100m)

Fan Quantity

Fanless

External Power Supply

External Power Adapter (Output: 53.5 VDC / 1.31 A)

Packet Forwarding Rate

8.928 Mpps

PoE Ports (RJ45)

- Port 1 compliances with 802.3af/at/bt; Ports 2-4 compliance with 802.3af/at
- Power Supply: 64 W

Mac Address Table

4K

Switching Capacity

12 Gbps

Dimensions ( W x D x H )

6.2x4.0x1.0 in (158x101x25 mm)

Max Power Consumption

- 4.75 W (220/50 Hz. no PD connected)
- 71.46 W (220/50 Hz. with 64 W PD connected)

Max Heat Dissipation

- 16.20 BTU/h (220/50 Hz. no PD connected)
- 243.68 BTU/h (220/50 Hz. with 64 W PD connected)

SOFTWARE FEATURES

Advanced Features

- Compatible With IEEE 802.3af/at/bt Compliant PDs
- Mac Address Auto-Learning And Auto-Aging
- IEEE 802.3x Flow Control
- 802.1p/DSCP QoS
- IGMP Snooping

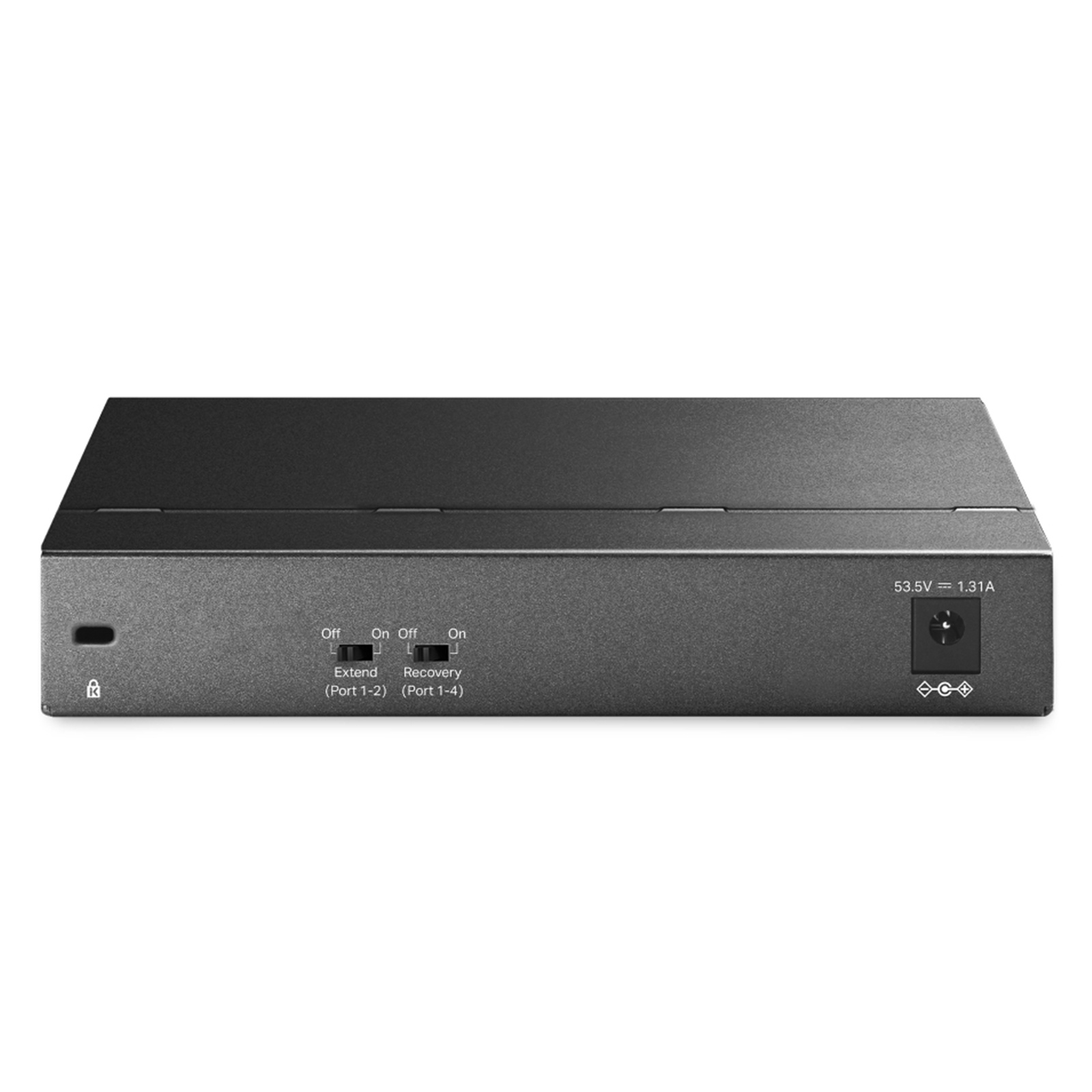

- Extend Mode Button (Ports 1-2, Up to 250 m PoE power supply and data transmission)
- PoE Auto Recovery (Ports 1-4)

Transfer Method

Store-And-Forward

OTHERS

Certification

FCC, CE, RoHS

Package Contents

- TL-SG1006PP
- Power Adapter
- Installation Guide

Environment

- Operating Temperature: 0-40 ? (32-104 ?);
- Storage Temperature: -40-70 ? (-40-158 ?)
- Operating Humidity: 10-90% RH non-condensing
- Storage Humidity: 5-90% RH non-condensing

Manufacturer Part No:
TL-SG1006PP
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1.4 kg
PB Part No:
SWHTPL1066
Product Model:
TL-SG1006PP
Warranty: Not applicable
