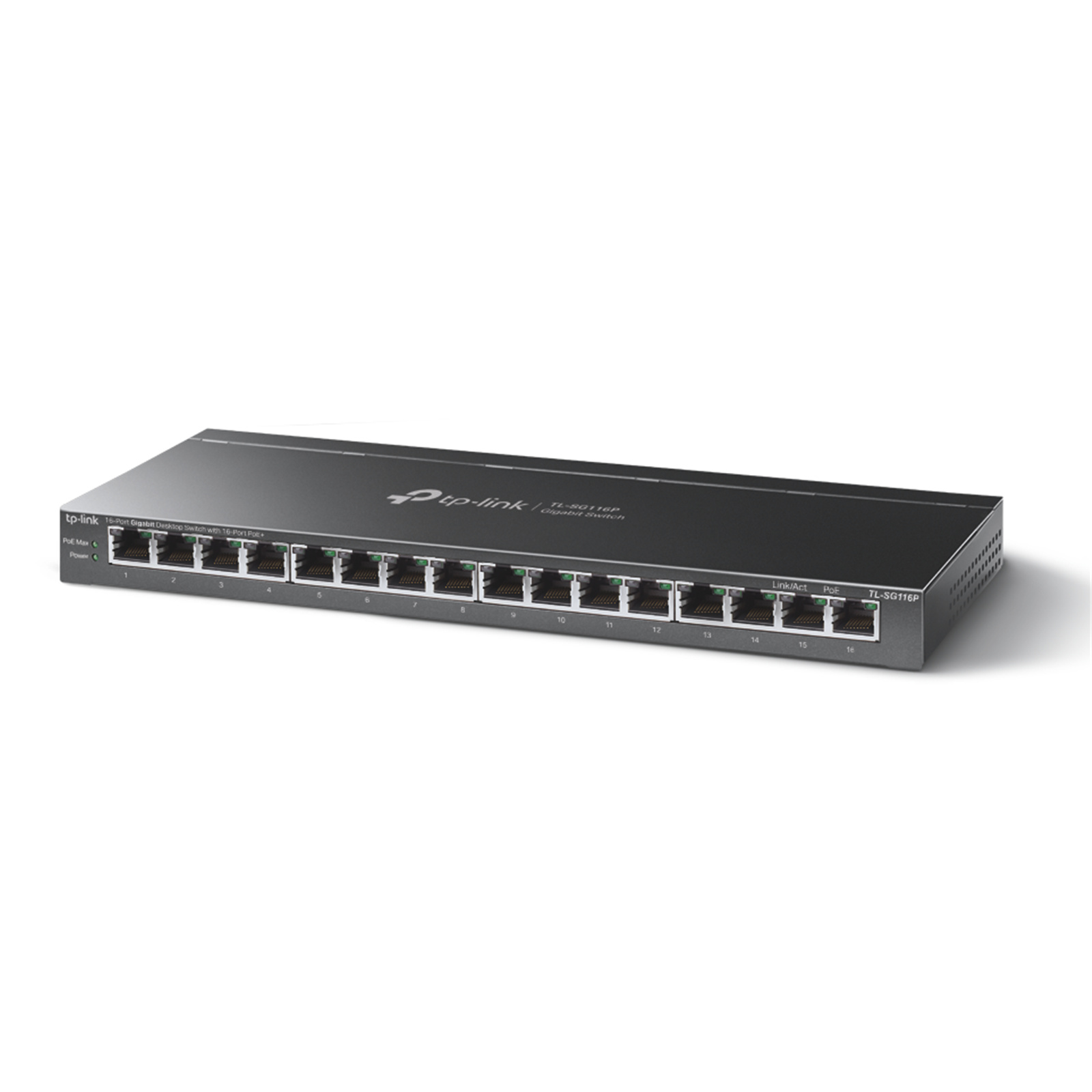

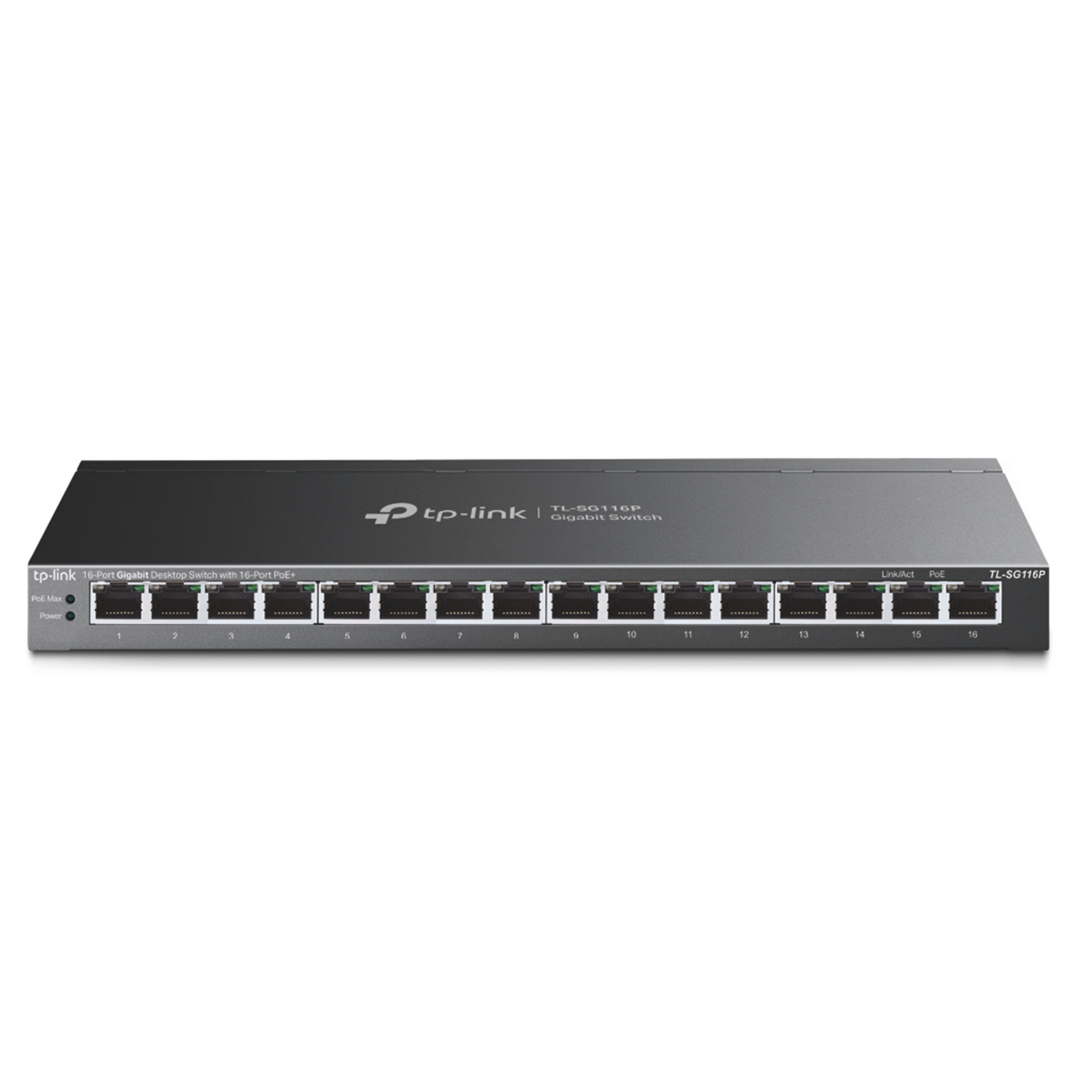

TP-Link TL-SG116P 16-Port Gigabit PoE Desktop Switch with 16-Port PoE+ (Max 120W)
TP-Link TL-SG116P 16-Port Gigabit PoE Desktop Switch with 16-Port PoE+ (Max 120W)
- Brand: TP-Link
- MPN: TL-SG116P
- Part #: SWHTPL1160
- UPC:
- Brand: TP-Link
- MPN: TL-SG116P
- Part #: SWHTPL1160
- UPC:
Similar in-stock products available at PB Tech right now
COMBO DEALS: Buy Together and SAVE!
TP-Link Tapo L930-5 Smart Light Strip -5M, RGB Multicolour, Dimmable
$73.04 +GST
$84.00
TP-Link Tapo L530E Smart Wi-Fi RGB LED Light Bulb E27 - 2 Pack
$27.83 +GST
$32.00
Features
Dedicated 16 PoE+ Ports (120 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 120 W PoE power budget* for the 16× PoE+ ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
Ideal for IP Surveillance - Up to 250 m Transmissions
With extend mode, the PoE transmission distance reaches up to 250 m*-perfect for IP Camera deployment in large areas.
Port Prioritization
Guarantees the quality of sensitive applications like video and voice in critical business areas by prioritizing the data of ports 1-4.
Enhanced with Port Isolation
Isolation Mode easily divides traffic for ports 1-7 or 8-14 to avoid snooping/tampering and isolates broadcast storm for higher security.
System Self-Healing with PoE Auto Recovery
The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without need for manual monitoring and restart.
Intelligent Power Management
When total power consumption exceeds 120 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port's power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.
High-Quality Metal25.4mm286mm111.7mm Durable Metal Casing
The interior components of TL-SG116P are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG116P delivers switching performance you can depend on.
Specifications
Reviews
Accessories
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Switches
Ubiquiti UniFi USW-Flex-Mini 5-Port Gigabit L2 Managed Switch -...
TP-Link TL-SG1005D 5-Port Gigabit Desktop Switch
TP-Link TL-SG108PE 8-Port Gigabit Easy Smart PoE Switch with 4...
Ubiquiti UniFi USW-Lite-8-POE 8-Port Gigabit L2 Managed PoE...
TP-Link TL-SG108 8-Port 10/100/1000Mbps Desktop Switch
TP-Link TL-SG116P 16-Port Gigabit PoE Desktop Switch with 16-Port PoE+ (Max 120W)
- Brand: TP-Link
- MPN: TL-SG116P
- Part #: SWHTPL1160
Product URL: https://www.pbtech.co.nz/product/SWHTPL1160/TP-Link-TL-SG116P-16-Port-Gigabit-PoE-Desktop-Swit
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Newmarket | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
Dedicated 16 PoE+ Ports (120 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 120 W PoE power budget* for the 16× PoE+ ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
Ideal for IP Surveillance - Up to 250 m Transmissions
With extend mode, the PoE transmission distance reaches up to 250 m*-perfect for IP Camera deployment in large areas.
Port Prioritization
Guarantees the quality of sensitive applications like video and voice in critical business areas by prioritizing the data of ports 1-4.
Enhanced with Port Isolation
Isolation Mode easily divides traffic for ports 1-7 or 8-14 to avoid snooping/tampering and isolates broadcast storm for higher security.
System Self-Healing with PoE Auto Recovery
The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without need for manual monitoring and restart.
Intelligent Power Management
When total power consumption exceeds 120 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port's power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.
High-Quality Metal25.4mm286mm111.7mm Durable Metal Casing
The interior components of TL-SG116P are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG116P delivers switching performance you can depend on.
Specifications
HARDWARE FEATURES
Interface
- 16x 10/100/1000Mbps RJ45 Ports
- AUTO Negotiation
- AUTO MDI/MDIX
Network Media
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100O STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100O STP (maximum 100m)
- 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
- EIA/TIA-568 100O STP (maximum 100m)
Fan Quantity
Fanless
External Power Supply
External Power Adapter (Output: 53.5 VDC / 2.43 A)
Packet Forwarding Rate
23.8 Mpps
PoE Ports (RJ45)
- Standard: 802.3 af/at compliant
- PoE Ports: Ports 1-16
- Power Supply: 120 W
Mac Address Table
8K, Auto-learning, Auto-aging
Switching Capacity
32 Gbps
Dimensions ( W x D x H )
11.3 x 4.4 x 1.0 in (286 x 111.7 x 25.4 mm)
Max Power Consumption
- 11.72 W (220 V / 50 Hz no PD connected) /11.56 W (110 V / 60 Hz no PD connected)
- 142.51 W (220 V / 50 Hz with 120 W* PD connected) /144.28 W (110 V / 60 Hz with 120 W* PD connected)
Max Heat Dissipation
- 39.85 BTU/h (220 V / 50 Hz no PD connected) /39.31 BTU/h (110 V / 60 Hz no PD connected)
- 484.53 BTU/h (220 V / 50 Hz with 120 W* PD connected) /490.55 BTU/h (110 V / 60 Hz with 120 W* PD connected)
SOFTWARE FEATURES
Advanced Features
- Compatible With IEEE 802.3af/at Compliant PDs
- Extend Mode Button (Ports 1-4, Up to 250 m PoE power supply and data transmission)
- Priority Mode Button (Ports 1-4)
- Isolation Mode Button (Ports 1-7 / 8-14)
- PoE Auto Recovery (Ports 1-16)
- Mac Address Auto-Learning And Auto-Aging
- IEEE 802.3x Flow Control
- 802.1p/DSCP QoS
- IGMP Snooping
Transfer Method
Store-And-Forward
OTHERS
Certification
FCC, CE, RoHS
Package Contents
- TL-SG116P
- Power Adapter
- Installation Guide
Environment
- Operating Temperature: 0-40 ? (32-104 ?);
- Storage Temperature: -40-70 ? (-40-158 ?)
- Operating Humidity: 10-90% RH non-condensing
- Storage Humidity: 5-90% RH non-condensing
