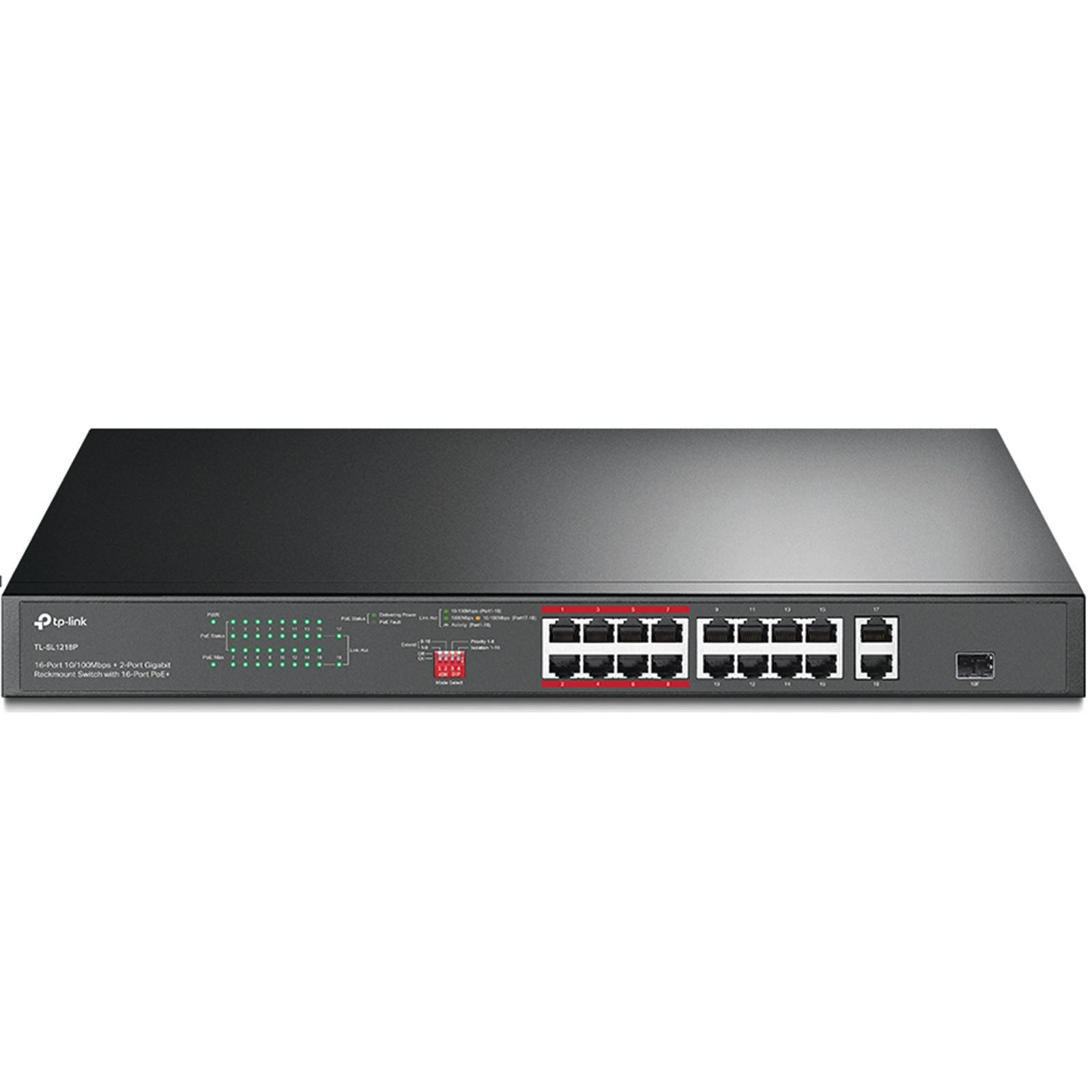

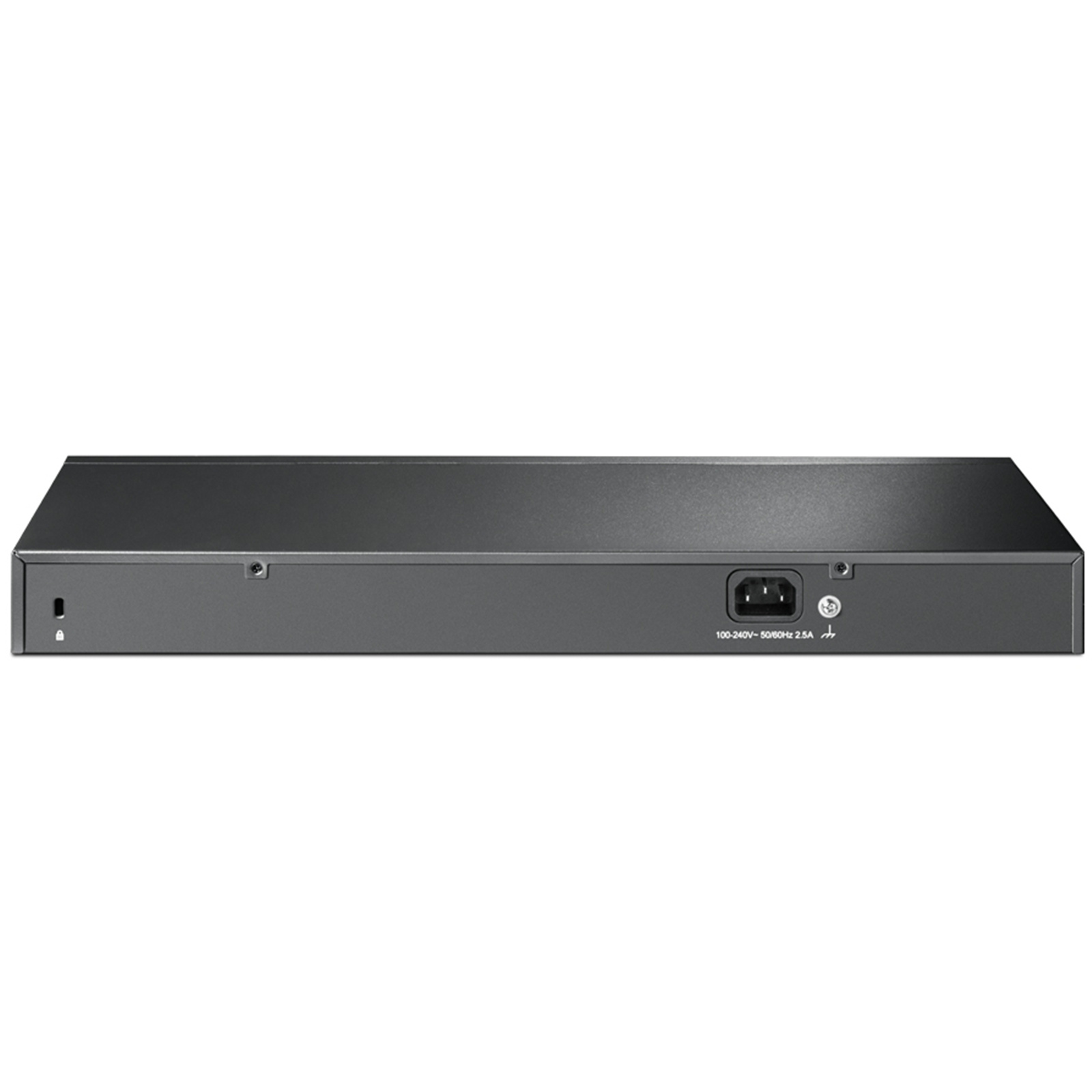

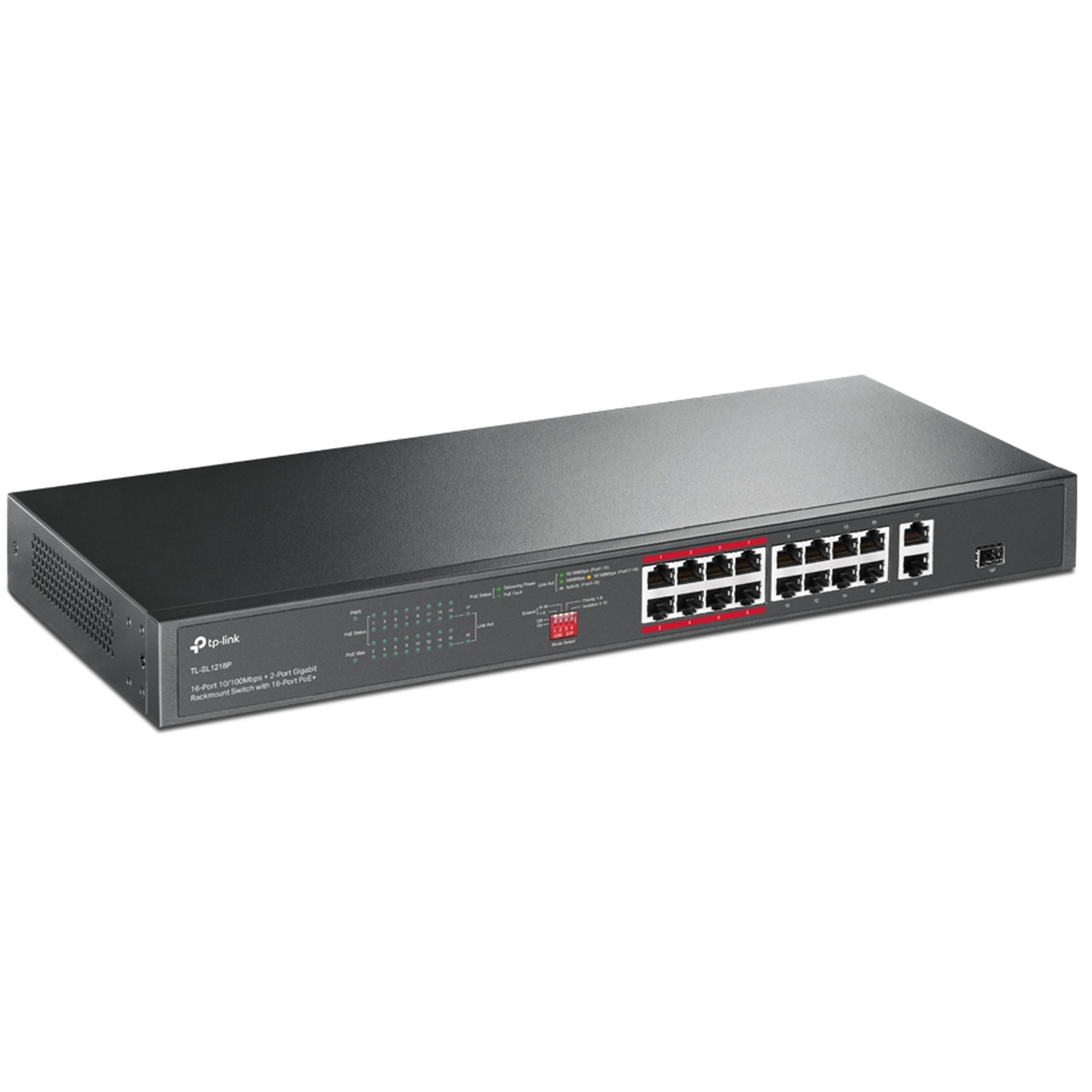

TP-Link TL-SL1218P 16-Port 10/100 Mbps + 2-Port Gigabit Rackmount Switch with 16-Port PoE+ - High PoE power budget with up to 30 W for each PoE port and 150 W for all PoE ports - Up to 250 m data and power transmission under extend mode
TP-Link TL-SL1218P 16-Port 10/100 Mbps + 2-Port Gigabit Rackmount Switch with 16-Port PoE+ - High PoE power budget with up to 30 W for each PoE port and 150 W for all PoE ports - Up to 250 m data and power transmission under extend mode
- Brand: TP-Link
- MPN: TL-SL1218P
- Part #: SWHTPL1231
- UPC:
- Brand: TP-Link
- MPN: TL-SL1218P
- Part #: SWHTPL1231
- UPC:
Features
16-Port 10/100 Mbps + 2-Port Gigabit Rackmount Switch with 16-Port PoE+
- 16� PoE+ 10/100 Mbps RJ45 ports, 2� Gigabit RJ45 ports, and 1� combo Gigabit SFP slot.
- High PoE power budget with up to 30 W for each PoE port and 150 W for all PoE ports.*
- Up to 250 m data and power transmission under extend mode specially designed for surveillance system.**
- Priority mode for ports 1-8 to guarantees the quality of sensitive applications like video monitor.
- Isolation Mode allows one-click client traffic separation for higher security and performance.
- Easy to use, with no configuration and installation needed.
Dedicated 16-Port PoE+ Switch (150 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 150 W PoE power budget* for the 16� PoE+ ports makes it has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.
Ideal for IP Surveillance-Up to 250 m Transmission
With extend mode, the PoE transmission distance reaches up to 250 m**-perfect for IP Camera deployment in large areas.
Priority Video Quality Guaranteed
Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1-8 when one-touch Priority Mode is on.
One-Click Traffic Separation for Ports 1-16
With one click, Isolation Mode easily divides traffic for ports 1-16 to avoid snooping and tampering. This enables the switch to isolate broadcast storm, improving LAN security and data transmission.
Smooth HD Video Monitoring
2� gigabit RJ45 ports and 1� combo gigabit SFP slot ensure smooth streaming even when 16� HD IP cameras work simultaneously.
Intelligent Power Management to Prevent Power Overload
When your total power consumption exceeds 150 W, Intelligent Power Management automatically cuts lower priority ports' power to ensure high-priority ports' power supply. This protects the device from power overload operation. It also automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.
Wide Operating Temperature with Good Heat Dissipation
Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0-50?) with reliability.
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Switches
D-Link DGS-1005A 5-Port Gigabit Desktop Switch
TP-Link TL-SG105 5-Port Gigabit Unmanaged Switch Steel housing -...
TP-Link TL-SG1005D 5-Port Gigabit Unmanaged Switch
Ubiquiti UniFi Switch US-8-60W 8-Port Gigabit Managed PoE Switch...
NETGEAR ProSAFE GS108 8-port Gigabit Switch - 8x GbE
_20250106132842.webp)
TP-Link TL-SL1218P 16-Port 10/100 Mbps + 2-Port Gigabit Rackmount Switch with 16-Port PoE+ - High PoE power budget with up to 30 W for each PoE port and 150 W for all PoE ports - Up to 250 m data and power transmission under extend mode
- Brand: TP-Link
- MPN: TL-SL1218P
- Part #: SWHTPL1231
Product URL: https://www.pbtech.co.nz/product/SWHTPL1231/TP-Link-TL-SL1218P-16-Port-10100-Mbps--2-Port-Giga
| Branch | New Stock | On Display |
|---|---|---|
| Albany | 0 | |
| Glenfield | 0 | |
| Queen Street | 0 | |
| Auckland Uni | 0 | |
| Newmarket | 0 | |
| Westgate | 0 | |
| Penrose | 0 | |
| Henderson (Express) | 0 | |
| St Lukes | 0 | |
| Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Head Office | 0 | |
| Hornby | 0 | |
| Christchurch Central | 0 |
Features
16-Port 10/100 Mbps + 2-Port Gigabit Rackmount Switch with 16-Port PoE+
- 16� PoE+ 10/100 Mbps RJ45 ports, 2� Gigabit RJ45 ports, and 1� combo Gigabit SFP slot.
- High PoE power budget with up to 30 W for each PoE port and 150 W for all PoE ports.*
- Up to 250 m data and power transmission under extend mode specially designed for surveillance system.**
- Priority mode for ports 1-8 to guarantees the quality of sensitive applications like video monitor.
- Isolation Mode allows one-click client traffic separation for higher security and performance.
- Easy to use, with no configuration and installation needed.
Dedicated 16-Port PoE+ Switch (150 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 150 W PoE power budget* for the 16� PoE+ ports makes it has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.
Ideal for IP Surveillance-Up to 250 m Transmission
With extend mode, the PoE transmission distance reaches up to 250 m**-perfect for IP Camera deployment in large areas.
Priority Video Quality Guaranteed
Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1-8 when one-touch Priority Mode is on.
One-Click Traffic Separation for Ports 1-16
With one click, Isolation Mode easily divides traffic for ports 1-16 to avoid snooping and tampering. This enables the switch to isolate broadcast storm, improving LAN security and data transmission.
Smooth HD Video Monitoring
2� gigabit RJ45 ports and 1� combo gigabit SFP slot ensure smooth streaming even when 16� HD IP cameras work simultaneously.
Intelligent Power Management to Prevent Power Overload
When your total power consumption exceeds 150 W, Intelligent Power Management automatically cuts lower priority ports' power to ensure high-priority ports' power supply. This protects the device from power overload operation. It also automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.
Wide Operating Temperature with Good Heat Dissipation
Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0-50?) with reliability.
Specifications
HARDWARE FEATURES
Interface
- 16× PoE+ 10/100 Mbps RJ45 Ports
- 2× 10/100/1000 Mbps RJ45 Ports
- 1× Combo Gigabit SFP Slot
Network Media
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100O STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100O STP (maximum 100m)
- 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
- EIA/TIA-568 100O STP (maximum 100m)
- 1000BASE-X MMF, SMF
Fan Quantity
2 Fans
Physical Security Lock
Yes
Power Supply
100-240V AC, 50/60 Hz
PoE+ Ports(RJ45)
- Standard: 802.3at/802.3af compliant
- PoE Ports: Ports 1-16
- PoE Power Budget: 150 W
Dimensions ( W x D x H )
17.3 × 7.1 × 1.7 in(440 × 180 × 44 mm)
Max Power Consumption
- 12.7 W (no power device connected)
- 172.8 W (with 150W power devices connected)
Max Heat Dissipation
- 43.3 BTU/h (no power device connected)
- 589.3 BTU/h (with 150W power devices connected)
PERFORMANCE
Switching Capacity
7.2 Gbps
Packet Forwarding Rate
5.36 Mpps
MAC Address Table
8K
Jumbo Frame
10 KB
SOFTWARE FEATURES
Advanced Features
- Compatible With IEEE 802.3at/af Compliant PDs
- Extend Mode (Up to 250m PoE power supply and data transmission)
- Priority Mode
- Isolation Mode
- Mac Address Auto-Learning And Auto-Aging
- IEEE802.3x Flow Control
Transmission Method
Store-And-Forward
OTHERS
Certification
CE, FCC, RoHS
Package Contents
- TL-SL1218P
- Power Cable
- Installation Guide
- Two mounting brackets
Environment
- Operating Temperature: 0-50 °C (32-122 °F)
- Storage Temperature: -40-70 °C (-40-158 °F)
- Operating Humidity: 10-90% RH non-condensing
- Storage Humidity: 5-90% RH non-condensing
