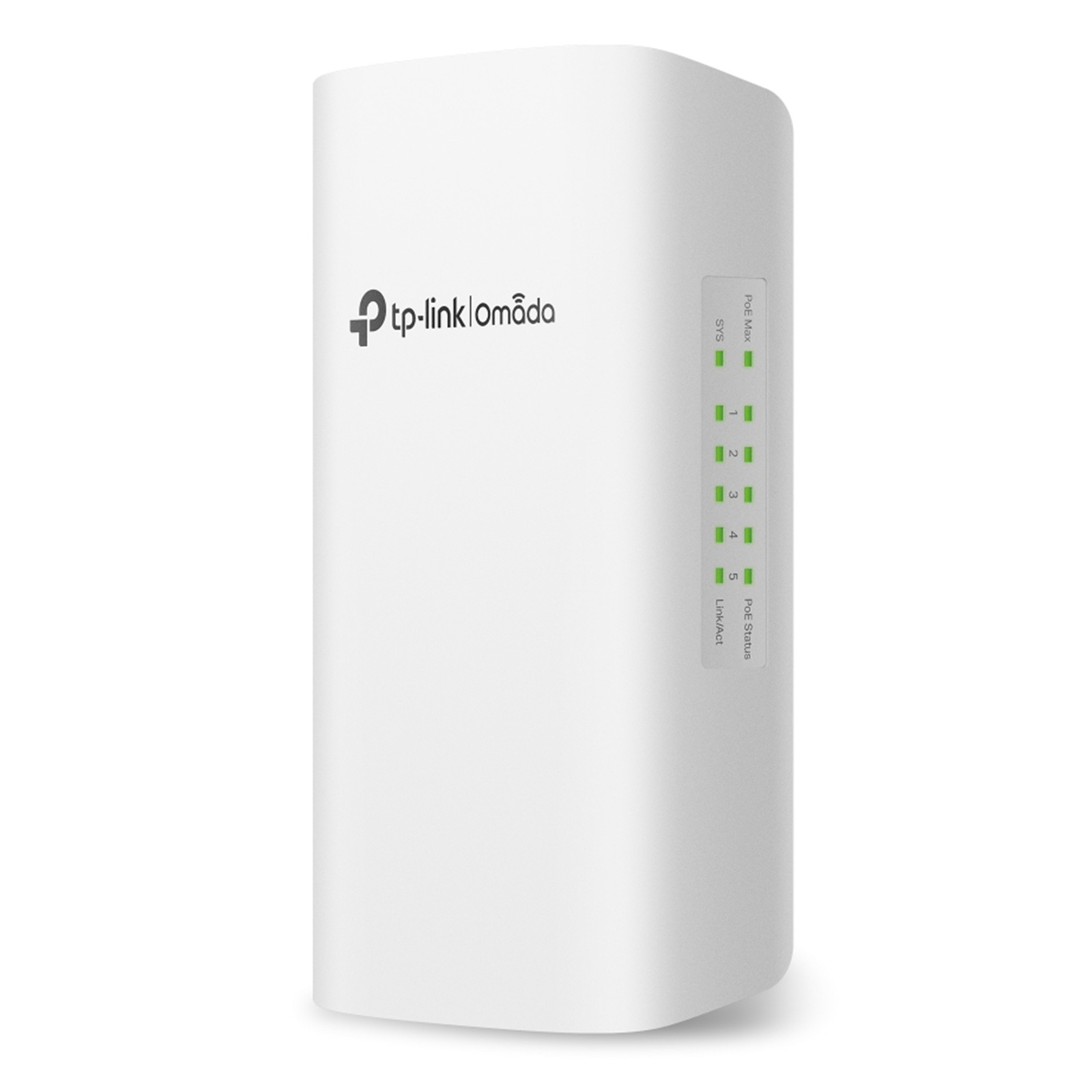

TP-Link Omada SG2005P-PD 5-Port Gigabit Smart Outdoor PoE Passthrough PoE Switch (64W) - 1GbE PoE++ in x1, 1GbE PoE+ Out x4 (No PSU included)

PB Tech price
PB Tech price
$ 173 .04
 +GST
$ 199 .00
 inc GST
$173.04  +GST
$199.00

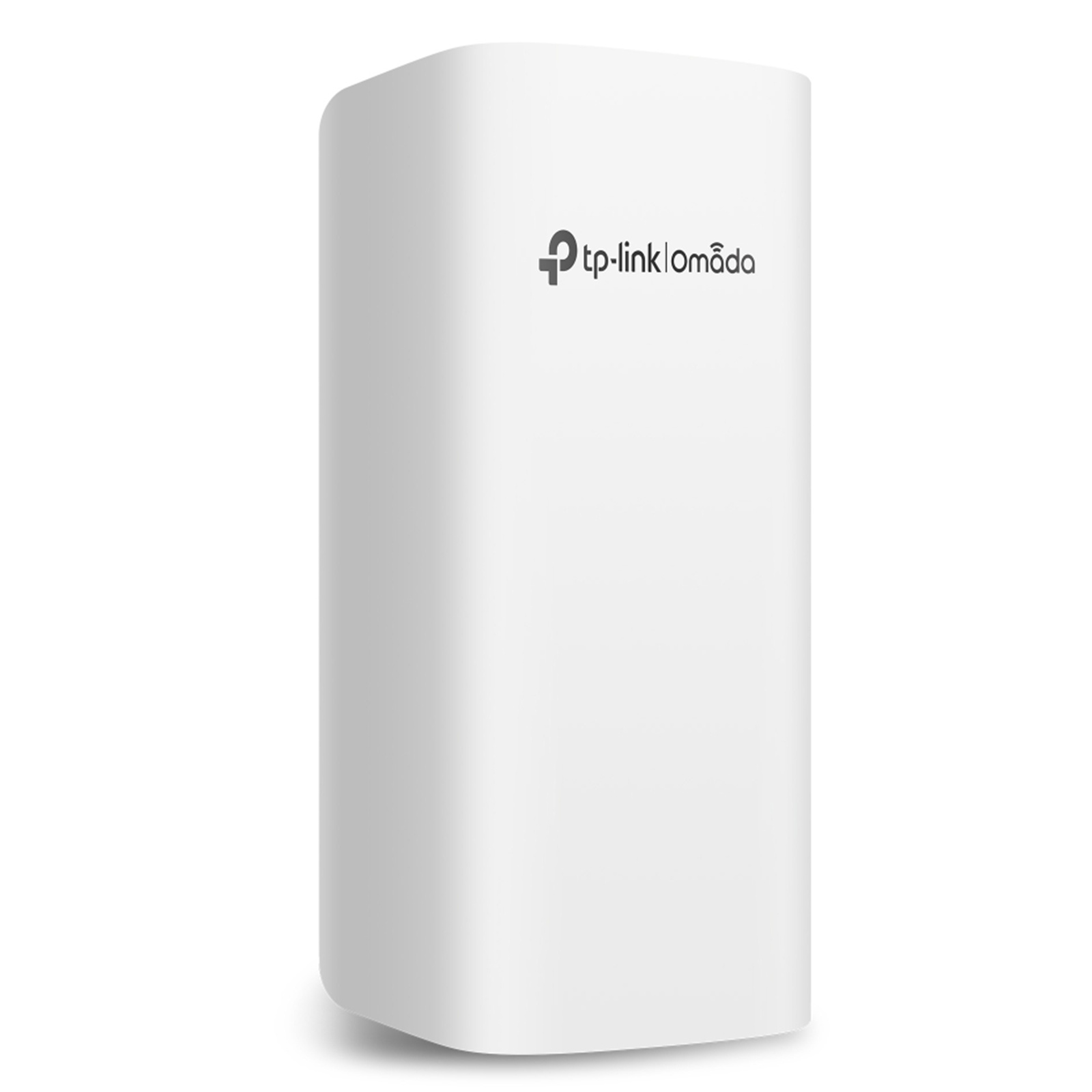

TP-Link Omada SG2005P-PD 5-Port Gigabit Smart Outdoor PoE Passthrough PoE Switch (64W) - 1GbE PoE++ in x1, 1GbE PoE+ Out x4 (No PSU included)

  • Brand: TP-Link
  • MPN: SG2005P-PD
  • Part #: SWHTPL20051
  • UPC:
PB Tech price
$ 173 .04 $ 199 .00
 +GST  inc GST
Hurry, only 5 units left!


Click & Collect: Available from 3 stores.
Select your store to check availability
Delivery: Order now and it ships tomorrow When will I receive it?
Uber Delivery: Order now and get it within 3 hours. Some areas, max $1k order. How does it work?
$173.04  +GST
$199.00
  • Brand: TP-Link
  • MPN: SG2005P-PD
  • Part #: SWHTPL20051
  • UPC:

10 Gigabit

No

10 Gigabit Ports

0 Ports

Form Factor

Not Specified

Management Level

Not Specified

Number of Ports

5 Ports

PoE

Yes

PoE Ports

5 Ports

PoE Budget

Not Specified

COMBO DEALS: Buy Together and SAVE!

Save even more by creating your own combo deal with any of the items below and the TP-Link Omada SG2005P-PD 5-Port Gigabit Smart Outdoor PoE Passthrough...
TP-Link Omada SG2005P-PD 5-Port Gigabit Smart Outdoor PoE Passthrough PoE Switch (64W) - 1GbE PoE++ in x1, 1GbE PoE+ Out x4 (No PSU included)
Total:
$ 273 .34
 +GST
$ 314 .34
Buy together and save $3.48 $4.00
TP-Link Tapo L930-5 Smart Light Strip -5M, RGB Multicolour, Dimmable
TP-Link Tapo L930-5 Smart Light Strip -5M, RGB Multicolour, Dimmable
$76.52 $88.00

$73.04  +GST

$84.00

You save 4% You save 4%
TP-Link Tapo L530E Smart Wi-Fi RGB LED Light Bulb E27 - 2 Pack
TP-Link Tapo L530E Smart Wi-Fi RGB LED Light Bulb E27 - 2 Pack

$27.26  +GST

$31.35

Features

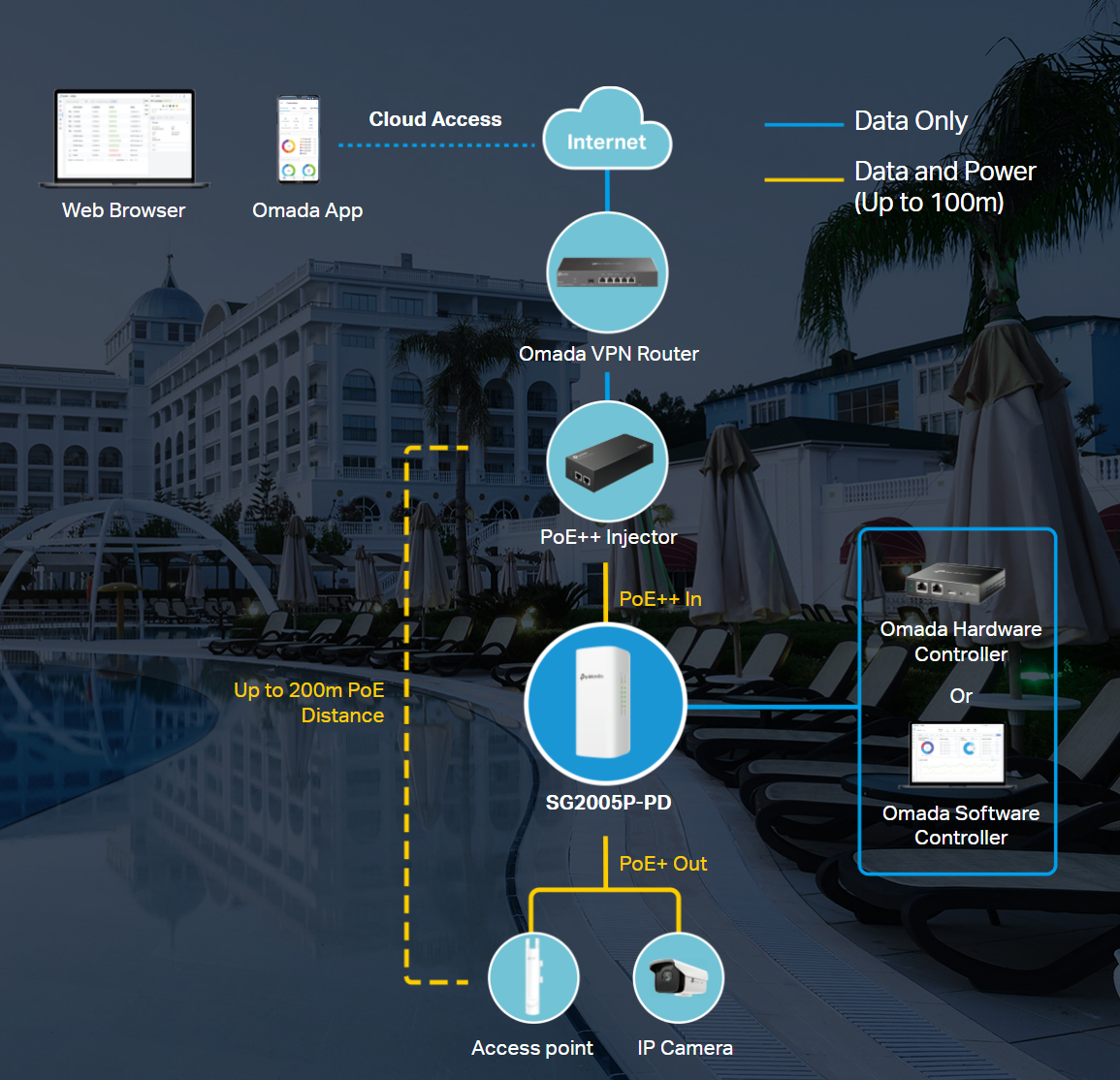

Standard PoE Passthrough to Extend Power and Data Transmission Distance up to 200 m Without Losing Gigabit Speeds

Eliminate mains access location limits and transmit data and power through one cable, simplifying installation and cutting deployment costs. Doubles PoE source-to-device connection distance from 100 m (328 ft) to 200 m (656 ft), perfect for long-range surveillance cameras and access points.*

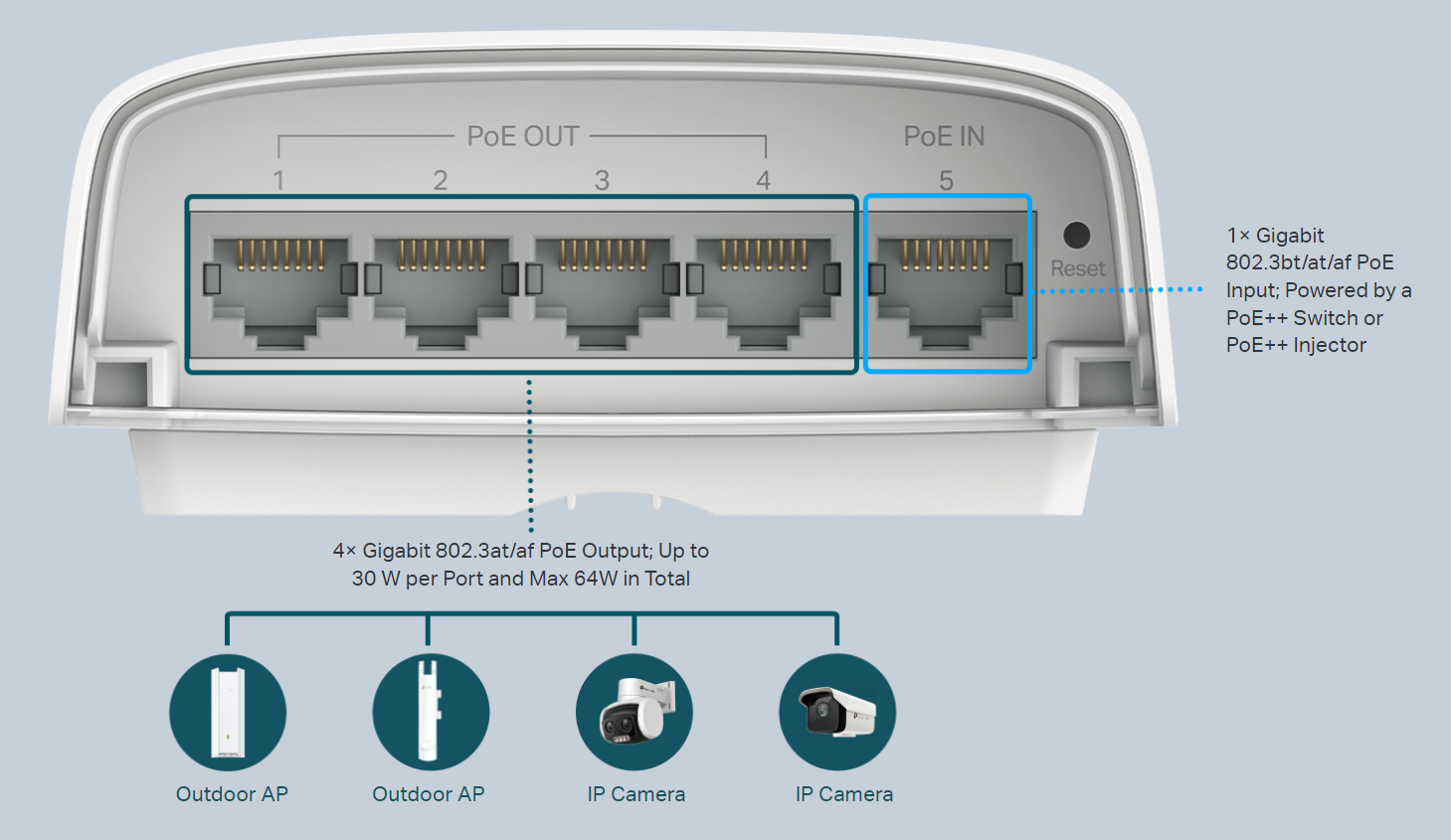

One Gigabit PoE++ In Port and Four Gigabit PoE+ Out Ports

Supports up to 64 W / 44 W / 19 W/ 6 W PoE budget output when powered by 802.3bt Type 4 (90 W), 802.3bt Type 3 (60 W), 802.3at, and 802.3af PoE, respectively.** The PoE-PD switch automatically detects the required PoE power for your devices and protects your non-PoE equipment from being damaged.

Specially Designed Weatherproof Enclosure for Outdoors

Rated as IP55 during Ingress Protection testing, a resilient weatherproof enclosure protects the switch against harsh outdoor conditions.

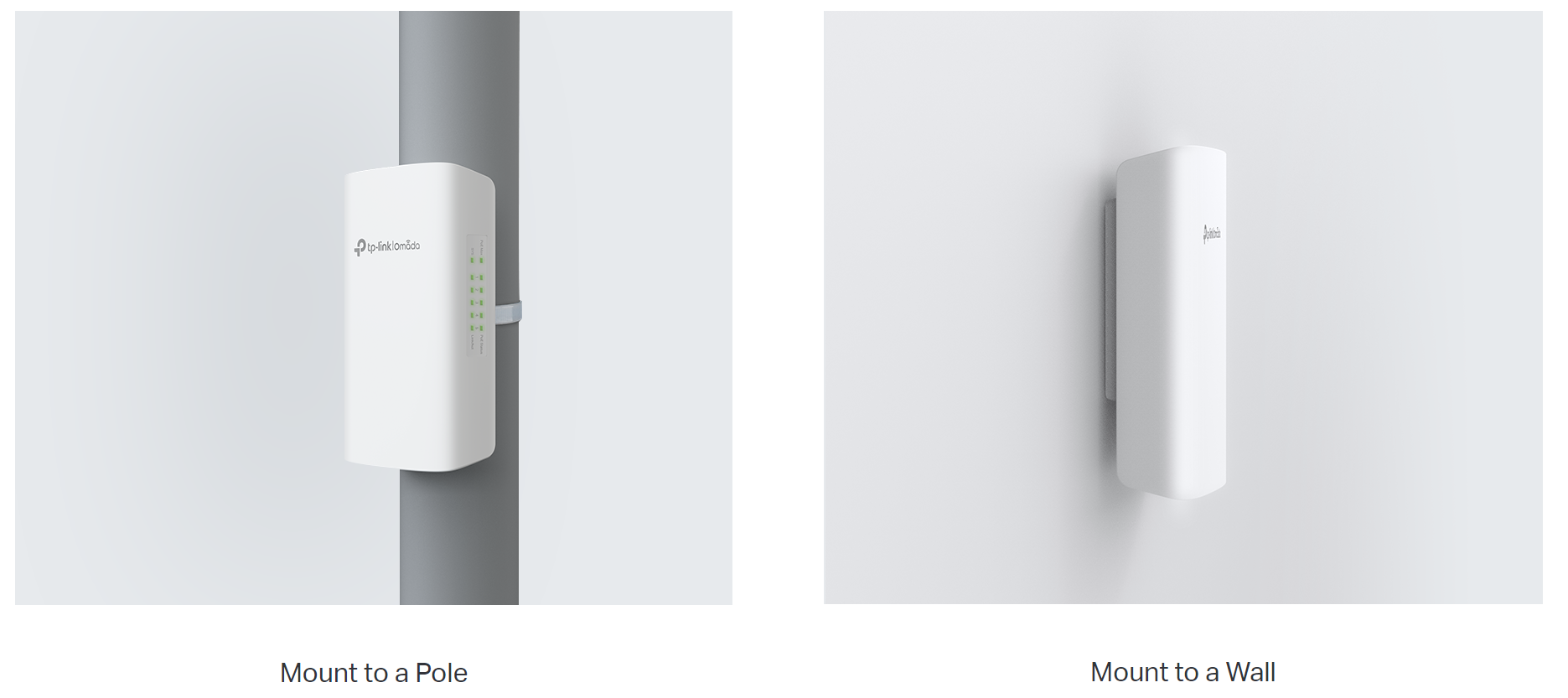

Easy Installation to Flexibly Fit Your Needs

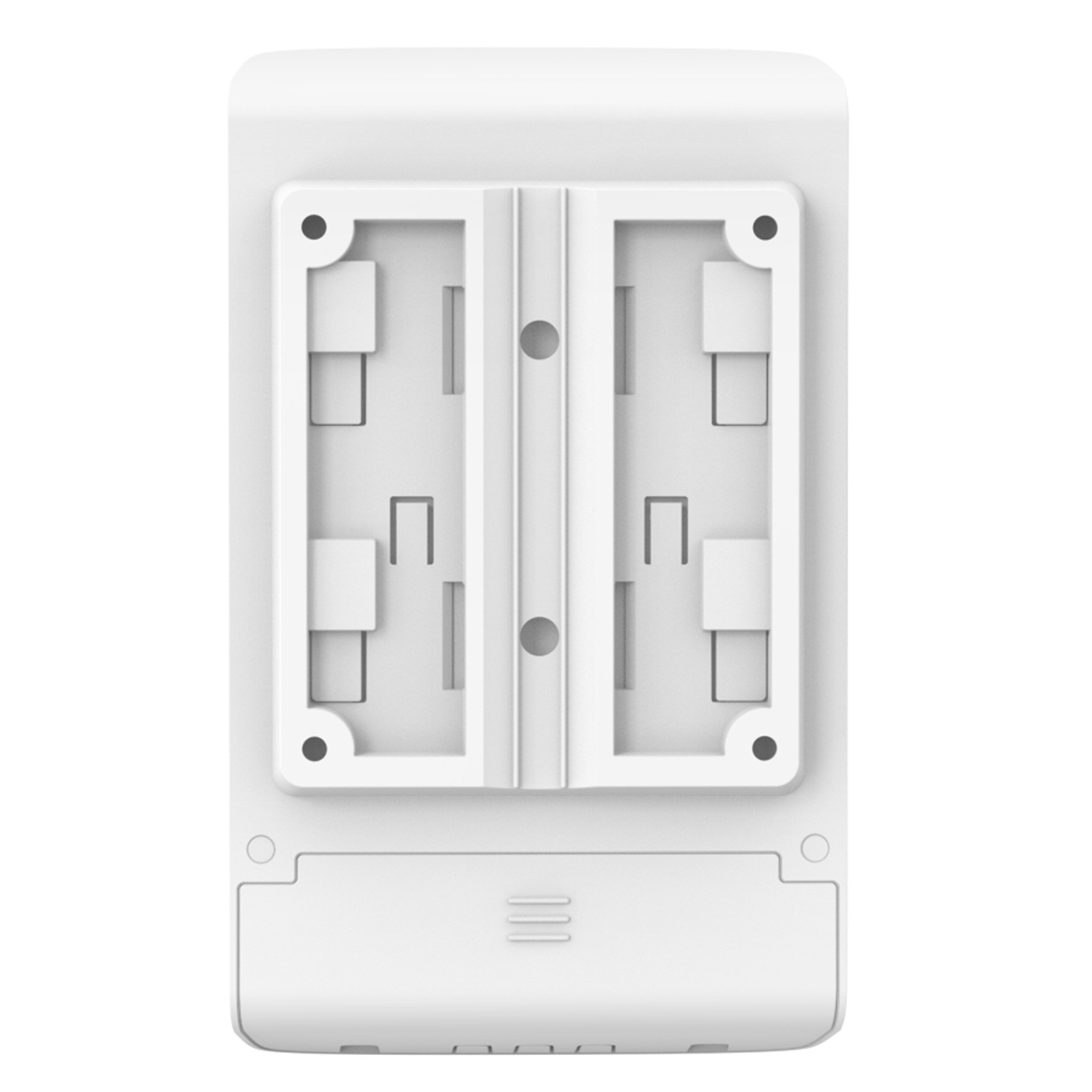

Easy to mount to a wall or pole with the provided mounting kits. Its compact design allows you to place the switch flexibly, such as in an outdoor Junction Box.

Static Routing

Helps route internal traffic for more efficient use of network resources.

Access Control List (ACL)

ACL serves as a virtual admin, allowing all connected devices to obtain data in accordance with user-defined network rules and help you create the network regulations you need.

QoS for Lag-Free Experiences

Designate the priority of traffic based on QoS, ensuring latency-sensitive applications, like voice and video, remain clear and lag-free.

VLAN for Security and Flexible Management

VLAN allows for logical grouping management of devices in different physical LANs, improving information security and reducing data congestion.

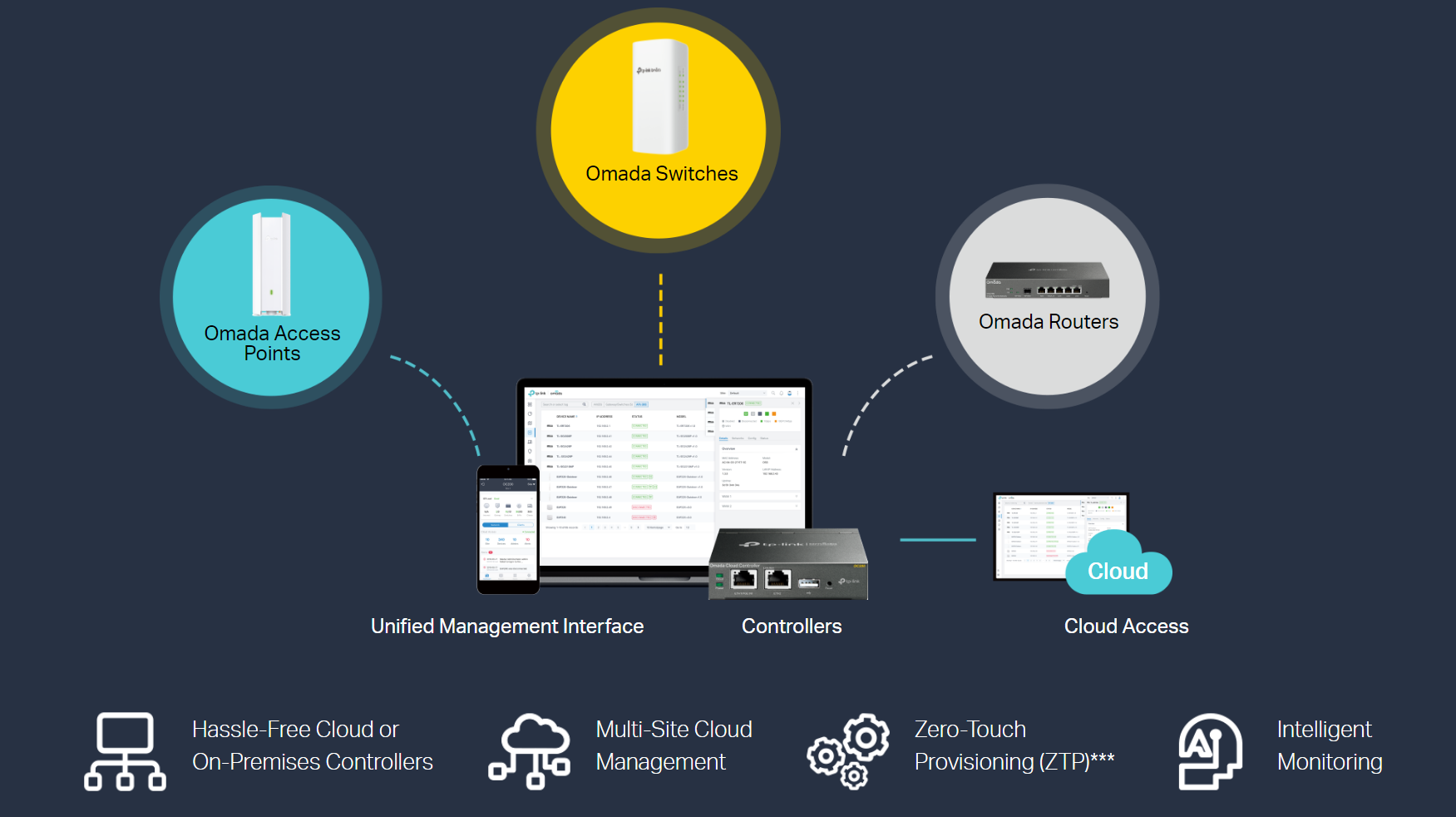

Software Defined Networking (SDN) with Cloud Access

Omada's Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network-all controlled from a single interface.

Specifications

HARDWARE FEATURES

Standards and Protocols

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x

Interface

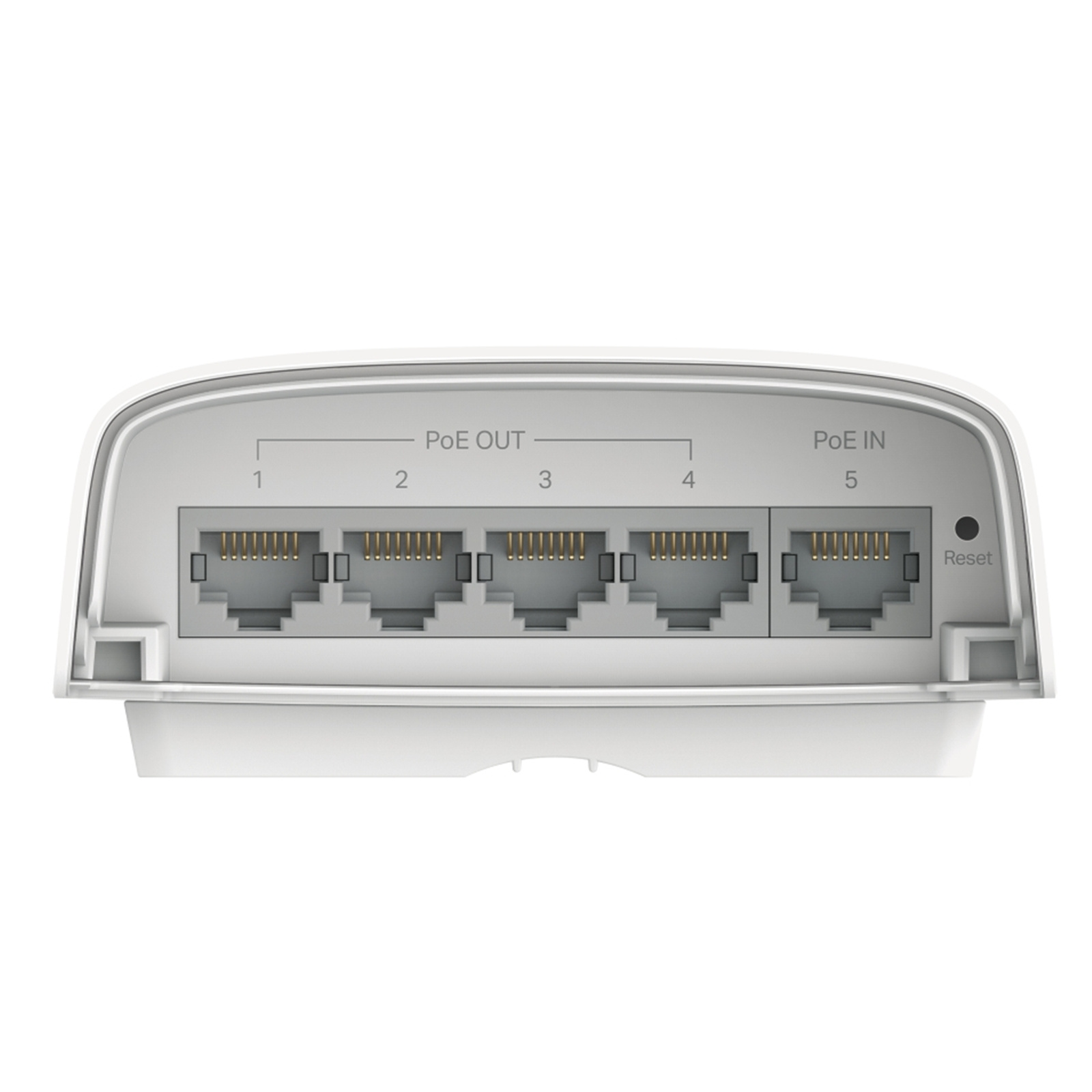

- 1× 10/100/1000 Mbps RJ45 PoE In Ports (compliance with 802.3af/at/bt)
- 4× 10/100/1000 Mbps RJ45 PoE Out Ports (compliance with 802.3af/at PoE)

Network Media

- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)

Fan Quantity

Fanless

Power Supply

Obtain Power from 802.3af/at/bt PoE Source

PoE Ports (RJ45)

- PoE In Port: Port 5, Compliance with 802.3af/at/bt
- PoE Out Ports: Ports 1-4, compliance with 802.3af/at PoE
- PoE Power Budget:
-64 W when powered by 802.3bt Type 4 (90 W)
-44 W when powered by 802.3bt Type 3 (60 W)
-19 W when powered by 802.3at
-6 W when powered by 802.3af

Dimensions ( W x D x H )

3.9 × 1.5 × 6.7 in (100 × 38.5 × 170 mm)

Max Power Consumption

71.5 W (when powered by 802.3bt Type 4 (90 W))

Max Heat Dissipation

243.99 BTU/hr (when powered by 802.3bt Type 4 (90 W))

PERFORMANCE

Switching Capacity

10 Gbps

Packet Forwarding Rate

7.44 Mpps

MAC Address Table

8k

Packet Buffer Memory

4.1 Mbit

Jumbo Frame

9 KB

MANAGEMENT

Omada App

Yes, through
- Omada Cloud-Based Controller
- Omada Hardware Controller
- Omada Software Controller

Centralized Management

- Omada Cloud-Based Controller
- Omada Hardware Controller
- Omada Software Controller

Cloud Access

Yes, through
- Omada Cloud-Based Controller
- Omada Hardware Controller
- Omada Software Controller

Zero-Touch Provisioning

Yes. Requiring the use of Omada Cloud-Based Controller.

Management Features

- Web-based GUI
- Command Line Interface (CLI) through telnet
- SNMPv1/v2c/v3
- SNMP Trap/Inform
- RMON (1,2,3,9 groups)
- SDM Template
- DHCP/BOOTP Client
- Dual Image, Dual Configuration
- CPU Monitoring
- Cable Diagnostics
- EEE
- SNTP
- System Log

OTHERS

Certification

CE, FCC, RoHS

Package Contents

- SG2005P-PD
- Mounting Kits
- Installation Guide

System Requirements

Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.

Environment

- Operating Temperature: -40 to 60 °C (-40 to 140 °F)
- Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
- Operating Humidity: 10-90% RH non-condensing
- Storage Humidity: 5-90% RH non-condensing

Manufacturer Part No:
SG2005P-PD
Brand:
Product Type:
-
UPC
-
Product Family:
Omada
Shipping Weight:
0.3 kg
PB Part No:
SWHTPL20051
Product Model:
SG2005P-PD
Warranty: 36 months *
