Features

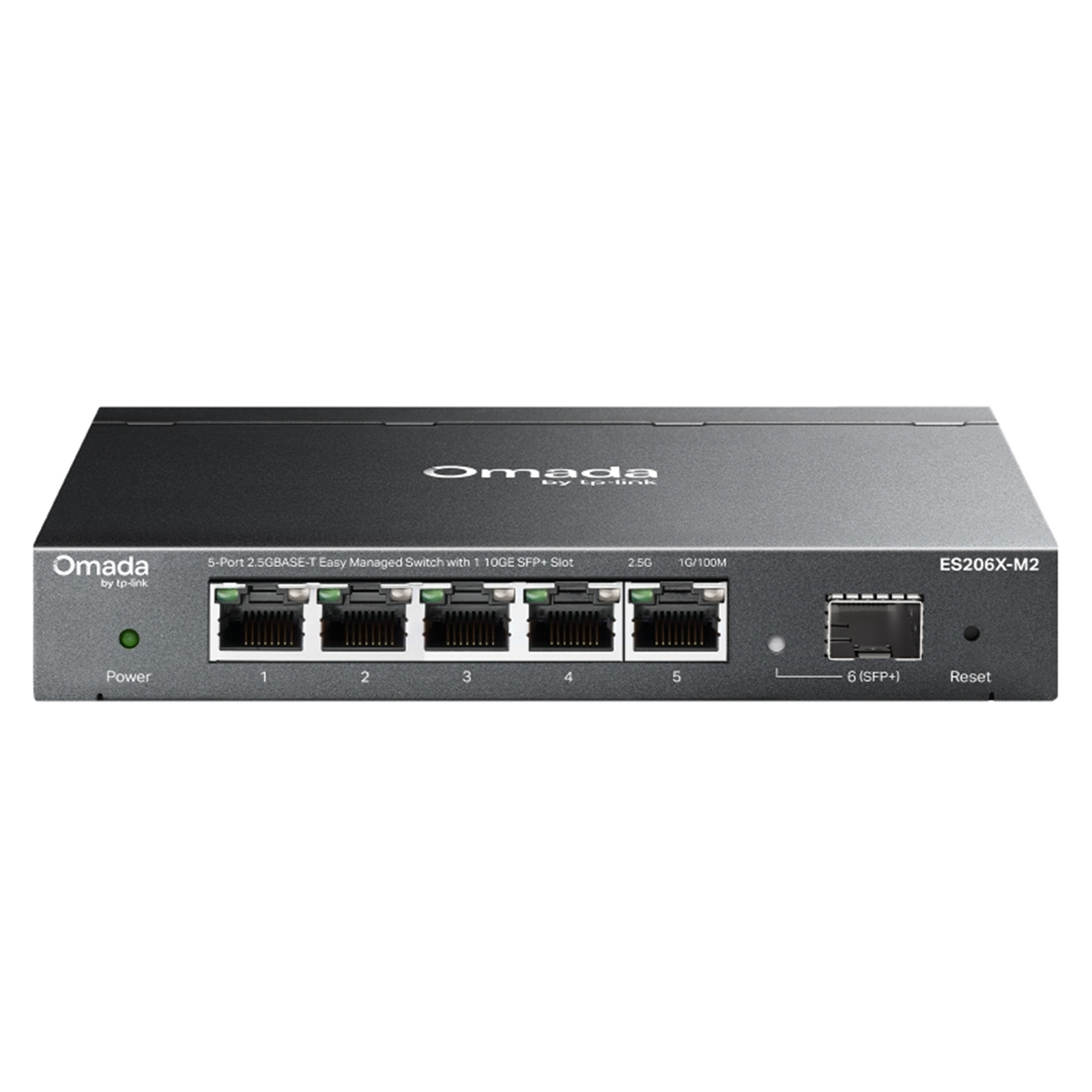

Omada 5-Port 2.5GBASE-T Easy Managed Switch with 1 10GE SFP+ Slot
- 5× 2.5 Gbps RJ45 Ports
- 1× 10 Gbps SFP+ Slot
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralised Cloud Management via the web or the Omada app†
- Automatic Loop Prevention, VLAN, and IGMP Snooping
- Fanless design for silent operation
- Durable metal casing and desktop/wall mounting design

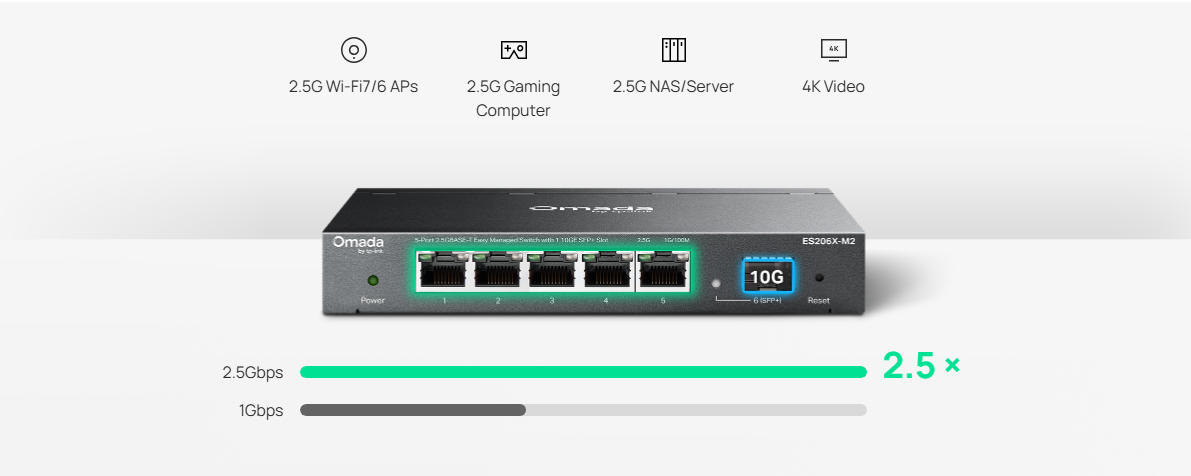

Unlock the Highest Performance of 2.5G Multi-Gig Bandwidth and Devices

Cost-Performance Solution

Works with Omada Central Essentials for Free and Easy Cloud Management
Omada Central Essentials provides free and easy-to-use cloud centralised management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.

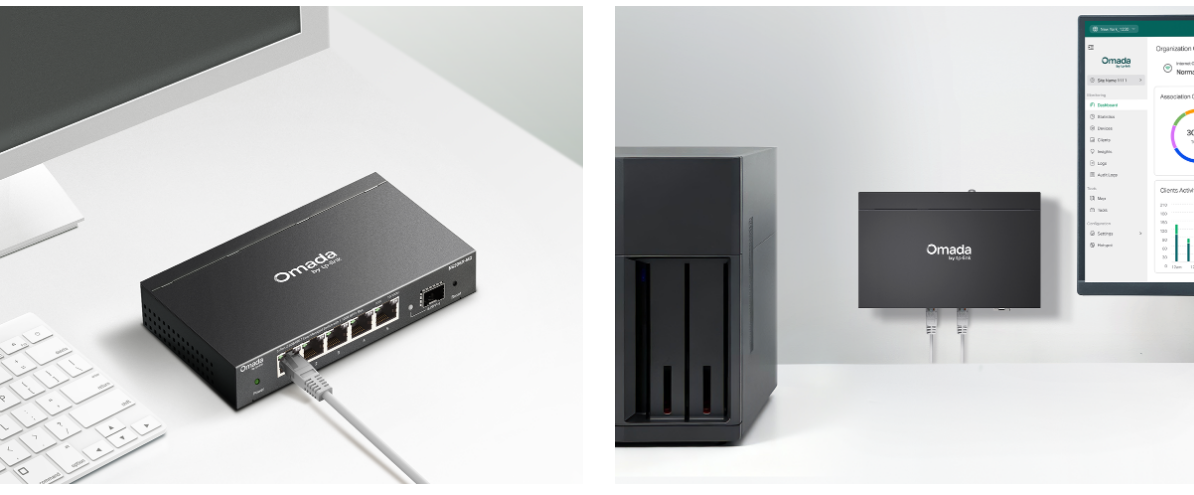

Compact and Durable Metal Casing, Featuring
Desktop/Wall Mounting and a Fanless Design

Specifications
HARDWARE FEATURES
Interface
5× 2.5 Gbps RJ45 Ports
1× 10 Gbps SFP+ Slot
Auto-Negotiation/Auto MDI/MDIX
Fan Quantity
Fanless
Installation
Desktop
Wall Mount
Physical Security Lock
√
Power Supply
DC Power Adapter (Output: 12 VDC / 1 A)
Dimensions ( W x D x H )
6.2 × 4.0 × 1.0 in (158 × 100.7 × 25.4 mm)
Surge Protection
±6kV for Ethernet Ports
PERFORMANCE
Packet Buffer Memory
640 KB
Jumbo Frame
10 KB
Switching Capacity
45 Gbps
Packet Forwarding Rate
33.48 Mpps
MAC Address Table
16K
SOFTWARE FEATURES
Quality of Service
Port-based/802.1p/DSCP QoS△
8 Priority Queues
Priority Schedule Mode
- WRR (Weighted Round Robin)
Queue Weight Config
Bandwidth Control
- Port-Based Rating Limit
Storm Control
- Multiple Control Modes (kbps/pps)
- Broadcast/Multicast/Unknown-Unicast Control
L2 Features
Static Link Aggregation
Loop Prevention / Loopback Detection
Flow Control
- 802.3x Flow Control
Mirroring
- Port Mirroring
- One-to-One
- Many-to-One
- Ingress/Egress/Both
Port Statistics
- Port Mirror Status
- Traffic Statistics
802.1ab LLDP
L2 Multicast
IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
VLAN
MTU VLAN
Port-Based VLAN
802.1Q Tag VLAN
- Max 32 VLAN Groups
- 4K VID
Transmission Method
Store-And-Forward
Management Features
Omada App
Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management
Omada Cloud-Based Controller
Omada Hardware Controller
Omada Software Controller
Cloud Access
Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning
Yes. Requires the use of Omada Cloud-Based Controller
Management Features
Web-based GUI
DHCP Client
Cable Diagnostics
Automatic Device Discovery†
Batch Configuration†
Batch Firmware Upgrading†
Unified Configuration†
OTHERS
Certification
FCC, CE, RoHS
Package Content
ES206X-M2
Power Adapter
Rubber Feet
Installation Guide
Environment
Operating Temperature: -5℃~40℃ (23℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
