TP-Link Omada ES206XPP-M2 6-Port 2.5G Easy Managed PoE Switch (120W) - SFP+ x1, 2.5GbE x1, 2.5GbE PoE++ x4
Out of stock
TP-Link Omada ES206XPP-M2 6-Port 2.5G Easy Managed PoE Switch (120W) - SFP+ x1, 2.5GbE x1, 2.5GbE PoE++ x4
- Brand: TP-Link
- MPN: ES206XPP-M2
- Part #: SWHTPL20614
- UPC:
- Brand: TP-Link
- MPN: ES206XPP-M2
- Part #: SWHTPL20614
- UPC:
Product is out of stock. View similar products in-stock at PB Tech
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Switches
TP-Link Omada ES206XPP-M2 6-Port 2.5G Easy Managed PoE Switch (120W) - SFP+ x1, 2.5GbE x1, 2.5GbE PoE++ x4
- Brand: TP-Link
- MPN: ES206XPP-M2
- Part #: SWHTPL20614
Product URL: https://www.pbtech.co.nz/product/SWHTPL20614/TP-Link-Omada-ES206XPP-M2-6-Port-25G-Easy-Managed
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
Omada 5-Port 2.5GBASE-T and 1-Port 10GE SFP+ Easy Managed Switch with 4-Port PoE++
- 5× 2.5 Gbps RJ45 Ports (4× 802.3af/at/bt-compliant PoE++)
- 1× 10 Gbps SFP+ Slot
- 120W PoE Budget, with up to 90W for each PoE port*
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralised Cloud Management via the web or the Omada app†
- Automatic Loop Prevention, VLAN, Port Isolation, QoS△, and IGMP Snooping
- Fanless design for silent operation
- Durable metal casing and desktop/wall mounting design
Power over Ethernet, Flexible Network Deployment
Transmit both data and power via a single cable to other PoE++ devices, without the hassle and cost of installing power cabling. Automatically detect and supply the required power to PoE-enabled devices.

Unlock the Highest Performance of 2.5G Multi-Gig Bandwidth and Devices

Works with Omada Central Essentials for Free and Easy Cloud Management
Omada Central Essentials provides free and easy-to-use centralised cloud management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.

Cost-Performance Solution

Specifications
HARDWARE FEATURES
Interface
5× 2.5 Gbps RJ45 Ports (4× 802.3af/at/bt-compliant PoE++)
1× 10 Gbps SFP+ Slot
Auto-Negotiation/Auto MDI/MDIX
Fan Quantity
Fanless
Installation
Desktop

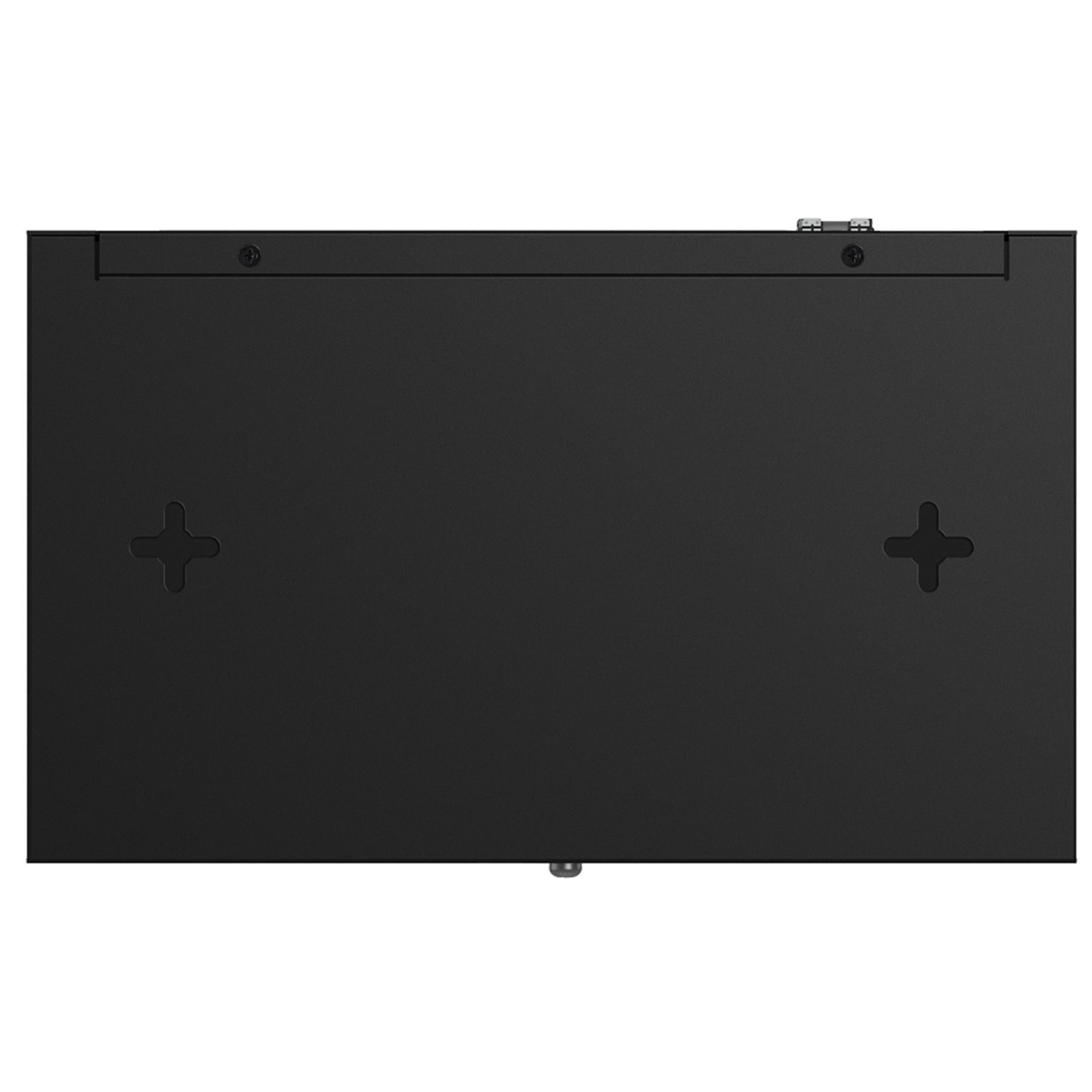

Wall Mount
Physical Security Lock
√
Power Supply

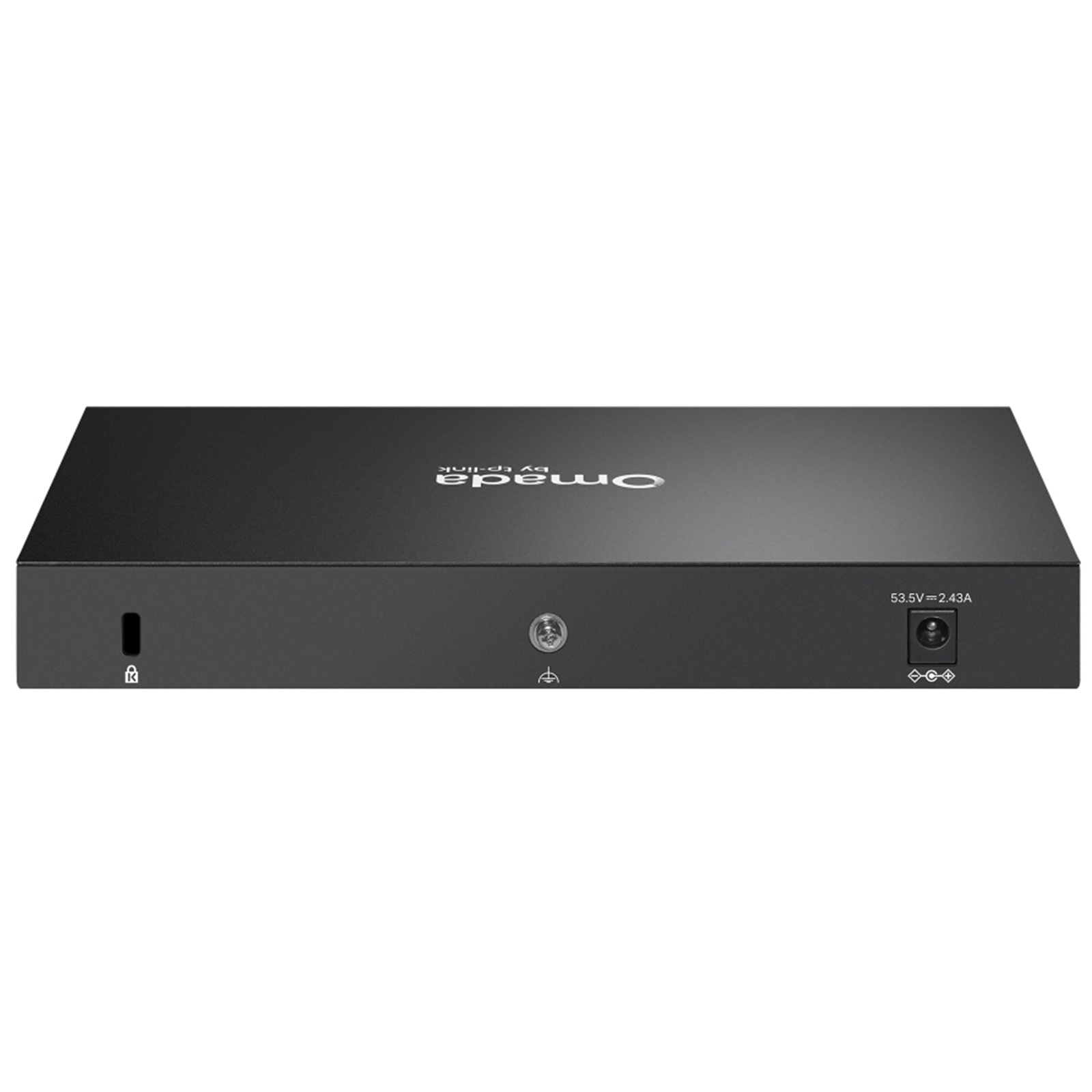

DC Power Adapter (Output: 53.5 VDC / 2.43 A)
PoE Ports (RJ45)
Standard: 802.3af/at/bt PoE++ compliant
PoE Ports: 4 Ports
PoE Budget: 120W available for all PoE++ ports, 90W max per port
Fast PoE & Perpetual PoE
PoE Auto Recovery‡
Dimensions ( W x D x H )
8.2 × 5.0 × 1.0 in (209 × 126 × 26 mm)
Surge Protection
±6 kV
PERFORMANCE
Packet Buffer Memory
640 KB
Jumbo Frame
10 KB
Switching Capacity
45 Gbps
Packet Forwarding Rate
33.48 Mpps
MAC Address Table
16K
SOFTWARE FEATURES
Quality of Service
Port-based/802.1p/DSCP QoS
8 Priority Queues
Priority Schedule Mode
- WRR (Weighted Round Robin)
Queue Weight Config
Bandwidth Control
- Port-Based Rating Limit
Storm Control
- Multiple Control Modes (kbps/pps)
- Broadcast/Multicast/Unknown-Unicast Control△
L2 Features
Static Link Aggregation
Loop Prevention / Loopback Detection
Flow Control
- 802.3x Flow Control
Mirroring
- Port Mirroring
- One-to-One
- Many-to-One
- Ingress/Egress/Both
Port Statistics
- Port Mirror Status
- Traffic Statistics
802.1ab LLDP
L2 Multicast
IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
VLAN
MTU VLAN
Port-Based VLAN
802.1Q Tag VLAN
- Max 32 VLAN Groups
- 4K VID
Transmission Method
Store-And-Forward
Management Features
Omada App
Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management
Omada Cloud-Based Controller
Omada Hardware Controller
Omada Software Controller
Cloud Access
Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning
Yes. Requires the use of Omada Cloud-Based Controller
Management Features
Web-based GUI
DHCP Client
Cable Diagnostics
Automatic Device Discovery†
Batch Configuration†
Batch Firmware Upgrading†
Unified Configuration†
OTHERS
Certification
FCC, CE, RoHS
Package Content
ES206XPP-M2
Power Adapter
Power Cord
Rubber Feet
Installation Guide
Environment
Operating Temperature: -5℃~40℃ (23℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
