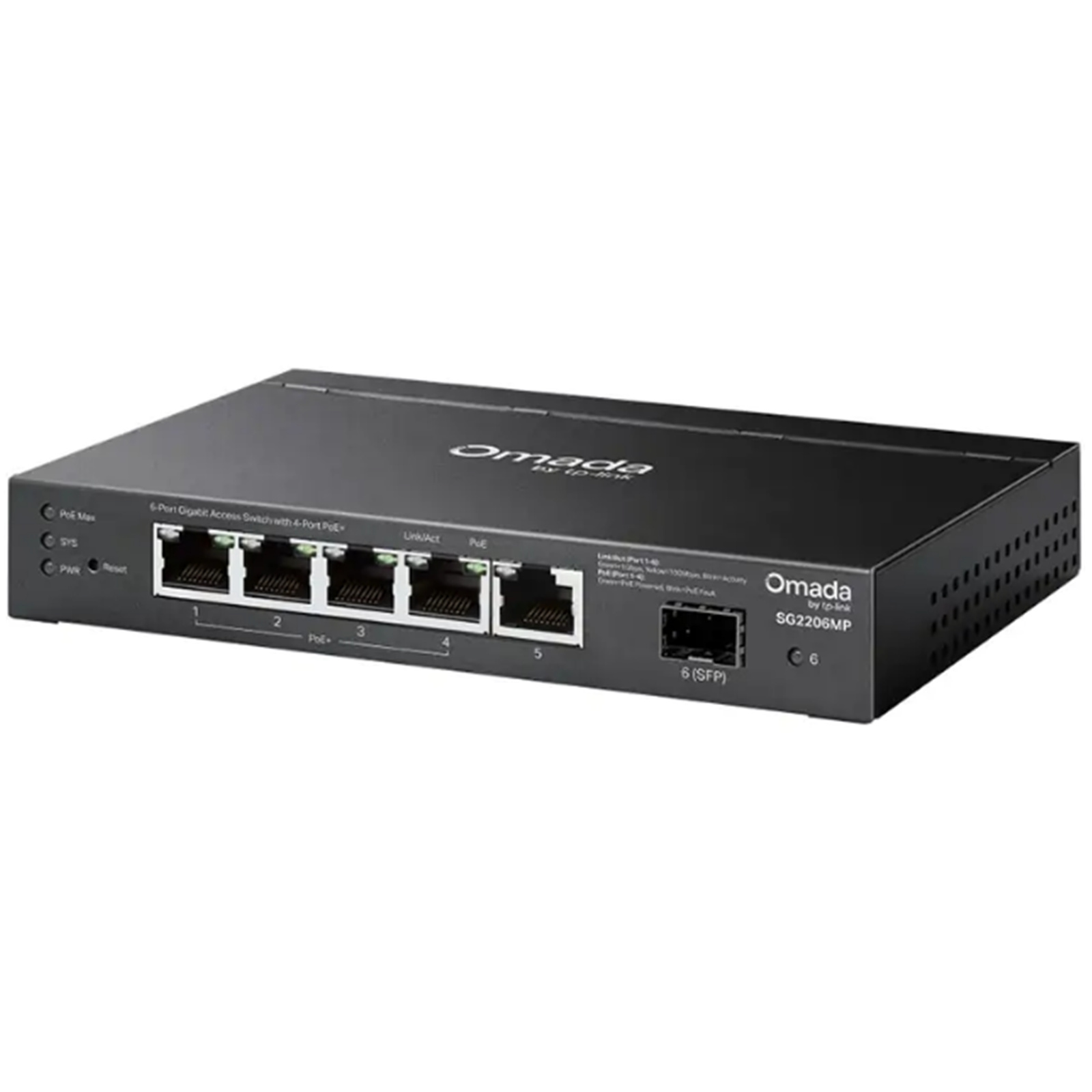

TP-Link Omada SG2206MP Access 6-Port Gigabit Switch with 4-Port PoE+ (Max 63W)

HARDWARE FEATURES

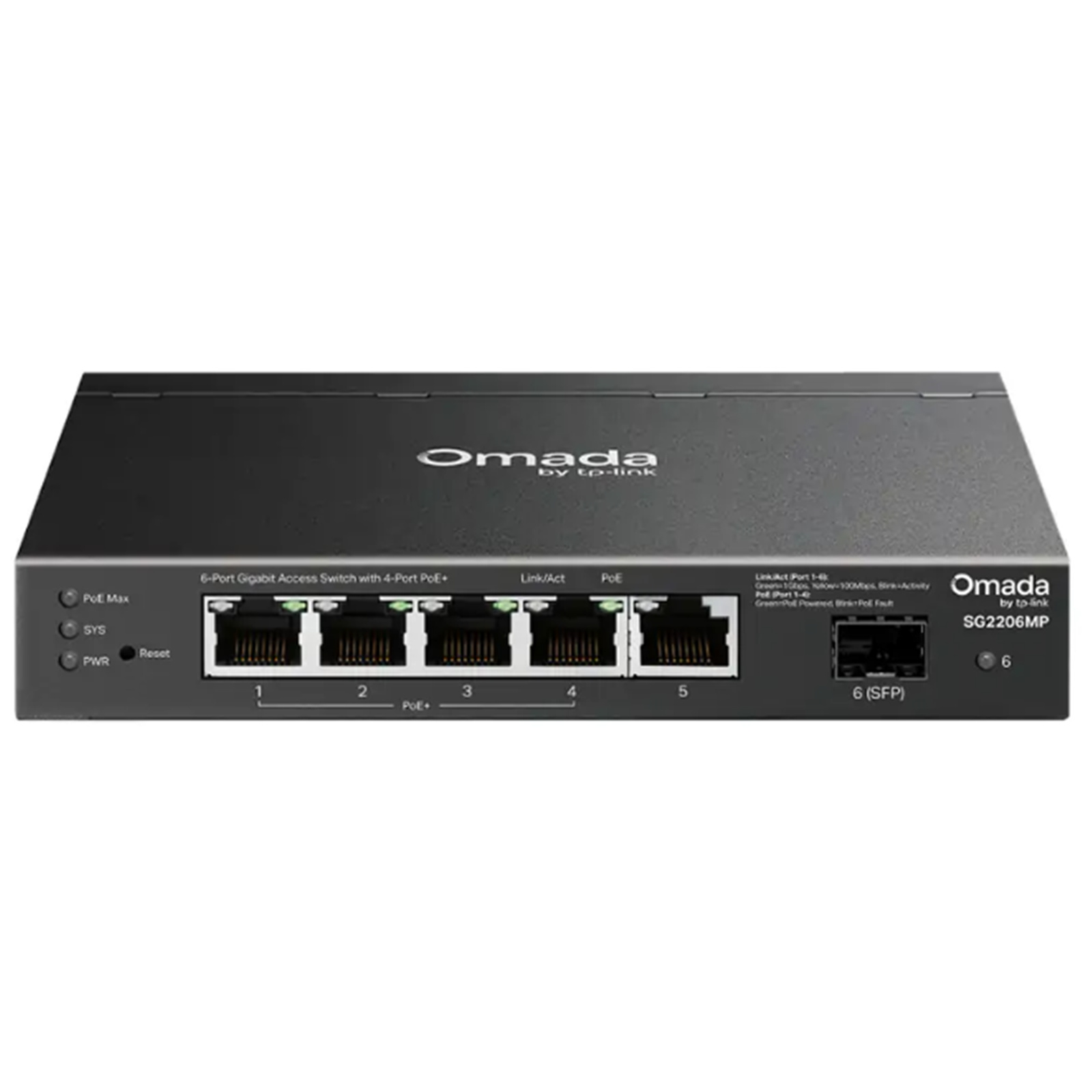

Interface

- 4× 10/100/1000 Mbps PoE+ RJ45 Ports
- 1× 10/100/1000 Mbps RJ45 Port
- 1× Gigabit SFP Slot

Physical Security Lock

Yes

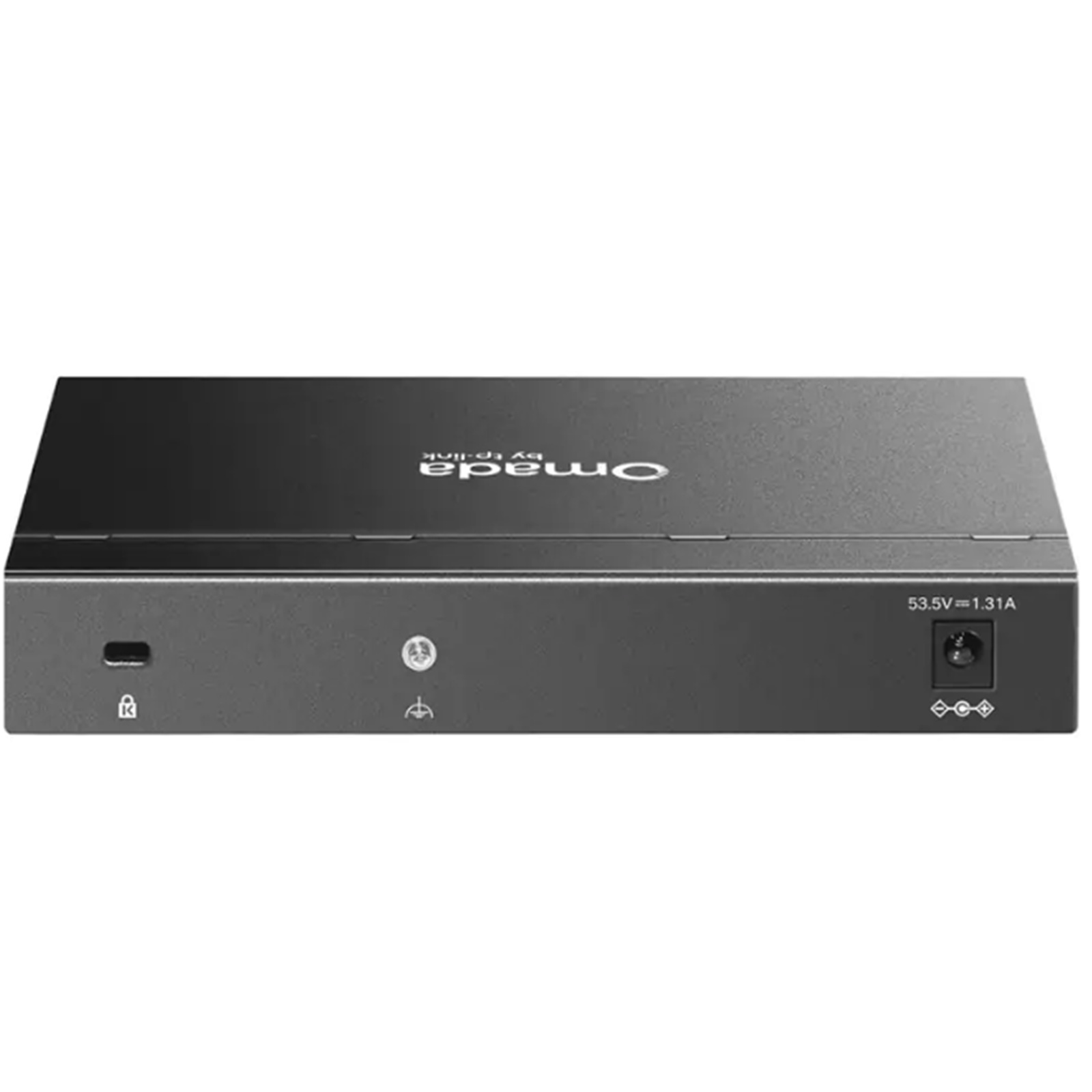

Power Supply

53.5 VDC / 1.31 A

PoE Ports (RJ45)

- Standard: 802.3at/af compliant
- PoE+ Ports: 4 Ports
- PoE Power Budget: 63 W*
- Fast PoE
- Perpetual PoE

Dimensions ( W x D x H )

6.2 × 4.0 × 1.0 in (158 × 100.7 × 25.4 mm)

Mounting

Desktop / Wall Mounting

Max. Power Consumption

73.7 W (110V/60Hz) (with 63 W PD connected)

Max. Heat Dissipation

250.4 BTU/hr (110V/60Hz) (with 63 W PD connected)

PERFORMANCE

Switching Capacity

12 Gbps

Packet Forwarding Rate

8.93 Mpps

MAC Address Table

8K

Packet Buffer Memory

4.1 Mbit

Jumbo Frame

9 KB

SOFTWARE FEATURES

Quality of Service

- 802.1p CoS/DSCP priority
- 8 priority queues
- Priority Schedule Mode
- SP (Strict Priority)
- WRR (Weighted Round Robin)
- Queue Weight Config
- Bandwidth Control
- Port/Flow based Rating Limit
- Storm Control
- Multiple Control Modes(kbps/ratio)
- Broadcast/Multicast/Unknown-Unicast Control

L2 and L2+ Features

- 16 IP Interfaces: Support IPv4/IPv6 Interface
- Static Routing: 32 IPv4/IPv6 Static Routes
- DHCP Server
- DHCP Relay
- DHCP Interface Relay
- DHCP VLAN Relay
- DHCP L2 Relay
- Static ARP
- Proxy ARP
- Gratuitous ARP
- Link Aggregation
- Spanning Tree Protocol
- Loopback Detection
- 802.3x Flow Control
- Mirroring
- Device Link Detect Protocol (DLDP)
- 802.1ab LLDP/ LLDP-MED
- Spanning Tree
- STP (802.1d)
- RSTP (802.1w)
- MSTP (802.1s)
- STP Security: TC Protect, BPDU Filter/Protect, Root Protect

L2 Multicast

- 511 IPv4, IPv6 shared multicast groups
- IGMP Snooping
- Multicast VLAN Registration (MVR)
- Multicast Filtering
- Limited IP Multicast (256 profiles and 16 entries per profile)

Advanced Features

- Automatic Device Discovery
- Batch Configuration
- Batch Firmware Upgrading
- Intelligent Network Monitoring
- Abnormal Event Warnings
- Unified Configuration
- Reboot Schedule

VLAN

- VLAN Group
- Max. 4K VLAN Groups
- 802.1Q tag VLAN
- MAC VLAN: 16 Entries
- Protocol VLAN
- GVRP
- Voice VLAN

Access Control List

- Support up to 230 entries
- Time-Range
- Time-based ACL
- MAC ACL
- IP ACL
- IPv6 ACL
- Combined ACL
- Rule Operation: Permit/Deny
- Policy Action
- Mirroring
- Redirect
- Rate Limit
- QoS Remark
- ACL Rules Binding
- Port Binding
- VLAN Binding

Security

- IP-MAC-Port Binding
- AAA
- 802.1X
- Port-based authentication
- MAC (Host) based authentication
- Authentication Method includes PAP/EAP-MD5
- MAB
- Guest VLAN
- Support Radius authentication and accountability
- IP/IPv6-MAC Binding
- 512 Binding Entries
- DHCP Snooping
- DHCPv6 Snooping
- ARP Inspection
- ND Detection
- ND Snooping
- IP Source Guard
- 253 Entries
- Source IP+Source MAC
- IPv6 Source Guard
- 183 Entries
- Source IPv6 Address+Source MAC
- DoS Defend
- DHCP Filter
- Static/Dynamic/Permanent Port Security
- Up to 64 MAC addresses per port
- Broadcast/Multicast/Unicast Storm Control
- kbps/ratio control mode
- Port Isolation
- Secure web management through HTTPS with SSLv3/TLS 1.2
- Secure Command Line Interface (CLI) management with SSHv1/SSHv2
- IP/Port/MAC-based access control

IPv6

- IPv6 Static Routing and ACL
- IPv6 Dual IPv4/IPv6
- IPv6 Interface
- Multicast Listener Discovery (MLD) Snooping
- IPv6 neighbor discovery (ND)
- Path maximum transmission unit (MTU) discovery
- Internet Control Message Protocol (ICMP) version 6
- TCPv6/UDPv6
- IPv6 applications
- DHCPv6 Client
- Ping6
- Tracert6
- Telnet(v6)
- IPv6 SNMP
- IPv6 SSH
- IPv6 SSL
- Http/Https
- IPv6 TFTP

MIBs

- MIB II (RFC1213)
- Bridge MIB (RFC1493)
- P/Q-Bridge MIB (RFC2674)
- Radius Accounting Client MIB (RFC2620)
- Radius Authentication Client MIB (RFC2618)
- Remote Ping, Traceroute MIB (RFC2925)
- Support TP-Link private MIBs
- RMON MIB(RFC1757, rmon 1,2,3,9)

Management Features

Omada App

Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Centralized Management

- Omada Cloud-Based Controller (Requires built-in version 5.15.22 or later)
- Omada Hardware Controller (Requires built-in version 5.15.20 or later)
- Omada Software Controller (Requires built-in version 5.15.20 or later)

Cloud Access

Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Zero-Touch Provisioning

Yes. Requiring the use of Omada Cloud-Based Controller

Management Features

- Web-based GUI
- Command Line Interface (CLI) through telnet
- SNMPv1/v2c/v3
- SNMP Trap/Inform
- RMON (1,2,3,9 groups)
- SDM Template
- DHCP/BOOTP Client
- Dual Image, Dual Configuration
- CPU Monitoring
- Cable Diagnostics
- IEEE 802.1az Energy Efficient Ethernet (EEE)
- SNTP
- System Log
- Digital Diagnostic Monitoring (DDM)
- Operation Administration and Maintenance (OAM)

OTHERS

Certification

CE, FCC, RoHS

Package Content

- SG2206MP
- Power Adapter
- Power Cord
- Rackmount Kit
- Rubber Feet
- Installation Guide

System Requirements

Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.

Environment

- Operating Temperature: -5-40 ? (23-104 ?);
- Storage Temperature: -40-70 ? (-40-158 ?)
- Operating Humidity: 10-90% RH, non-condensing
- Storage Humidity: 5-90% RH, non-condensing
