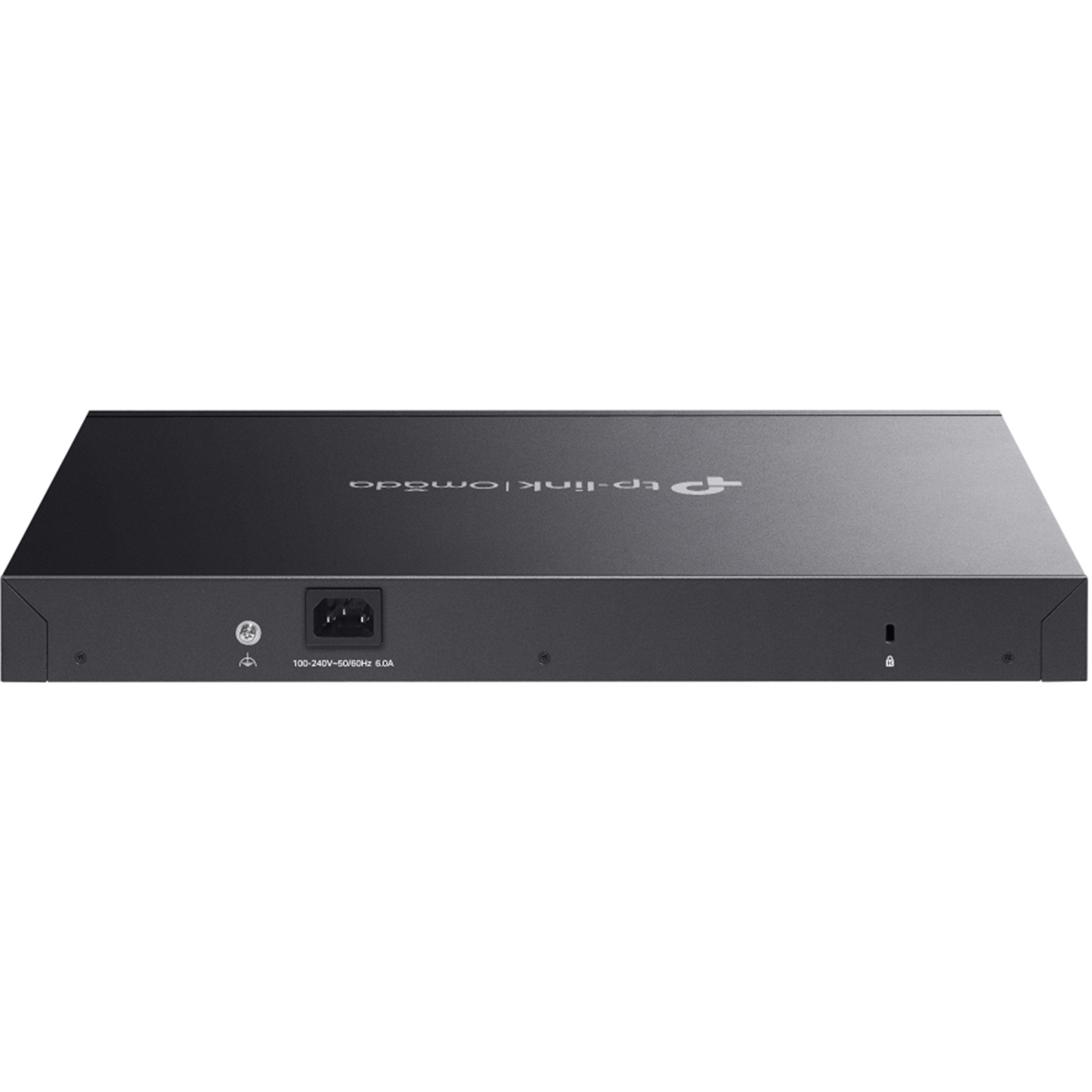

TP-Link Omada ES228GMP 28-Port Gigabit Easy Managed PoE Switch (384W) - SFP x2, 1GbE PoE+ x24
TP-Link Omada ES228GMP 28-Port Gigabit Easy Managed PoE Switch (384W) - SFP x2, 1GbE PoE+ x24
- Brand: TP-Link
- MPN: ES228GMP
- Part #: SWHTPL22801
- UPC:
- Brand: TP-Link
- MPN: ES228GMP
- Part #: SWHTPL22801
- UPC:
Similar in-stock products available at PB Tech right now
Features
ES228GMP

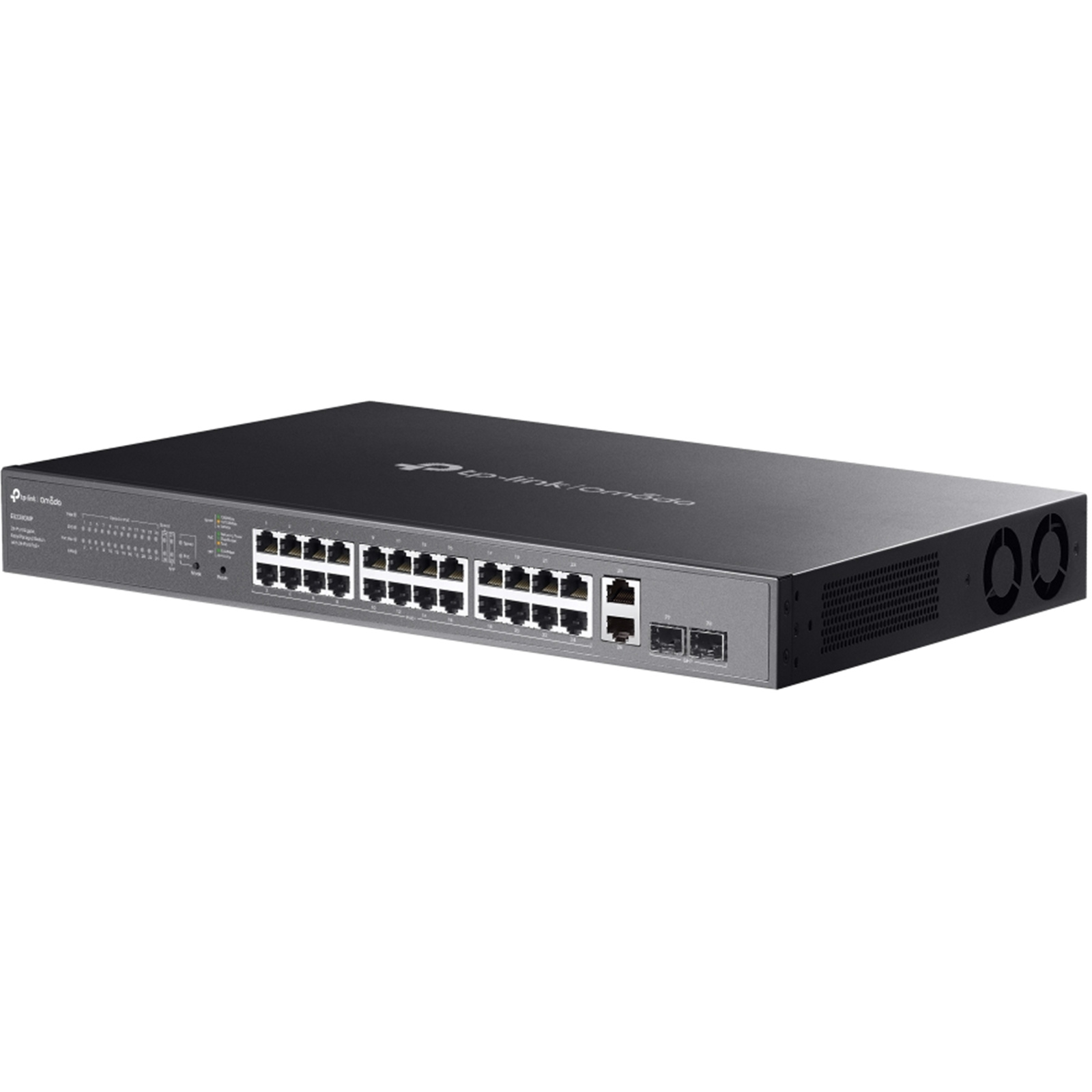

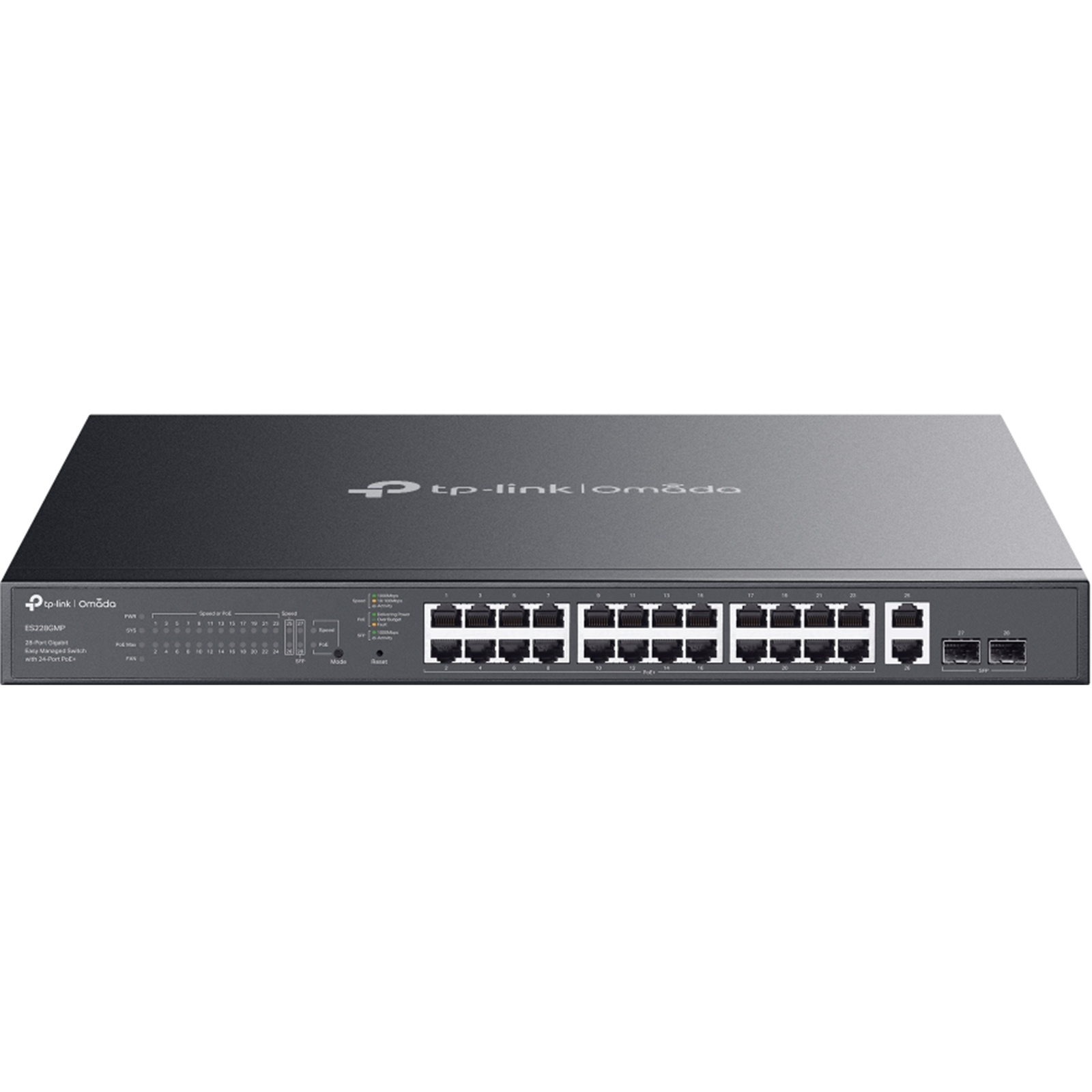

Omada 28-Port Gigabit Easy Managed Switch with 24-Port PoE+
- 26x 10/100/1000Mbps RJ45 ports (24x 802.3af/at-compliant PoE+)
- 2x Gigabit SFP port
- 384W Power Budget, with up to 30W for each PoE port[5]
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app[2]
- Up to 250m PoE[6], QoS[4], PoE Auto Recovery[3], and Port Isolation for reliable surveillance networking
- Automatic Loop Prevention, VLAN, and IGMP Snooping
- Durable metal casing and rack-mountable design
Omada 28-Port Gigabit Easy Managed Switch with 24-Port PoE+
ES228GMP
- 28x Gigabit Ports (24x PoE+, 2x RJ45, 2x SFP)
- 384W Total PoE Budget[5]
- Up to 250m PoE Transmission[6]
- Easy Centralized Management[1]
- Automatic Loop Prevention
- PoE Auto Recovery[3]
- Traffic Separation
- Traffic Prioritization[4]

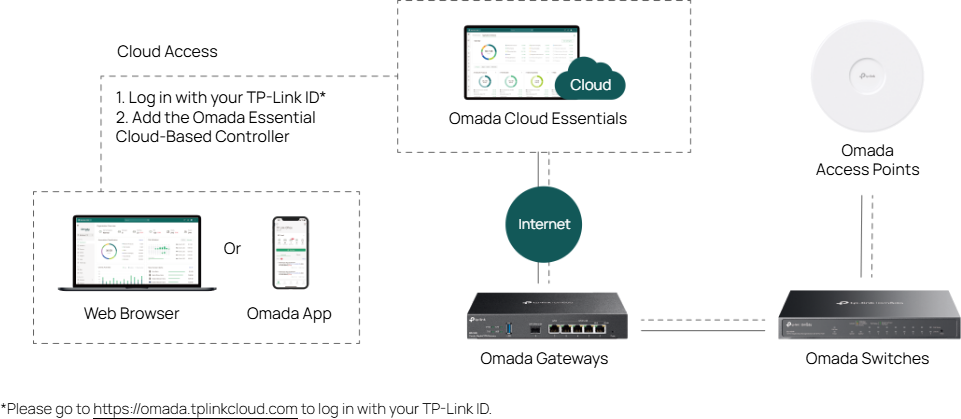

Omada Cloud Essentials - A Free and Easy Cloud-Based Network Management
Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
- Lifetime Free Cloud without Any Additional Fees
- Exists Entirely in the Cloud. No Hardware or Software Controller Needed
- Cloud Centralized Management for Multiple Sites
- Access Anytime via Omada App or Web
- Easy Setup, Use, and Maintenance
- Unlimited Management Scale
- Zero-Touch Provisioning (ZTP) without Unboxing [5]The gateway requires one-step configuration
- Seamlessly Upgrade to Omada Cloud Standard with a Subscription [5]Available from Q2 2025.

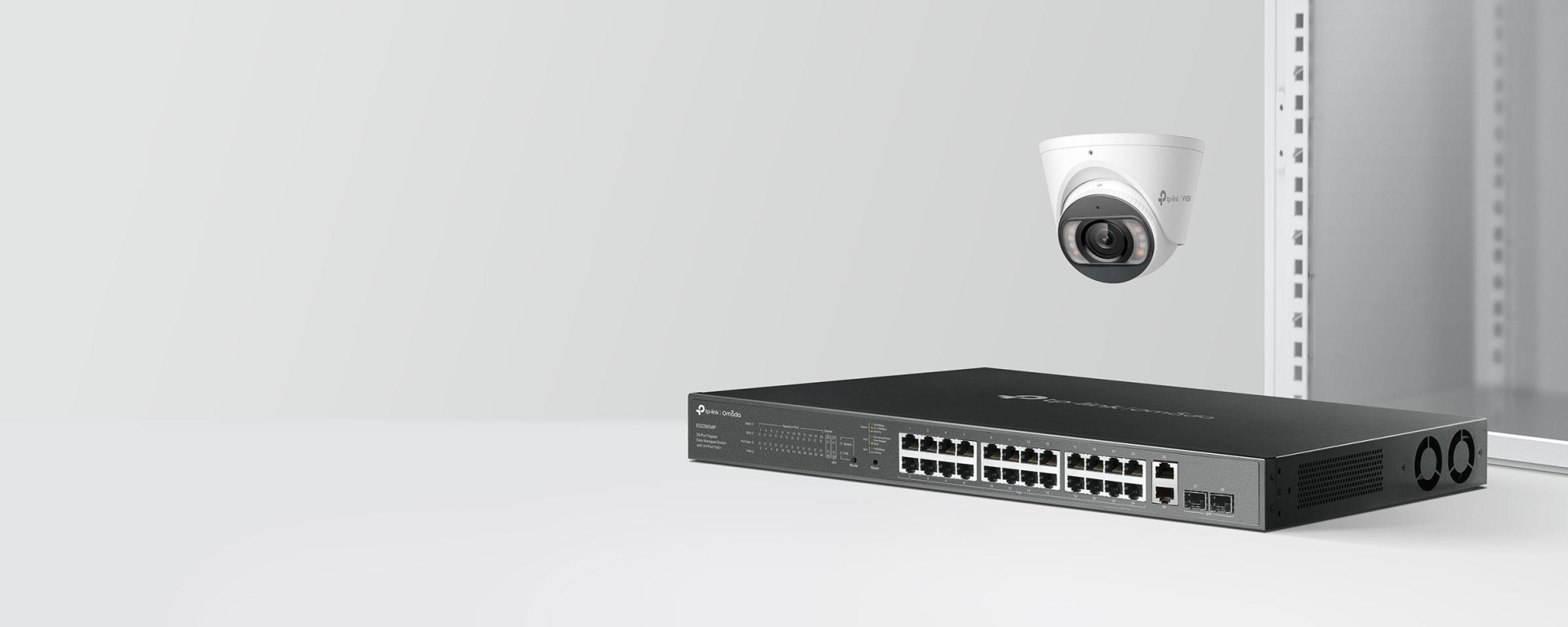

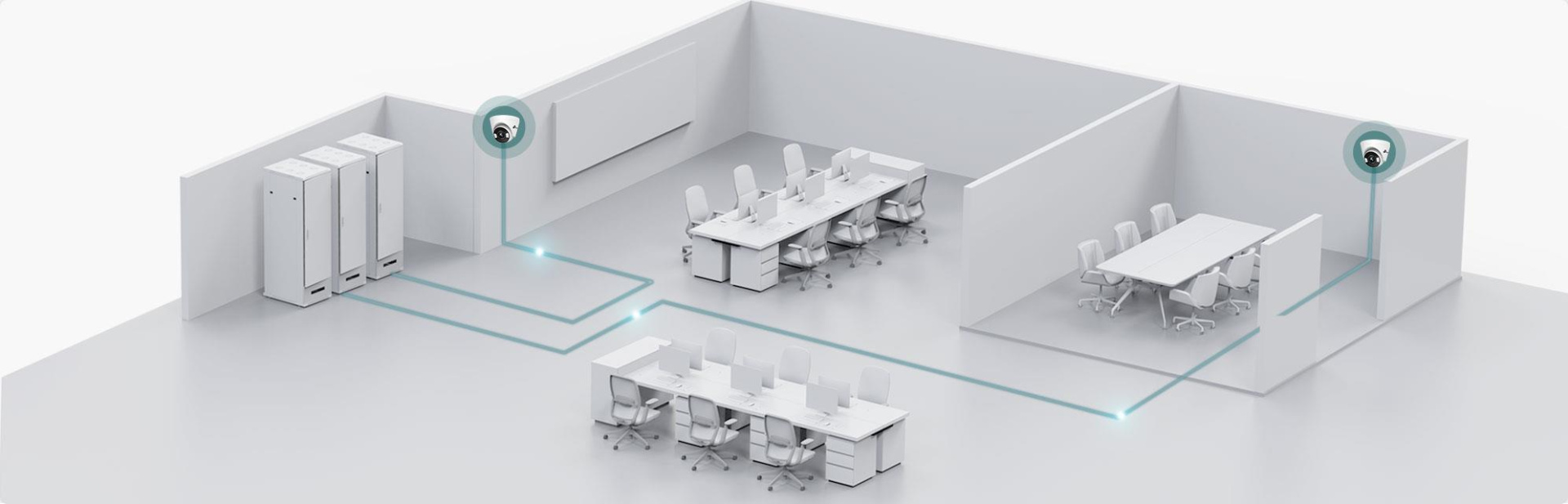

Abundant Functions for Reliable Surveillance Networking
- Transmission Distance up to 250 m[6]
- Priority Video Quality Guaranteed[4]
- Secure Traffic Separation via Port Isolation
- PoE Auto Recovery[3]
Multiple Application Scenarios

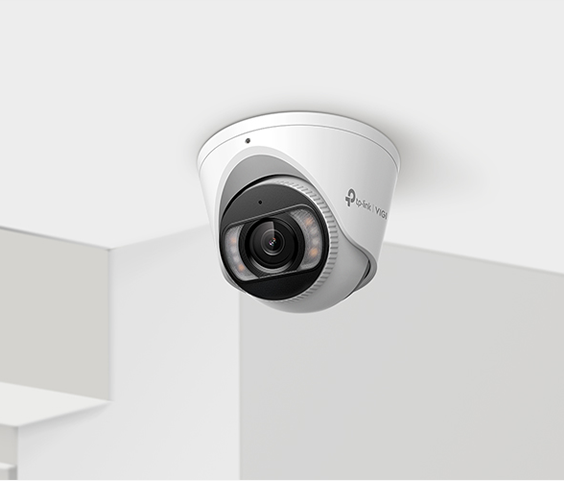

Surveillance
Works with IP Cameras
Wi-Fi Coverage
Works with Access Points
Wired Connections
Works with Non-PoE Devices such as PCs and Printers
[1]The Omada Cloud-Based Controller offers the Essentials version of cloud services for free, while the Standard version, which includes advanced features, requires a license.
[2]These functions require the use of the Omada Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller (Omada Cloud Standard or Omada Cloud Essentials). Go to the Omada Cloud-Based Controller (Omada Cloud Standard) Product List or Omada Cloud Essentials Product List to find all the supported models.
[3]This switch supports PoE Auto Recovery under Standalone Mode (managed separately without a controller) and supports manual PoE Recovery under Controller Mode (centrally managed with a controller).
[4]QoS and Priority Mode are supported under Standalone Mode.
[5]PoE budget calculations are based on laboratory testing. The actual PoE power budget is not guaranteed and will vary due to client limitations and environmental factors.
[6]The speed of the ports that support 250m PoE transmission will be downgraded to 10 Mbps. Actual transmission distance may vary depending on the quality of the cables.
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-7 working days and tracking links for these deliveries can take a few days to generate.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Switches
TP-Link TL-SG105 5-Port Gigabit Unmanaged Switch - 1GbE x5
TP-Link TL-SG1005D 5-Port Gigabit Desktop Switch
Ubiquiti UniFi USW-Flex-Mini 5-Port Gigabit L2 Managed Switch -...
Ubiquiti UniFi USW-Lite-8-POE 8-Port Gigabit L2 Managed PoE...
TP-Link TL-SG108 8-Port Gigabit Unmanaged Switch - 1GbE x8
TP-Link Omada ES228GMP 28-Port Gigabit Easy Managed PoE Switch (384W) - SFP x2, 1GbE PoE+ x24
- Brand: TP-Link
- MPN: ES228GMP
- Part #: SWHTPL22801
Product URL: https://www.pbtech.co.nz/product/SWHTPL22801/TP-Link-Omada-ES228GMP-28-Port-Gigabit-Easy-Manage
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
ES228GMP
Omada 28-Port Gigabit Easy Managed Switch with 24-Port PoE+
- 26x 10/100/1000Mbps RJ45 ports (24x 802.3af/at-compliant PoE+)
- 2x Gigabit SFP port
- 384W Power Budget, with up to 30W for each PoE port[5]
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app[2]
- Up to 250m PoE[6], QoS[4], PoE Auto Recovery[3], and Port Isolation for reliable surveillance networking
- Automatic Loop Prevention, VLAN, and IGMP Snooping
- Durable metal casing and rack-mountable design
Omada 28-Port Gigabit Easy Managed Switch with 24-Port PoE+
ES228GMP
- 28x Gigabit Ports (24x PoE+, 2x RJ45, 2x SFP)
- 384W Total PoE Budget[5]
- Up to 250m PoE Transmission[6]
- Easy Centralized Management[1]
- Automatic Loop Prevention
- PoE Auto Recovery[3]
- Traffic Separation
- Traffic Prioritization[4]
Omada Cloud Essentials - A Free and Easy Cloud-Based Network Management
Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
- Lifetime Free Cloud without Any Additional Fees
- Exists Entirely in the Cloud. No Hardware or Software Controller Needed
- Cloud Centralized Management for Multiple Sites
- Access Anytime via Omada App or Web
- Easy Setup, Use, and Maintenance
- Unlimited Management Scale
- Zero-Touch Provisioning (ZTP) without Unboxing [5]The gateway requires one-step configuration
- Seamlessly Upgrade to Omada Cloud Standard with a Subscription [5]Available from Q2 2025.
Abundant Functions for Reliable Surveillance Networking
- Transmission Distance up to 250 m[6]
- Priority Video Quality Guaranteed[4]
- Secure Traffic Separation via Port Isolation
- PoE Auto Recovery[3]
Multiple Application Scenarios
Surveillance
Works with IP Cameras
Wi-Fi Coverage
Works with Access Points
Wired Connections
Works with Non-PoE Devices such as PCs and Printers
[1]The Omada Cloud-Based Controller offers the Essentials version of cloud services for free, while the Standard version, which includes advanced features, requires a license.
[2]These functions require the use of the Omada Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller (Omada Cloud Standard or Omada Cloud Essentials). Go to the Omada Cloud-Based Controller (Omada Cloud Standard) Product List or Omada Cloud Essentials Product List to find all the supported models.
[3]This switch supports PoE Auto Recovery under Standalone Mode (managed separately without a controller) and supports manual PoE Recovery under Controller Mode (centrally managed with a controller).
[4]QoS and Priority Mode are supported under Standalone Mode.
[5]PoE budget calculations are based on laboratory testing. The actual PoE power budget is not guaranteed and will vary due to client limitations and environmental factors.
[6]The speed of the ports that support 250m PoE transmission will be downgraded to 10 Mbps. Actual transmission distance may vary depending on the quality of the cables.
Specifications
HARDWARE FEATURES
Interface
24× 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3af PoE and 802.3at PoE+)
2× 10/100/1000 Mbps RJ45 Port
2× Gigabit SFP Slot
Auto-Negotiation/Auto MDI/MDIX
Fan Quantity
2
Installation
Rackmountable
Physical Security Lock
Yes
Power Supply
100-240V AC, 50/60Hz
PoE Ports (RJ45)
Standard: 802.3af PoE and 802.3at PoE+ compliant
PoE Ports: 24 ports
PoE Budget: 384W available for all PoE+ ports, 30W max per port
Fast PoE & Perpetual PoE
PoE Auto Recovery[3]
Up to 250m PoE transmission distance[6]
Dimensions ( W x D x H )
17.3 × 13.0 × 1.7 in.(440 × 330 × 44 mm)
Surge Protection
±6kV
PERFORMANCE
Switching Capacity
56 Gbps
Packet Forwarding Rate
41.67 Mpps
MAC Address Table
8K
Packet Buffer Memory
4 Mbit
Jumbo Frame
15 KB
SOFTWARE FEATURES
Quality of Service
Port-based/802.1p/DSCP QoS
8 Priority Queues
Priority Schedule Mode
- WRR (Weighted Round Robin)
Queue Weight Config
Bandwidth Control
- Port-Based Rating Limit
Storm Control
- Multiple Control Modes (kbps/pps)
- Broadcast/Multicast/Unknown-Unicast Control[4]
L2 Features
Static Link Aggregation
Loop Prevention / Loopback Detection
Flow Control
- 802.3x Flow Control
Mirroring
- Port Mirroring
- One-to-One
- Many-to-One
- Ingress/Egress/Both
Port Statistics
- Port Mirror Status
- Traffic Statistics
802.1ab LLDP
L2 Multicast
IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
VLAN
MTU VLAN
Port-Based VLAN
802.1Q Tag VLAN
- Max 32 VLAN Groups
- 4K VID
Transmission Method
Store-And-Forward
Management Features
Omada App
Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management
Omada Cloud-Based Controller
Omada Hardware Controller
Omada Software Controller
Cloud Access
Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning
Yes. Requires the use of Omada Cloud-Based Controller
Management Features
Web-based GUI
DHCP Client
Cable Diagnostics
Automatic Device Discovery[2]
Batch Configuration[2]
Batch Firmware Upgrading[2]
Unified Configuration[2]
OTHERS
Certification
FCC, CE, RoHS
Package Content
ES228GMP
Power Cord
Mounting Brackets
Rubber Feet
Screws
Installation Guide
Environment
Operating Temperature: -5℃~45℃ (23℉~113℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Notes
[1]The Omada Cloud-Based Controller offers the Essentials version of cloud services for free, while the Standard version, which includes advanced features, requires a license.
[2]These functions require the use of the Omada Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller (Omada Cloud Standard or Omada Cloud Essentials). Go to the Omada Cloud-Based Controller (Omada Cloud Standard) Product List or Omada Cloud Essentials Product List to find all the supported models.
[3]This switch supports PoE Auto Recovery under Standalone Mode (managed separately without a controller) and supports manual PoE Recovery under Controller Mode (centrally managed with a controller).
[4]QoS and Priority Mode are supported under Standalone Mode.
[5]PoE budget calculations are based on laboratory testing. The actual PoE power budget is not guaranteed and will vary due to client limitations and environmental factors.
[6]The speed of the ports that support 250m PoE transmission will be downgraded to 10 Mbps. Actual transmission distance may vary depending on the quality of the cables.
