Features

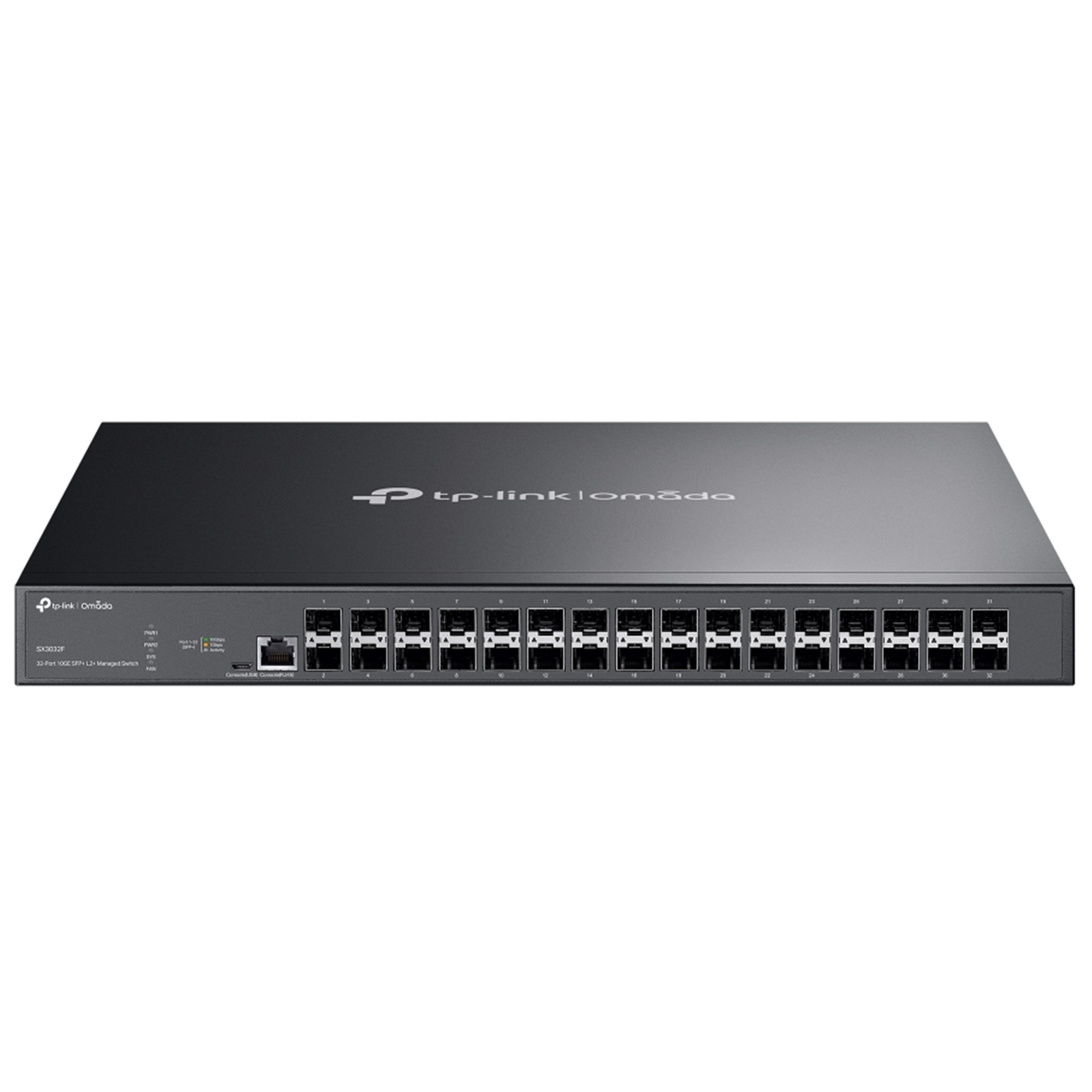

Omada 32-Port 10GE SFP+ L2+ Managed Switch
- 32× 10 Gbps SFP+ slots
- 640 Gbps switching capacity
- Two internal fixed power supply modules back each other up
- Centralized cloud management via the web or the Omada app†
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
- ERPS supports rapid protection and recovery in a ring topology
- Durable metal casing and rack-mountable design
Specifications
HARDWARE FEATURES
Interface
- 32× 1/10Gbps SFP+ Slots
- 1× RJ45 Console Port
- 1× Micro-USB Console Port
Fan Quantity
2 internal fixed fans
Physical Security Lock
Yes

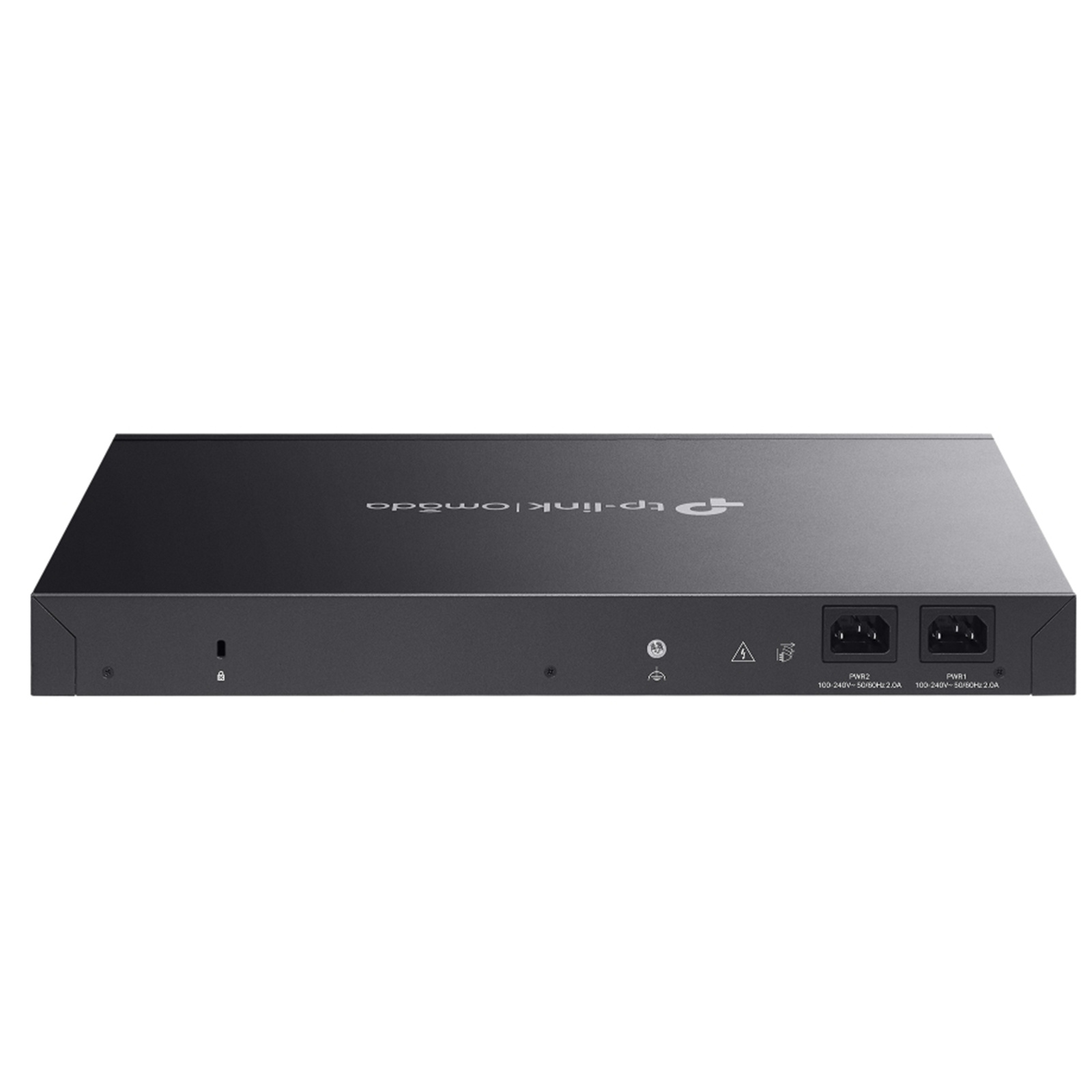

Power Supply
- 1+1 Redundant Power Supply (internal fixed)
- 100-240 V AC~50/60 Hz
Dimensions ( W x D x H )
17.3×13.0×1.7 in (440×330×44 mm)
Mounting
Rack Mountable
Max. Power Consumption
49.4 W (220 V / 50 Hz)
PERFORMANCE
Switching Capacity
640 Gbps
Packet Forwarding Rate
240 Mpps
MAC Address Table
32 K
Packet Buffer Memory
24 Mbit
Jumbo Frame
9 KB
SOFTWARE FEATURES
Quality of Service
- 8 priority queues
- 802.1p CoS/DSCP priority
- Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR
- Bandwidth Control: Port/Flow-based Rating Limiting
- Smoother Performance
- Action for Flows: QoS remark (802.1P Remark, DSCP Remark)
L2 and L2+ Features
- 128 IP Interfaces: Support IPv4/IPv6 Interface
- Static Routing: 48 IPv4/IPv6 Static Routes
- Static ARP: 128 static entries
- 510 ARP Entries
- Proxy ARP
- Gratuitous ARP
- DHCP Server
- DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay
- DHCP L2 Relay
- Link Aggregation
- Spanning Tree Protocol
- Loopback Detection
- 802.3x Flow Control
- Mirroring
L2 Multicast
- Supports 4000 (IPv4, IPv6) IGMP groups
- IGMP Snooping
- IGMP Authentication
- Multicast VLAN Registration (MVR)
- MLD Snooping
- Multicast Filtering: 256 profiles and 16 entries per profile
Advanced Features
- Automatic Device Discovery†
- Batch Configuration†
- Batch Firmware Upgrading†
- Intelligent Network Monitoring†
- Unified Configuration†
- Reboot Schedule†
ISP Features:
- L2PT (Layer 2 Protocol Tunneling)
- Device Link Detect Protocol (DLDP)
- PPPoE ID Insertion
- ERPS
- 802.3ah Ethernet Link OAM
- DDM
- sFlow
VLAN
- VLAN Group (802.1q VLAN): Max 4K VLAN Groups
- 802.1Q Tagged VLAN
- MAC VLAN: 30 Entries
- Protocol VLAN
- GVRP
- VLAN VPN (QinQ): VLAN Mapping, VLAN Replace
- Voice VLAN
Access Control List
- Time-based ACL
- MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type
- IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS
- Combined ACL
- Packet Content ACL
- IPv6 ACL
- Policy: Mirroring, Redirect, Rate Limit, QoS Remark
- ACL applies to Port/VLAN
Security
- IP-MAC-Port Binding
- 512 Entries
- DHCP Snooping
- ARP Inspection
- IPv4 Source Guard
- IPv6-MAC-Port Binding
- 512 Entries
- DHCPv6 Snooping
- ND Detection
- ND Snooping
- IPv6 Source Guard
- DoS Defend
- Static/Dynamic Port Security: Up to 64 MAC addresses per port
- Broadcast/Multicast/Unicast Storm Control: kbps/ratio control mode
- 802.1X
- Port base authentication
- MAC-based authentication
- VLAN Assignment
- MAB
- Guest VLAN
- Radius authentication and accountability support
- AAA (including TACACS+)
- Port Isolation
- Secure web management through HTTPS with SSLv3/TLS 1.2
- Secure Command Line Interface (CLI) management with SSHv1/SSHv2
- IP/Port/MAC-based access control
IPv6
- IPv6 Dual IPv4/IPv6
- Multicast Listener Discovery (MLD) Snooping
- IPv6 ACL
- IPv6 Interface
- Static IPv6 Routing
- IPv6 neighbor discovery (ND)
- Path maximum transmission unit (MTU) discovery
- Internet Control Message Protocol (ICMP) version 6
- TCPv6/UDPv6
- IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP
MIBs
- MIB II (RFC1213)
- Interface MIB (RFC2233)
- Ethernet Interface MIB (RFC1643)
- Bridge MIB (RFC1493)
- P/Q-Bridge MIB (RFC2674)
- RMON MIB (RFC2819)
- RMON2 MIB (RFC2021)
- Radius Accounting Client MIB (RFC2620)
- Radius Authentication Client MIB (RFC2618)
- Remote Ping, Traceroute MIB (RFC2925)
- Support TP-Link private MIB
Management Features
Omada App
Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management
- Omada Cloud-Based Controller
- Omada Hardware Controller
- Omada Software Controller
Cloud Access
Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning Yes. Requires the use of Omada Cloud-Based Controller.
Management Features
- Web-based GUI
- Command Line Interface (CLI) through the console port, telnet
- SNMP v1/v2c/v3: Trap/Inform, RMON (1,2,3,9 groups)
- SDM Template
- DHCP/BOOTP Client
- 802.1ab LLDP/LLDP-MED
- DHCP Auto Install
- Dual Image, Dual Configuration
- CPU Monitoring
- Password Recovery
- SNTP
- System Log
OTHERS
Certification
CE, FCC, RoHS
Package Content
- SX3032F Switch
- 2× Power Cords
- Quick Installation Guide
- Rackmount Kit
- Rubber Feet
System Requirements
Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Environment
- Operating Temperature: -5-45 °C (23-113 °F);
- Storage Temperature: -40-70 ? (-40-158 ?)
- Operating Humidity: 10-90% RH non-condensing
- Storage Humidity: 5-90% RH non-condensing
