TP-Link Omada SG6428XHP 28-Port 10G Stackable L3 Managed PoE Switch (720W) - 10G SFP+ x4, 1GbE PoE+ x24
Out of stock
TP-Link Omada SG6428XHP 28-Port 10G Stackable L3 Managed PoE Switch (720W) - 10G SFP+ x4, 1GbE PoE+ x24
- Brand: TP-Link
- MPN: SG6428XHP
- Part #: SWHTPL6428
- UPC:
- Brand: TP-Link
- MPN: SG6428XHP
- Part #: SWHTPL6428
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Switches
Ubiquiti UniFi USW-Flex-Mini 5-Port Gigabit L2 Managed Switch -...
TP-Link TL-SG1005D 5-Port Gigabit Desktop Switch
TP-Link TL-SG108PE 8-Port Gigabit Easy Smart PoE Switch with 4...
Ubiquiti UniFi USW-Lite-8-POE 8-Port Gigabit L2 Managed PoE...
TP-Link TL-SG108 8-Port 10/100/1000Mbps Desktop Switch
TP-Link Omada SG6428XHP 28-Port 10G Stackable L3 Managed PoE Switch (720W) - 10G SFP+ x4, 1GbE PoE+ x24
- Brand: TP-Link
- MPN: SG6428XHP
- Part #: SWHTPL6428
Product URL: https://www.pbtech.co.nz/product/SWHTPL6428/TP-Link-Omada-SG6428XHP-28-Port-10G-Stackable-L3-M
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Newmarket | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
Omada 24-Port Gigabit Stackable L3 Managed PoE+ Switch with 4 10G Slots
- 24× Gigabit RJ45 PoE+ ports
- 4× 10 Gbps SFP+ slots
- Up to 720 W total PoE budget*
- Physical stacking for built-in redundancy and performance
- L3 features: RIP, OSPF, ECMP, VRRP, PIM-DM, DHCP Server/Relay
- Security Strategies: ACL, Port Security, DoS Defend, 802.1X
- Highly Available with two field-replaceable power supplies,** VRRP, and ERPS
- Centralized cloud management via Omada SDN controllers
- Standalone management via web, CLI, SNMP, and RMON
What This Product Does
Omada SG6428XHP is a versatile L3 managed PoE+ switch, offering L3 routing, rapid 10 Gbps connectivity, stacking, and redundant power supplies, ideal for convergence layer applications. It boasts a 720 W PoE budget,* 24× gigabit RJ45 PoE+ ports, 4× 10 Gbps SFP+ slots, and physical stacking. With centralized management, robust security, and comprehensive management features, it is a dependable choice for SMB, enterprise, and ISP networks.
IEEE 802.3at/af-compliant Power over Ethernet
24× IEEE 802.3at/af-compliant PoE ports supply up to 720 W total power to 802.3at and 802.3af devices,* with each port supplying up to 30 W power. Set up wireless access points, surveillance cameras, IP phones, and other PoE devices quickly and easily, without the hassle and cost of installing power cabling.
High-speed Connectivity and Powerful Stacking
24× Gigabit RJ45 ports and 4× 10 Gbps SFP+ slots provide up to 128 Gbps switching capacity per unit. Up to 4 units of physical stacking with up to 512 Gbps switching capacity empower the networking structure with built-in redundancy and performance.
Abundant Layer 3 Capabilities
Comes with abundant Layer 3 routing protocols that support a scalable network. Static Routing, RIP, OSPF, ECMP, VRRP, DHCP Server, and DHCP Relay are supported. PIM-DM multicast routing protocol guarantees efficient routing for multicast groups.
Highly Available
Optional field-replaceable and hot-swappable redundant power supplies and VRRP make it an ideal choice for reliable networking architecture.** ERPS supports rapid protection and recovery in a ring topology.
Enhanced Security Functions
Defend against a range of network threats with ACL support (IPv4 & IPv6), Dynamic ARP Inspection, IEEE 802.1X, MAB, Port Security, and Secure Shell.
Omada SDN
Integration into the Omada system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP).‡ The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management-all controlled from a single interface.
Apart from the ability to be centrally managed via the web or the Omada app, SG6428XHP is also easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps for abnormal events.
Specifications
HARDWARE FEATURES
Interface
- 24× 10/100/1000 Mbps PoE+ RJ45 Ports
- 4× 10G SFP+ Slots
- 2× USB 2.0 Ports
- 1× RJ45 Console Port
- 1× USB Type-C Console Port
- 1× RJ45 Management Port
Fan Quantity

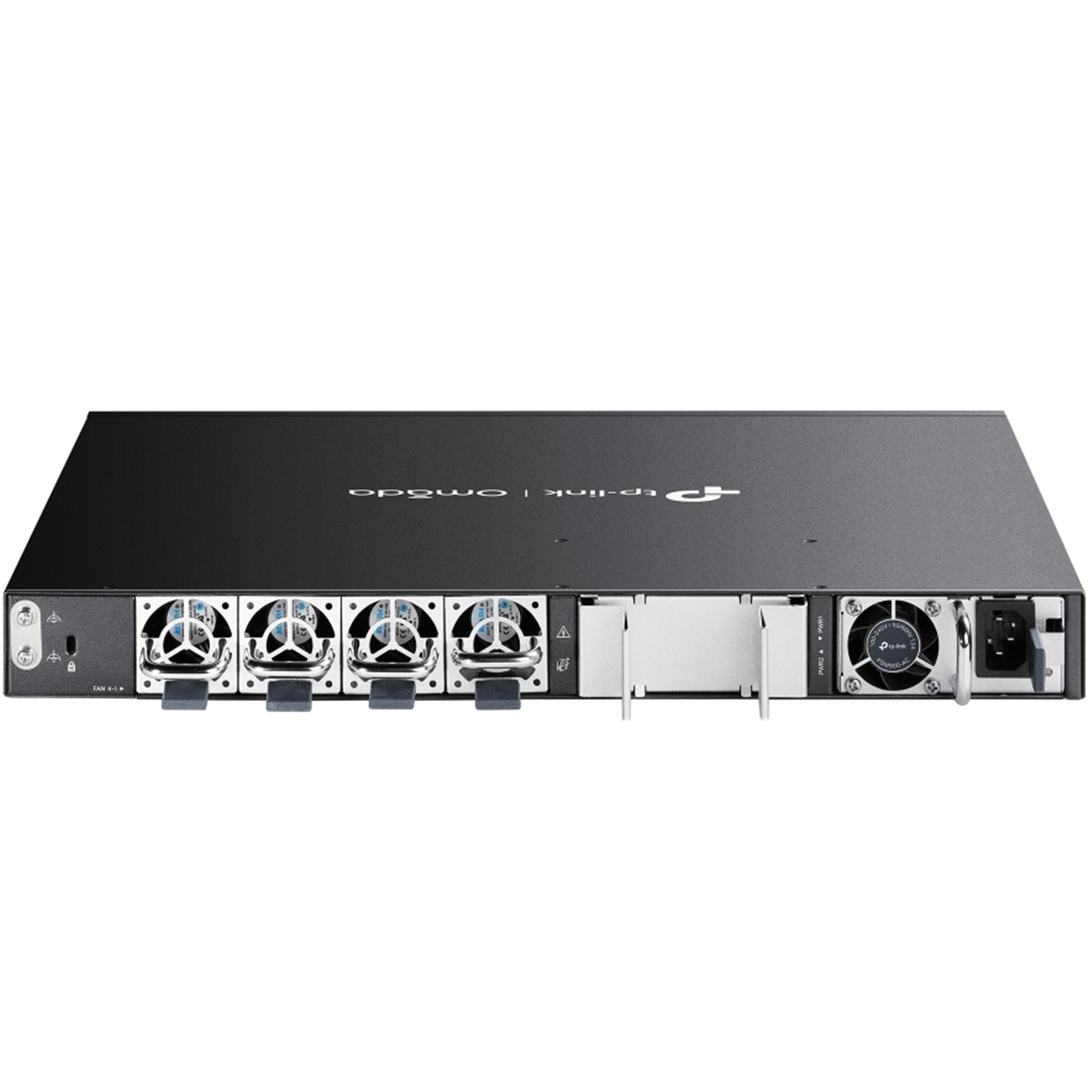

Four Field-replaceable and Hot-swappable Fans
Power Supply
Two Field-replaceable and Hot-swappable Power Supply Modules** (100-240 VAC, 50/60 Hz)
**Shipping with one PSM500-AC module by default, and another field-replaceable redundant power supply requires purchasing separately.
PoE Ports (RJ45)
- Standard: 802.3at/af compliant
- PoE+ Ports: 24 Ports, up to 30 W per port
- PoE Power Budget: up to 720 W*
*The total PoE budget varies with the power supply modules.
Dimensions ( W x D x H )
17.3 × 16.5 × 1.7 in (440 × 420 × 44 mm)
Mounting
Rackmountable
Max Power Consumption
- 42.9 W (110 V/60 Hz) (With no PD connected)
- 916.6 W (110 V/60 Hz) (With 720 W PD connected and powered by 2× PSM500-AC)
Max Heat Dissipation
- 146.29 BTU/hr (110 V/60 Hz) (With no PD connected)
- 3,125.61 BTU/hr (110 V/60 Hz) (With 720W PD connected and powered by 2× PSM500-AC)
PERFORMANCE
Switching Capacity
128 Gbps per Unit
Stacking
- Stacking Number: 4
- Stacking Port: 10G SFP+ Slot (all uplink ports can be used as stacking ports)
- Stack Bandwidth: 20 Gbps Per Port (Full-Duplex)
Packet Forwarding Rate
95.2 Mpps
MAC Address Table
32 K
Packet Buffer Memory
3 MB
Jumbo Frame
9 KB
SOFTWARE FEATURES
Quality of Service
- Class of Service
- 8 Queues of Priority
- Port Priority
- IEEE 802.1p Priority
- DSCP Priority
- Queue Min-Bandwidth
- Schedule Mode (SP, WRR, SP+WRR)
- Bandwidth Control
- Rate Limit
- Storm Control
- Voice VLAN
- User-Defined OUI
- Smoother Performance
- Action for Flows
- QoS remark (802.1P Remark, DSCP Remark)
L3 Features
- IP Interfaces:
- IPv4: Max 256, IPv6: Max 256
- Static Routing
- Max 1,024, IPv6: Max 512
- Host Route Table: Max 6,100 entries
- RIP: Version v1/v2, Max 8,190
- OSPF: Version v2/v3; v2: Max 8,190, v3: Max 4,097
- VRRP: Version v2/v3, Max 64 groups
- ECMP: 256 entries, max 32 ECMP Nexthops per Destination
- Static ARP: 512 static entries
- Dynamic ARP: 7,680 dynamic entries
- Proxy ARP
- DHCP Server:
- Max 8K IP Pools
- Max 1,000 Manual Binding Entries
- DHCP Relay:
- Relayed Interface
- Relayed VLAN
L2 and L2+ Features
- Link Aggregation
- Spanning Tree Protocol
- Port-based and VLAN-based Loopback Detection
- 802.3x Flow Control
- Supports 2,048 IGMP groups
- ERPS
- Mirroring
- RSPAN
- MAC Address Table
- PIM-DM (IPv4)
- Multicast
- IGMP Snooping
- MLD Snooping
- L2 Multicast Table
- Fast Leave
- Multicast VLAN Registration (MVR)
- Static Multicast IP
- Multicast Filtering
Advanced Features
- Automatic Device Discovery†
- Batch Configuration†
- Batch Firmware Upgrading†
- Intelligent Network Monitoring†
- Abnormal Event Warnings†
- Unified Configuration†
- Reboot Schedule†
ISP Features:
- 802.3ah Ethernet Link OAM
- L2PT (Layer 2 Protocol Tunneling)
- Device Link Detect Protocol (DLDP)
- DDM
- sFlow
VLAN
- Max 4K VLAN Group (802.1q VLAN)
- 802.1Q Tagged VLAN
- MAC VLAN Entries: 200
- Multicast VLAN
- Management VLAN
- VLAN VPN (QinQ): Max 256 entries
- GVRP
- Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries
- VLAN VPN
- Voice VLAN
- Private VLAN
Security
- Port Isolation
- CPU-Defend
- ARP Inspection (Dynamic ARP Inspection)
- DoS Defend
- IP-MAC-Port Binding
- 1,024 Entries
- DHCP Snooping
- ARP Inspection
- IPv4 Source Guard
- IPv6-MAC
-Port Binding
-1,024 Entries
- DHCPv6 Snooping
- ND Detection
- ND Snooping
- IPv6 Source Guard
- DHCP Filter
- Static/Dynamic Port Security
- Up to 64 MAC addresses per port
- Broadcast/Multicast/Unknown-unicast Storm Control
- kbps/ratio control mode
- 802.1X
- Port base authentication
- Mac base authentication
- VLAN Assignment
- MAB
- Guest VLAN
- RADIUS authentication and accountability support
- AAA (including TACACS+)
- Secure web management through HTTPS with SSLv3/TLS 1.2
- Secure Command Line Interface (CLI) management with SSHv2
- IP/Port/MAC-based access control
MANAGEMENT
Omada App
Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management
- Omada Cloud-Based Controller
- Omada Hardware Controller
- Omada Software Controller
Cloud Access
Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning
Yes. Requiring the use of the Omada Cloud-Based Controller.
Management Features
- Web-based GUI
- Command Line Interface (CLI) through console port, telnet
- SNMPv1/v2c/v3
- Trap/Inform
- RMON (1, 2, 3, 9 groups)
- SDM Template
- DHCP/BOOTP Client
- 802.1ab LLDP/LLDP-MED
- DHCP Auto Install
- Dual Image, Dual Configuration
- CPU Monitoring
- Cable Diagnostics
- Password Recovery
- SNTP
- System Log
- EEE
OTHERS
Package Contents
- SG6428XHP Switch
- Power Cord
- RJ45 Console Cable
- Quick Installation Guide
- Rackmount Kit
- Rubber Feet
System Requirements
Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Environment
- Operating Temperature: 0-45 ? (32-113 ?);
- Storage Temperature: -40-70 ? (-40-158 ?)
- Operating Humidity: 10-90% RH non-condensing
- Storage Humidity: 5-90% RH non-condensing
