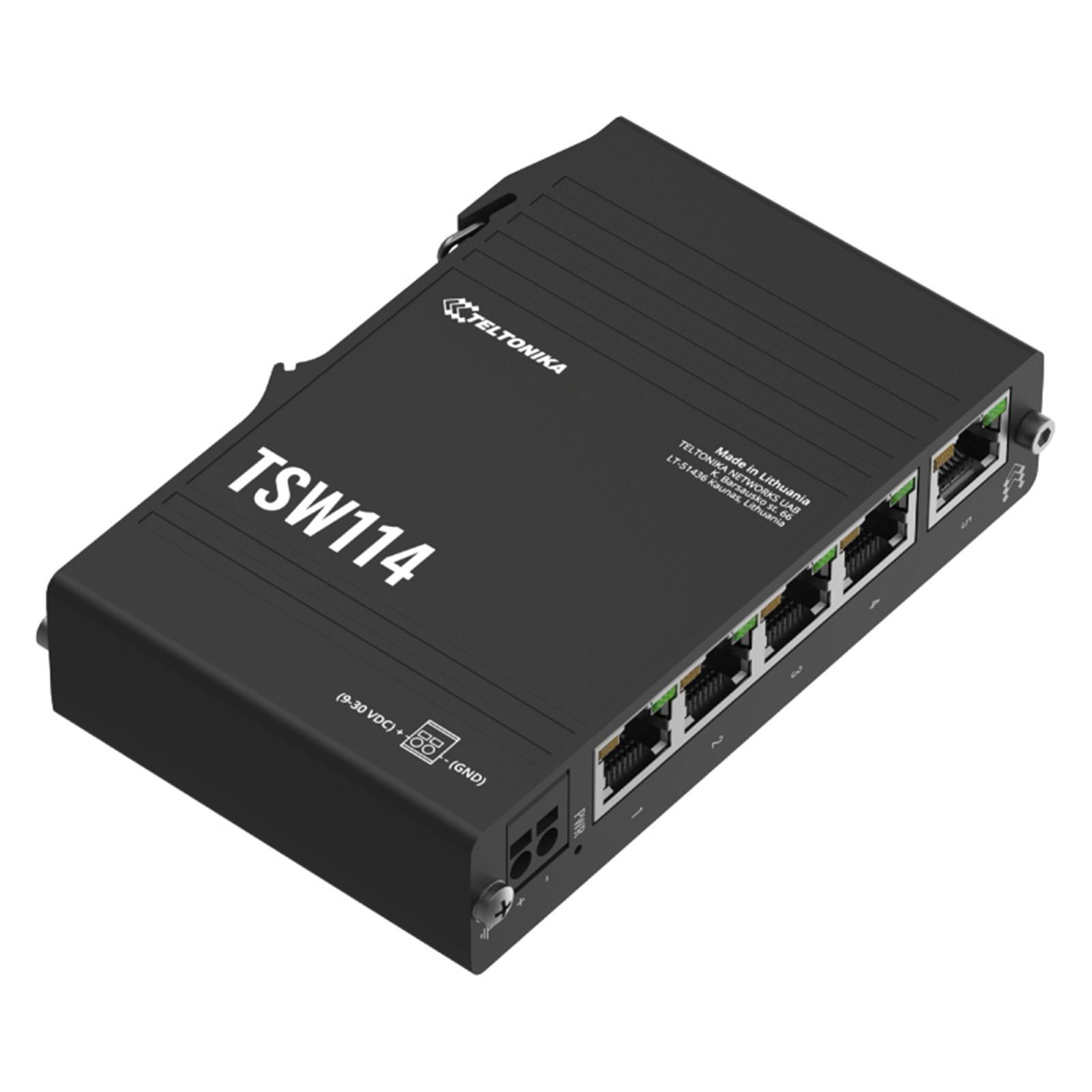

Teltonika TSW114 DIN Rail 5 Port GbE Switch with Rugged Anodized Case

PB Tech price
PB Tech price
$ 93 .91
 +GST
$ 108 .00
 inc GST
$93.91  +GST
$108.00

Teltonika TSW114 DIN Rail 5 Port GbE Switch with Rugged Anodized Case

  • Brand: Teltonika
  • MPN: TSW114
  • Part #: SWHTTK1140
  • UPC:
PB Tech price
$ 93 .91 $ 108 .00
 +GST  inc GST


Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 10 Nov When will I receive it?
$93.91  +GST
$108.00

Four payments of $27.27 per fortnight*

Afterpay lets you spread the cost of your purchase over 4, interest-free, fortnightly payments.

Click the button below or select Afterpay as your payment method during the checkout process.

If you do not have a Afterpay account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.

Learn more about Afterpay

  • Brand: Teltonika
  • MPN: TSW114
  • Part #: SWHTTK1140
  • UPC:

10 Gigabit

N/A

10 Gigabit Ports

N/A

Form Factor

DIN Rail

Management Level

Unmanaged

Number of Ports

5 Ports

PoE

Not Specified

PoE Ports

Not Specified

PoE Budget

Not Specified

Similar in-stock products available at PB Tech right now

Features

Teltonika TSW114 DIN Rail 5 Port GbE Switch with Rugged Anodized Case

This is an affordable way to simplify your connectivity with its plug and play nature and 5 x Gigabit Ethernet ports that provide stable and reliable connectivity for high-bandwidth solutions. The Ethernet switch has front-facing ports and an integrated DIN rail bracket to enable easy installation across many industrial environments - especially control cabinets.

- 5x Gigabit Ethernet Ports
- Plug and Play, no configuration needed
- Integrated DIN rail bracket and surface mounting options
- Anodized aluminium housing and panels

HARDWARE





TSW114 - Gigabit Din Rail Switch | Quick Start Guide



Specifications

MPN

TSW114

Included

1 x TSW114, QSG (Quick Start Guide)

Power Supply

Not Included

ETHERNET

LAN

5 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover

IEEE 802.3 series standards

802.3i, 802.3u, 802.3ab, 802.3x, 802.3az

PERFORMANCE

Bandwidth (Non-blocking)

10 Gbps

Packer buffer

128 KB

MAC address table size

2K entries

Jumbo frame support

9216 bytes

POWER

Connector

2-pin industrial DC power socket

Input voltage range

9 - 30 VDC

PoE (passive)

Possibility to power up through ETH1 ports, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC

Power consumption

Idle: 0.3 W / Max: 2.3 W

PHYSICAL INTERFACES

Ethernet

5 x RJ45 ports, 10/100/1000 Mbps

Status LEDs

1 x Power LED, 10 x LAN status LEDs

Power

1 x 2-pin industrial DC power socket

Other

1 x Grounding screw

PHYSICAL

Casing material

Anodized aluminum housing and panels

Dimensions (W x H x D)

113.1 x 27.4 x 80.5 mm

Weight

174 g

Mounting options

Integrated DIN rail bracket, wall mounting (additional kit needed), flat surface placement

OPERATING ENVIRONMENT

Operating temperature

-40 °C to 75 °C

Operating humidity

10% to 90% non-condensing

Ingress Protection Rating

IP30

REGULATORY & TYPE APPROVALS

Regulatory

CE, REACH, RoHS, WEEE, UKCA, FCC, IC, CB, RCM, ANRT, GITEKI

SAFETY

Standards

EN IEC 62368-1:2020+A11:2020

Manufacturer Part No:
TSW114
Brand:
Teltonika
Product Type:
DIN Rail 5 Port GbE Switch
UPC
-
Product Family:
-
Shipping Weight:
3 kg
PB Part No:
SWHTTK1140
Product Model:
TSW114
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
