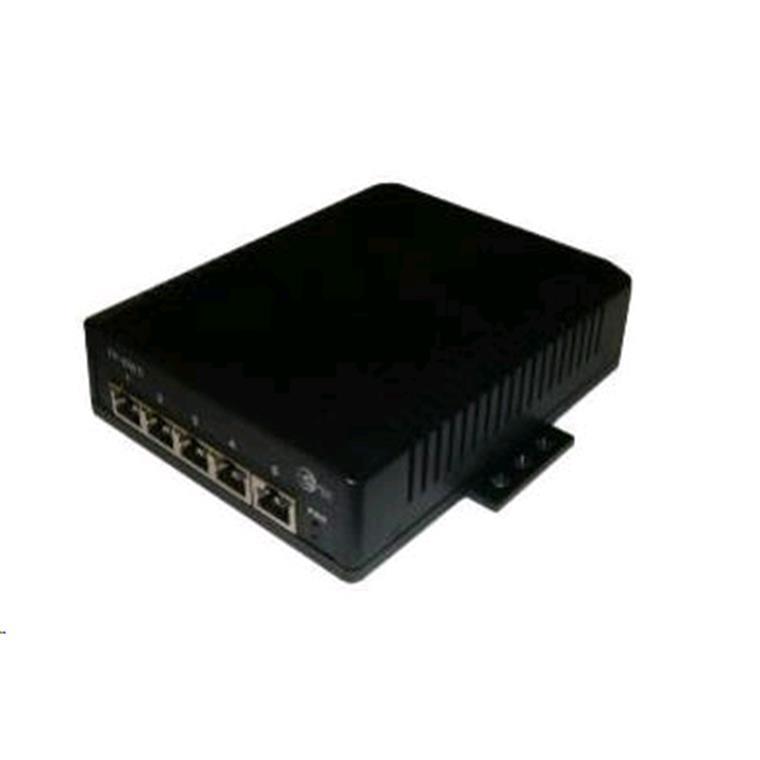

Tycon Systems TP-SW5G-24 Tycon 5 Port 802.3af Gigabit POE Switch
Tycon Systems TP-SW5G-24 Tycon 5 Port 802.3af Gigabit POE Switch
- Brand: Tycon Systems
- MPN: TP-SW5G-24
- Part #: SWHTYC1001
- UPC:
- Brand: Tycon Systems
- MPN: TP-SW5G-24
- Part #: SWHTYC1001
- UPC:
Similar in-stock products available at PB Tech right now
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Switches





Tycon Systems TP-SW5G-24 Tycon 5 Port 802.3af Gigabit POE Switch
- Brand: Tycon Systems
- MPN: TP-SW5G-24
- Part #: SWHTYC1001

Product URL: https://www.pbtech.co.nz/product/SWHTYC1001/Tycon-Systems-TP-SW5G-24-Tycon-5-Port-8023af-Gigab
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
Specifications
DC Input Voltage
24VDC (12V to 36V), Dual DC Inputs, Reverse Polarity Protected. Also Accepts POE power input on Port 5
DC Input Connector
Removable Screw Type Compression Wire Terminal (12 AWG Max)
PoE Method
IEEE 802.3af, 802.3at
Data in & Data/POE Output Connector
RJ45 (Shielded)
Self Consumption Power
< 4 Watts
Ethernet Speed
1000Mbps / 100 Mbps /10 Mbps Auto-negotiation
Interfaces
1 data/POE input and 4 data/POE, automatic crossover and polarity
POE Output Ports
Port 1-4, auto power management Pin assignment: TX(1,2), RX(3,6), V+(4,5), V-(7,8)
Maximum POE Power
Up to 35W per port; max 70W per 5 port switch
Dimensions
Length
159 mm
Width
118 mm
Height
40 mm
