Ubiquiti UniFi USW-Flex-2.5G-5 5-Port 2.5G L2 Managed Switch - 2.5GbE x5
Ubiquiti UniFi USW-Flex-2.5G-5 5-Port 2.5G L2 Managed Switch - 2.5GbE x5
- Brand: Ubiquiti
- MPN: USW-Flex-2.5G-5
- Part #: SWHUBI10565
- UPC: 810084695944
Select your store to check availability
What PB Tech customers are saying about this product...

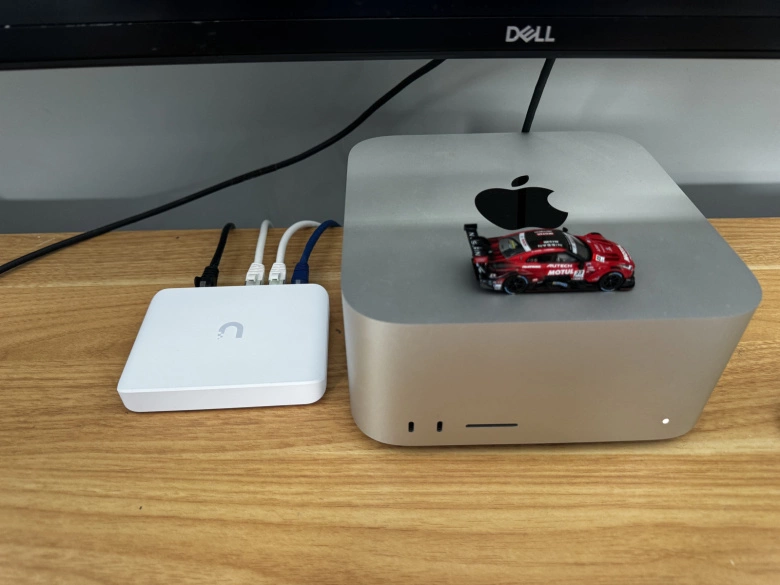

See More Reviews"Great little switch for the price, works with Unifi really well and has some basic vlan support per port too (cannot replace a proper router though)"
"At first, it looks like the Port4 / Port5 (PoE in) might have some sort of internal conflict, though after "adopting" it into my Ubiquiti network and letting it do a firmware updat ...view more"
"Good for when you're using the express or express 7 with just 1 LAN port on it, matches the express 7's 2.5gbe. While not being super expensive"
COMBO DEALS: Buy Together and SAVE!
Ubiquiti UACC-PoE+-2.5G 30W 2.5GbE PoE Adapter (48V DC / 0.65A)
$42.74 +GST
$49.15
TP-Link TX201 PCI Express Network Adapter 2.5 Gigabit
$32.69 +GST
$37.59
Cruxtec Cat6A Ultra Slim Ethernet Cable - 50cm - White
$4.60 +GST
$5.29
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Switches
Ubiquiti UniFi USW-Flex-2.5G-5 5-Port 2.5G L2 Managed Switch - 2.5GbE x5
- Brand: Ubiquiti
- MPN: USW-Flex-2.5G-5
- Part #: SWHUBI10565
- UPC:810084695944
Product URL: https://www.pbtech.co.nz/product/SWHUBI10565/Ubiquiti-UniFi-USW-Flex-25G-5-5-Port-25G-L2-Manage
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 5+ | |
| Auckland - Glenfield | 4 | |
| Auckland - Queen Street | 4 | |
| Auckland - Auckland Uni | 1 | |
| Auckland - Westgate | 5+ | |
| Auckland - Penrose | 5+ | |
| Auckland - Henderson (Express) | 4 | |
| Auckland - St Lukes | 5+ | |
| Auckland - Manukau | 3 | |
| Hamilton | 5+ | |
| Tauranga | 5 | |
| New Plymouth | 3 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 5+ | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 5+ | |
| Dunedin | 0 |
Features

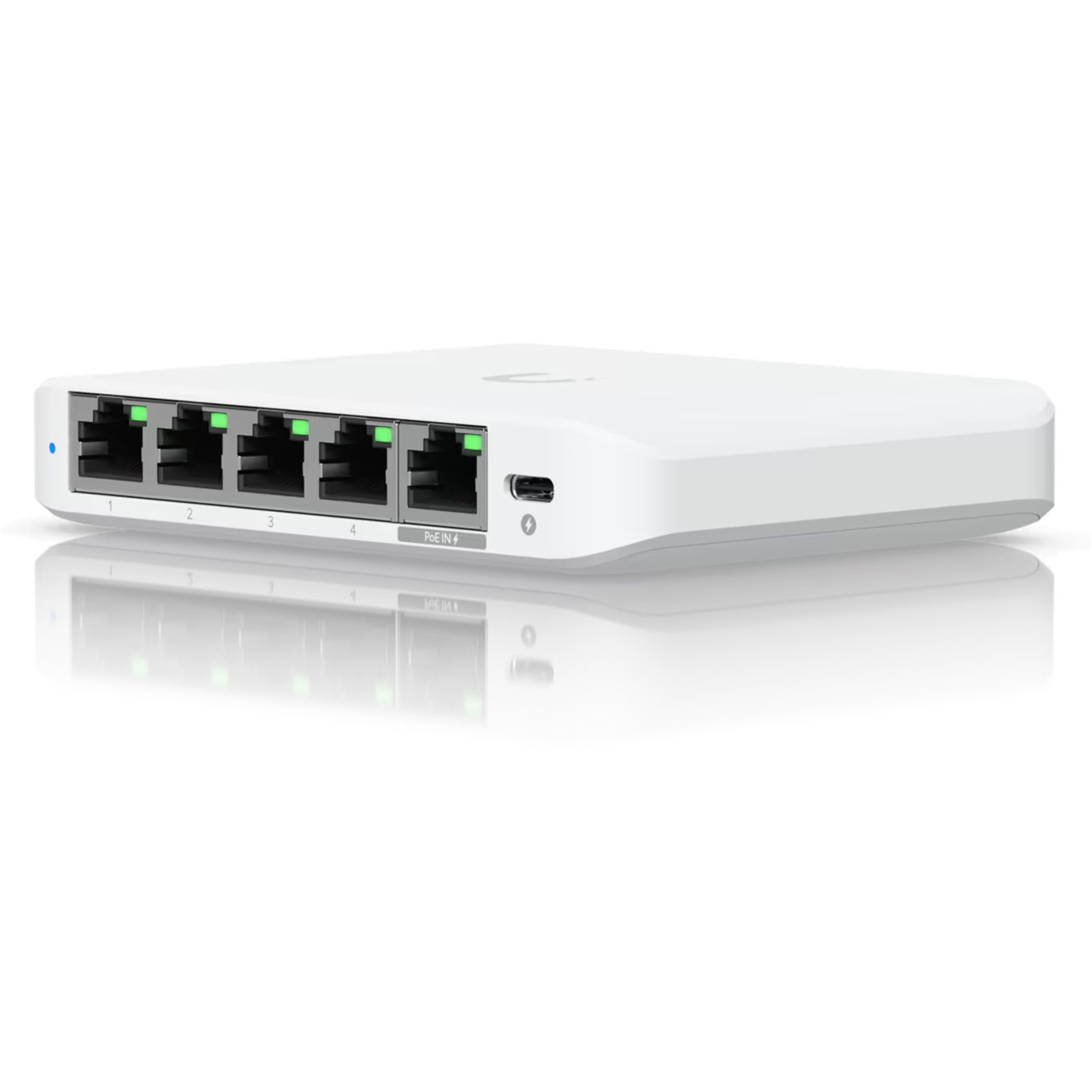

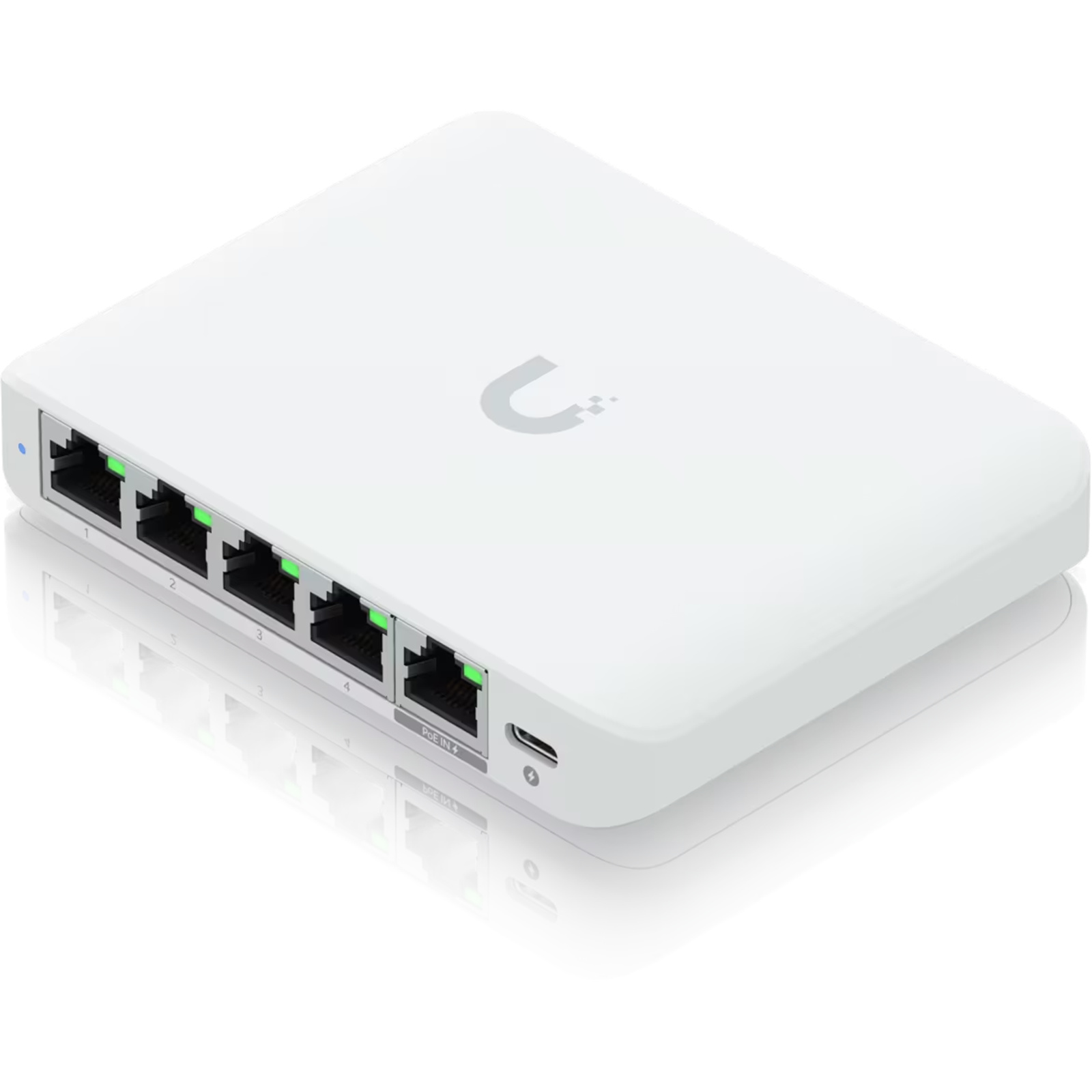

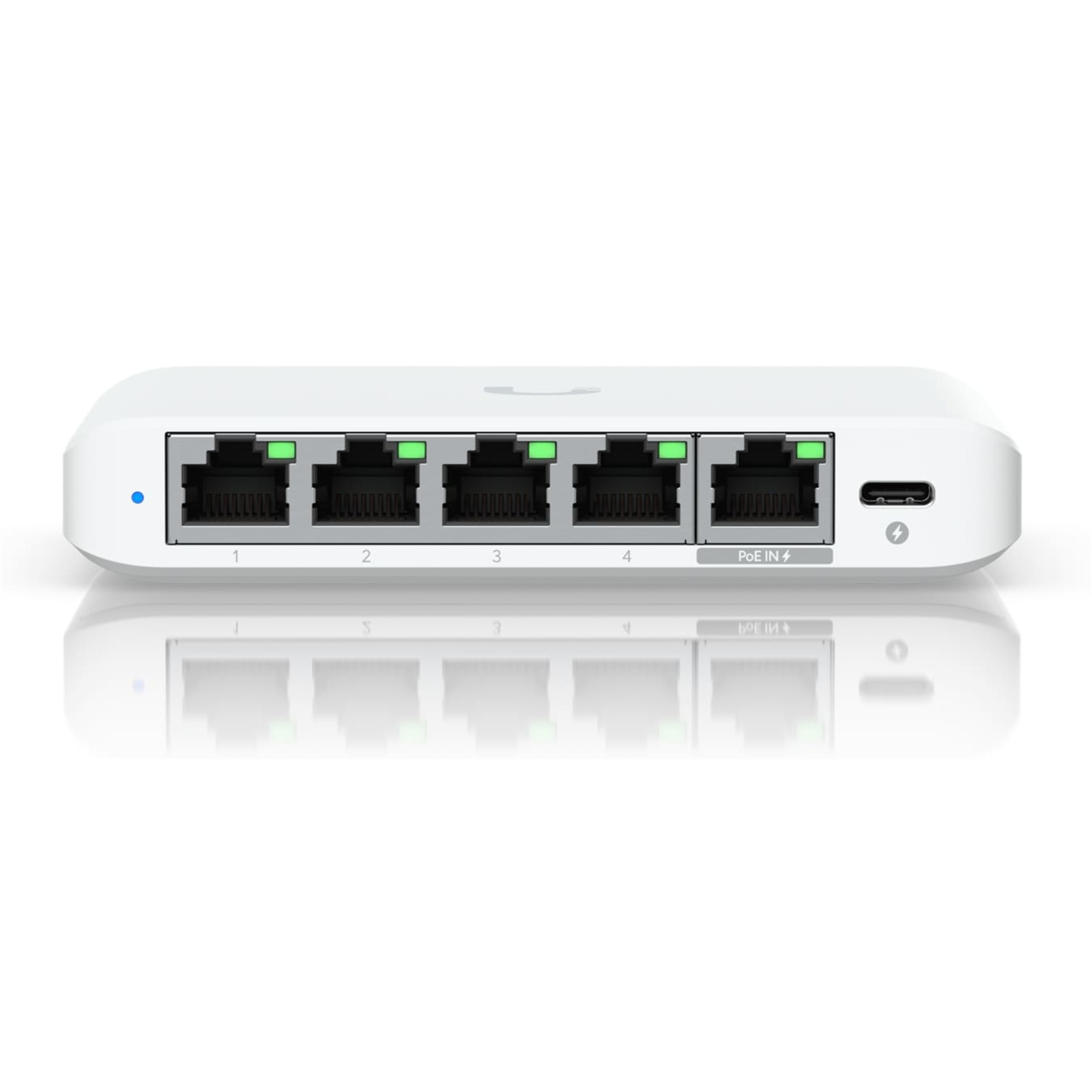

Flex Mini 2.5G
Compact, 5-port 2.5G switch that can be powered with PoE or a USB-C adapter.
- (4) 2.5 GbE ports
- (1) 2.5 GbE PoE input port for power
- Optional powering with included 5V, 1A USB-C adapter

Specifications
Mechanical
Dimensions
117.1 x 90 x 21.2 mm (4.6 x 3.5 x 0.8")
Weight
206 g (7.3 oz)
Enclosure material
Polycarbonate
Hardware
Management interface
Ethernet In-Band
Networking interface
(5) 1/2.5 GbE RJ45 ports
Total non-blocking throughput
12.5 Gbps
Switching capacity
25 Gbps
Forwarding rate
18.6 Mpps
Power method
(1) AC power adapter, 5V DC, 1A
(1) PoE (PairA 1, 2+; 3, 6-)(PairB 4, 5+; 7, 8-)
Power supply
External AC/DC adapter
UniFi PoE switch
Supported voltage range
AC/DC input: 5V DC
PoE input: 44-57V DC
Max. power consumption
AC/DC input: 5W
PoE input: 6.4W
Button
Factory reset
Ambient operating temperature
-20 to 45° C (-4 to 113° F)
Ambient operating humidity
10 to 90% noncondensing
Certifications
CE, FCC, IC
Switching Features
Layer 2 features
STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Port mirroring
Multicast / broadcast rate limiting
Flow control
Jumbo frames
Egress rate limit
LEDs
System
(1) Blue/white: power
Blinking white: bootup in progress
Blinking blue: firmware upgrading
Steady white: factory defaults; unit is awaiting adoption
Steady blue: unit is adopted
Ethernet
(5) Green: link/activity
Application Requirements
UniFi Network
Version 8.4.62 and later
