Features

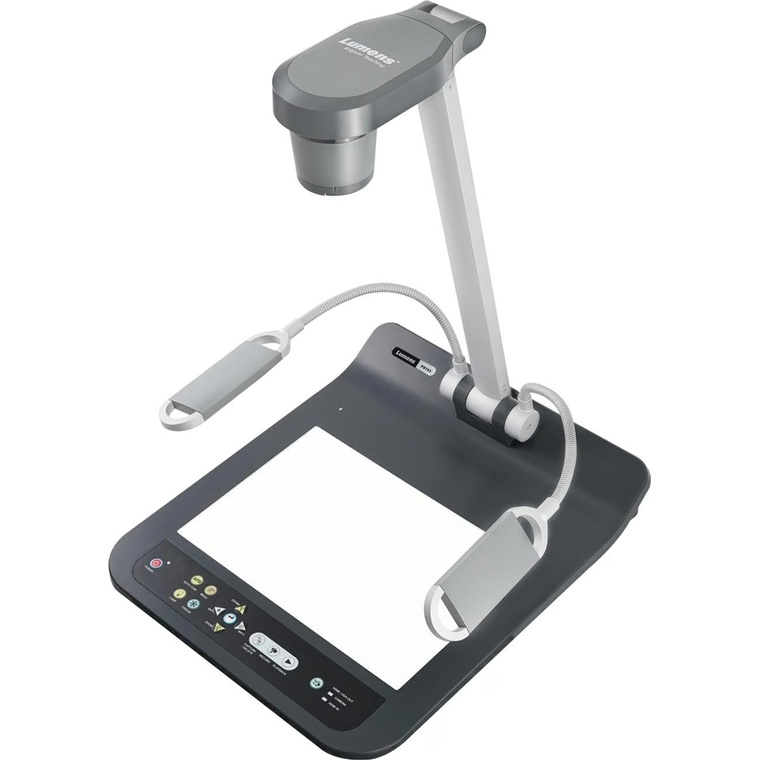

Lumens PS753 4K Desktop Document Camera
- 4K Resolution with 300x zoom
- Supports HDMI, VGA, Ethernet, and USB output
- Shooting area (20.5" x 12.1") larger than A3
- Records to USB drives
- HDMI pass-through up to 4K resolution
Superior Image Quality
With a 4K camera and powerful zoom, the PS753 delivers remarkably detailed images to screens and projectors. The high-performance Sony sensor faithfully reproduces textures and colors in real-time, with excellent control over image noise.

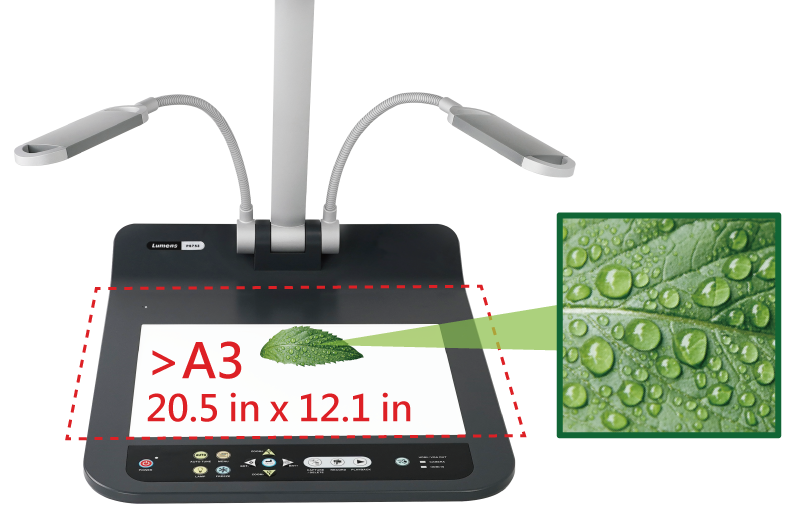

Wide Shooting Area

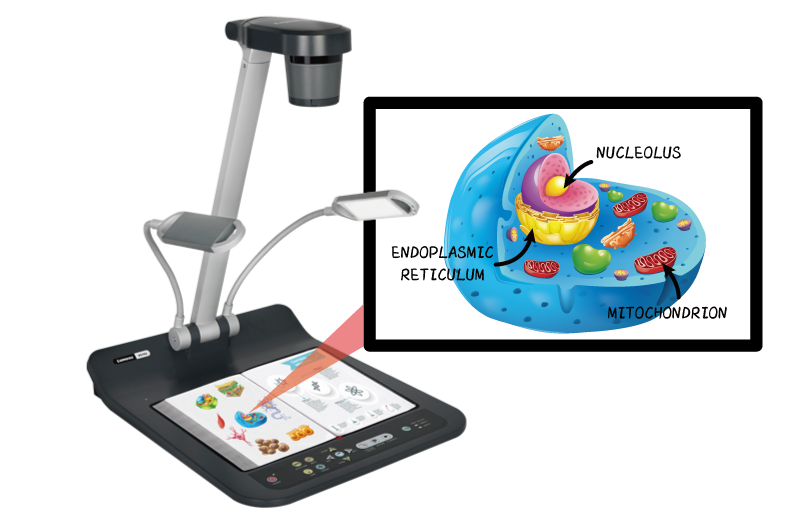

Lumens PS753 is extremely versatile, capable of reproducing documents and objects larger than A3 in size (over 20.5" x 12.1" / 50cm x 30cm). This gives presenters and demonstrators the flexibility that less powerful visualizers cannot match. Where the operator needs a close-up shot, the 300x zoom can capture the finest detail. For maximum versatility, the ePTZ functionality changes the camera angle and position to focus on a specific part of the object. This gives you the precise image you need every time.

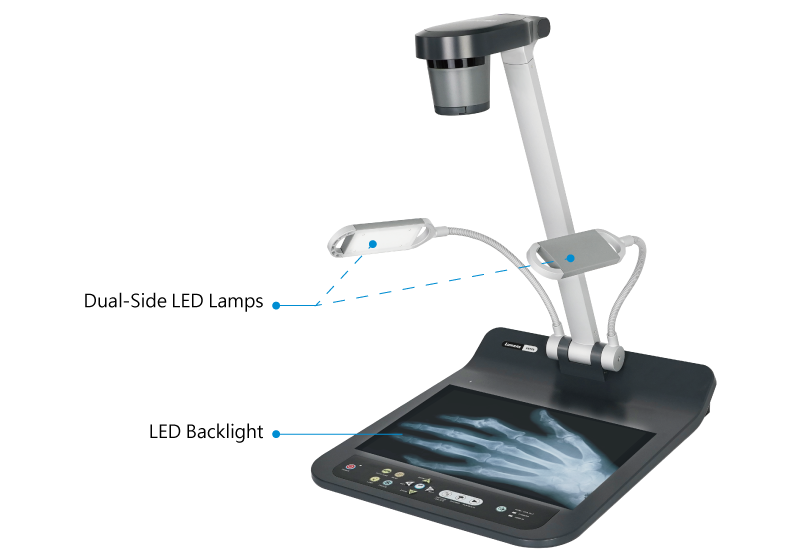

Multi-Angle Lighting

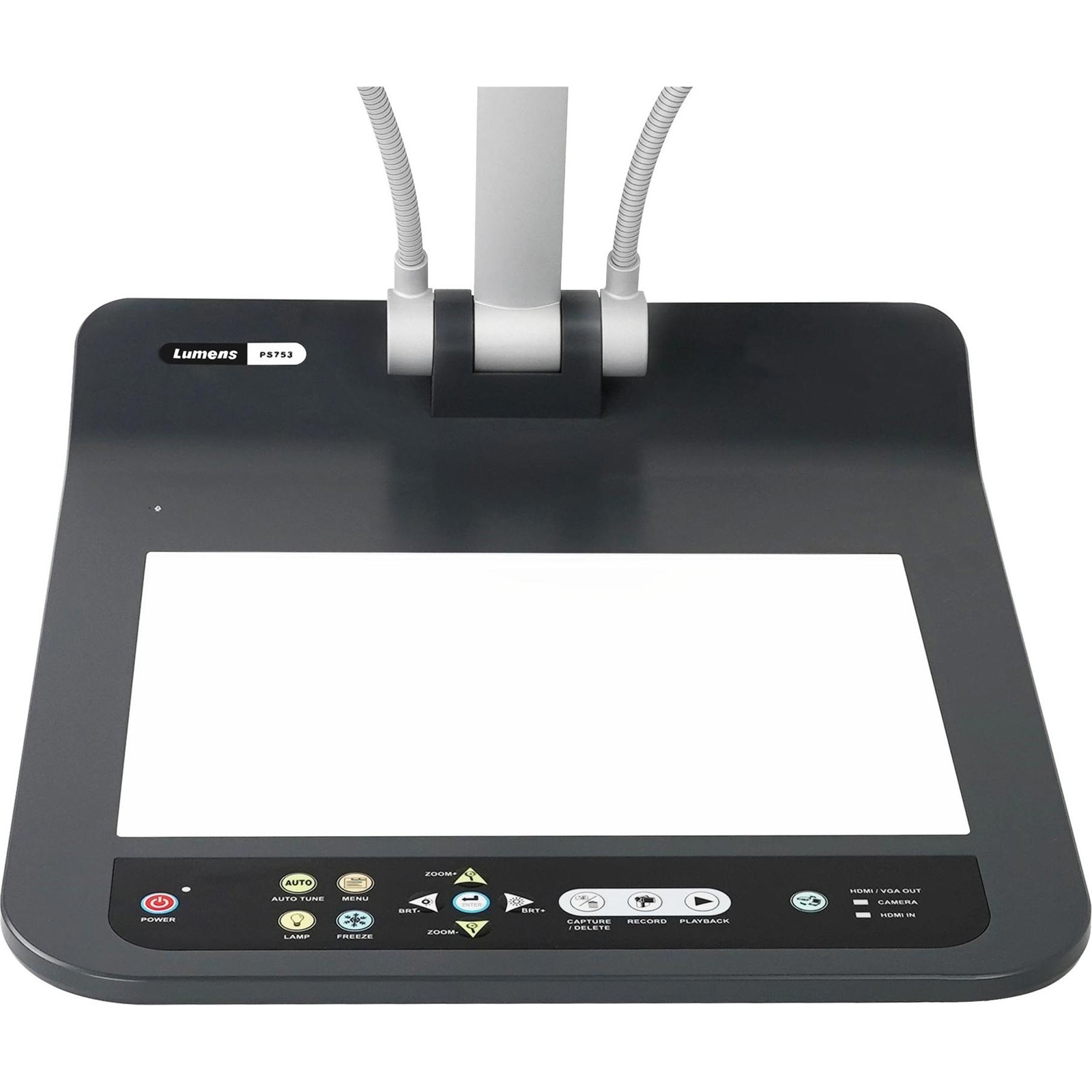

The Lumens PS753 has dual lights on adjustable gooseneck mounts: any object is perfectly lit from above without glare or reflections. It also has a backlit LED light under the display area, making the visualizer ready to illuminate photo negatives and X-rays from below.
Easy to Use
Despite its advanced features, Lumens PS753 is very easy to use. The Auto-Tune immediately calibrates the camera to deliver a perfectly focused image with accurate colors. The annotation tool allows the user to draw over the image on the screen without installing any additional software. It's fast, convenient, and simple to use. Use the included Ladibug software for advanced image control and connect to remote guests using your favorite conferencing platforms, such as Zoom, Meet, Skype, Teams, or WebEx.
Fast Installation
The PS753 is very easy to install. Power is provided over your Ethernet network (PoE) without additional power supplies. The system can output live pictures over a connection that suits the way you work: it links directly to a display or projector over HDMI or VGA or streams images over your network.
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Other Office Stationery
Icon Retractable Snap Lock Key & ID Card Holder - Charcoal Retail...
3M 70006951258 Window Insulation Kit for 2 Windows
3M 70007046850 Post-it Whiteboard Dry Erase Surface DEF3x2 900 x...
Hearttex Toilet Tissues 50 Rolls 140G- Per Rolls 4Ply Super King...
Icon A4 Adhesive Label 2 Labels Per Page (210 x 148 mm)...
Lumens PS753 4K Desktop Document Camera with HDMI/VGA/USB and IP streaming
- Brand: Lumens
- MPN: PS753
- Part #: TAALMS1018
Product URL: https://www.pbtech.co.nz/product/TAALMS1018/Lumens-PS753-4K-Desktop-Document-Camera-with-HDMIV
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Newmarket | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
Lumens PS753 4K Desktop Document Camera
- 4K Resolution with 300x zoom
- Supports HDMI, VGA, Ethernet, and USB output
- Shooting area (20.5" x 12.1") larger than A3
- Records to USB drives
- HDMI pass-through up to 4K resolution
Superior Image Quality
With a 4K camera and powerful zoom, the PS753 delivers remarkably detailed images to screens and projectors. The high-performance Sony sensor faithfully reproduces textures and colors in real-time, with excellent control over image noise.
Wide Shooting Area
Lumens PS753 is extremely versatile, capable of reproducing documents and objects larger than A3 in size (over 20.5" x 12.1" / 50cm x 30cm). This gives presenters and demonstrators the flexibility that less powerful visualizers cannot match. Where the operator needs a close-up shot, the 300x zoom can capture the finest detail. For maximum versatility, the ePTZ functionality changes the camera angle and position to focus on a specific part of the object. This gives you the precise image you need every time.
Multi-Angle Lighting
The Lumens PS753 has dual lights on adjustable gooseneck mounts: any object is perfectly lit from above without glare or reflections. It also has a backlit LED light under the display area, making the visualizer ready to illuminate photo negatives and X-rays from below.
Easy to Use
Despite its advanced features, Lumens PS753 is very easy to use. The Auto-Tune immediately calibrates the camera to deliver a perfectly focused image with accurate colors. The annotation tool allows the user to draw over the image on the screen without installing any additional software. It's fast, convenient, and simple to use. Use the included Ladibug software for advanced image control and connect to remote guests using your favorite conferencing platforms, such as Zoom, Meet, Skype, Teams, or WebEx.
Fast Installation
The PS753 is very easy to install. Power is provided over your Ethernet network (PoE) without additional power supplies. The system can output live pictures over a connection that suits the way you work: it links directly to a display or projector over HDMI or VGA or streams images over your network.
Specifications
Camera
Sensor
1/2.8" 8M CMOS Color Image Senso
Total Pixels
8.6 MP
Total Zoom
300x (max.)
Zoom
30x
Digital Zoom
30x (max.)
Output Resolution
XGA / 720p / 1080p / 2160p
Frame Rate
30 fps for all resolution, 60fps for 1080p and 720p
Shooting Area Max.
522 x 308 mm (20.5" x 12.1")
Sharpness
MTF 1700 Lines (at 2160p)
Focus Mode
Auto / Manual
Image Rotation
0° / 90° / 180° / 270° /Flip / Mirror
Output Interface
VGA x 2, HDMI, C-Video
Lamp
1. Dual LED Side Lamps supported by a gooseneck
2. Built-in A4 size (297 x 210 mm) LED Backlight
Arm
Mechanical Arm

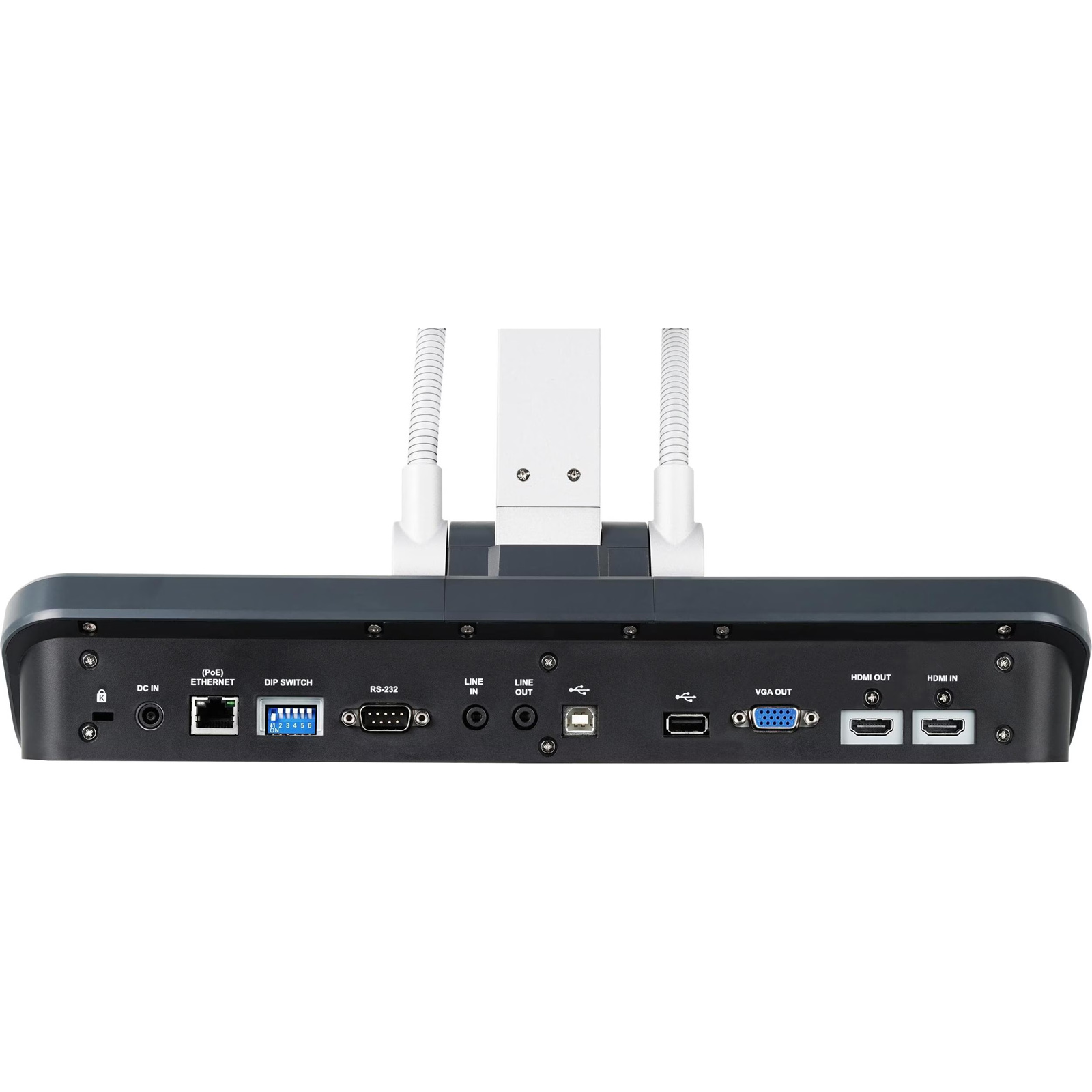

Input & Output
Power Supplied
External, 12V DC Adapter (100~240 VAC) / PoE+
Input
HDMIx1 (Support 4K), HDMI Pass-Through
Output
HDMI2.0 x1 / VGA x1(up to 1080p) / USB 2.0 / IP Streaming
Control
RS-232 / USB / Ethernet
USB
USB Image Transmission
USB 2.0 (480 Mbps)
Driver
UVC / UAC
USB Video Format
H.264 / MJPEG / YUV
USB Host
USB 2.0 Type-A x1 (For Mouse, USB Flash Drive)
Audio
Built-in Microphone
Yes
Audio In
Built-in Mic, Line In (3.5mm)
Audio Out
Line Out (3.5mm)
Network
Ethernet
RJ-45 ( PoE+, IEEE802.3at)
IP Stream Format
RTSP(H.264)
Storage
Memory Slot
USB 2.0 Flash Drive, Expandable to 4TB
Built-in Memory
100 JPEG
Features
Auto Tune
Yes, One Button for Optimization Image
Video / Audio Recording
One touch Button records image and sound synchronously
Onboard annotation
Yes, Support USB Mouse
Image Mode
hoto / Text / Film / Slide / Microscope
Freeze
Yes
Pan
Yes
Picture in Picture (PIP)
Yes
Mask / Spotlight
Yes
Lock Down Mode
Yes
Auto Erase
Yes
Image Capture
Single or Continuous Capturing
Standalone AV Recording
Yes, H.264 1080p
Ladibug™ Software
Support Windows 11, 10, 7 / Mac OS X / Chrome OS
General
Anti-Theft
Kensington Anti-Theft Lock Device
VESA Mount
Yes, 75mm x 75mm
Included Accessories
Power Adapter, Power Cable, USB Cable, HDMI Cable
Power Consumption
DC In : 16W PoE : 18W
Dimensions: (WxHxD)
Folded : 15.2" x 6" x 22.3" (385 x 152 x 566 mm)
Open : 15.2" x 23.1" x 18.3" (385 x 588 x 466 mm)
Weight
12.3 lbs (5.6 kg)
