- Brand: Magewell
- MPN: MG-53020
- Part #: TAAMGW1018
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular TV / Video Capture





Magewell MG-53020 Ultra Stream SDI
- Brand: Magewell
- MPN: MG-53020
- Part #: TAAMGW1018

Product URL: https://www.pbtech.co.nz/product/TAAMGW1018/Magewell-MG-53020-Ultra-Stream-SDI
Branch | New Stock | On Display |
---|---|---|
Albany | 0 | |
Glenfield | 0 | |
Queen Street | 0 | |
Auckland Uni | 0 | |
Penrose | 0 | |
Henderson (Express) | 0 | |
St Lukes | 0 | |
Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Head Office | 0 | |
Hornby | 0 | |
Christchurch Central | 0 |
Features
ULTRA STREAM ENCODER MAKES LIVE STREAMING REMARKABLY SIMPLE EVEN FOR NONPROFESSIONAL USERS
Designed for users who want to stream but may have minimal technical knowledge, the encoder is ideal for everyone from church volunteers and educators to corporate communicators and live event organizers. Users can stream to popular services including YouTube, Facebook Live or Twitch or to a custom-specified server. Streams can be output to a third-party service and custom server simultaneously, while real-time video preview in the app allows easy monitoring. In addition to outputting live streams, Ultra Stream can record video as files to a directly-connected USB drive, embedded storage or the associated smartphone.
MAIN FEATURES
- Streaming to Facebook, Twitch, Youtube Platforms
- Support for streaming to 2 servers simultaneously at most
- Recoding to USB flash drive and internal storage
- Recording to Mobile Device
- Device configuration using Web UI
EASY TO USE
- Stand Alone device no computer required
- Internet connectivity via wired Ethernet, Wifi and optional 3G/4G modem support
- Control via on-device buttons, intuitive smartphone app or browser-based interface
FLEXIBLE VIDEO RECORDING
- Support H.264 Recording or HEVC video encoding with AAC audio
- Record and save clips to internal storage, a USB flash drive or the assosciated smart phone
- Preview, Record and Stream videos simultaneously.
- Record with 2 different encoding presets concurrently for different needs
SOFTWARE INCLUDED
Magewell provides simple applications and software tools to simplify your process of verifying the input signals and capture devices, enhance your efficiency in using a third party software or technology and make your streaming and recording experience easier.

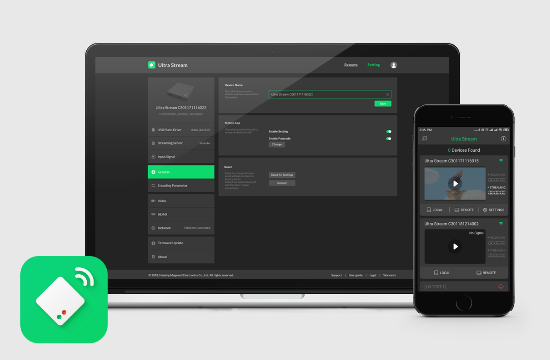

ULTRA STREAM APP
Recording, previewing and streaming are made further easier by this intuitive App for users of Ultra Stream. It works even when you have no access point in the local network. Video clips can be recorded to internal storage, a USB flash drive or the associated smartphone.
Specifications

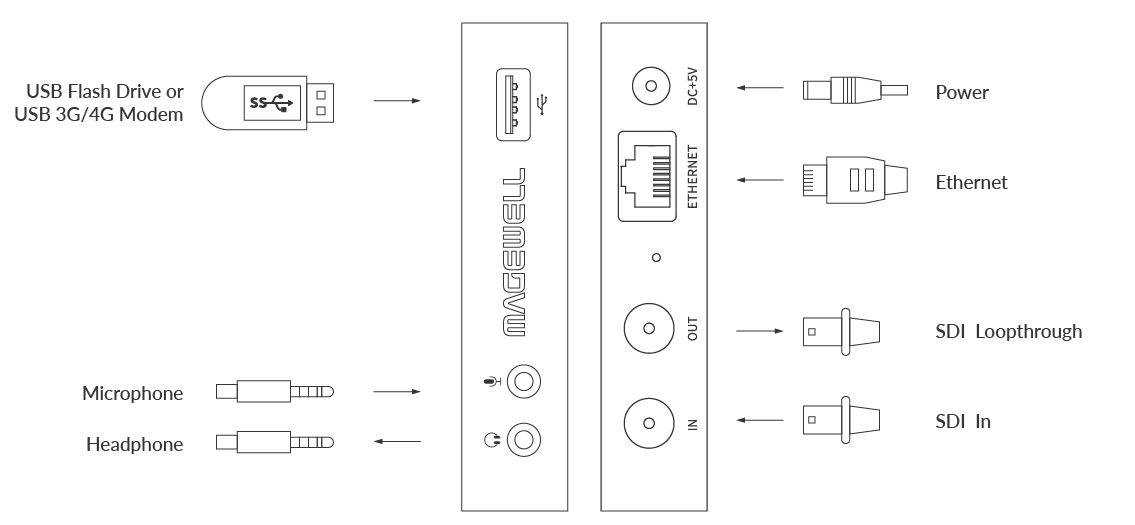

Interface
Video Input Interface:
SDI x 1
Support up to 4096x2160p60

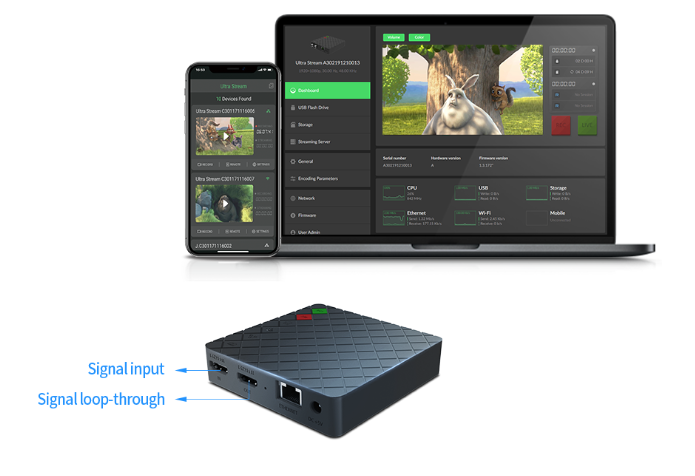

Loop-through Interface:
SDI x 1
Support up to 4096x2160p60
USB Interface:
USB 2.0 for USB Flash Drive or USB 3G/4G Modem
Audio Interface:
Headphone Output
Microphone Output
Network Interface:
Ethernet Interface
Power Interface:
DC +5V
H.264 Encoding
Main Stream:
Up to 1080p60
Sub Stream:
Up to 720p30
Streaming Server
Preset:
Youtube Live, Twitch, Facebook Live
Custom:
RTMP
Software Environment
Mobile OS:
Android, iOS
Firmware
Upgradable Firmware
Others
Other
Internal SD Card
LED Status Indicator
