Magewell Pro MG-11100 Capture Quad HDMI
Magewell Pro MG-11100 Capture Quad HDMI
- Brand: Magewell
- MPN: MG-11100
- Part #: TAAMGW1027
- UPC:
- Brand: Magewell
- MPN: MG-11100
- Part #: TAAMGW1027
- UPC:
Features

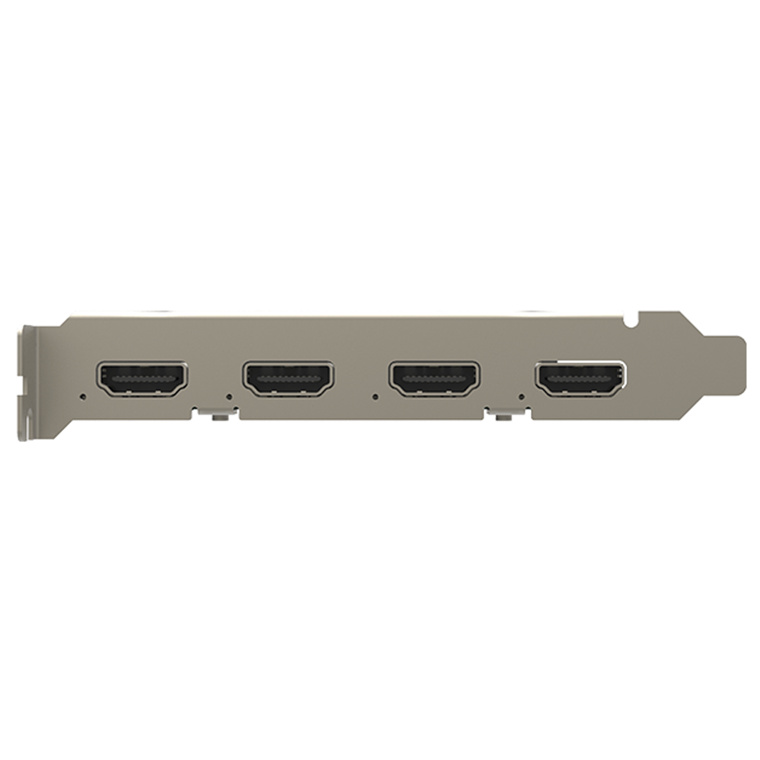

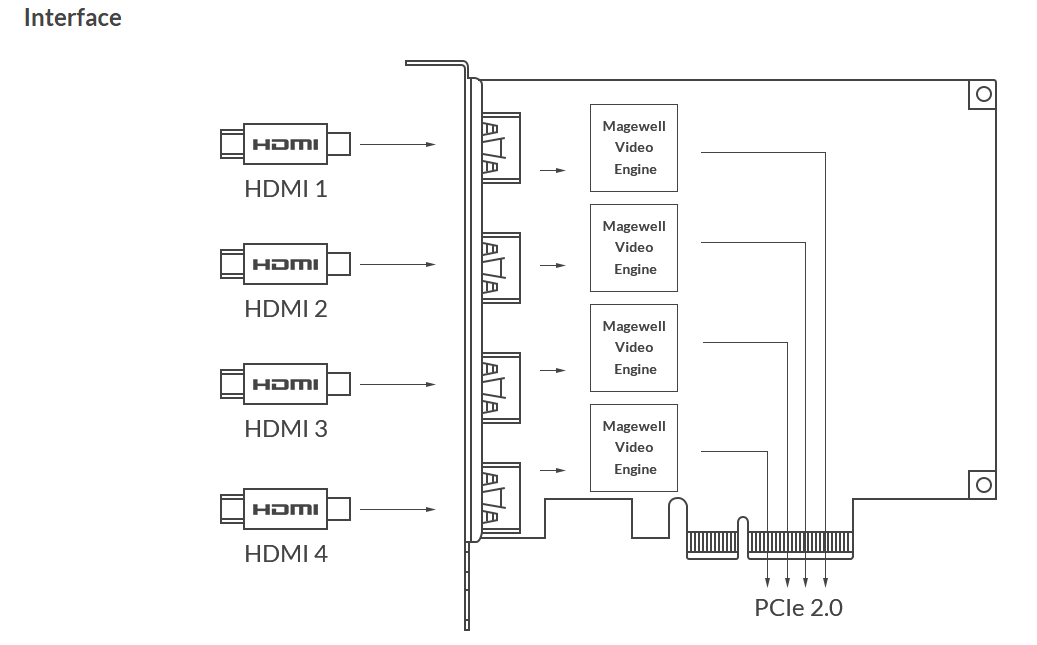

The Magewell Pro Capture Quad HDMI is a high-performance PCIe capture card designed to simultaneously capture video from up to four HDMI sources. This capability makes it an ideal solution for applications requiring multi-channel video capture, such as live streaming, broadcasting, and video conferencing. The card supports input resolutions up to 2048×2160 pixels, ensuring compatibility with a wide range of video formats.
Advanced Video Processing Capabilities
Equipped with a robust video engine, the Pro Capture Quad HDMI offers 10-bit video processing, deinterlacing, cropping, color adjustment, and hardware timestamping. These features enable users to achieve high-quality video output with precise control over image parameters. Additionally, the card supports color space conversion, up/down conversion, and aspect ratio conversion, providing flexibility in handling various video formats and resolutions.
Comprehensive Signal Detection and Support
The card automatically detects input signal formats and supports 3D HDMI and time code extraction. This ensures seamless integration with diverse video sources and simplifies the setup process. The adaptive HDMI equalizer supports cable lengths up to 30 meters, enhancing signal stability over longer distances.
Broad Software Compatibility and SDK Support
Compatible with Windows, Linux, and Mac operating systems, the Pro Capture Quad HDMI offers versatility across different platforms. It includes the Capture Express software and supports over 50 other applications, such as VLC, OBS, and vMix. For developers, Magewell provides SDKs for Windows, Linux, and Mac, facilitating custom integrations and application development.
Robust Design and Continuous Operation
Designed for continuous 24/7 operation, the card features high-speed memory, LED status indicators, and a rotary switch for easy configuration. Its low-latency mode and support for multiple devices on one host make it suitable for demanding professional environments.
