Features

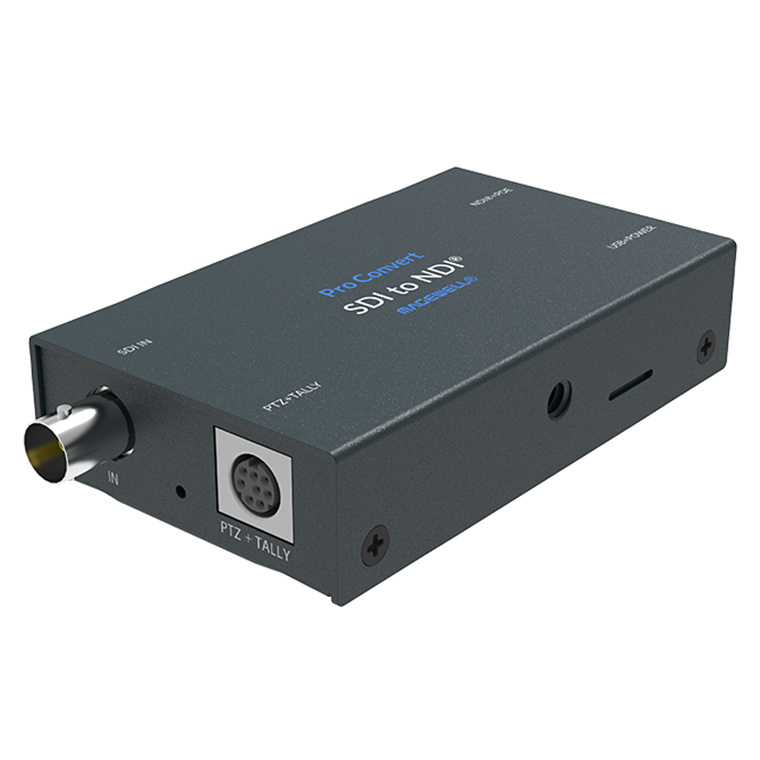

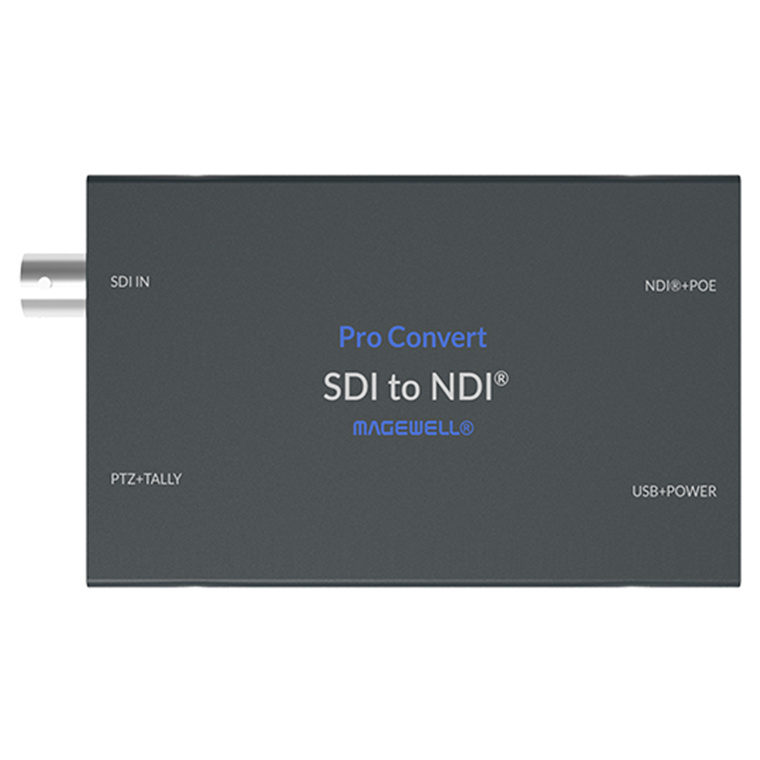

The Magewell Pro Convert SDI TX is a high-performance device designed to convert SDI signals into NDI® streams, facilitating seamless integration of traditional video equipment into IP-based workflows. This compact and robust encoder supports video resolutions up to 2048x1080 at 60 frames per second, ensuring high-quality transmission suitable for professional broadcasting and live streaming applications.

Comprehensive Input and Output Capabilities

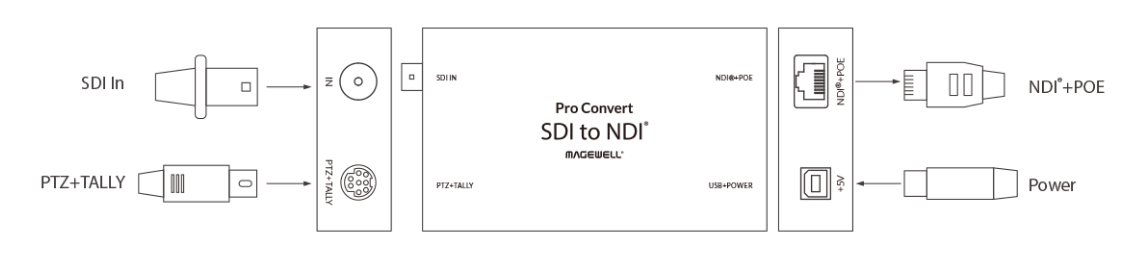

Equipped with a 3G-SDI input, the Pro Convert SDI TX accommodates a wide range of video formats, including SD, HD, and 3G-SDI standards. It supports various resolutions and frame rates, such as 2048x1080p at 60fps, 1920x1080i at 30fps, and 1280x720p at 60fps. The device also handles 16 channels of embedded audio, ensuring synchronized audio-visual output. On the output side, it delivers NDI streams over a Gigabit Ethernet interface, maintaining low latency and high fidelity.
Advanced Features for Enhanced Functionality
The Pro Convert SDI TX offers advanced features to optimize video processing. It includes deinterlacing, up/down scaling, and frame rate conversion, allowing users to tailor the output to specific requirements. The device supports color format conversion, accommodating RGB and YUV color spaces with various quantization and saturation ranges. Additionally, it provides PTZ camera control via a Mini-DIN-8 port, supporting protocols like VISCA and PELCO, enabling remote camera operations over IP networks.
User-Friendly Design and Control
Designed with user convenience in mind, the Pro Convert SDI TX features a web-based interface for configuration and monitoring. Users can access device settings, update firmware, and monitor real-time status through standard web browsers. The device supports Power over Ethernet (PoE), simplifying installation by reducing the need for additional power supplies. For flexible mounting options, it includes a ¼-20 threaded hole, allowing secure attachment to various equipment setups.
Broad Compatibility and Integration
The Pro Convert SDI TX is compatible with a wide range of NDI-enabled software and hardware, including OBS Studio, vMix, and NewTek TriCaster. This broad compatibility ensures seamless integration into existing production environments. The device's compact form factor and robust build make it suitable for both studio and field applications, providing a reliable solution for converting SDI sources to NDI streams in diverse scenarios.
Specifications
Input Features
Max video input: 2048x1080 60fps. Supported resolutions include:
2048x1080p/1920x1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60
2048x1080i/1920x1080i 23.98/24/25/29.97/30/47.95/48/50/59.94/60
1280x720p 50/59.94/60
720x576 25p/50i (PAL SD)
720x480 29.97p/59.94i (NTSC SD)
Support RGB/RGBA/YUV/YUVA signals with 10/12-bit color depth
Support RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
Support RGB, YUV BT.601/709/2020 video input
16-channel SDI embedded audio inputs
SD/HD/3G-SDI BNC input
Support SD (ST 259)/HD (ST 292)/3Ga (ST 425)/3Gb (ST 425)/3Gb-DL (ST 425)/3Gb-DS (ST 425) SDI standards
Receive 3G-SDI transmitted up to 180m (591ft)
NDI® Encoding Features
Encoding NDI High Bandwidth real-time stream at up to 2048x1080 60fps 4:2:2 8-bit
Output the same resolution as input or any custom resolution. Typical outputs include:
2048x1080p/1920x1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60
2048x1080i/1920x1080i 25/29.97/30/47.95/48/50/59.94/60
1280x720p 50/59.94/60
Output frame rate same as the original, 1/2, 1/3 or 1/4 of input frame rate
Encoding 16-channel NDI-embedded audio
Support NDI 6.2
Input Features
Max video input: 2048x1080 60fps. Supported resolutions include:
2048x1080p/1920x1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60
2048x1080i/1920x1080i 23.98/24/25/29.97/30/47.95/48/50/59.94/60
1280x720p 50/59.94/60
720x576 25p/50i (PAL SD)
720x480 29.97p/59.94i (NTSC SD)
Support RGB/RGBA/YUV/YUVA signals with 10/12-bit color depth
Support RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
Support RGB, YUV BT.601/709/2020 video input
16-channel SDI embedded audio inputs
SD/HD/3G-SDI BNC input
Support SD (ST 259)/HD (ST 292)/3Ga (ST 425)/3Gb (ST 425)/3Gb-DL (ST 425)/3Gb-DS (ST 425) SDI standards
Receive 3G-SDI transmitted up to 180m (591ft)
NDI® Encoding Features
Encoding NDI High Bandwidth real-time stream at up to 2048x1080 60fps 4:2:2 8-bit
Output the same resolution as input or any custom resolution. Typical outputs include:
2048x1080p/1920x1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60
2048x1080i/1920x1080i 25/29.97/30/47.95/48/50/59.94/60
1280x720p 50/59.94/60
Output frame rate same as the original, 1/2, 1/3 or 1/4 of input frame rate
Encoding 16-channel NDI-embedded audio
Support NDI 6.2
On-board Control Buttons
16 Position Rotary DIP Switch: set board-index from 0 to F
PTZ Control
Control PTZ cameras using protocols of VISCA, Visca UDP, Visca UDP2rs232, PELCO-P and PELCO-D via NDI

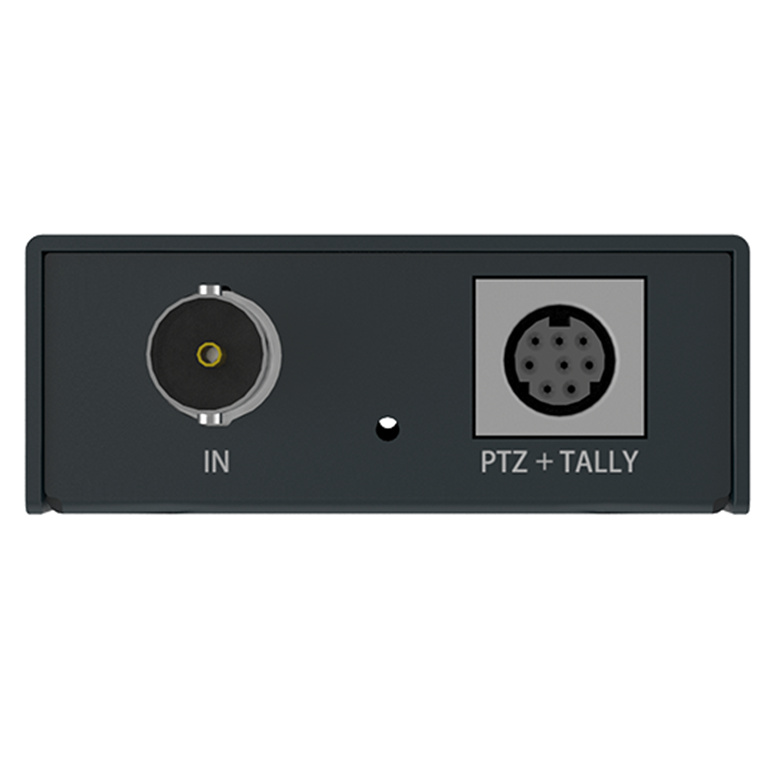

Mini-DIN-8 jack (shared with Tally light)
Network Interfaces
10/100/1000Mbps Ethernet
IEEE 802.3af PoE
USB Interface
USB2.0 Type B
5V/2.1A power supply
USB RNDIS/ECM
Supported Products
NDI Studio Monitor
OBS
vMix
Any other NDI-enabled product
LED Indicators
Status LEDs indicate:
Power supply: on/off
Input signal: locked/unlocked
Form Factor
100.9mm (L) x 60.2mm (W) x 23.3mm (H)
Screw Mounting Hole
1/4-20 threaded hole
Power Consumption
5V max current: ~1.5A
Max power consumption: ~7W
Working Environment
Operating temperature: 0 to 40 deg C
Storage temperature: -20 to 70 deg C
Relative humidity: 5% to 90% non-condensing
