ONERUGGED M10A Rugged Mobile PC Intel i7 1255U CPU. 16GB/128GB.10" Win 11 Pro. 4G/WiFi 6. 2D barcode reader. 5000mAh Standard Battery, IP65. Front/Rear Camera.
ONERUGGED M10A Rugged Mobile PC Intel i7 1255U CPU. 16GB/128GB.10" Win 11 Pro. 4G/WiFi 6. 2D barcode reader. 5000mAh Standard Battery, IP65. Front/Rear Camera.
- Brand: ONERUGGED
- MPN: M10A_7+2D
- Part #: TABORGM10A04
- UPC:
- Brand: ONERUGGED
- MPN: M10A_7+2D
- Part #: TABORGM10A04
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial PCs & IoT
ONERUGGED M10A Rugged Mobile PC Intel i7 1255U CPU. 16GB/128GB.10" Win 11 Pro. 4G/WiFi 6. 2D barcode reader. 5000mAh Standard Battery, IP65. Front/Rear Camera.
- Brand: ONERUGGED
- MPN: M10A_7+2D
- Part #: TABORGM10A04
Product URL: https://www.pbtech.co.nz/product/TABORGM10A04/ONERUGGED-M10A-Rugged-Mobile-PC-Intel-i7-1255U-CPU
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | - | |
| Auckland - Glenfield | - | |
| Auckland - Queen Street | - | |
| Auckland - Auckland Uni | - | |
| Auckland - Westgate | - | |
| Auckland - Penrose | - | |
| Auckland - Henderson (Express) | - | |
| Auckland - St Lukes | - | |
| Auckland - Manukau | - | |
| Hamilton | - | |
| Tauranga | - | |
| New Plymouth | - | |
| Palmerston North | - | |
| Petone | - | |
| Wellington | - | |
| Auckland - Head Office | - | |
| Auckland - East Tamaki Warehouse | - | |
| Christchurch - Hornby | - | |
| Christchurch - Christchurch Central | - | |
| Dunedin | - |
Features
M10A windows tablet is a 10.1-inch ultra-high-performance rugged mobile pc of ONERugged, equipped with the new 12th Generation Intel® Core™ i7-1255U processor, which greatly improves the energy efficiency and performance per watt ratio. And there are also many other highlights such as high capacity memory and SSD, high-definition and high-brightness outdoor display, WiFi 6, 4G, Bluetooth 5.1, industrial NFC, dual batteries, full types of interfaces, expansion modules, which can bring more powerful productivity, easy to cope with a variety of high-performance and high-demand usage scenarios.
- Powered by 12th Generation Intel® Core™ i7-1255U Processor and Windows 11
- Support 16GB RAM + 128GB SSD, the SSD is detachable, easy to expand by simplely pulled out and replaced

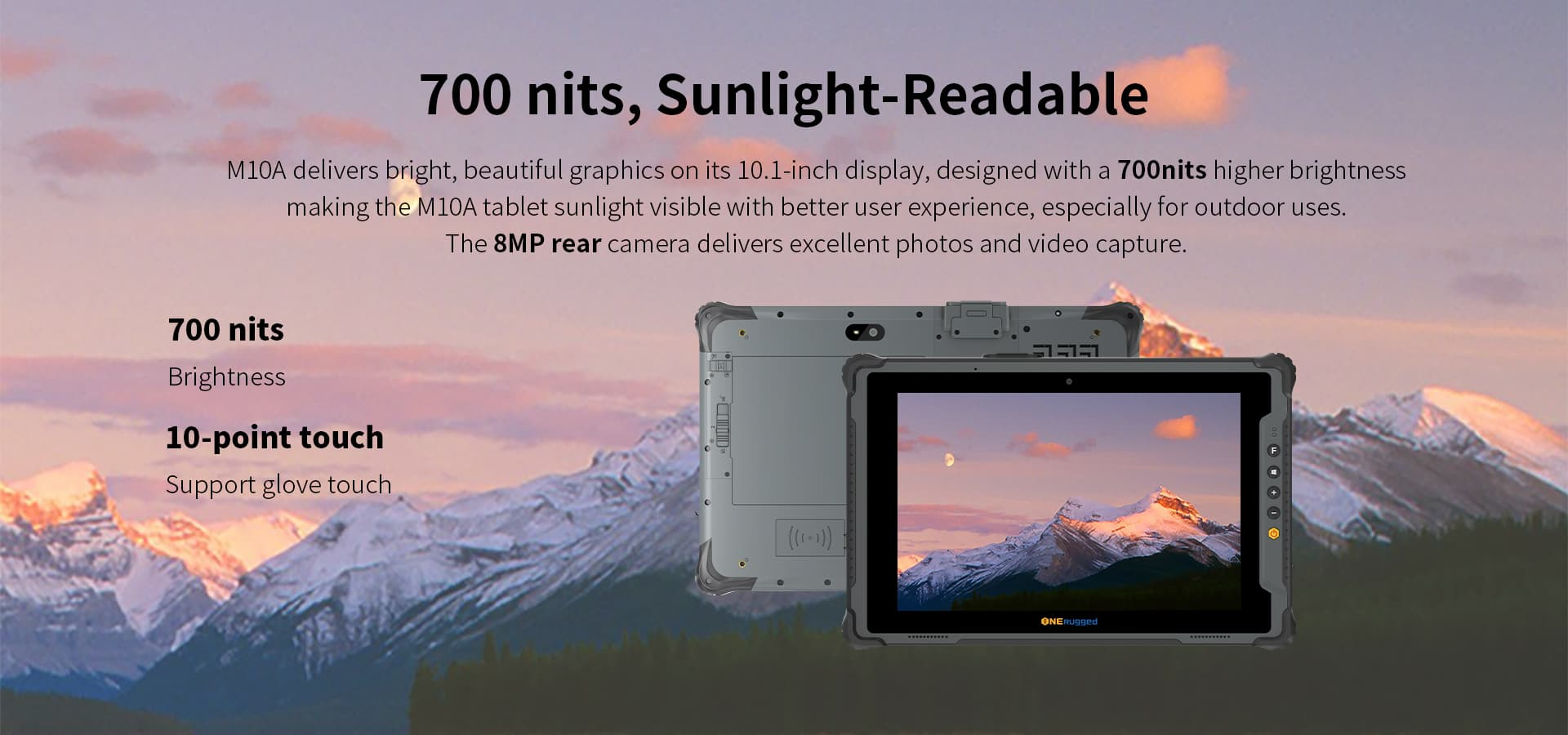

- 10.1-inch LCD screen with 700 nits high brightness big screen tablet
- Supports the latest WiFi 6 technology, 4G and Bluetooth 5.1

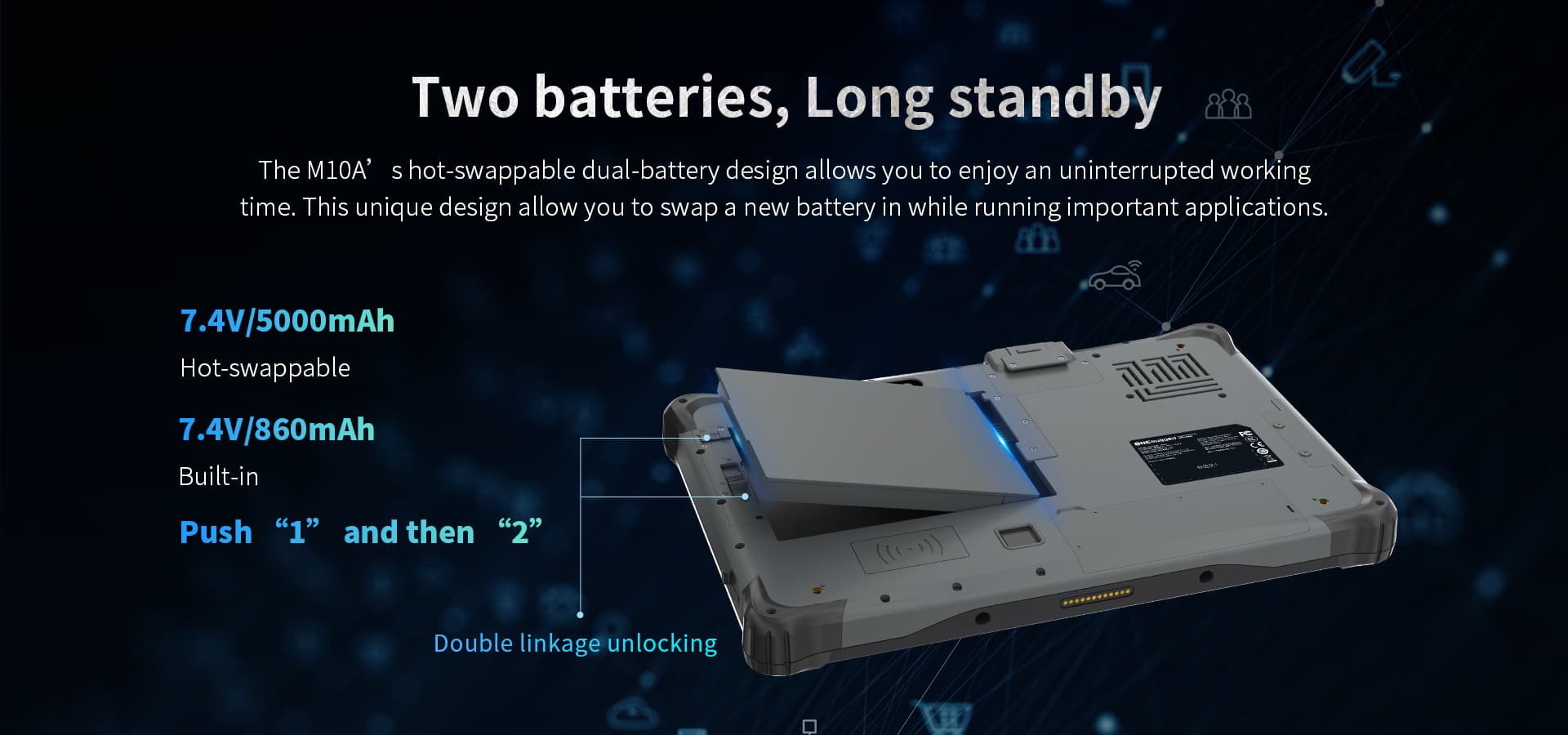

- 7.4V/5000mAh + 7.4V/860mAh double battery, the large battery is removable and hot-swappable

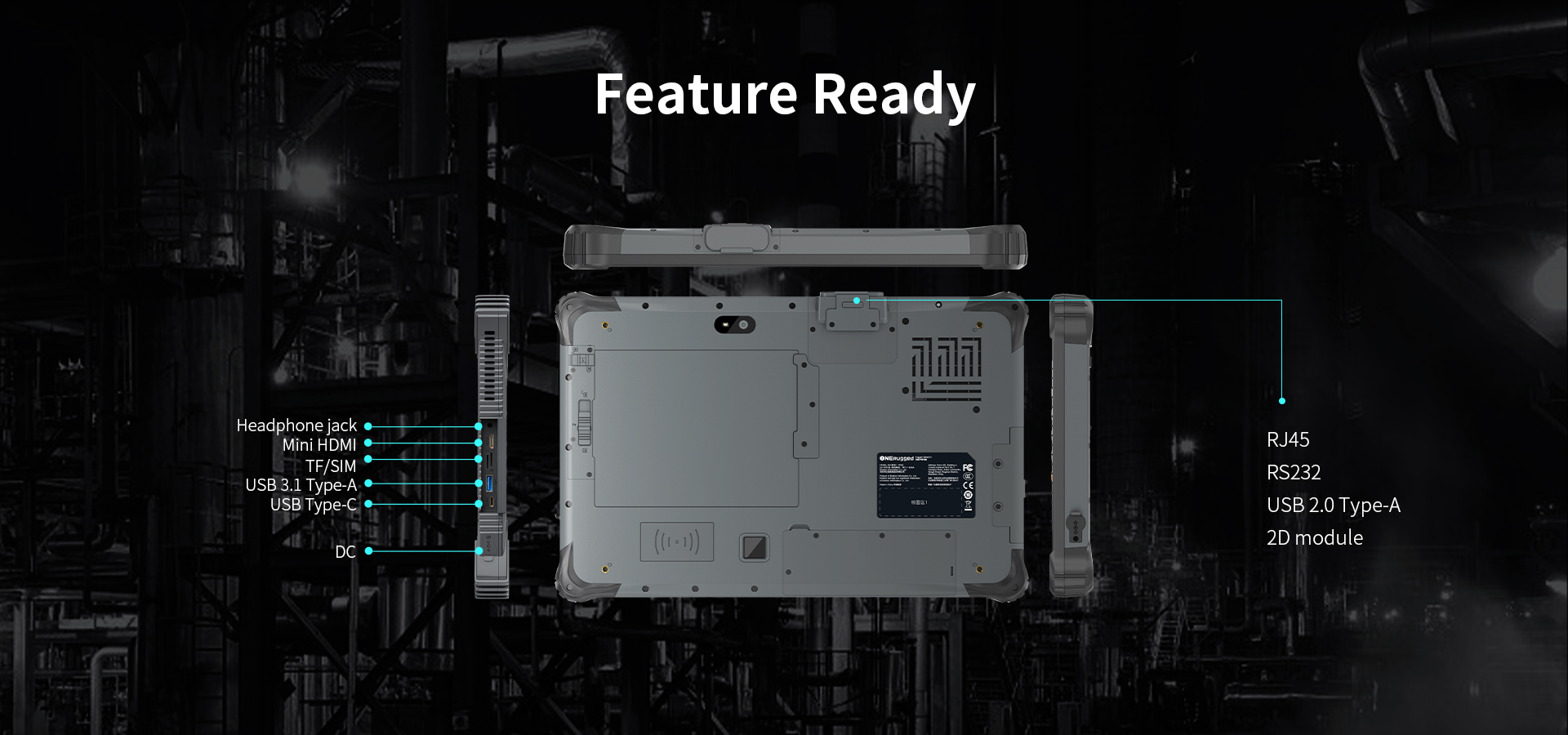

- Equipped with a full set of interfaces including full-featured Type-C, USB 3.1, Mini HDMI and more

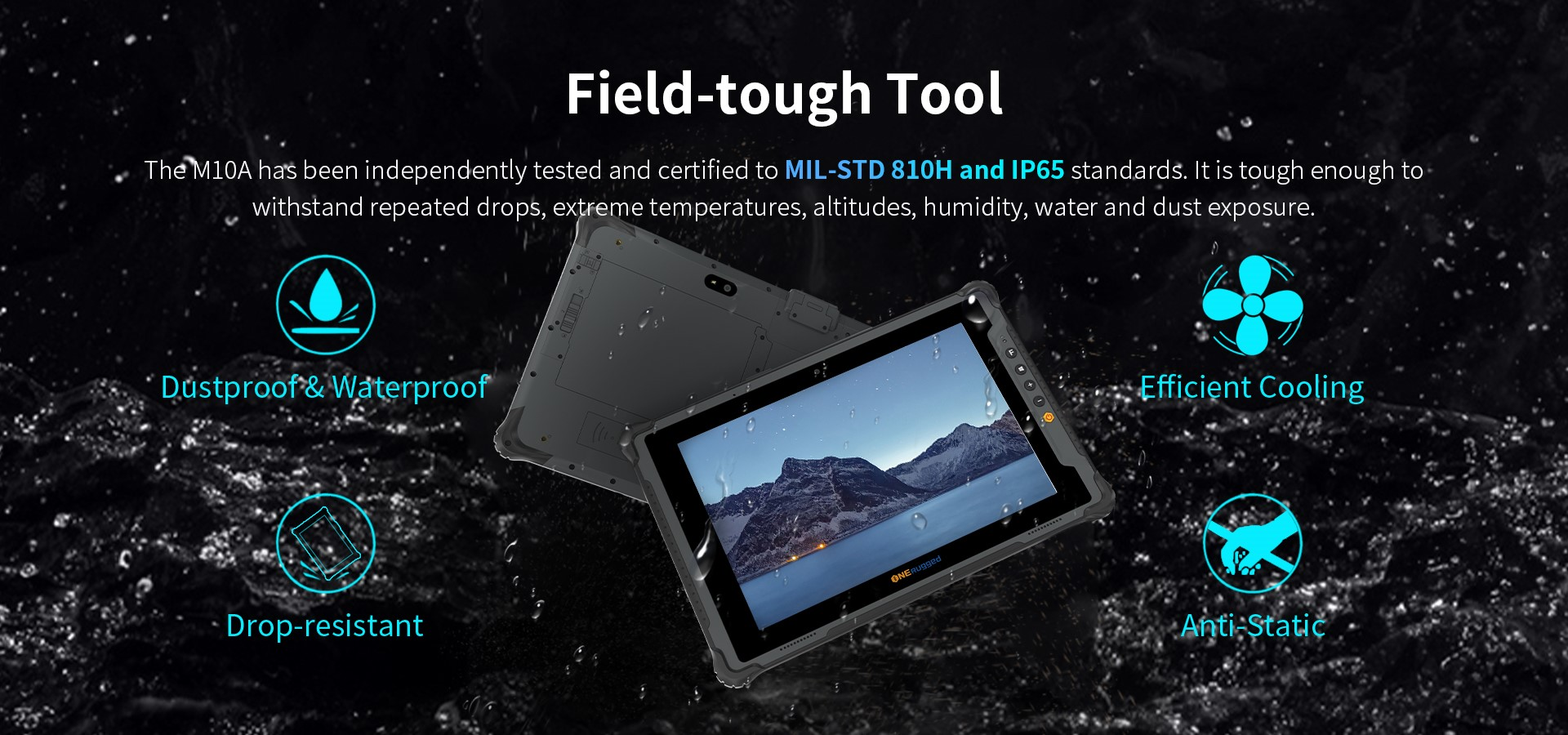

- Passed IP65 and multiple stringent MIL-STD-810H military standard tests, industrial-grade safety protection








Specifications
Appearance
Dimensions
289.9 x 196.7 x 27.4mm
Weight
1140g
Color
Black
Display
Size: 10.1 inch 16:10, Resolution: 1200x 1920, Brightness: 700cd/m²
Touch Panel
10 points capacity TP, G+G, Hardness over 7H, Scratch resistant, support glove touch
Ports
USB 3.1 x 1
USB Type-C x 1 (Full function/HDMI/Charging)
3.5mm Standard Earphone jack x 1
HDMI Mini x 1
SIM card slot x 1, TF card slot x 1
DC 19V3.42A x 1
12Pin Pogo Pin x 1
Performance
Processor
Intel® Core™ i7-1255U Processor
Operating System
Windows 11
Memory+Storage
RAM: 16GB (DDR4L)
ROM: 128GB (SSD)
Camera
Front 5.0MP
Rear 8.0MP
Battery
Build in Lithium-ion polymer battery, 7.4V/860mAh
Removable Li-polyment Battery, 7.4V/5000mAh
RTC Battery
Built-in RTC battery
Power
Adapter (input AC 100V~240V 50Hz/60Hz, output DC 19V/3.42A)
Fan
IPX5 fan x 1
Data Collection
2D Code Scanner
Fingerprint
Support
Wireless
WiFi
802.11 (a/b/d/e/g/h/i/k/n/r/u/v/w/ac/ax), 2.4G+5.8G dual frequency
WAN
4G
Bluetooth
Bluetooth 5.1
GNSS
GPS
Ruggedness
IP Ratings
IP65
Drop Resistance
1.22m drop
MIL-STD-810H
Temperature
Working temperature: -20 °C to 60 °C
Storage temperature: -30 °C to 70 °C
ESD Protection
±15kV air discharge
±8kV contact discharge
Accessories
Standard
Hand-strap, Carry Handle, Adapter
