Features

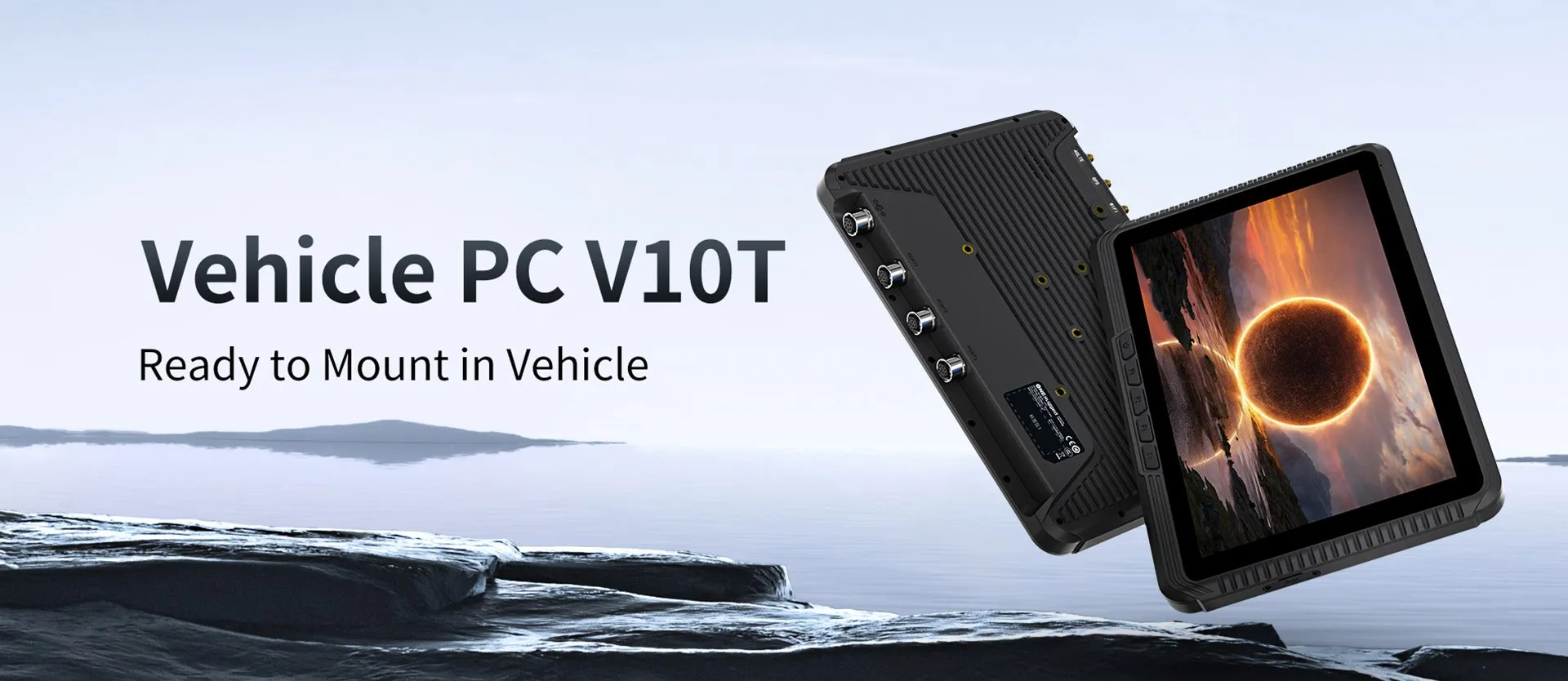

Ready to Mount in Vehicle
V10T is a 10.1-inch Android vehicle pc, which is specially designed for in-vehicle applications. Equipped with ARM octa-core processor and Android 12 operating system, it is more powerful, and its integrated Wi-Fi-5, 4G LTE and GPS functions support available vehicle mushroom antennas, the coverage area is larger and the signal reception is better. Moreover, it has passed the dustproof, waterproof, anti-vibration and wide temperature tests, and with the M12 aviation plugs, wide voltage module, VESA and RAM mounting methods, etc., it can keep stable at all times and can meet all vehicle types, like forklifts, cranes, trucks.
High-performance and Low-power
Equipped with high-performance ARM octa-core processor and Android 12 OS, up to 4GB+64GB capacity.
Excellent Visibility
10.1-inch screen with 1000-Nits high definition display, multiple-point touch panel and customized keys, ensuring outdoor worker visibility.
Easy Connection
4G LTE, dual-band Wi-Fi, Bluetooth 5.0 and GPS/Glonass/Beidou functions, with available vehicle mushroom antenna.
Stable Power Supply
Aviation plug charging interface, switchable for cigarette lighter interface or Φ5.5 power port, and a 9V-36V DC wide voltage module is optional.
Battery-free Mode
Supports the battery-free mode, another optional 7.4V/1000mAh capacity battery.
Flexible Extension
Available multiple aviation plug interfaces, and also supports USB/DB9/LAN/CAN and other interface extensions.

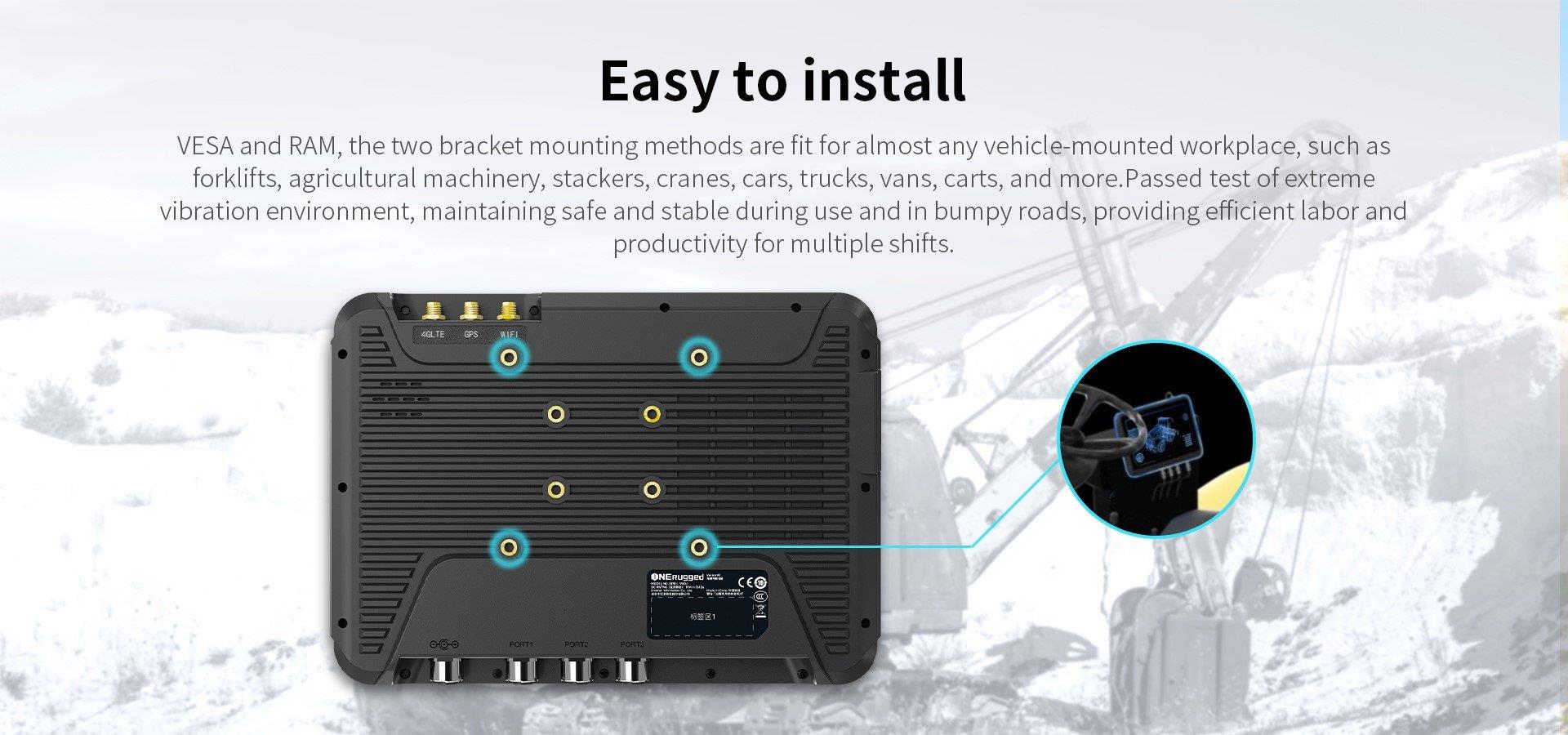

Simple Installation
Two bracket mounting methods, VESA and RAM are suitable for almost any vehicle-mounted workplaces.
Enhanced Robustness
IP65 dustproof and waterproof, morphed to endure outdoor applications prone with shock, vibration and extreme temperature.






Specifications
Appearance
Dimensions
264.5 × 184.1 × 23.0 mm
Weight
TBD
Product Color
Black
Display
Size: 10.1 inch 16:10, Resolution: 800x1280 IPS, Brightness: 1000cd/m²
Touch Panel
5-point tempered glass capacitive screen G+G, hardness 7H
Ports
Optional: SIM card slot x 1
USB 3.0 x 1
M12-8 Power port x 1 (Compatible: DC power port, suitable for cigarette lighter)
Optional: M12-12 Aviation port 1 x 1 (Compatible: 1000M Ethernet port)
Optional: M12-12 Aviation port 2 x 1 (Compatible: RS232 port or RS485 port)
Optional: M12-12 Aviation port 3 x 1 (Compatible: USB 2.0 port or CAN port or CVBS port)
Performance
Processor
ARM Octa-Core Processor
Operating System
Android 12
Memory+Storage
RAM: 4GB (LPDDR4X)
ROM: 64GB (UFS)
Battery (optional)
Built in polymer lithium ion battery, 2000mAh/3.7V
RTC Battery
Built in RTC battery
Power
Power adapter cable (M12-8 power port to diameter 4.0 mm power port)
Optional: diameter 4.0 mm adapter (input AC 100V~240V 50Hz/60Hz, output DC 12V/4A)
Wireless
WiFi
802.11 (a/b/g/n/ac), 2.4G+5.8G dual frequency
Standard WiFi rod antenna
WAN (optional)
4G
Optional 4G rod antenna
Bluetooth
Bluetooth 5.0
GNSS
GPS+GLONASS, optional Beidou
Standard GPS rod antenna
NFC (optional)
Support
Ruggedness
Certification
IP65
Rugged Features
Working temperature: -20 °C to 60 °C
Storage temperature: -30 °C to 70 °C
ESD Protection
±15kV air discharge
±8kV contact discharge
Accessories
Standard
WIFI rod antenna
GPS rod antenna
Power adapter cable (M12-8 power port to diameter 5.5 mm power port, suitable for cigarette lighter)
Optional
4G rod antenna
Power adapter cable (M12-8 power port to 4 loose wires)
9V-36V wide voltage module
VESA standard
RAM standard
Function adapter cable (M12-12 aviation port to USB 2.0 x 1+CAN x 1+USB 2.0/CVBS x 1)
Function adapter cable (M12-12 aviation port to RS232 x 1 + RS485 x 1)
Function adapter cable (M12-12 aviation port to RS232 x 2)
Function adapter cable (M12-12 aviation port to 100M RJ45 x 1)
Function adapter cable (M12-12 aviation port to 12 loose wires)
GPS vehicle mushroom antenna
