ONERUGGED V12R Vehicle PC Quad-Core Processor. 4G & Wifi. 8GB/128GB. 10" Android 12 + Linux Dual-System 2000mAh Standard Battery, IP65.
ONERUGGED V12R Vehicle PC Quad-Core Processor. 4G & Wifi. 8GB/128GB. 10" Android 12 + Linux Dual-System 2000mAh Standard Battery, IP65.
- Brand: ONERUGGED
- MPN: V12R
- Part #: TABORGV12R01
- UPC:
- Brand: ONERUGGED
- MPN: V12R
- Part #: TABORGV12R01
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial PCs & IoT
ONERUGGED V12R Vehicle PC Quad-Core Processor. 4G & Wifi. 8GB/128GB. 10" Android 12 + Linux Dual-System 2000mAh Standard Battery, IP65.
- Brand: ONERUGGED
- MPN: V12R
- Part #: TABORGV12R01
Product URL: https://www.pbtech.co.nz/product/TABORGV12R01/ONERUGGED-V12R-Vehicle-PC-Quad-Core-Processor-4G
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | - | |
| Auckland - Glenfield | - | |
| Auckland - Queen Street | - | |
| Auckland - Auckland Uni | - | |
| Auckland - Westgate | - | |
| Auckland - Penrose | - | |
| Auckland - Henderson (Express) | - | |
| Auckland - St Lukes | - | |
| Auckland - Manukau | - | |
| Hamilton | - | |
| Tauranga | - | |
| New Plymouth | - | |
| Palmerston North | - | |
| Petone | - | |
| Wellington | - | |
| Auckland - Head Office | - | |
| Auckland - East Tamaki Warehouse | - | |
| Christchurch - Hornby | - | |
| Christchurch - Christchurch Central | - | |
| Dunedin | - |
Features
Performance to a new level

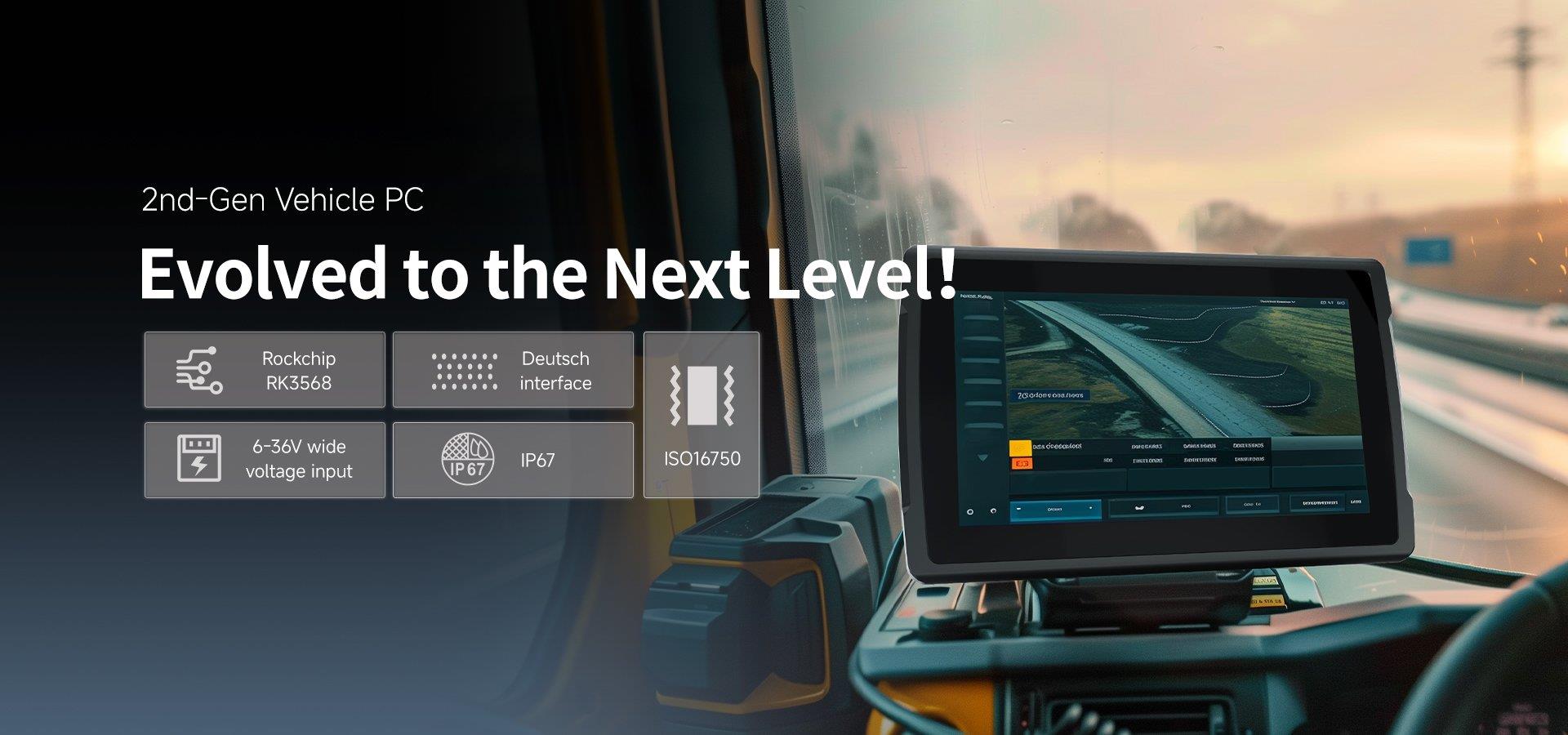

Introducing the V12R In-Vehicle PC, the next-generation performance powerhouse designed to meet the demands of modern vehicle applications. Powered by the RK3568 Quad-Core processor, this rugged PC is built to handle the most intensive tasks with ease. With the dual-system Android 12 + Linux operating system, you get the best of both worlds in terms of performance and flexibility. The 700 sunlight-readable screen ensures that you can easily view and interact with your data even in bright outdoor conditions. In addition, the V12R In-Vehicle PC comes equipped with Deutsch interface for seamless integration with your vehicle's systems. Communication options include CAN, RS232, RS485, and Ethernet, giving you a wide range of connection possibilities. For added convenience, the V12R features 4 signal inputs for cameras, allowing you to easily set up a comprehensive surveillance system. With its rugged construction and cutting-edge features, the V12R In-Vehicle PC is the perfect choice for those looking for top-of-the-line performance in their vehicles.









Specifications
Appearance
Dimensions
282 × 181 × 31 mm
Weight
TBD
Product Color
Black
Display
Type: HD
Size: 10.1-inch 16:10 Resolution: 1280*800 IPS Brightness: 700cd/m²
Touch Panel: Asahi Glass Cover, 5-Point Capacitive Screen, Hardness of 7H
Ports
Standard USB-A Port / Data Transfer
USB 2.0 x 1, USB-A Port, HOST Data Transfer
Video Input
AHD x 4 GX12 4-pin connector x 4
26-PIN Deutsch Interfaces (Optional in the Solution)
TF Card Slot
MICRO-SIM x 1
SIM Card Slot
MICRO-SIM x 1
Buttons
Power x 1
Customizable x 1 (F1 Key)
Customizable x 1 (F2 Key)
Performance
Processor
Standard RK3568, Quad-Core 64-bit Cortex-A55 Processor, with a maximum frequency of up to 2.0GHz.
Operating System
Android 12 + Linux Dual-System
Memory+Storage
RAM: 8GB
ROM: 128GB - optional 256GB

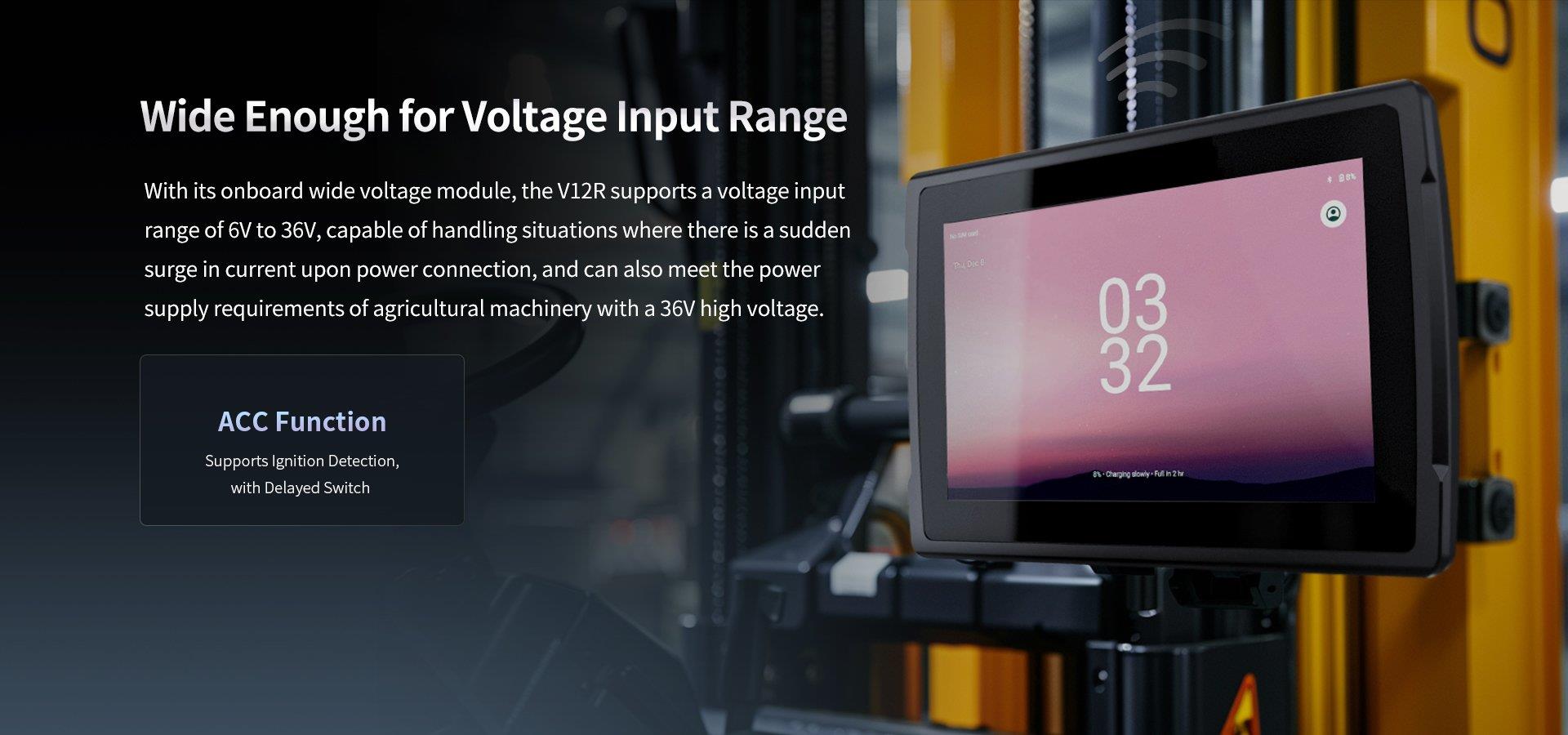

Power
6-36V (DC input, supports ignition detection)
Supports delayed power on/off switch
RTC
Built-in 2032 RTC dry battery
Wireless
WiFi
Band: WIFI 802.11(a/b/g/n/ac)
Frequency: 2.4G+5.0G (5.1G+5.8G) Dual-band WIFI
Others: Supports AP seamless roaming
Bluetooth
Bluetooth 5.0
4G
LTE Cat 4
WCDMA:B1+5+8
TDD:B38+40+41
FDD:B1+3+5+7+8+20+28 isochronous channels feature▪ BLE_125K -104 dBm
GPS
Supports GPS (L1 1.575GHz C/A code), BeiDou (B1 1.561GHz), GLONASS (L1 1.602GHz)

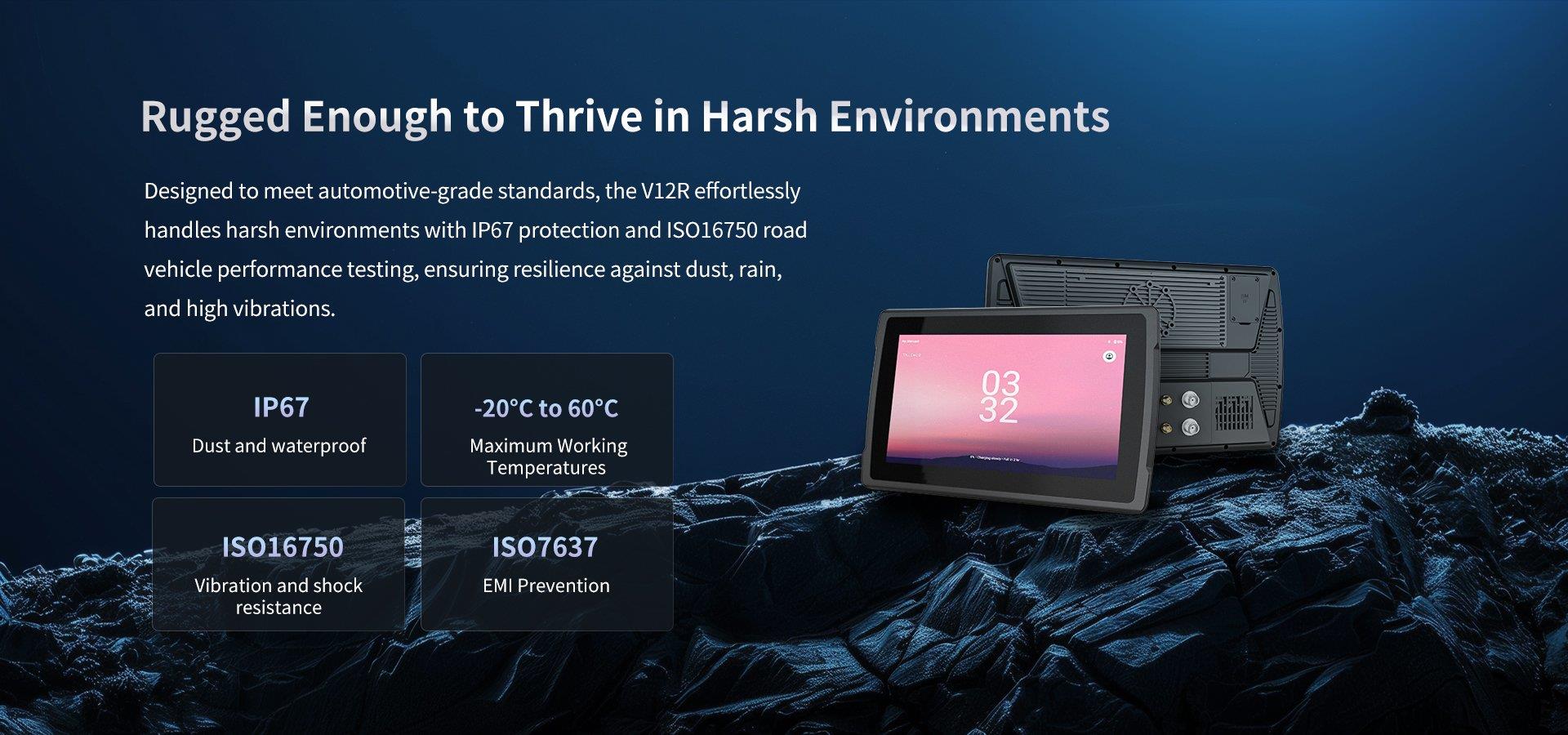

Ruggedness
Certification
IP67
Vibration Resistance
MIL-STD-810H
Rugged Features
Working temperature: -20 °C to 60 °C
Storage temperature: -30 °C to 85 °C
Functional Modules

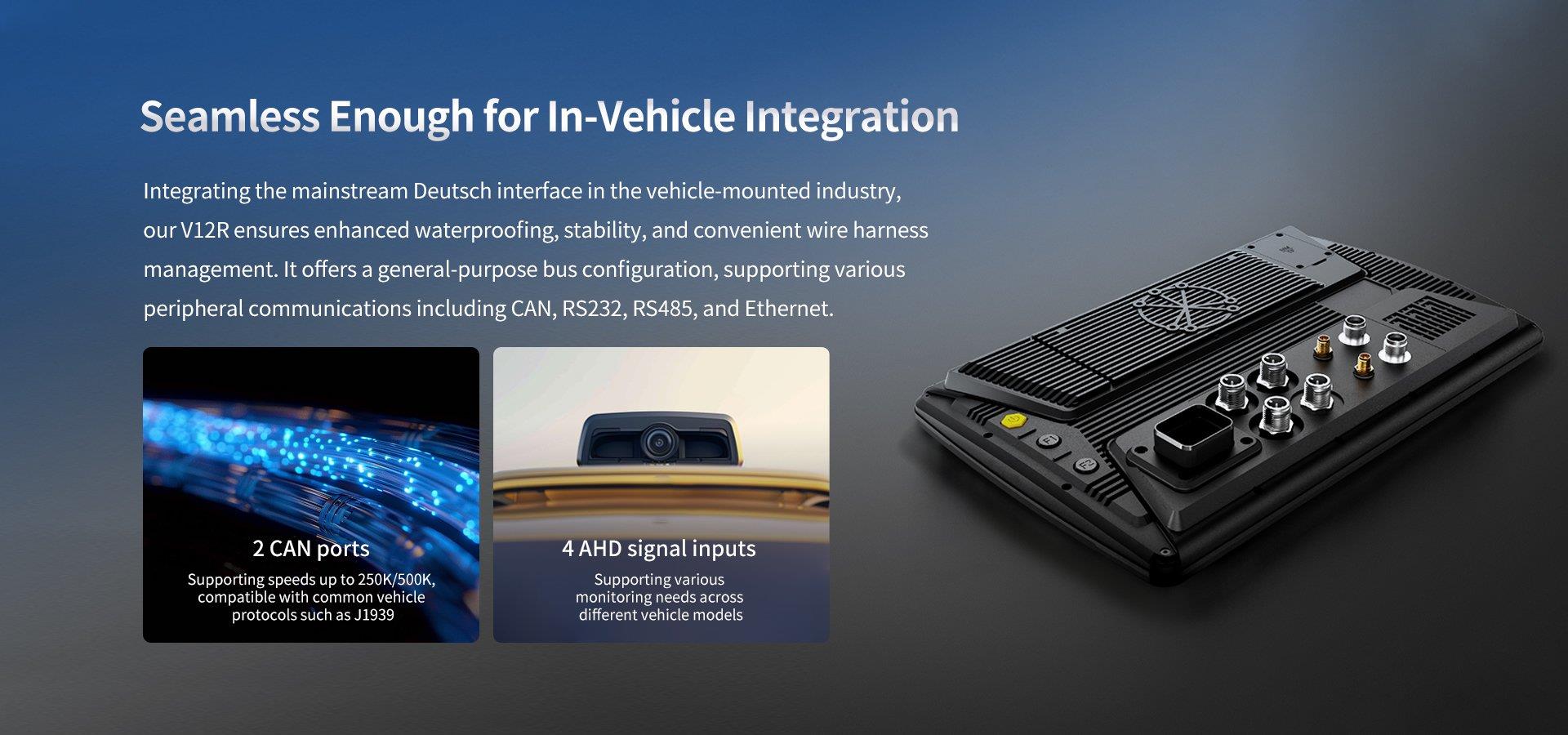

CAN
Supports 2 CAN channels
Supports 250K/500K CAN
Supports common agricultural machinery, engineering vehicle protocols such as J1939

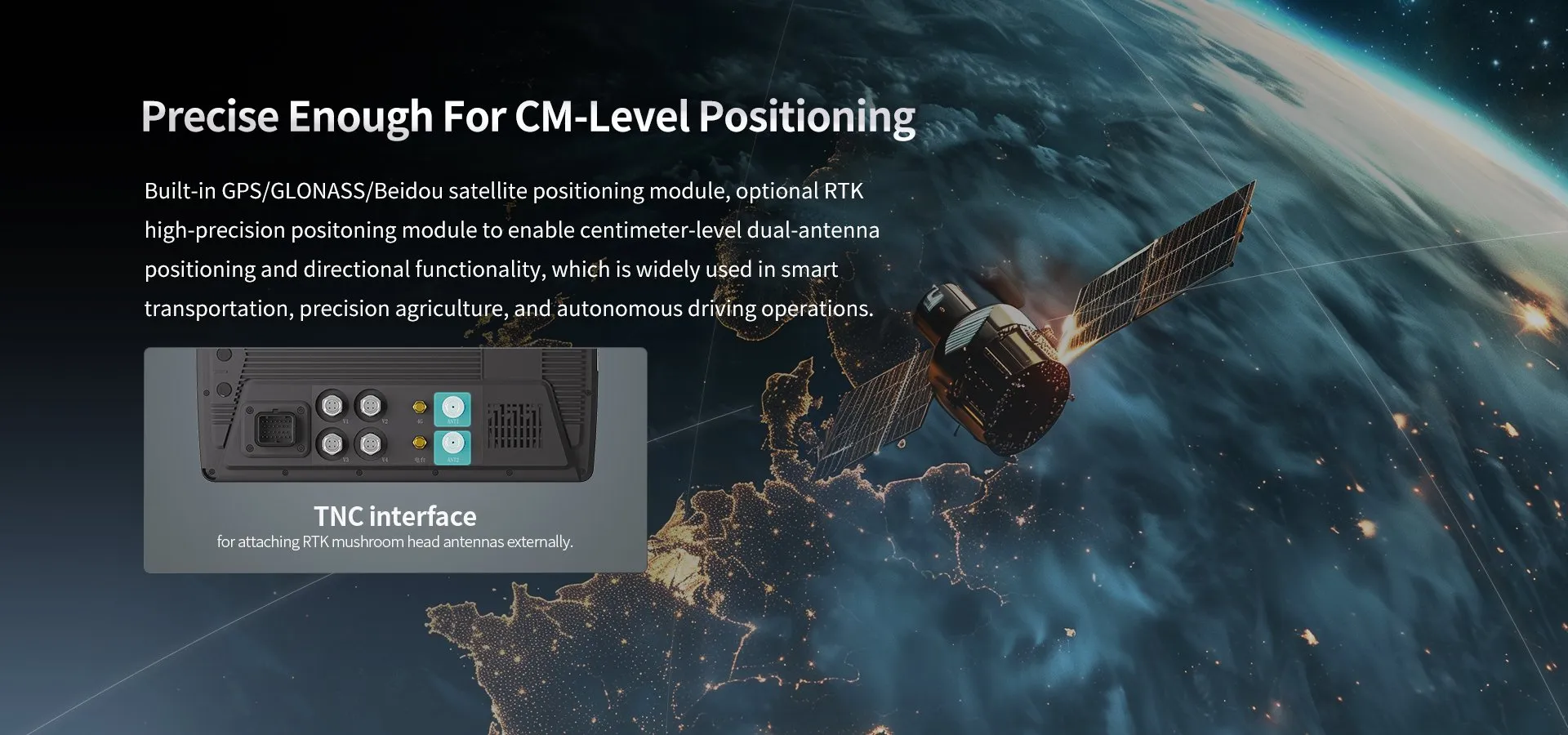

RTK High Rrecision Locating (UM982) (Optional)
Dual-antenna positioning and orientation
Dual-antenna mode supports BDS B1I/B2I/B3I, GPS L1/L2/L5, GLONASS G1/G2, Galileo E1/
E5a/E5b, QZSS L1/L2/L5, SBAS
AHD Multi-Channel Cameras
Supports up to 4 AHD cameras
Accessories
Standard
TBC
Optional
26-PIN Deutsch Interface Functional Bus (Customized according to the solution)
Bracket RAM 38x30mm ball head
ACC Power Cable
DC Conversion Cable
Power Adapter 12V4A DC diameter 4.0 mm adapter
GPS Vehicle Mushroom Antenna
Active GPS mushroom antenna, 3-meter cable, gain of 28dBi±2dBi
4G External Suction Cup Antenna
Data Radio External Suction Cup Antenna
RTK Mushroom Antenna (TNC Connector)
