Features

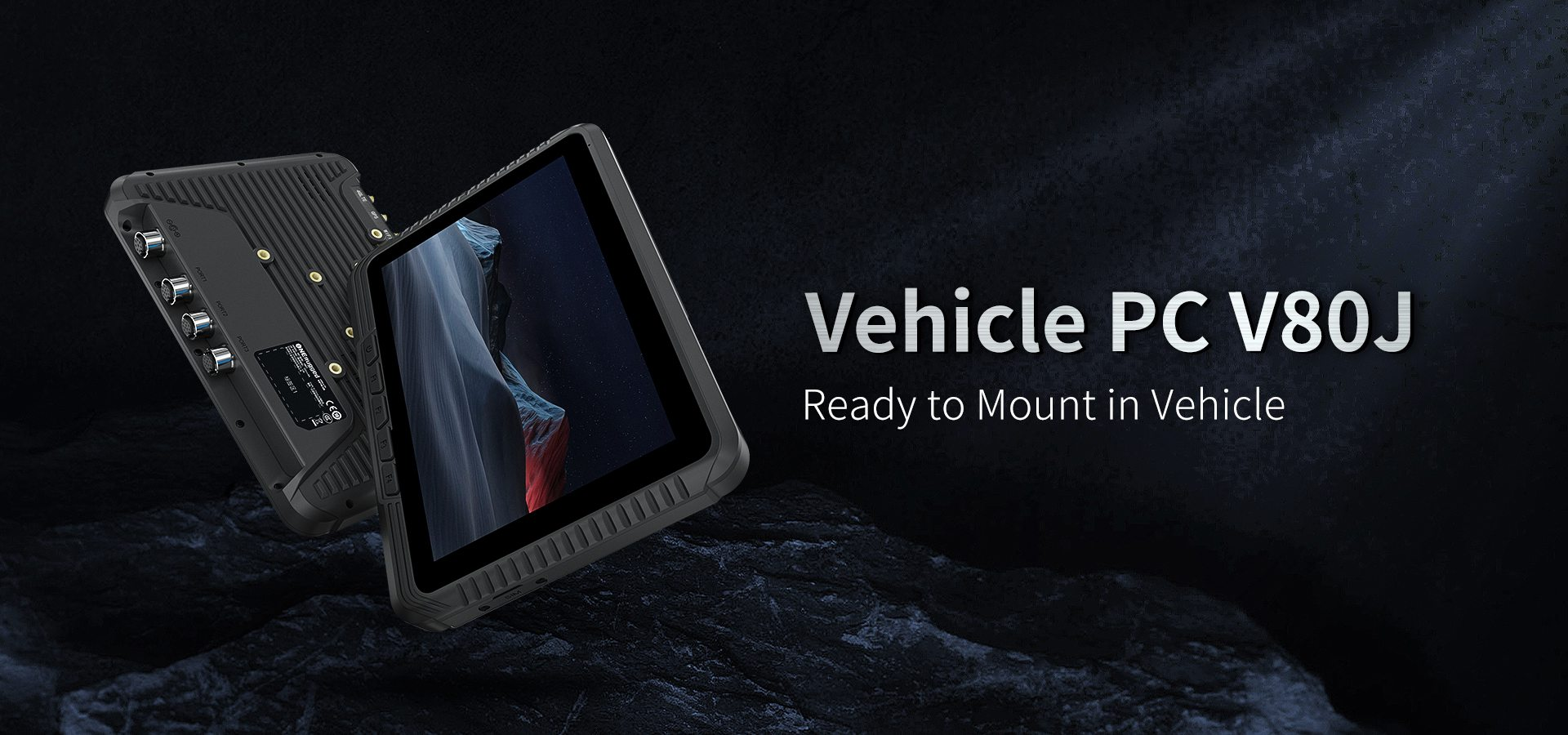

Ready to Mount in Vehicle
V80J is a 8-inch vehicle pc, which is specially designed for in-vehicle applications. Equipped with Intel® 11th Gen Celeron® N5100 processor, it is more powerful, and its integrated Wi-Fi-5, 4G LTE and GPS functions support available vehicle mushroom antennas, the coverage area is larger and the signal reception is better. Moreover, it has passed the dustproof, waterproof, anti-vibration and wide temperature tests, and with the M12 aviation plugs, wide voltage module, VESA and RAM mounting methods, etc., it can keep stable at all times and can meet all vehicle types, like forklifts, cranes, trucks.
Outstanding Performance
Equipped with Quad-core Intel JASPER LAKE N5100 processor and Windows 10 operating system, up to 8GB+128GB high-speed capacity.

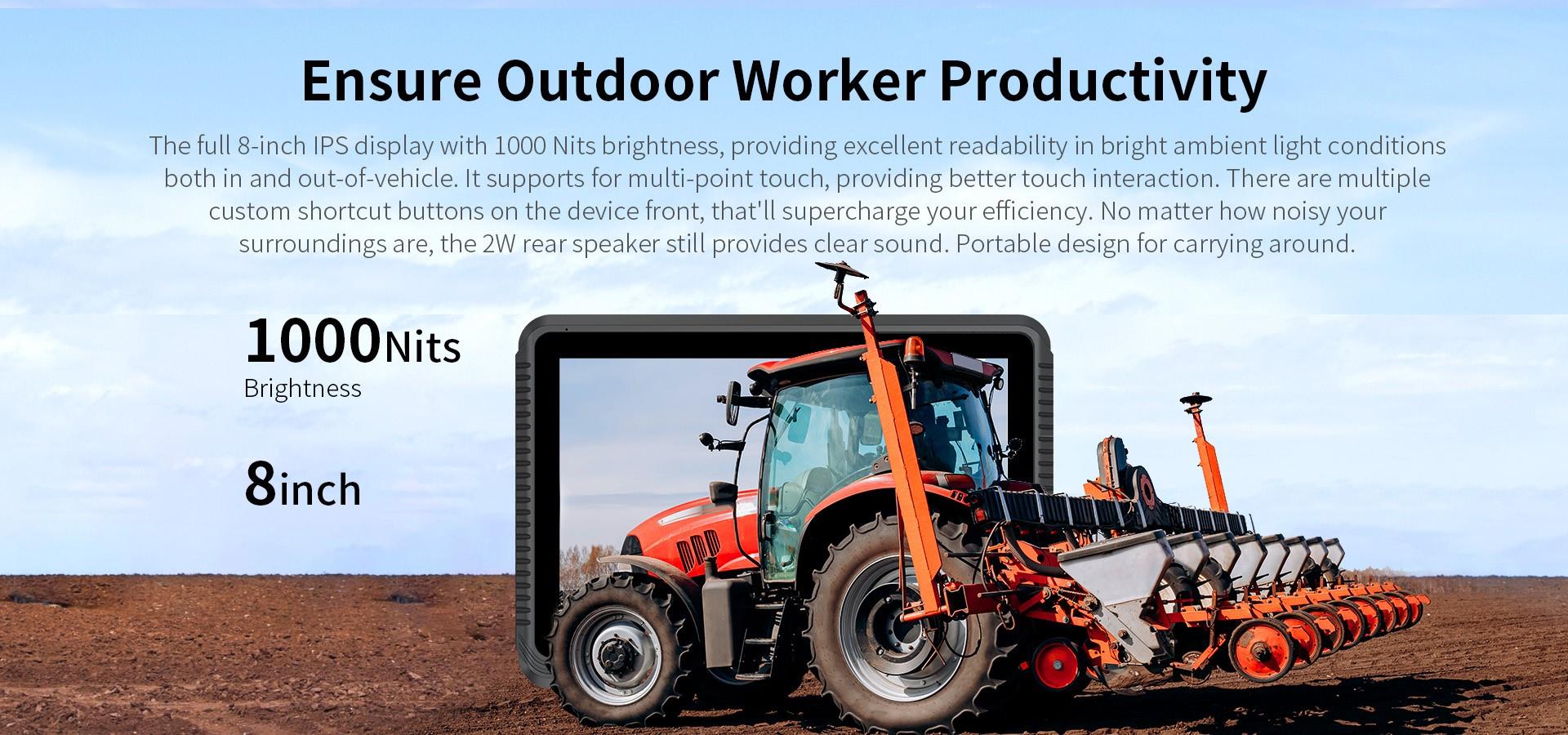

Excellent Visibility
8-inch screen with 1000-Nits high brightness display, multiple-point touch panel and customized keys , ensuring outdoor worker visibility.

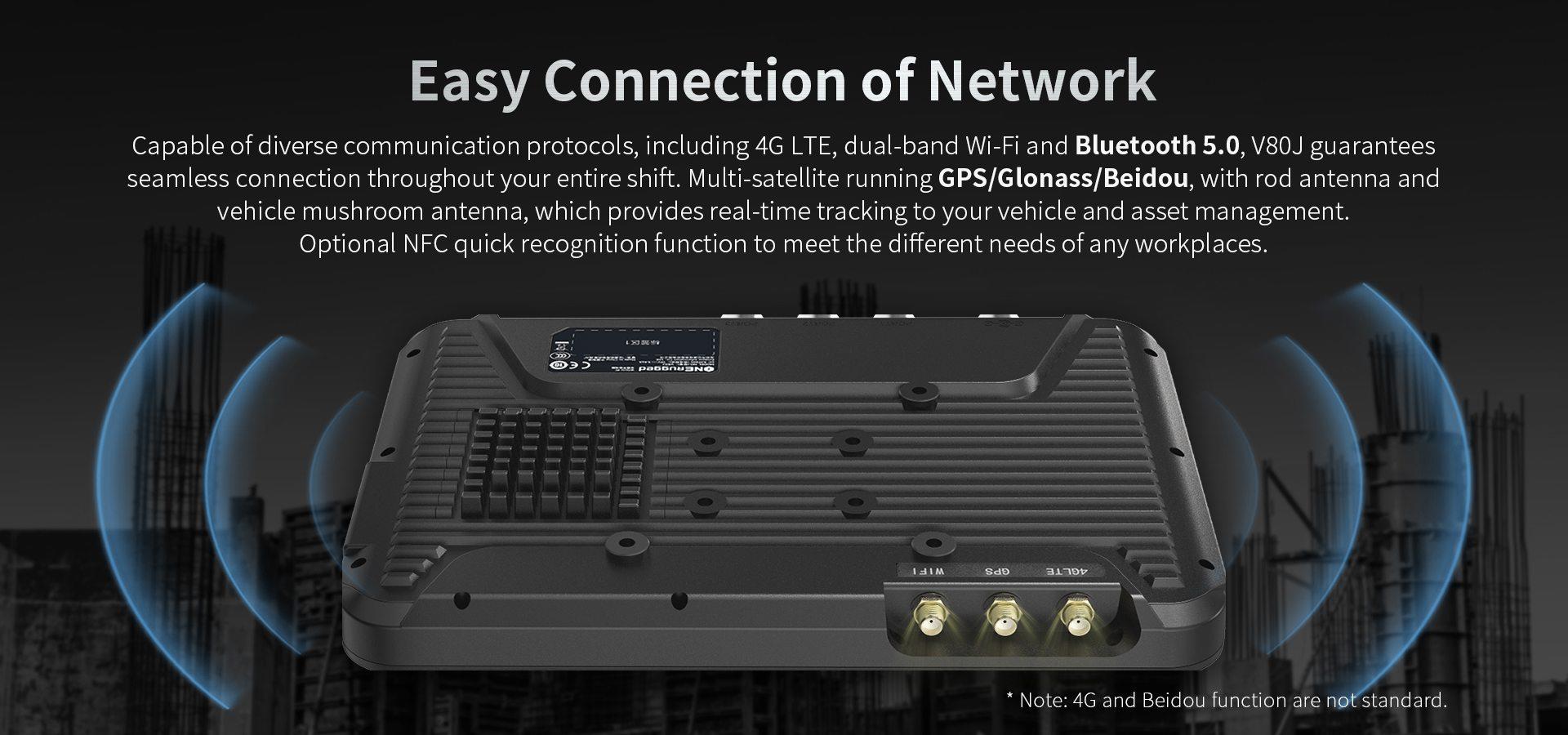

Easy Connection
4G LTE, dual-band Wi-Fi, Bluetooth 5.0 and GPS/Glonass/Beidou functions, with available vehicle mushroom antenna.

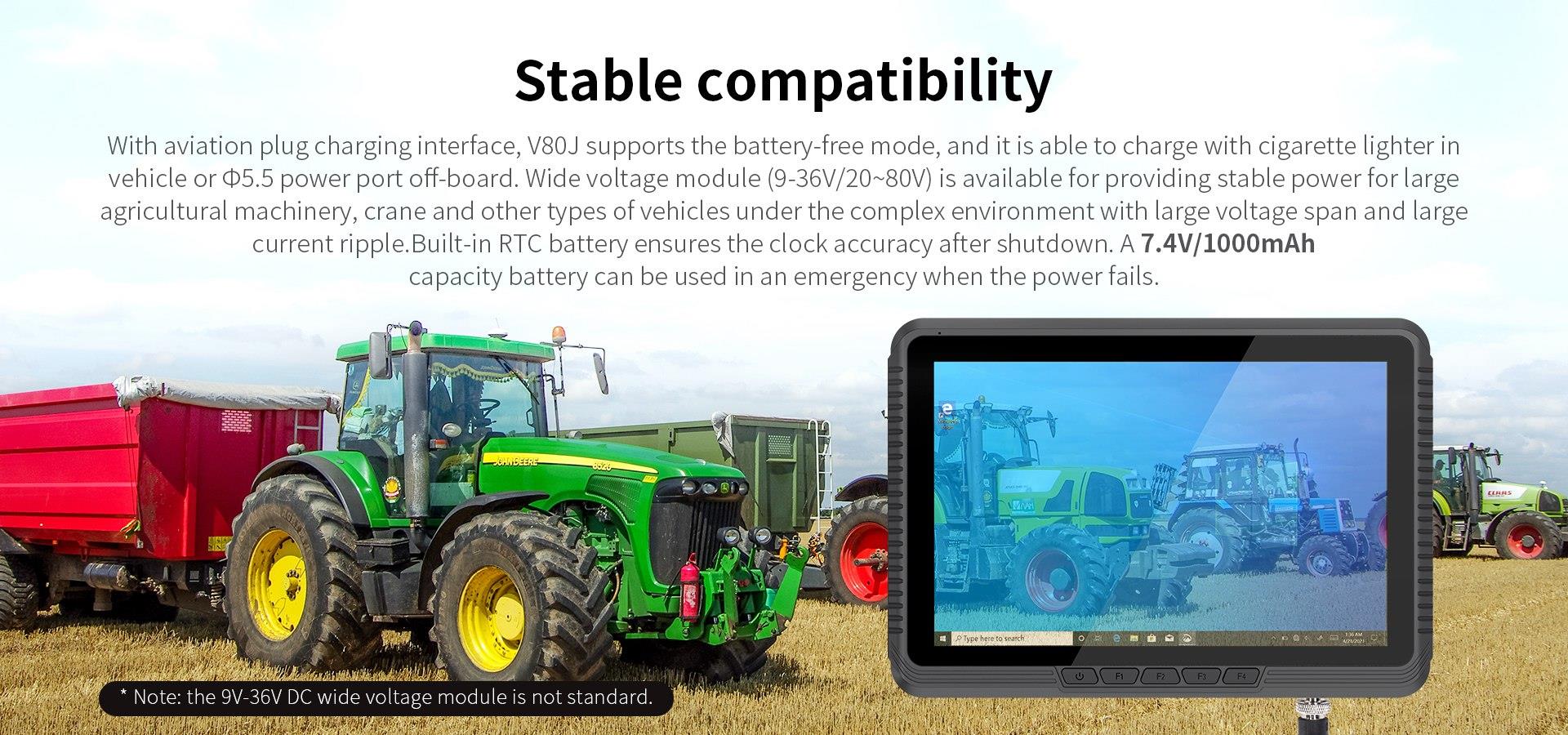

Stable Power Supply
Aviation plug charging interface, switchable for cigarette lighter interface or Φ5.5 power port, and a 12V4A DC wide voltage module is optional.
Battery-free Mode
Supports the battery-free mode, another optional 7.4V/1000mAh capacity battery.

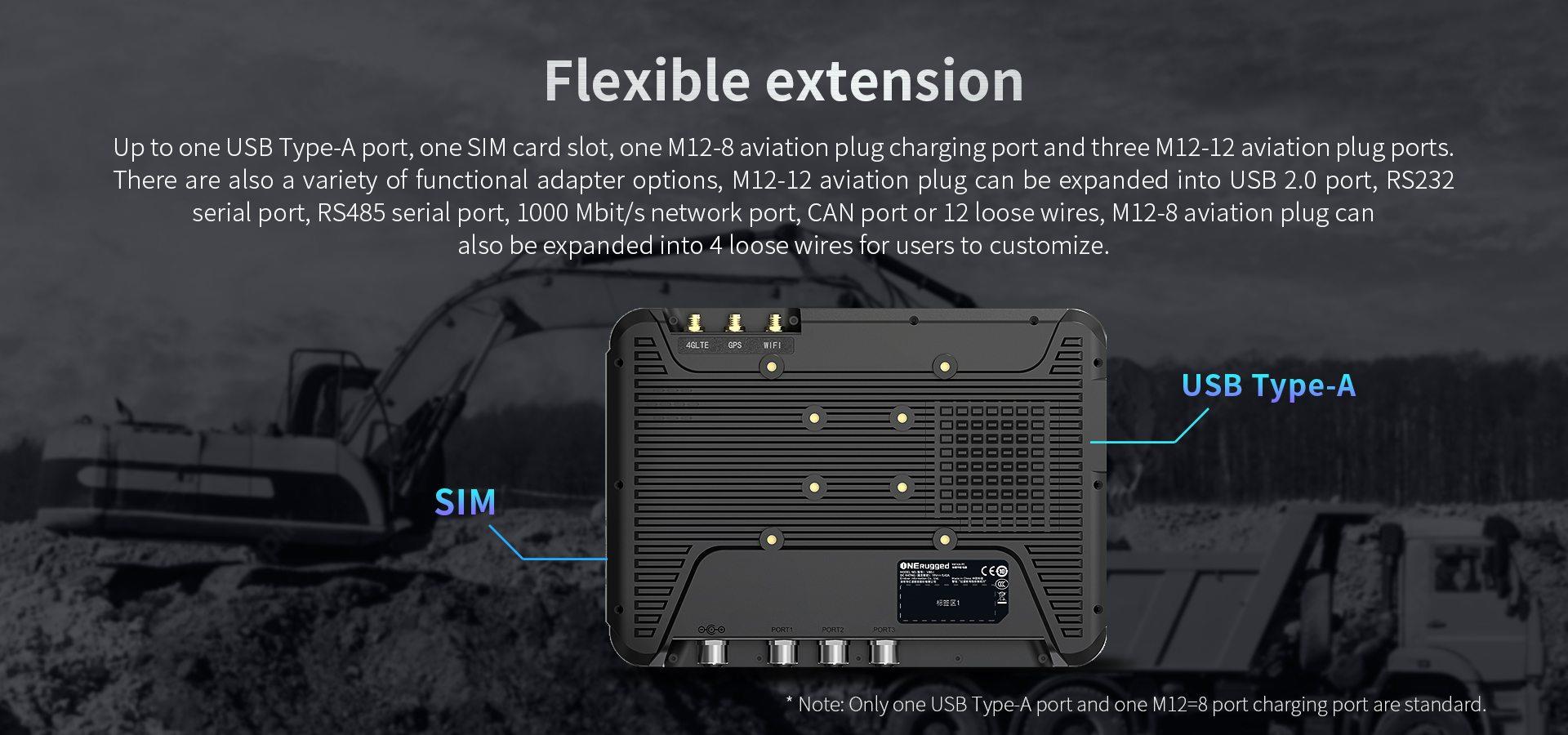

Flexible Extension
Available multiple aviation plug interfaces, and also supports USB/DB9/LAN/CAN and other interface extensions.

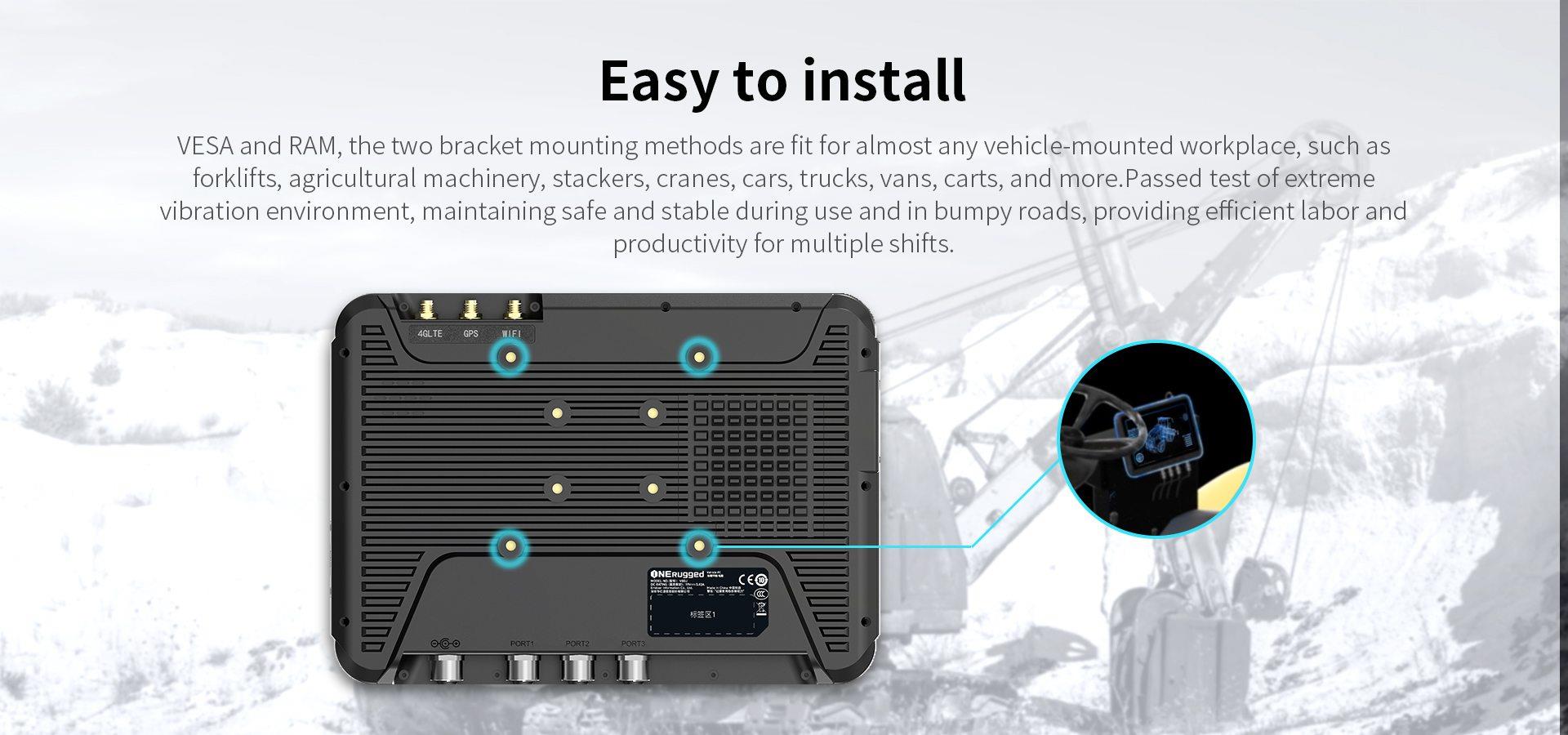

Simple Installation
Two bracket mounting methods, VESA and RAM are suitable for almost any vehicle-mounted workplaces.
Enhanced Robustness
IP65 dustproof and waterproof, morphed to endure outdoor applications prone with shock, vibration and extreme temperature.








Specifications
Appearance
Dimensions
218.1 × 154.5 × 23.0 mm
Weight
620g
Product Color
Black
Display
Size: 8 inch 16:10, Resolution: 800*1280 IPS, Brightness: 1000cd/㎡
Touch Panel
5-point tempered glass capacitive screen G+G, hardness 7H
I/O Interface
SIM card slot (optional) Nano-SIM x 1
Standard USB-A port / Data transmission
DC input (Input: 11~24V),
PORT1 (M12-12) (optional)
1000M network interface,
PORT2 (M12-12) (optional)
RS232 x 1+RS232/RS485 x 1,
PORT3 (M12-12) (optional)
USB 2.0 x 2+USB 2.0 (Default) / CAN x 1
Performance
Processor
Intel® Celeron® Processor N5100
Operating System
Windows 10
Memory+Storage
RAM: 8GB (LPDDR3)
ROM: 128GB (EMMC)
Battery (optional)
Built in polymer lithium ion battery, 1000mAh/7.4V
RTC Battery
Built in RTC battery
Power adapter
12V4A DC diameter 5.5 mm power adapter
Wireless
WiFi
802.11 (a/b/g/n/ac), 2.4G+5.8G dual frequency
Standard WiFi rod antenna
WAN (optional)
4G
Optional 4G rod antenna
Bluetooth
Bluetooth 5.0
GNSS
Built in, Ublox 7 supports GPS, GLONASS
NFC (optional)
Support
Ruggedness
IP Ratings
IP65
Temperature
Working temperature: -20 °C to 60 °C
Storage temperature: -30 °C to 70 °C
ESD Protection
±15kV air discharge
±8kV contact discharge
Accessories
Standard
WIFI rod antenna
GPS rod antenna
Power adapter cable (M12-8 power port to diameter 5.5 mm power port, suitable for cigarette lighter)
Optional
Nano-SIM x 1
USB 3.0 x 1, USB A port, HOST data transmission
DC input (Input: 11~24V),
PORT1 (M12-12) (optional)
1000M network interface,
PORT2 (M12-12) (optional)
RS232 x 1+RS232/RS485 x 1,
PORT3 (M12-12) (optional)
USB 2.0 x 1+USB 2.0 (Default) / CAN x 1+CVBS x 1
