Winmate E500RM8 Android 7.0 for Tait Only 5" Rugged Tablet 1280 x 720 Panel with Projected Capacitive Multi-touch, Water and dust proof IP65 design, Custom Android boot splash screen with Tait logo, Airplane mode enabled
Out of stock
Winmate E500RM8 Android 7.0 for Tait Only 5" Rugged Tablet 1280 x 720 Panel with Projected Capacitive Multi-touch, Water and dust proof IP65 design, Custom Android boot splash screen with Tait logo, Airplane mode enabled
- Brand: Winmate
- MPN: E500RM8-4E
- Part #: TABWMAE500
- UPC:
- Brand: Winmate
- MPN: E500RM8-4E
- Part #: TABWMAE500
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular PDAs
Winmate E500RM8 Android 7.0 for Tait Only 5" Rugged Tablet 1280 x 720 Panel with Projected Capacitive Multi-touch, Water and dust proof IP65 design, Custom Android boot splash screen with Tait logo, Airplane mode enabled
- Brand: Winmate
- MPN: E500RM8-4E
- Part #: TABWMAE500
Product URL: https://www.pbtech.co.nz/product/TABWMAE500
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
- Built-in Wi-Fi/ Bluetooth 4.0/ GPS / LTE
- Built-in 2 MP camera at front side and 8 MP camera with LED at the rear side
- Supports NFC Function
- Water and dust proof IP65 design
- Compliant with MIL-STD-810G for High/Low temperature, Vibration, Drop test
- Supports Android 7.0 operating system
- 3900 mAh full-day battery with removable design
- Optional Smart Card, and Fingerprint Reader
Specifications
Display Specifications
Size
5"
Brightness
500 nits(typ.)
Resolution
1280 x 720
Contrast Ratio
800:1 (typ.)
Touch
Projected Capacitive Multi-touch
Sensors
Light Sensor, Proximity Sensor, G-sensor, Digital Compass
System Specification
Processor
ARM® Cortex™-A53 Octa-core 1.3GHz
Memory
2GB SDRAM
Storage
16GB eMMC
Audio
2 x Built-in Mic, 1 x Earphone, 1 x 1.2W Speaker
Wireless Communication
WLAN
802.11 a/b/g/n
Bluetooth
Bluetooth 4.0
WWAN
GSM/GPRS/EDGE, b2/b3/b5/b8 WCDMA/HSDAP/HSPUA, b1/b2/b4/b5/b8 FDD-LTE / TDD-LTE, b1/b3/b4/b7/b8/b20/b38/b39/b40/b41
GPS
GPS / AGPS / GLONASS
I/O Connectors
External I/O

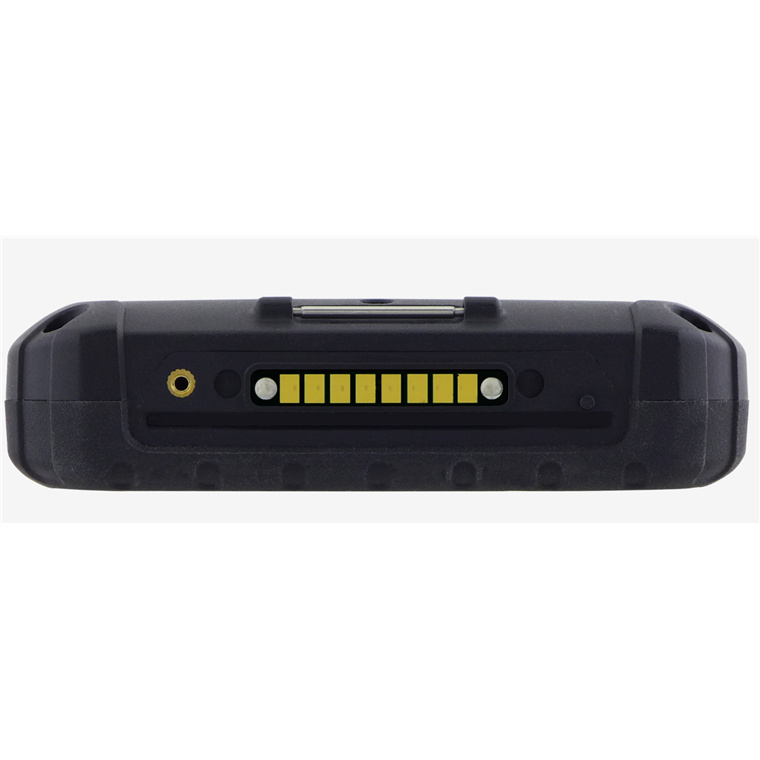

2 x SIM card slot, 1 x Micro SD card slot, 1 x Micro USB, 1x Power Jack, 1 x Docking Connector
In front Control
Control Button
1 x Volume - +, 1 x Power button, 2 x Function button 4 x Front Key
LED indicator
1 x LED indicator
Mechanical and Environment
Dimensions
(W x L x H) 85.9 x 163.2 x 22.5 mm
Net Weight (kg)
0.315
Operating Temperature
-10 to 50 C (Battery Mode)
IP Proof
IP65
Certifications
CE, FCC, CCC
Shock
MIL-STD-810G Method 516.6 Procedure I
Vibration
MIL-STD-810G Method 514.6 Procedure I
Drop
MIL-STD-810G Method 516.6, 4 ft, Free to concrete
Power Management
Battery

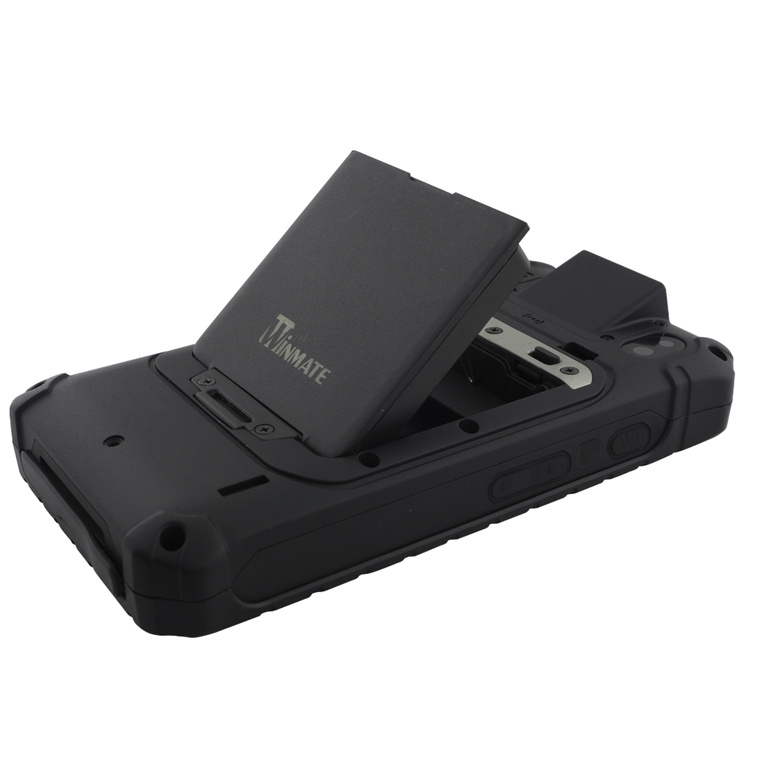

3.7V 3900mAh Li-ion removable battery
Adapter
5V 2A Adapter
Battery
Operating Time 20 hrs **
Product Specification
OS
Android 7.0
Smart Card Reader
ISO 7816 part 1,2,3 (Optional)
NFC
Default NFC (Read / Write, Peer to Peer mode)
Camera
Rear: 8 MP Camera with LED auxiliary light (Auto Focus)
Front: 2 MP Camera (Either one with Barcode Reader)
Fingerprint Reader
Fingerprint Reader (Optional)
