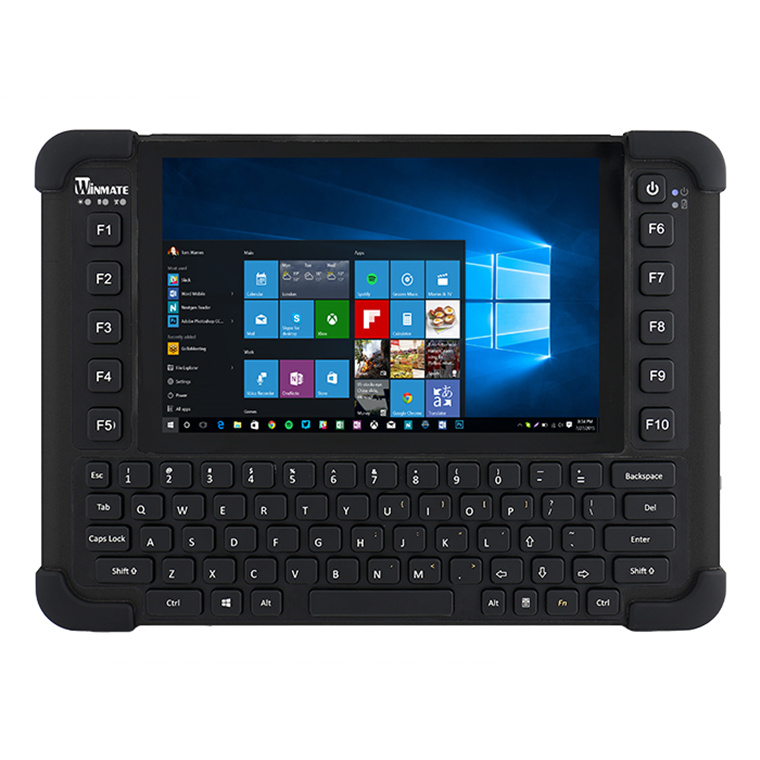

Winmate M101BK 4G 64GB Win10 IoT 8" Rugged Tablet WIFI with Keyboard, Long battery life with Intel BayTrail-M processor, 1920x1200 IPS with P-Cap Touch , 5MP auto-focus camera, Water and dust proof IP65 design

Winmate M101BK 4G 64GB Win10 IoT 8" Rugged Tablet WIFI with Keyboard, Long battery life with Intel BayTrail-M processor, 1920x1200 IPS with P-Cap Touch , 5MP auto-focus camera, Water and dust proof IP65 design
PB Tech price: PB Tech price:
$3,000 00  +GST $3,450 00  inc GST

Generating Print Page
Home Computers & Tablets Industrial PCs & IoT Winmate M101BK 4G 64GB Win10 IoT 8"...
Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

Winmate M101BK 4G 64GB Win10 IoT 8" Rugged Tablet WIFI with Keyboard, Long battery life with Intel BayTrail-M processor, 1920x1200 IPS with P-Cap Touch , 5MP auto-focus camera, Water and dust proof IP65 design

Part #: TABWMAM101BK
PB Tech price: PB Tech price:
$3,000 00 $3,450 00
 +GST  inc GST
Hurry, only 1 unit left!


Click & Collect: Click & Collect unavailable
Delivery: Order now and it ships today When will I receive it?

Pay only $730.70 and then 25 easy payments of $116.22 per fortnight*

humm lets you spread the cost of your purchase over 26 interest free payments.

Click the button below or select humm as your payment method during the checkout process.

If you do not have a humm account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about humm

Finance from $30.25 per week*

Get what you want at a price you can afford. Choose a finance term below to see the weekly repayment amount and apply online during checkout or in-store.

Choose a Finance Term

*Repayments shown above are indicitive only and may vary. Ts and Cs and lending criteria apply.
Learn more about Finance Now

24 months interest FREE available*

Q Card / Mastercard is your perfect shopping partner, combining the benefits of a credit card with the added ability to access a range of interest-free deals and payment holidays.

Learn more about Q Mastercard, apply online for one now, or email [email protected] to chat with our finance team.

*Ts and Cs and lending criteria apply.
Learn more about Q Card

Features

M101BK is a 8" rugged Tablet with a robust with robust set of features designed to withstand industrial use while providing high tech solutions that increase productivity, improve safety, and reduce operational costs.

The processing power comes from Intel's quad core N2930 Bay Tail-M processor paired with genuine Intel graphics for high performance. The tablet features a brilliant, in-plane switching with direct optical bonding, projective capacitive touch screen, which is outdoor viewable and offers 1280 x 800 pixel resolution. Additionally, the tablet features QWERTY keypad and many function keys to easy data input. Weighing at just 2.97 pounds the M101BK delivers lightweight mobility in a rugged tablet.

- 8" 1280x800 Wide Viewing Angle with P-Cap Touch
- Long battery life with Intel® BayTrail-M processor
- IP65 water and dust proof
- 5MP auto-focus camera
- ISO/IEC 9995-3 QWERTY Keypad
- MIL-STD-810G compliant
- Built-in 802.11 a/b/g/n/ac WiFi + Bluetooth 4.0 combo odule
- Optional WWAN module
- Optional 1D/2D Barcode Reader and HF/UHF RFID Reader

Mobile Rugged Design

M101BK is designed for mobile rugged use, withstanding shock, vibration and drop (satisfies 4 feet drop certification), and can be operated in wide temperature of -20°C to 60°C, allowing the tablet to be used in harsh environments such as industrial and military use. With IP65 rating, the device is dust tight, and can withstand water jet against the device enclosure.

Multi-touch Projected Capacitive Touch

The minimum 10-point Multi-touch Projected Capacitive Touch technology allows users to switch windows, take snapshots, zoom in and rotate easily to take full advance of tablet's interface.

QWERTY Keypad

Along with the multi-touch display M101BK features waterproof ISO/IEC 9995-3 QWERTY keypad with LED backlight and 10 programmable function keys for easy data input in the field when touch is not convenient to use. The keypad adds a lot of practicality particularly to those who have to type a lot.

Real-Time Data Connectivity

Real-time data access to the right information is very important to mobile users. M101BK offers and optional LTE, GPS, WiFi 802.11 a/b/g/n/ac, Bluetooth 4.0 which enable users to get connect in the way that best suits their needs. With built-in 5MP camera on rear side users can capture photos, videos instantly.

Specifications

Display Specifications

Size

8"

Brightness

500 (typ.)

Resolution

1280x800

Contrast Ratio

800:1

Touch

Multi-Touch Projected Capacitive, withstands repetitive typing, and scratch resistant throughout its life span

Panel Viewability

Optical Bonding for Sunlight Viewability

System Specification

Processor

Intel® Celeron® Quad Core N2930 1.83 GHz

Memory

4GB SODIMM DDR3L-1600 (Up to 8 GB)

LAN Controller

Compliant with the 1 Gb/s Ethernet 802.3 specifications

Storage

64GB m.2 SATA SSD (Up to 256GB)

Wireless Communication

WLAN

802.11 a/b/g/n/ac

Bluetooth

Bluetooth 4.0 Dual Mode (Classic + Low Energy)

WWAN

Optional 4G/ LTE

GPS

GPS, Galileo

I/O Connectors

Audio

2 x Stereo Speaker (80 db output)

External I/O

1 x USB 3.0
1 x Power Jack
1 x Micro SD Slot
1 x 3.5mm Audio Combo Conn. (Mic in or Line Out)
1 x Micro HDMI
1 x Expansion Connector for USB 2.0 / Full RS232 (Optional)

In front Control

Control Button

Physical Keyboard: ISO/IEC 9995-3 QWERTY Keypad , IP65 water and dust proof, with LED backlight (keypad dimensions : min. 10x10mm)
Physical Buttons: 1 x Power, 10 x Function Keys

LED indicator

Power, Battery, HDD, RF

Mechanical and Environment

Dimensions (W x L x H)

71.8 x 198.2 x 22 mm (10.7 x 7.80 x 0.87 inches)

Net Weight (kg)

1.35 kg (3 lbs)

Operating Temperature

AC Mode: -20°C to 60°C (-4°F to 140°F), Battery Mode: 0°C to 50°C (32°F to 122°F), MIL-STD 810G Method 501.5 Procedures II, Method 502.5 Procedures II

Storage Temperature

MIL-STD 810G Method 501.5 Procedures I, Method 502.5 Procedures I-30°C to 70°C (-22°F to 158°F),

IP Proof

IP65 certified, dustproof and waterproof

Operating Humidity

10% to 90% RH, non-condensing
MIL-STD 810G Method 507.5 Procedures I

Certifications

CE, FCC

Shock

MIL-STD-810G Method 516.6 Procedure I

Vibration

MIL-STD-810G Method 514.6 Procedure I

Drop

MIL-STD-810G Method 516.6, 4 ft to concrete*

Power Management

Power Input

19V DC

Battery

Standard: 7.4V, typ. 5140 mAh Li-Polymer Battery (2S1P)
High Capacity: 7.4V, typ. 10280 mAh Li-Polymer Battery (2S2P,optional)

Adapter

100-240V, 50-60Hz / 19V DC, compliant with the BS546, BS 546A, SANS 164-1, SABS 164-1 and IA16A3 standards

Battery Operating Time Std. Battery:

Operating Time Std. Battery: 6 hours

High Capacity Battery:

12 hours(tested with MobileMark 2007)

Accessories

Accessories List

AC Adapter, Capacitive Stylus, Standard Battery

Accessories Options

Desk Dock, Vehicle Dock, Vehicle Cradle, Battery Charger, High Capacity Battery, Hand Strap

Product Specification

OS

Windows 10 IoT Enterprise
Windows 7 Pro for Embedded Systems

Data Capture

Optional 1D/2D Barcode Reader
Optional HF RFID Reader
Optional UHF RFID Reader
Optional Smart Card Reader

Camera

5MP auto-focus camera with LED flash at rear

Security

Security

Password security for user and hard disk lock
Trusted platform module (TPM) V2.0
Kensington Lock

Datasheet

http://download.winmate.com.tw/$Productfile/TabletPC/13_0256/M101BK.pdf

User Guide

https://dc.winmate.com.tw/ProductDownFile/TabletPC/9171101K100G_M101BK_Windows_Tablet_PC_User_Manual_V110.pdf

Manufacturer Part No:
M101BK
Brand:
Product Type:
8" Rugged Tablet WIFI
UPC
-
Product Family:
M101BK
Shipping Weight:
2.15 kg
PB Part No:
TABWMAM101BK
Product Model:
4G 64GB Win10 IoT
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
