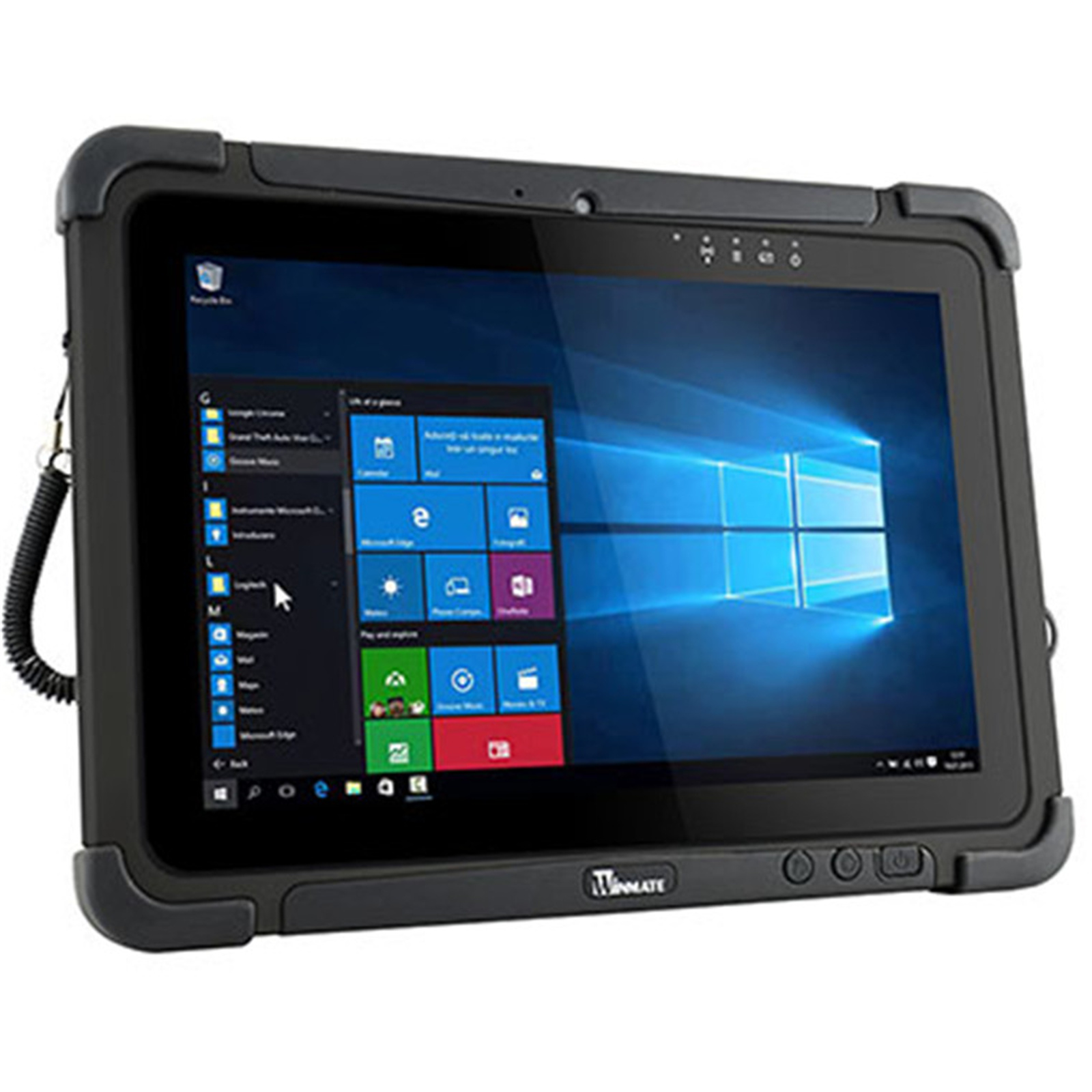

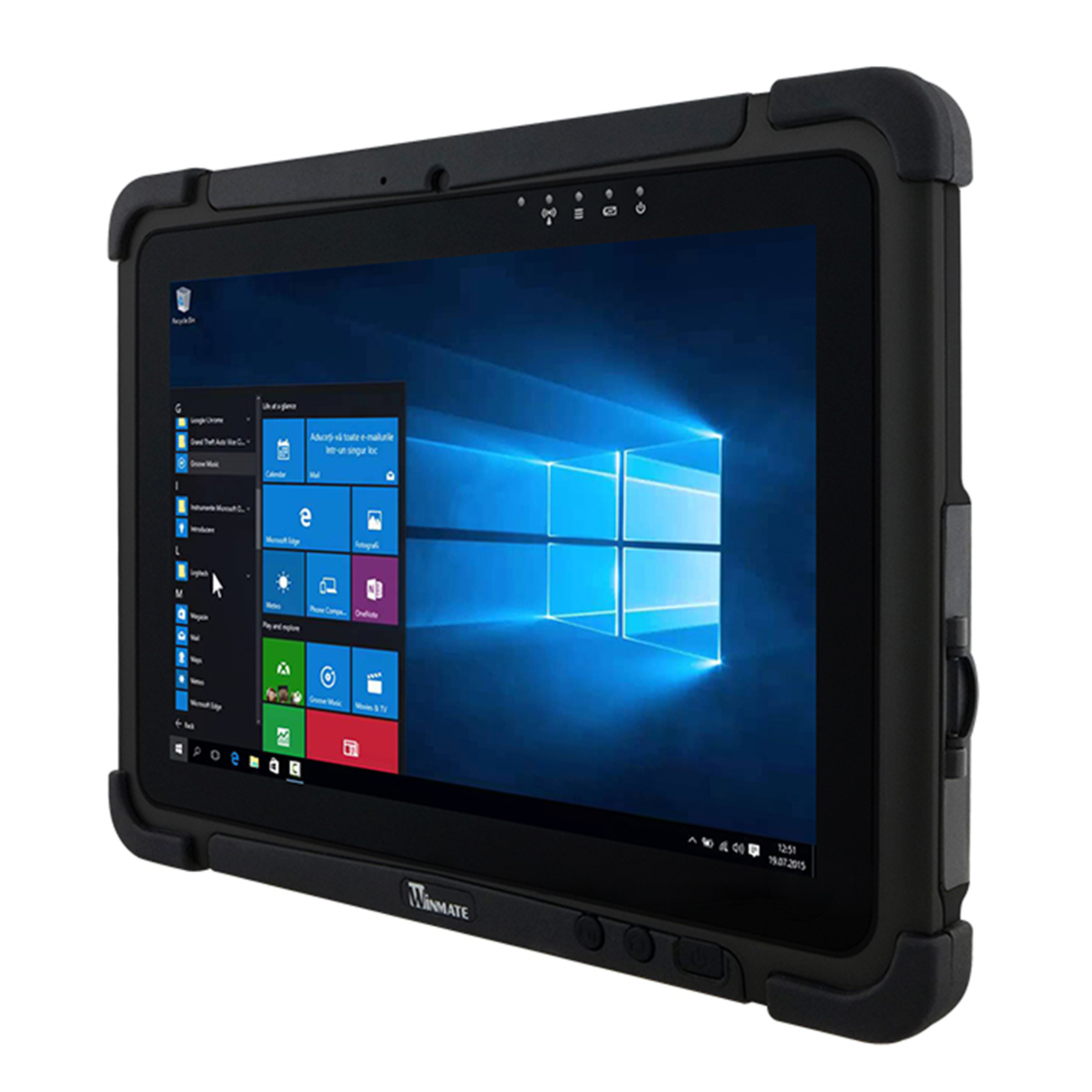

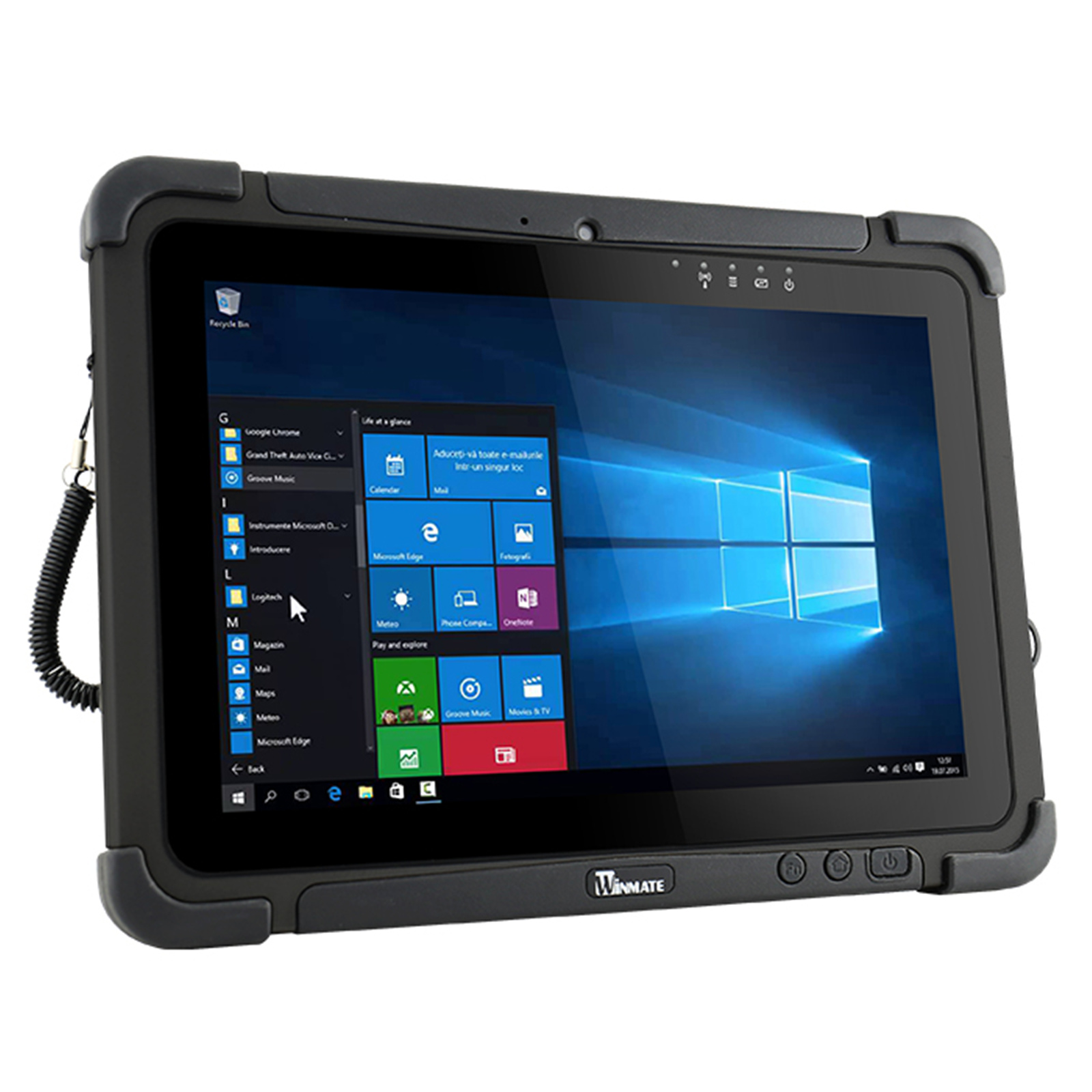

Winmate M101S 8GB 128GB Win10IoT 10.1" Rugged Tablet Intel Core i5 7200U 2.5Hz,1920x1200 PCAP Touch Panel, IP65, WiFi/BT/GPS, Hot-Swappable Battery Design, Dual Camera Design: 8MP Main camera / 2MP Webcam, Powerful performance

PB Tech price
PB Tech price
$ 4,016 .00
 +GST
$ 4,618 .40
 inc GST

Out of stock

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

Winmate M101S 8GB 128GB Win10IoT 10.1" Rugged Tablet Intel Core i5 7200U 2.5Hz,1920x1200 PCAP Touch Panel, IP65, WiFi/BT/GPS, Hot-Swappable Battery Design, Dual Camera Design: 8MP Main camera / 2MP Webcam, Powerful performance

  • Brand: Winmate
  • MPN: M101S8G
  • Part #: TABWMAM101S8G
  • UPC:
PB Tech price
$ 4,016 .00 $ 4,618 .40
 +GST  inc GST

No store stock available.

Click & Collect: Collect unavailable
Delivery: Out of stock

Features

10" Rugged Tablet

Key Features

- 10.1" 1920x1200 IPS LED Panel with P-Cap Touch
- Powerful performance with Intel® Core i5 Kaby Lake Processor
- IP65 water and dust proof
- Optional Barcode or RFID Reader
- Dual Camera Design: 8MP Main camera / 2MP Webcam
- Hot-Swappable Battery Design / Optional high capacity battery pack
- 2 Programmable function keys
- With Optical Bonding for Sunlight Readability









Specifications

Display Specifications

Size

10.1"

Brightness

800 nits(typ.)

Resolution

1920 x 1200 WUXGA

Contrast Ratio

800:1

Touch

Multi-Touch Projected Capacitive Touchscreen

Viewing Angle

85/85/85/85

Panel Viewability

Optical Bonding for Sunlight Viewability

System Specification

Processor

Intel Core i5-7200U Kaby lake 2.5GHz (turbo to 3.1GHz)

BIOS

AMI System BIOS

Memory

8GB DDR4 SDRAM (up to 8GB)

Storage

128GB solid state drive (SSD)Optional up to 512GB, up to 128GB additional storage with optional microSDXC card slot

Audio

1 x Built-in Mic with Noise Cancellation, 2 x 1W Speaker

Wireless Communication

WLAN

802.11 a/b/g/n/ac

Bluetooth

Bluetooth 5.0

WWAN

Optional 4G (LTE,HSPA+,GSM/GPRS/EDGE,EV-DO Rev A, 1xRTT) or optional 3G (HSPA+,GSM/GPRS/EDGE)

GPS

GPS, GLONASS

I/O Connectors

Right I/O Connectors

1 x Micro HDMI
1 x USB 3.0(Type A)
1 x USB 3.0 (Type C)
1 x Audio Combo connector (Mic in or Line Out)
1 x DC jack
1 x Micro SD Slot

Downside I/O Connectors

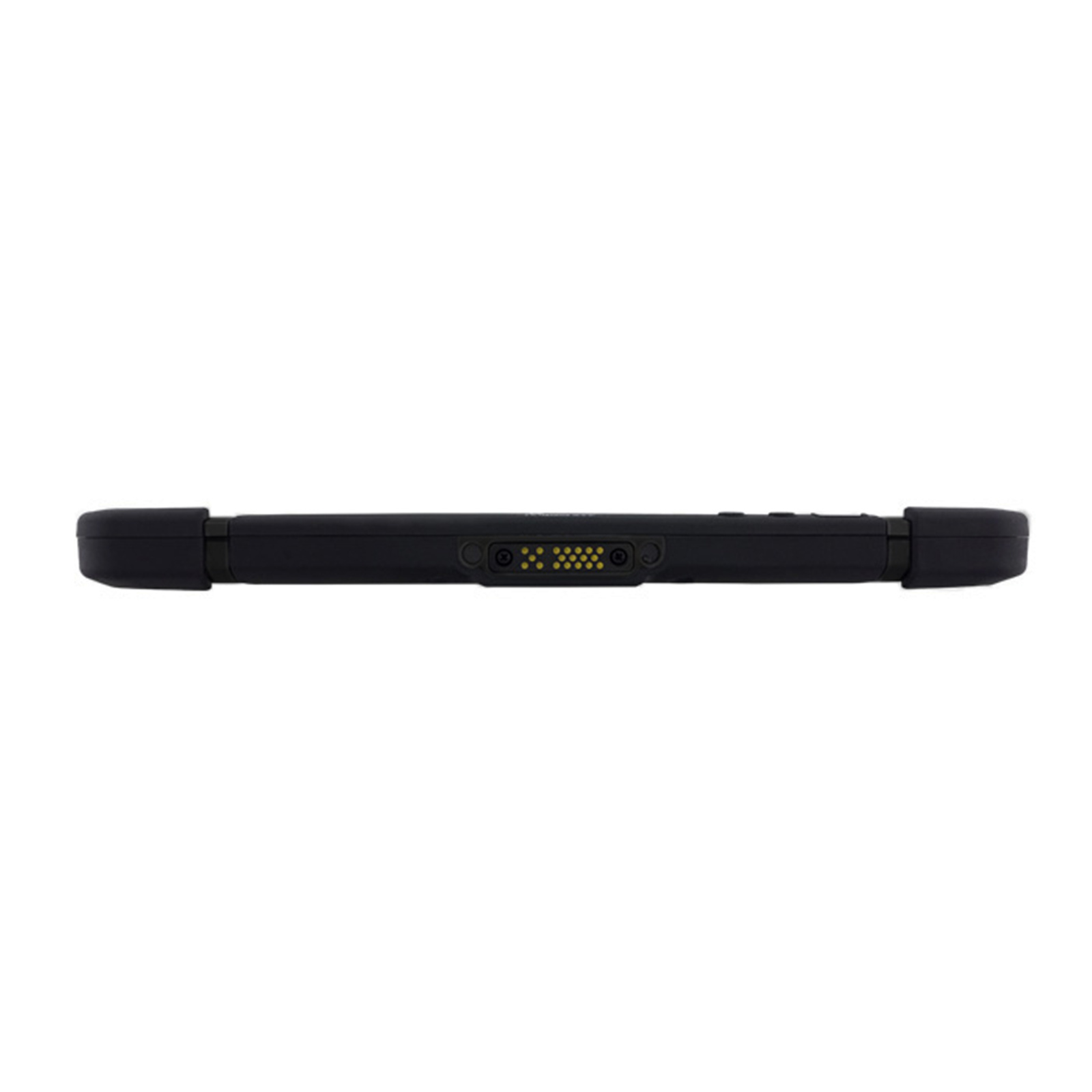

 1 x Docking Connector

In front Control

Control Button

1 x Power,
1 x Home (Win-set application),
2 x Programmable Function Key (Programmable function key configured by Hottab Utility)
(One for Barcode trigger key when with Barcode),
2 x Adjusting key for Volume or Brightness

LED indicator

Power, Battery, HDD Access, RF

Mechanical and Environment

Dimensions (W x L x H)

271.8 x 197.2 x 21 mm (10.7 x 7.76 x 0.83 inches)

Net Weight (kg)

1.25 kg (2.75 lbs) with standard battery, 1.4 kg (3.2 lbs) with optional high capacity battery

Operating Temperature

-20°C to 60°C (AC mode), -10°C to 50°C (Battery mode)

Storage Temperature

-30°C to 70°C (-22°F to 158°F)

IP Proof

IP65

Operating Humidity

10% to 90% RH, non-condensing

Certifications

CE, FCC
Microsoft Azure Certified for IoT

Shock

MIL-STD-810G Method 516.6 Procedure I

Vibration

MIL-STD-810G Method 514.6 Procedure I

Drop

MIL-STD-810G Method 516.6, 4 ft to concrete*

Power Management

Power Input

12~19V DC

Battery

7.4V, typ. 5140 mAh Li-Polymer Battery (2S1P)
7.4V, typ. 10280 mAh Li-Polymer Battery (2S2P, Optional)

Adapter

100-240V, 50-60Hz, 19V DC

Battery Operating Time Std. Battery:

8 hours***

High Capacity Battery:

16 hours***

Product Specification

OS

Windows 10 IoT Enterprise (64 bit)

RFID

Optional HF RFID reader 13.56 MHz

Barcode

Optional 1D/2D Barcode Reader

Camera

8MP Camera with Auto-focus and LED Light at rear
2MP Camera at front side

Security

Security

Password security for user and hard disk lock
Trusted platform module (TPM) V2.0
Kensington Lock

Mobile Device Management

SOTI Mobicontrol compatible

Datasheet

http://download.winmate.com.tw/$Productfile/TabletPC/13_0263/M101S.pdf

User Guide

https://dc.winmate.com.tw/ProductDownFile/TabletPC/Rugged_Windows_Tablet_M101S_User_Guide_V110.pdf
