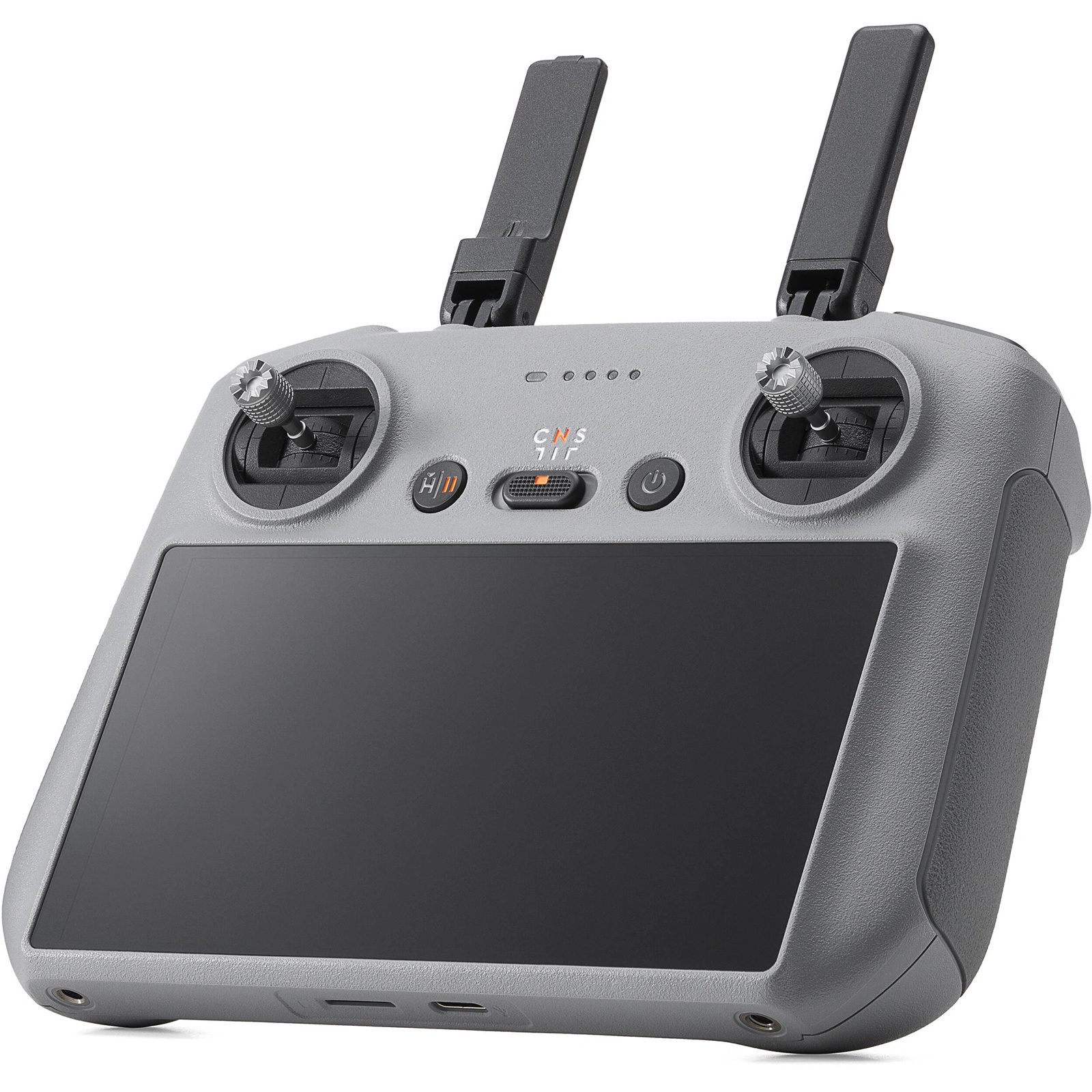

DJI RC 2 Remote Controller
- Brand: DJI
- MPN: CP-RC-00000020
- Part #: TOADJI000020
- UPC: 190021091085
Features

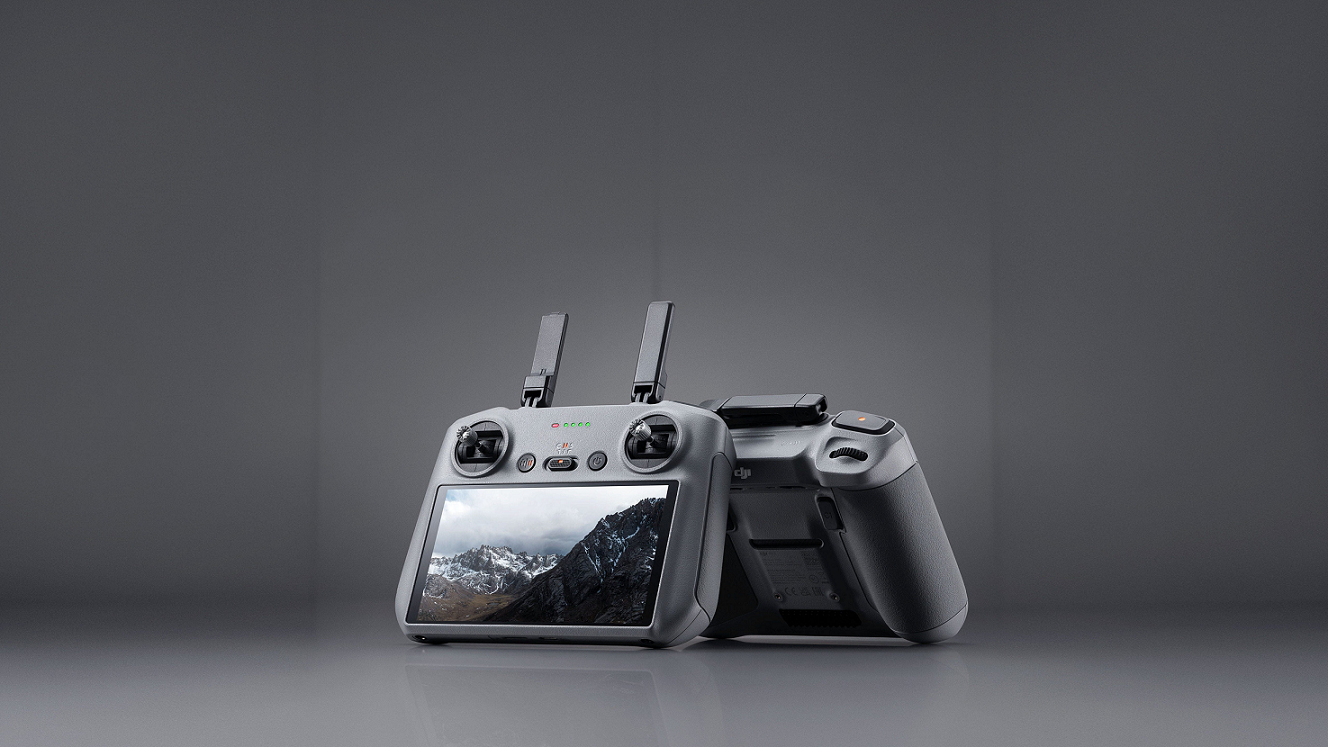

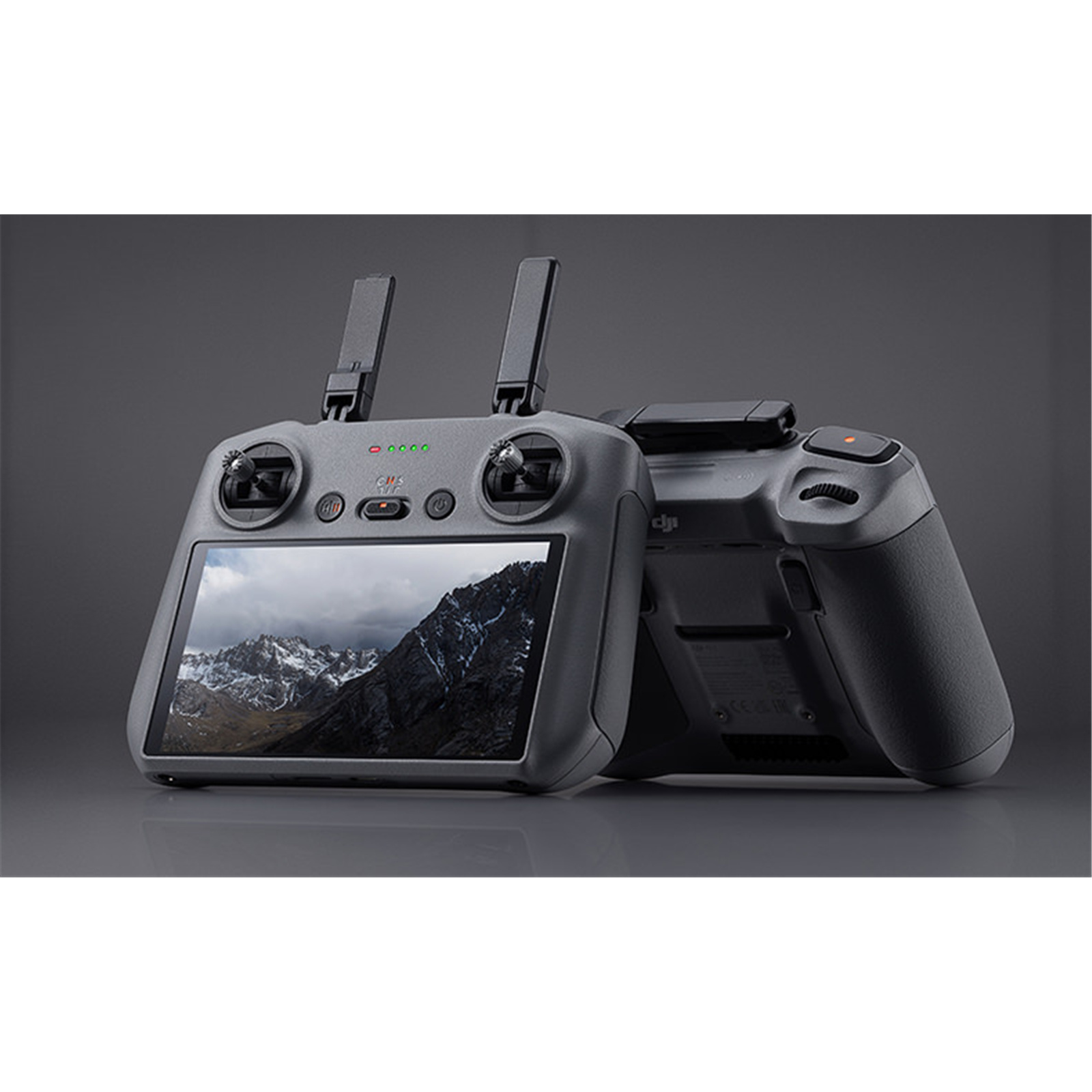

Combining sleek design with outstanding performance, DJI RC 2 is a next-gen camera-drone remote controller that gives pilots advanced control and exceptional convenience. Its lightweight body houses a stunning 5.5-inch FHD display and a new processor. And the new O4 video transmission system provides an extended range with an antenna system comprised of two transmitters and four receivers. Immerse yourself in any creative shot and capture spectacular moments with ease.
Powerful Processor
DJI RC 2 is equipped with a powerful processor that features improved CPU and GPU performance. This ensures ultra-smooth app and system operation, delivering a seamless and intuitive control experience with every flight.
Video Transmission System
The next-gen DJI O4 video transmission technology supports 2.4GHz, 5.1GHz, [1] and 5.8GHz frequency bands, providing DJI RC 2 with enhanced anti-interference capabilities. When paired with drones that are compatible with O4, [2] such as DJI Air 3, DJI RC 2 can achieve crystal-clear, low-latency video transmission within a 20km max range. [3]

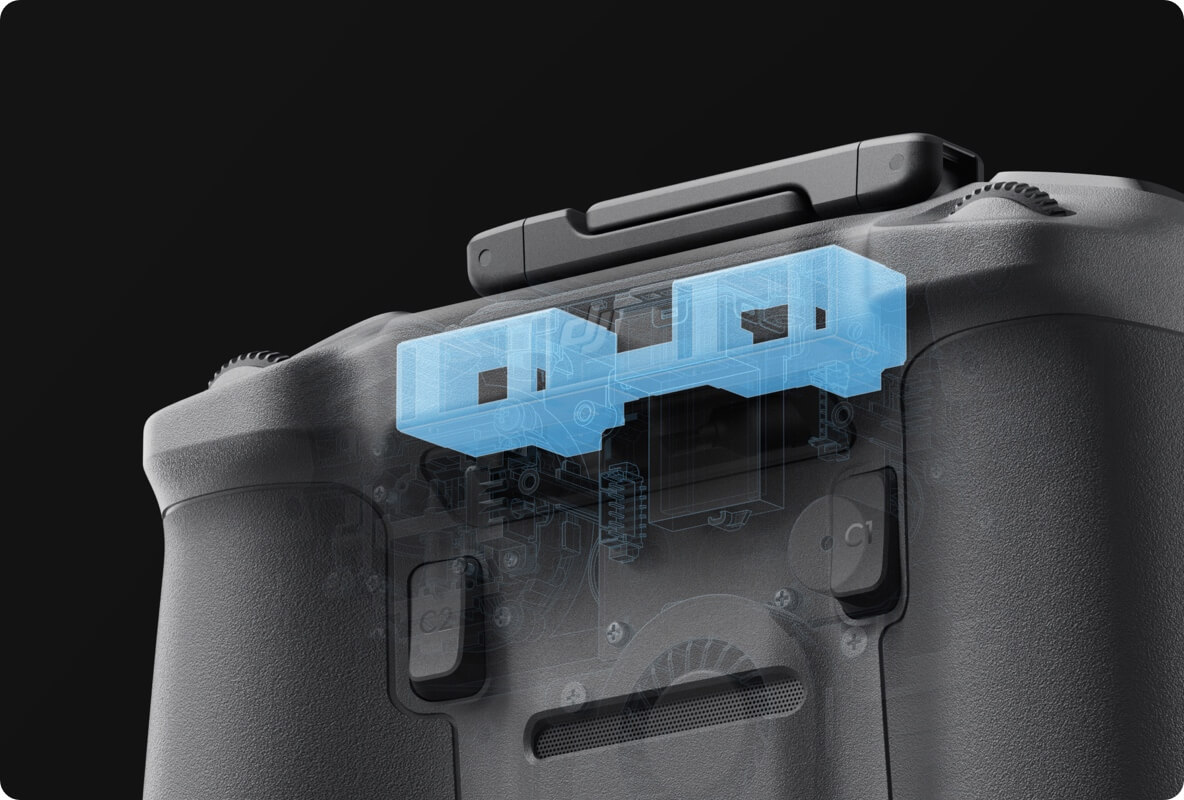

2T4R Antennas
DJI RC 2 integrates two built-in and two external antennas, supporting a dual-transmitter quad-receiver system. This doubles the number of both transmitter and receiver antennas compared to the previous generation RC, enhancing signal strength and further improving transmission performance for smooth control and safer flights.
Exceptional Design

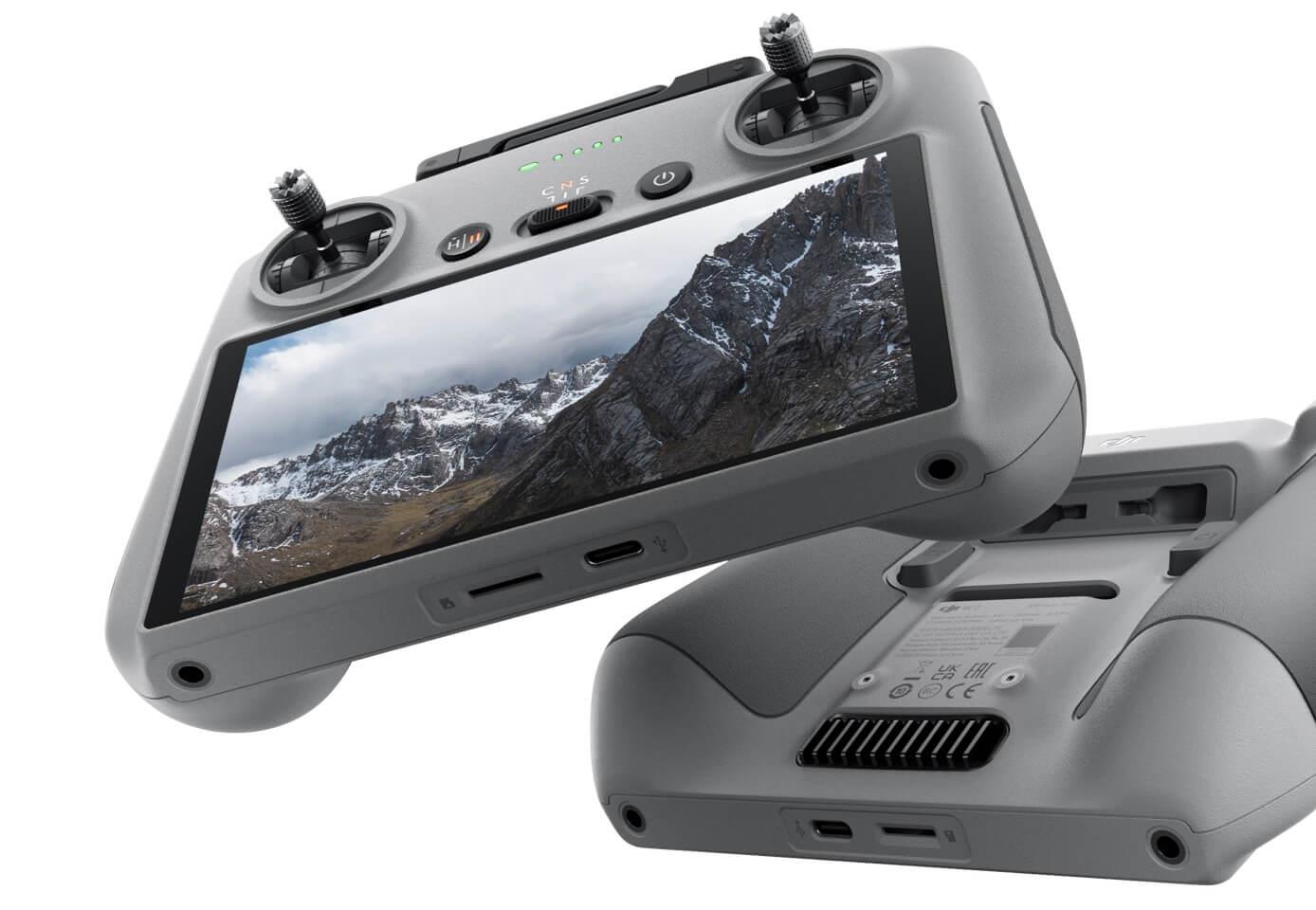

FHD Screen

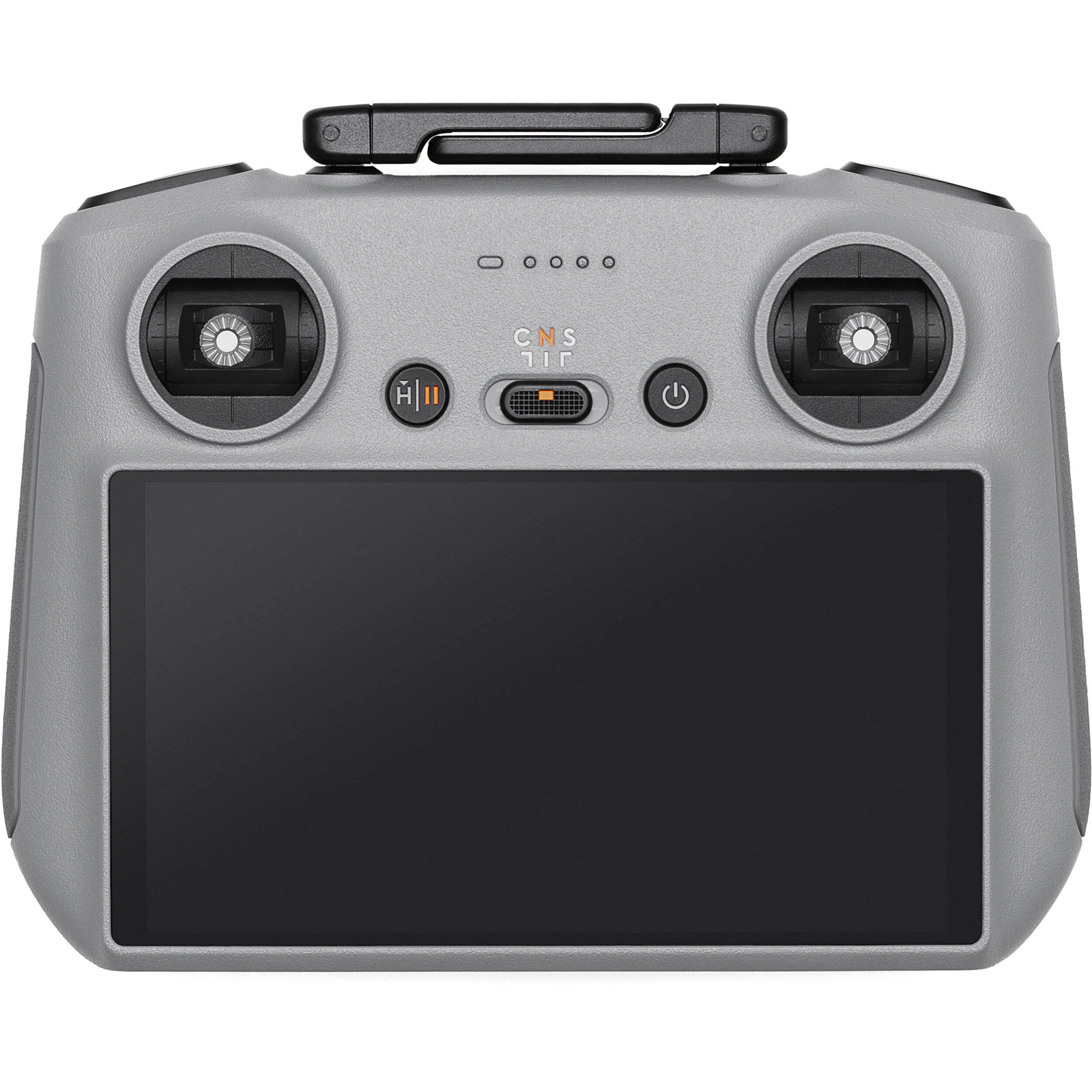

DJI RC 2 features a 5.5-inch 1920 x 1080 built-in FHD display capable of maintaining 700 nits of high brightness.
Storage Capacity
DJI RC 2 comes with 32 GB of built-in storage, [4] allowing for direct screen recording and caching. It also supports microSD card expansion for an additional storage option.
Light and Compact
Even with improved processing and video transmission performance, added antennas, and an active-cooling design, DJI RC 2 weighs just 420 grams. [5] This ensures a comfortable grip and effortless control, especially during extended use.
1. Available for use only in countries or regions where permitted by local laws and regulations.
2. When connecting to other drones, DJI RC 2's video transmission technology will switch to the video transmission specifications used by that drone's technology, and the video transmission distance will also change accordingly. For drone models compatibale with DJI RC 2, please check the Specs page.
3. Measured in an outdoor, open environment, without interference, and with FCC compliance. The above data shows the farthest communication range for one-way, non-return flights. Always pay attention to reminders in the app during your flight.
4. The actual available storage space is approximately 21 GB.
5. Weight measured using a production model DJI RC 2 in a controlled test environment and should be used for reference only.
DJI Warranty Information
Manufacturer's warranty for DJI products may vary depending on the part under question, batteries have 3-6 months manufacturer's warranty while the remote control might have 12 months manufacturer's warranty. More information can be found on the DJI website.
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Drone Controllers & Controller Accessories
DJI Air 3S Fly More Combo (DJI RC-N3)
DJI FPV Remote Controller 3
DJI RC 2 Remote Controller
DJI RC-N3 Controller
DJI RC - Remote control with screen
DJI RC 2 Remote Controller
- Brand: DJI
- MPN: CP-RC-00000020
- Part #: TOADJI000020
- UPC:190021091085
Product URL: https://www.pbtech.co.nz/product/TOADJI000020/DJI-RC-2-Remote-Controller
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Newmarket | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
Combining sleek design with outstanding performance, DJI RC 2 is a next-gen camera-drone remote controller that gives pilots advanced control and exceptional convenience. Its lightweight body houses a stunning 5.5-inch FHD display and a new processor. And the new O4 video transmission system provides an extended range with an antenna system comprised of two transmitters and four receivers. Immerse yourself in any creative shot and capture spectacular moments with ease.
Powerful Processor
DJI RC 2 is equipped with a powerful processor that features improved CPU and GPU performance. This ensures ultra-smooth app and system operation, delivering a seamless and intuitive control experience with every flight.
Video Transmission System
The next-gen DJI O4 video transmission technology supports 2.4GHz, 5.1GHz, [1] and 5.8GHz frequency bands, providing DJI RC 2 with enhanced anti-interference capabilities. When paired with drones that are compatible with O4, [2] such as DJI Air 3, DJI RC 2 can achieve crystal-clear, low-latency video transmission within a 20km max range. [3]
2T4R Antennas
DJI RC 2 integrates two built-in and two external antennas, supporting a dual-transmitter quad-receiver system. This doubles the number of both transmitter and receiver antennas compared to the previous generation RC, enhancing signal strength and further improving transmission performance for smooth control and safer flights.
Exceptional Design
FHD Screen
DJI RC 2 features a 5.5-inch 1920 x 1080 built-in FHD display capable of maintaining 700 nits of high brightness.
Storage Capacity
DJI RC 2 comes with 32 GB of built-in storage, [4] allowing for direct screen recording and caching. It also supports microSD card expansion for an additional storage option.
Light and Compact
Even with improved processing and video transmission performance, added antennas, and an active-cooling design, DJI RC 2 weighs just 420 grams. [5] This ensures a comfortable grip and effortless control, especially during extended use.
1. Available for use only in countries or regions where permitted by local laws and regulations.
2. When connecting to other drones, DJI RC 2's video transmission technology will switch to the video transmission specifications used by that drone's technology, and the video transmission distance will also change accordingly. For drone models compatibale with DJI RC 2, please check the Specs page.
3. Measured in an outdoor, open environment, without interference, and with FCC compliance. The above data shows the farthest communication range for one-way, non-return flights. Always pay attention to reminders in the app during your flight.
4. The actual available storage space is approximately 21 GB.
5. Weight measured using a production model DJI RC 2 in a controlled test environment and should be used for reference only.
DJI Warranty Information
Manufacturer's warranty for DJI products may vary depending on the part under question, batteries have 3-6 months manufacturer's warranty while the remote control might have 12 months manufacturer's warranty. More information can be found on the DJI website.
Specifications
Video Transmission
Operating Frequency
2.4000-2.4835 GHz
5.170-5.250 GHz
5.725-5.850 GHz
Operating frequency allowed varies according to country/region. Please refer to local laws and regulations for more information.
Antenna
4 antennas, 2T4R
Transmitter Power (EIRP)
2.4 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC)
5.1 GHz: <23 dBm (CE)
5.8 GHz: <33 dBm (FCC), <14 dBm (CE), <30 dBm (SRRC)
Wi-Fi
Protocol
802.11 a/b/g/n/ac/ax
Operating Frequency
2.4000-2.4835 GHz
5.150-5.250 GHz
5.725-5.850 GHz
Operating frequency allowed varies according to country/region. Please refer to local laws and regulations for more information.
Transmitter Power (EIRP)
2.4 GHz: <26 dBm (FCC), <20 dBm (CE/SRRC/MIC)
5.1 GHz: < 23 dBm (FCC/CE/SRRC/MIC)
5.8 GHz: <23 dBm (FCC/SRRC), <14 dBm (CE)
Bluetooth
Protocol
Bluetooth 5.2
Operating Frequency
2.400-2.4835 GHz
Transmitter Power (EIRP)
< 10 dBm
Screen
Resolution
1920 x 1080
Dimensions
5.5 inches
Frame Rate
60fps
Brightness
700 nits
Touch Control
10-point multi-touch
General Specs
Battery
18650 Li-ion, 22.32Wh (3.6V, 3100mAh×2)
Charging Type
Supports up to 9V/3A fast charge.
Charging Time
1.5 hours (with 9V/3A charger)
Operating Time
Max 3 hours
Tested in a 25° C (77° F) laboratory environment with DJI RC 2 connected to DJI Air 3 in normal flight status and recording 1080p/60fps video.
Operating Temperature
-10° to 40° C (14° to 104° F)
Storage Temperature
Within one month: -30° to 60° C (-22° to 140° F)
One to three months: -30° to 45° C (-22° to 113° F)
Three to six months: -30° to 35° C (-22° to 95° F)
More than six months: -30° to 25° C (-22° to 77° F)
Charging Temperature
5° to 40° C (41° to 104° F)
Supported Aircraft Models
DJI Mini 4 Pro, DJI Air 3
Will support more DJI aircraft in the future. Visit the official website for the latest information.
Global Navigation Satellite System
GPS + BeiDou + Galileo
Dimensions
Without control sticks: 168.4×132.5×46.2 mm (L×W×H)
With control sticks: 168.4×132.5×62.7 mm (L×W×H)
Weight
Approx. 420 g
Model
RC 2
Storage
Internal Storage Capacity
32GB + expandable storage (with microSD card)
The actual available storage space is approximately 21 GB.
Supported SD Cards
UHS-I Speed Grade 3 rating microSD card or above.
Recommended microSD Cards
SanDisk Extreme PRO 64GB V30 A2 microSDXC
SanDisk High Endurance 64GB V30 microSDXC
Lexar 256GB V30 A2 microSDXC
Samsung EVO 64GB V30 microSDXC
Samsung EVO Plus 128GB V30 microSDXC
Samsung EVO Plus 256GB V30 microSDXC
Kingston 256GB V30 microSDXC
