DJI Goggles Integra
Out of stock
- Brand: DJI
- MPN: CP-FP-00000113
- Part #: TOADJI000113
- UPC: 190021071858
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Drone Accessories

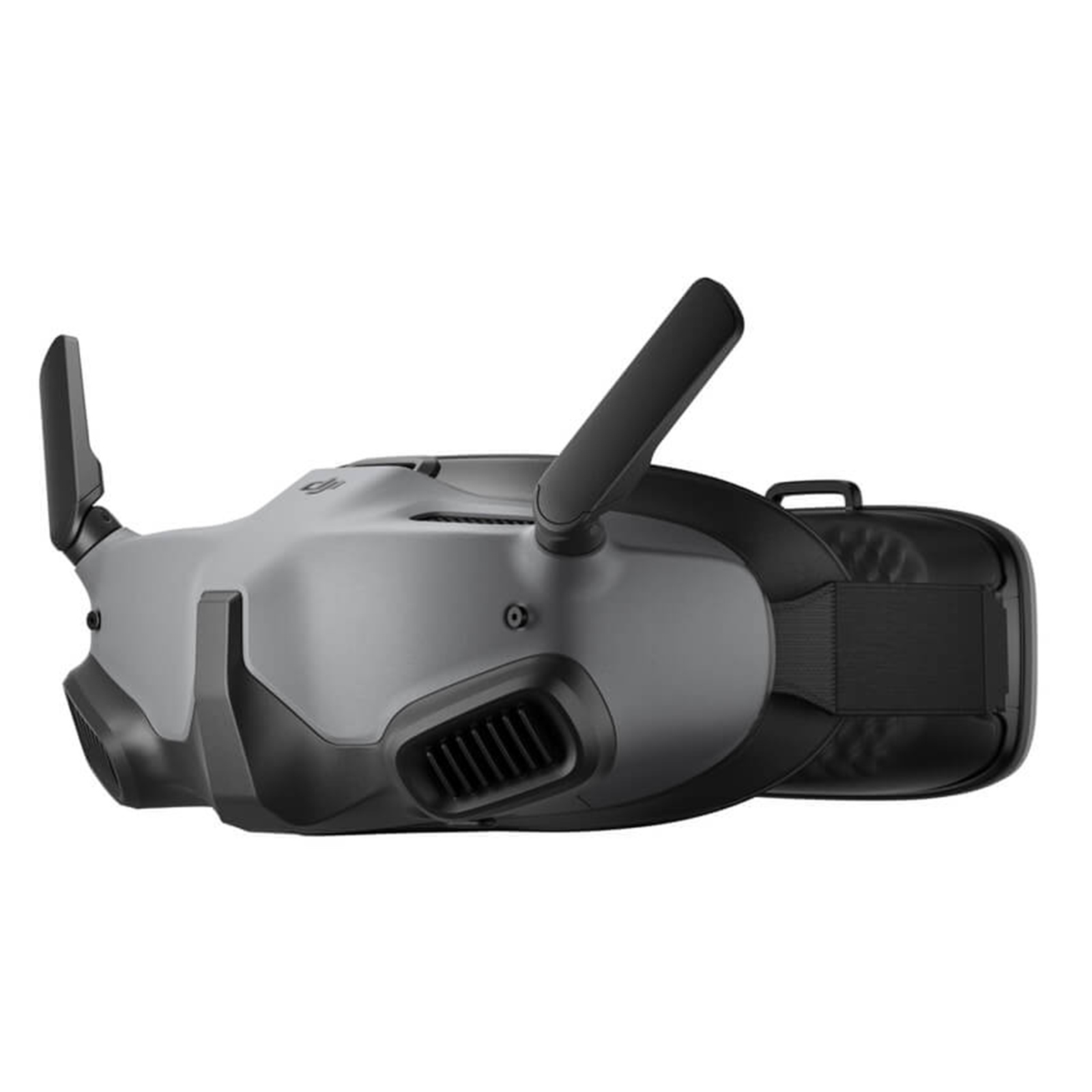

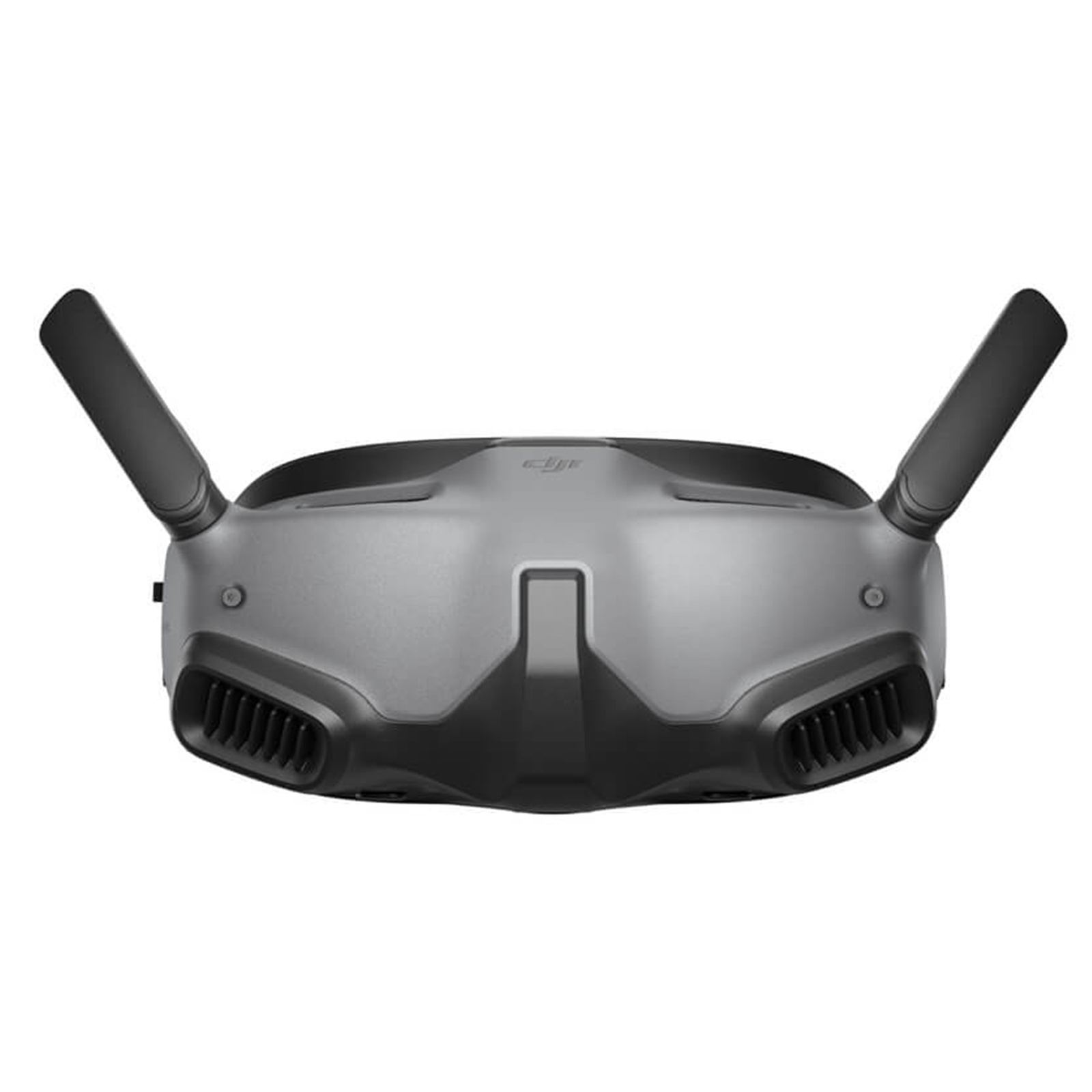

DJI Goggles Integra
- Brand: DJI
- MPN: CP-FP-00000113
- Part #: TOADJI000113
- UPC:190021071858
Product URL: https://www.pbtech.co.nz/product/TOADJI000113/DJI-Goggles-Integra
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
DJI Goggles Integra
Soak up the sky with DJI Goggles Integra and experience immersive, first-person flight.

COMBINED FOR CONVENIENCE

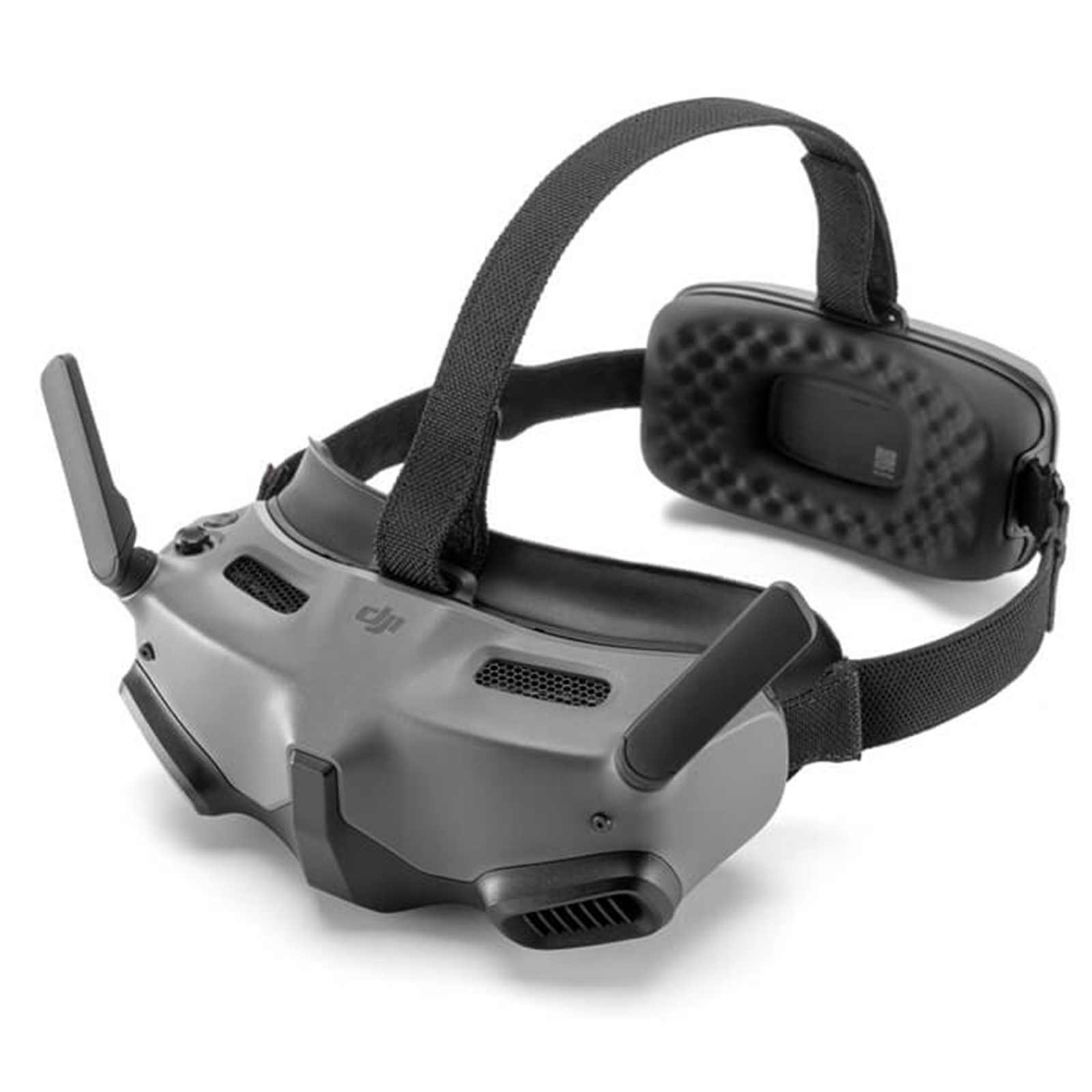

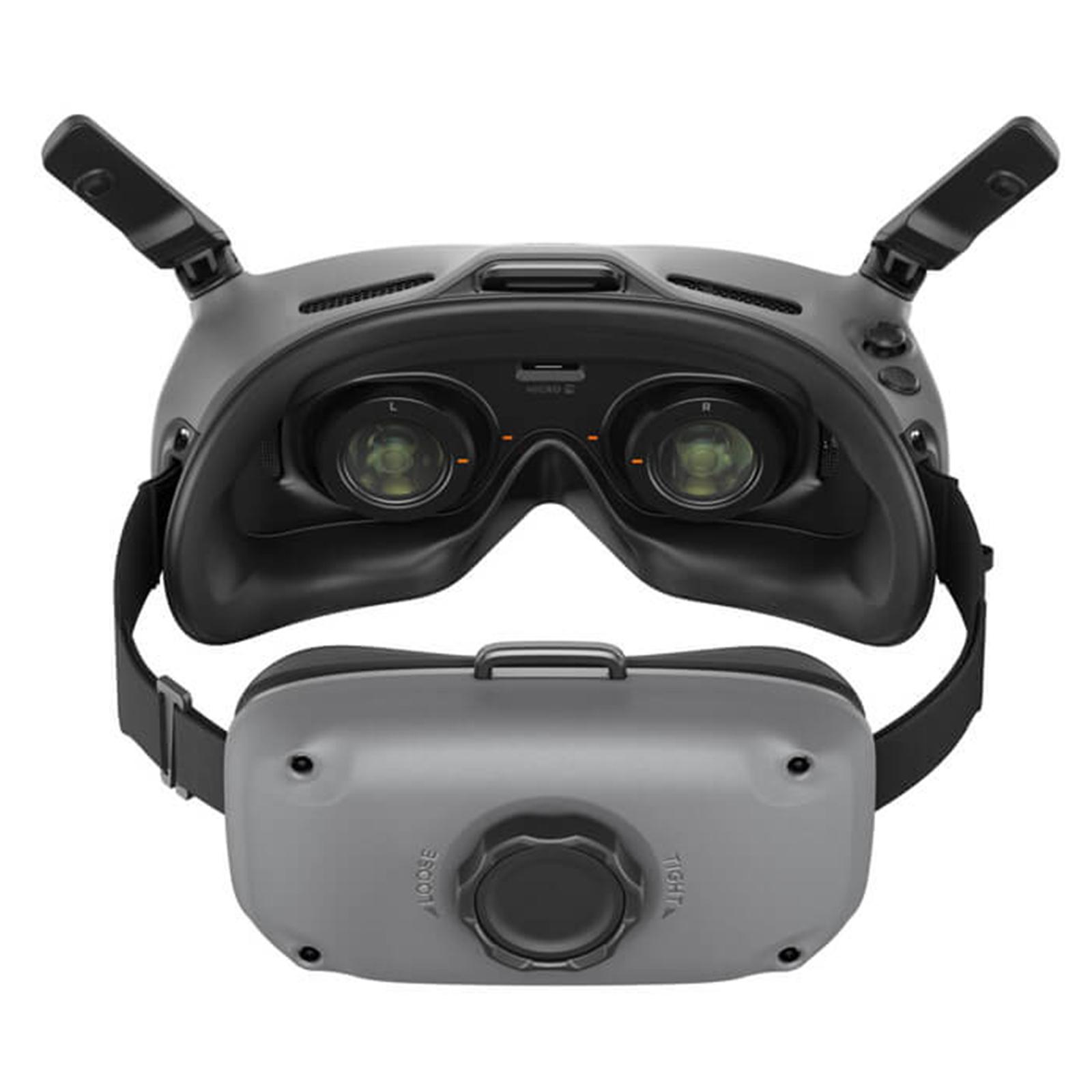

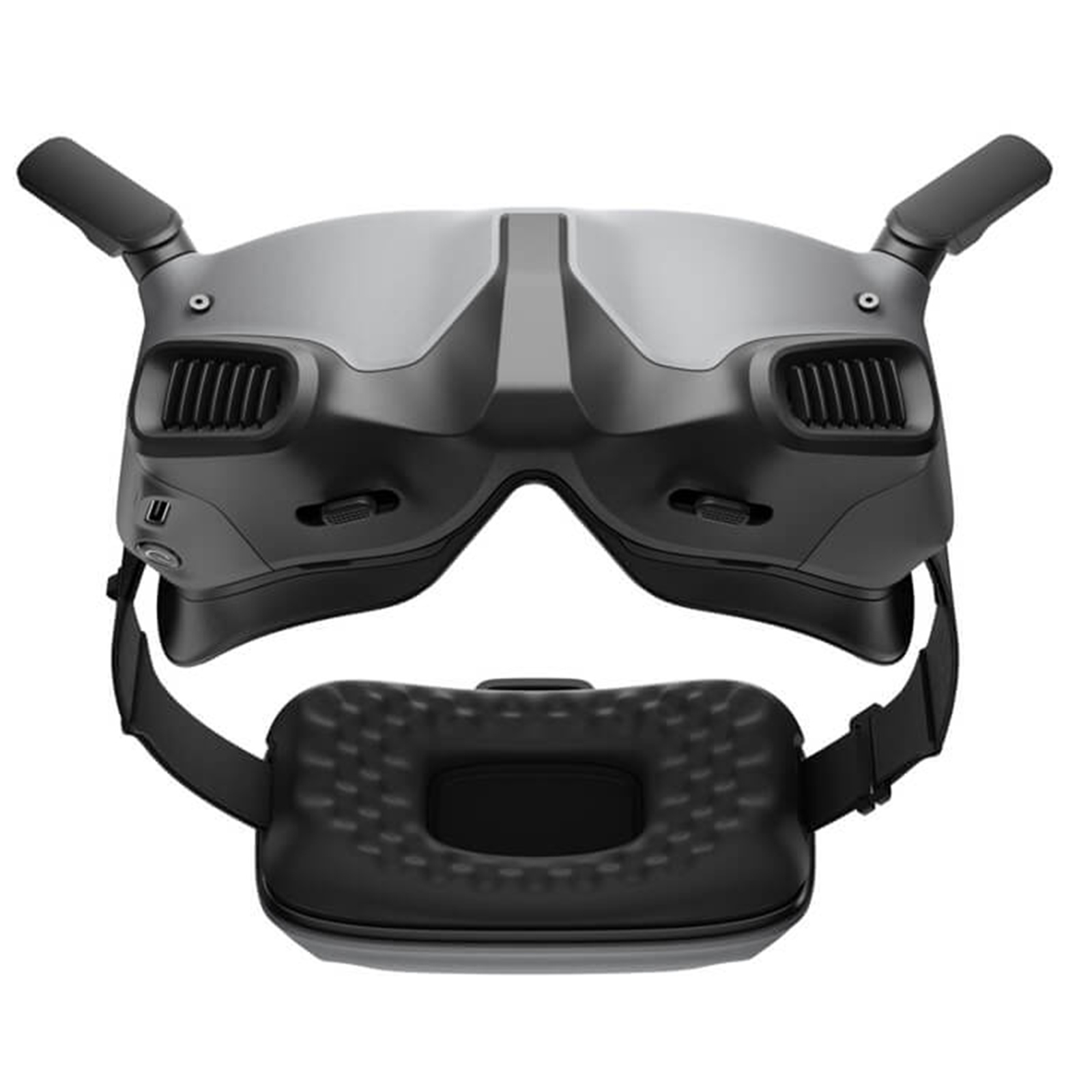

The lightweight DJI Goggles Integra adopts an integrated design that combines headband and battery into one, getting rid of pesky cables and allowing you to effortlessly take the goggles on and off.
The built-in battery headband feels lightweight, balanced, and comfortable to wear. [1]
DJI Goggles Integra can be used while charging and will stay powered through several full-battery drone flights. So you can keep soaring all day.
- Total Weight: Approx. 410 g
- Antenna Design: Foldable
- Max Operating Time: Two hours [2]

HD DISPLAY
DJI Goggles Integra is equipped with two HD Micro-OLED screens to deliver true-to-life colors and highlight-shadow details. The high screen refresh rate presents the fun of flight in a smoother and more fantastic manner.
TÜV Rheinland Low Blue Light Certification - DJI Goggles Integra presents HD display quality while protecting your eyes with a comfortable experience.
- Display Technology: Micro-OLED
- Screen Resolution: 1080p
- Max Brightness: 700 nits
- Max Screen Refresh Rate: 100 Hz [3]
- Supported Codec Formats: H.264 and H.265

Ultra-Low Latency, Smooth and Stable Video Transmission
DJI Goggles Integra is equipped with DJI O3+ video transmission[4], boasting latency as low as 30 ms. [5] The goggles automatically switch between 2.4GHz and 5.8GHz frequency bands to keep a stable signal for a fluid, immersive HD viewing experience with minimal interference. [6]

New SyncSmooth technology produces smooth, fluent video transmission for high-speed aerial photography. [7] The tracking effect of the goggles display frame aligning with the video transmission frame is optimized to cut down video transmission latency and fluctuations. Viewing footage with DJI Goggles Integra is also easier on the eyes, effectively reducing visual fatigue and dizziness.

New Ways to Enjoy Aerial Photography
DJI Goggles Integra is compatible with some camera drones, such as DJI Mavic 3 Pro, DJI Mavic 3 Pro Cine, DJI Mavic 3, DJI Mavic 3 Cine, DJI Mavic 3 Classic, and DJI Mini 3 Pro. Now you can explore more creative possibilities while experiencing the joy of flight.

[1] Wearing and viewing experience may vary by user.
[2] Measured with an ambient temperature of 25° C (77° F), screen brightness at 4, connection to DJI Avata, the video transmission mode set to 1080p/100fps, head tracking off, and the goggles' battery fully charged and not supplying power to external devices such as smartphones.
[3] The screen refresh rate changes with the video transmission frame rate. It may switch between 100 Hz and 60 Hz to adapt to the current video transmission frame rate.
[4] DJI Goggles Integra supports DJI O3+ video transmission with DJI Avata or the DJI O3 Air Unit.
[5] Measured using 1080p/100fps video transmission, tested outdoors in an open, interference-free environment.
[6] The 5.8GHz frequency band is banned in certain countries/regions. Check and comply with local laws and regulations before flying.
[7] The frame synchronization algorithm for DJI Goggles Integra has been optimized from prior models to improve video transmission and reduce visual fatigue and dizziness.
DJI Warranty Information
Manufacturer's warranty for DJI products may vary depending on the part under question, batteries have 3-6 months manufacturer's warranty while the remote control might have 12 months manufacturer's warranty. More information can be found on the DJI website.
Specifications
Goggles
Weight
Approx. 410 g (battery included)
Dimensions (LxWxH)
With antennas folded: 170x104x75 mm
With antennas unfolded: 205x104x104 mm
Screen Size (single screen)
0.49-inch
Resolution (single screen)
1920x1080
Refresh Rate
Up to 100 Hz
IPD Range
56-72 mm
FOV (single screen)
44°
Video Recording Format
MOV
Supported Video Playback Formats
MP4, MOV (video formats: H.264, H.265; audio formats: AAC, PCM)
Operating Temperature
-10° to 40° C (14° to 104° F)
Power Input
Built-in battery
Supported SD Cards
microSD (up to 512 GB)
Recommended microSD Cards
SanDisk Extreme U3 V30 A1 32GB microSDXC
SanDisk Extreme Pro U3 V30 A1 32GB microSDXC
Lexar 1066x U3 V30 A2 64GB microSDXC
Lexar 1066x U3 V30 A2 128GB microSDXC
Lexar 1066x U3 V30 A2 256GB microSDXC
Lexar 1066x U3 V30 A2 512GB microSDXC
Kingston Canvas Go! Plus U3 V30 A2 64GB microSDXC
Kingston Canvas Go! Plus U3 V30 A2 128GB microSDXC
Kingston Canvas React Plus U3 V90 A1 64GB microSDXC
Kingston Canvas React Plus U3 V90 A1 128GB microSDXC
Kingston Canvas React Plus U3 V90 A1 256GB microSDXC
Samsung EVO Plus U3 V30 A2 512GB microSDXC
Video Transmission
Video Transmission
When used with different aircraft, the goggles will automatically select the corresponding firmware to match the video transmission specification of the aircraft.
DJI Avata: O3+
Operating Frequency
2.4000-2.4835 GHz
5.725-5.850 GHz
The 5.8 GHz frequency band is currently banned in certain countries or regions. For details, please refer to local laws and regulations.
Transmitter Power (EIRP)
2.4000-2.4835 GHz:
< 30 dBm (FCC)
< 20 dBm (CE/SRRC/MIC/KC)
5.725-5.850 GHz:
< 30 dBm (FCC)
< 23 dBm (SRRC)
< 14 dBm (CE/KC)
Transmission Latency
1080p/100fps: as low as 30 ms
1080p/60fps: as low as 40 ms
Measured in an open outdoor environment without interference. Actual data varies with different aircraft models.
Max Transmission Distance
When used with DJI Avata or the DJI O3 Air Unit, DJI Goggles Integra can achieve the following max video transmission distance:
10 km (FCC), 2 km (CE), 6 km (SRRC)
When used with DJI FPV, DJI Goggles Integra can achieve the following max video transmission distance:
10 km (FCC), 6 km (CE), 6 km (SRRC), 6 km (MIC)
Max Video Bitrate
50 Mbps
Measured in an open outdoor environment without interference. Actual data varies with operating environment.
Battery
Weight
Approx. 185 g (headband included)
Dimensions (LxWxH)
120x51x71 mm
Capacity
2450 mAh
Voltage
5.6-8.4 V
Type
Li-ion
Chemical System
LiNiMnCoO2
Energy
17.64 Wh
Charging Temperature
5° to 45° C (41° to 113° F)
Max Charging Power
15 W (charging when powered off)
Operating Time
Approx. 2 hours
Measured with an ambient temperature of 25° C (77° F), screen brightness at 4, connection to DJI Avata, the video transmission mode set to 1080p/100fps, head tracking off, and the goggles' battery fully charged and not supplying power to external devices such as smartphones.
