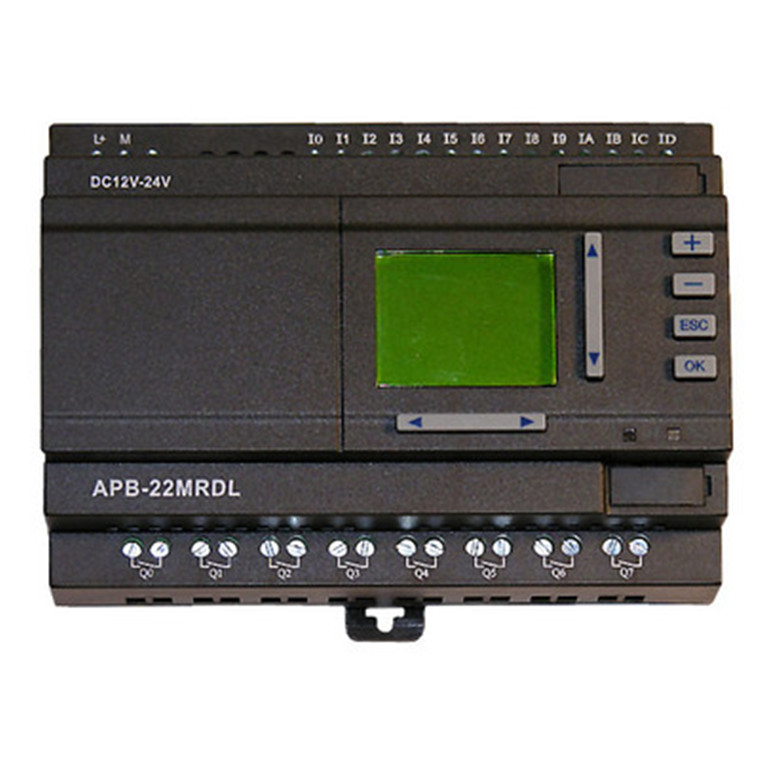

Array APB-22MRDL PLC with LCD (DC version ) and USB programming cable
Array APB-22MRDL PLC with LCD (DC version ) and USB programming cable
- Brand: Array
- MPN: APB-22MRDL
- Part #: TOLARR1004
- UPC:
- Brand: Array
- MPN: APB-22MRDL
- Part #: TOLARR1004
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Other Tools
Array APB-22MRDL PLC with LCD (DC version ) and USB programming cable
- Brand: Array
- MPN: APB-22MRDL
- Part #: TOLARR1004
Product URL: https://www.pbtech.co.nz/product/TOLARR1004/Array-APB-22MRDL-PLC-with-LCD-DC-version--and-USB
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
Standard DC powered APB controllers provide 22 I/O points: 14 inputs and 8 outputs.
12 of the 14 inputs may be used as digital or analog (0-10 Vdc) inputs. 4 of the inputs support high speed (10 kHz) signals.
The 8 outputs may be relay or solid state (SINK or SOURCE). 2 solid state outputs support high speed (10 kHz) signals.
The LCD Graphics Human-Machine Interface (HMI) display/keypad provides up to 64 user defined display screens. Values and alarm conditions may be displayed and the operator may enter new parameters using a flexible 8 function keypad (+, -, Up, Down, Left, Right, OK, Esc). Four of the keys provide 'soft' user programable function keys.
22 I/O points
14 digital inputs
may use 10 inputs as 0-10 Vdc analog
4 high speed (10 kHz) inputs available
8 digital outputs
Relays - 240 Vac, 10 Amp
Solid State SOURCE or SINK, 80 Vdc, 2 Amp
2 high speed (10 kHz) outputs available
Graphic HMI display/interface
108 X 64 bit mapped graphics
Display & modify process parameters and Alarms
64 user defined menu sequences
Specifications
14 inputs
OFF < 5 Vdc
ON > 10 Vdc
Analog 0 - 10 Vdc, 250 ohm impedance
8 Outputs
Resistive Load
Relays - 240 Vac, 10 Amp
NPN (SINK) - 80 Vdc, 2 Amp
PNP (SOURCE) - 80 Vdc, 2 Amp
Inductive Load
Relays - 240 Vac, 2 Amp
Power
Voltage - 12-24 Vdc
Relay - 5 Watt
Sink/Source - 2 Watt
