FLUKE MS2100 MicroScanner2 Cable Verifier.
Out of stock
FLUKE MS2100 MicroScanner2 Cable Verifier.
- Brand: FLUKE
- MPN: MS2100
- Part #: TOLFLN54368
- UPC: 754082054368
- Brand: FLUKE
- MPN: MS2100
- Part #: TOLFLN54368
- UPC: 754082054368
Features
FLUKE NETWORKS MicroScanner2 Cable Verifier
The MicroScannerTM Cable Verifier series simplifies the testing of voice, data, and video cables. It starts by taking results from what were four different test modes and displaying them all at once - graphical wire map, pair lengths, distance to fault, cable ID, and far-end device. What's more, it supports virtually any type of low-voltage cable testing with no need for awkward adapters. The end result is reduced test time and technician error. That makes high-quality installations more efficient than ever.

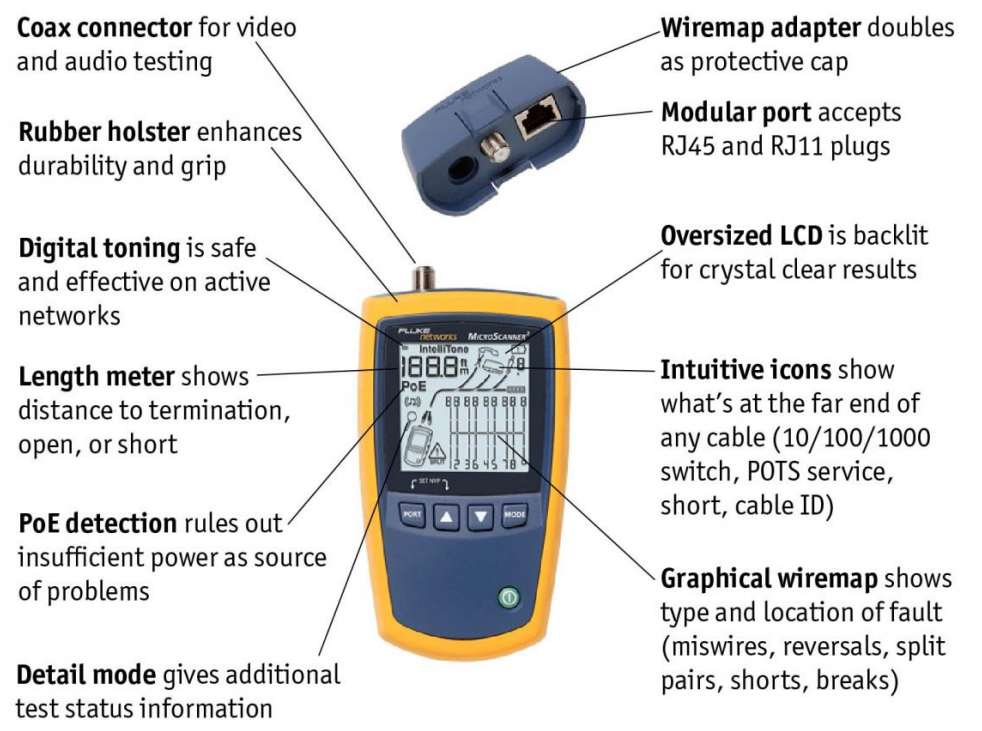

Revolutionary Interface: graphical wire-map, length, cable ID, and distance to fault displayed on one screen
Multimedia Support: tests all common media types including RJ11, RJ45, and Coax, with no need for adapters
IntelliTone Toning: trace virtually any cable or wire pair with IntelliTone digital and analog toning (Sold separately or included in MS2-KIT)
VDV Service Detection: verifies today's media services, including 10/100/1000 Ethernet, POTS, & PoE
Rugged Housing: integrated rubber holster enhances grip and makes it durable enough for the toughest jobs
Oversized Display: large, backlit LCD makes results crystal clear whether in bright sunshine or a dark closet
Power Source: powered by 2x AA batteries with a battery life of up to 50 hours
Rule out service problems fast
Today's communications technicians have a lot more problems to deal with than just the cabling. They have to rule out a whole host of potential cable and service issues before determining the cause of a connection problem. Is there telephone voltage? What's the polarity? Is there an Ethernet switch at the far end? Is PoE available? MicroScanner2 acknowledges this, giving technicians high-power vision to verify today's most common voice, data, and video services. That means faster, more comprehensive troubleshooting.
Reduce test time and user error
Yesterday's cable verification testers force users to toggle between different modes (up to four) to view all test results. This not only slows the test process but also causes user frustration and error. MicroScanner2 has defied this convention by displaying key test results - wire map, pair lengths, distance to fault, cable ID, and far-end devices - all on one screen.
Eliminate awkward test adapters
Tired of losing or breaking all the adapters needed for testing the various voice, data, and video media types? MicroScanner2 makes these adapters things of the past with builtin RJ11, RJ45, and coax support. Both the main unit and the far-end identifiers can be used to test telephone jacks, Ethernet jacks, and CATV outlets right out of thebox.
Locate elusive cables in seconds
MicroScanner2 features built-in IntelliTone digital and analog toning to precisely locate virtually any cable or wire pair, regardless of work environment. Use digital mode to locate high-grade data cabling (Cat 5e/6/6a) in bundles, or at switches, patch panels, or wall outlets. Or, use analog mode on voice-grade cabling (Cat 3 and below), as well as coax, security/alarm, and speaker wiring.
Repair or replace tools less often
With all the abuse you put your tools through, you can't afford for them to be delicate. MicroScanner2 features a rubber wrap-aroundholster that makes it the right tool for even the toughest jobs. Toss it into your toolbox. Drop it from a ladder. It can handle it. Plus, it now comes standard with a vinyl carry pouch for enhanced protection and convenience.
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Testing & Measurement Tools
USB Inspection Camera EndoScope 2MP, Lens Diameter: 8.5mm, Cable...
Leica Disto D2 Bluetooth ISO certified measuring engine high...
ProsKit MT-4612 Dual Infrared Laser Point Thermometer Range -50...
UGREEN UG-10950 Network & Telephone Cable Tester
ProsKit MT-7058 Wire Tester Mini Lan Ethernet Cable Tester...
FLUKE MS2100 MicroScanner2 Cable Verifier.
- Brand: FLUKE
- MPN: MS2100
- Part #: TOLFLN54368
- UPC:754082054368
Product URL: https://www.pbtech.co.nz/product/TOLFLN54368/FLUKE-MS2100-MicroScanner2-Cable-Verifier
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Newmarket | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
FLUKE NETWORKS MicroScanner2 Cable Verifier
The MicroScannerTM Cable Verifier series simplifies the testing of voice, data, and video cables. It starts by taking results from what were four different test modes and displaying them all at once - graphical wire map, pair lengths, distance to fault, cable ID, and far-end device. What's more, it supports virtually any type of low-voltage cable testing with no need for awkward adapters. The end result is reduced test time and technician error. That makes high-quality installations more efficient than ever.
Revolutionary Interface: graphical wire-map, length, cable ID, and distance to fault displayed on one screen
Multimedia Support: tests all common media types including RJ11, RJ45, and Coax, with no need for adapters
IntelliTone Toning: trace virtually any cable or wire pair with IntelliTone digital and analog toning (Sold separately or included in MS2-KIT)
VDV Service Detection: verifies today's media services, including 10/100/1000 Ethernet, POTS, & PoE
Rugged Housing: integrated rubber holster enhances grip and makes it durable enough for the toughest jobs
Oversized Display: large, backlit LCD makes results crystal clear whether in bright sunshine or a dark closet
Power Source: powered by 2x AA batteries with a battery life of up to 50 hours
Rule out service problems fast
Today's communications technicians have a lot more problems to deal with than just the cabling. They have to rule out a whole host of potential cable and service issues before determining the cause of a connection problem. Is there telephone voltage? What's the polarity? Is there an Ethernet switch at the far end? Is PoE available? MicroScanner2 acknowledges this, giving technicians high-power vision to verify today's most common voice, data, and video services. That means faster, more comprehensive troubleshooting.
Reduce test time and user error
Yesterday's cable verification testers force users to toggle between different modes (up to four) to view all test results. This not only slows the test process but also causes user frustration and error. MicroScanner2 has defied this convention by displaying key test results - wire map, pair lengths, distance to fault, cable ID, and far-end devices - all on one screen.
Eliminate awkward test adapters
Tired of losing or breaking all the adapters needed for testing the various voice, data, and video media types? MicroScanner2 makes these adapters things of the past with builtin RJ11, RJ45, and coax support. Both the main unit and the far-end identifiers can be used to test telephone jacks, Ethernet jacks, and CATV outlets right out of thebox.
Locate elusive cables in seconds
MicroScanner2 features built-in IntelliTone digital and analog toning to precisely locate virtually any cable or wire pair, regardless of work environment. Use digital mode to locate high-grade data cabling (Cat 5e/6/6a) in bundles, or at switches, patch panels, or wall outlets. Or, use analog mode on voice-grade cabling (Cat 3 and below), as well as coax, security/alarm, and speaker wiring.
Repair or replace tools less often
With all the abuse you put your tools through, you can't afford for them to be delicate. MicroScanner2 features a rubber wrap-aroundholster that makes it the right tool for even the toughest jobs. Toss it into your toolbox. Drop it from a ladder. It can handle it. Plus, it now comes standard with a vinyl carry pouch for enhanced protection and convenience.
Specifications
Brand
FLUKE
Color
Yellow/Blue
Power Source
Battery powered

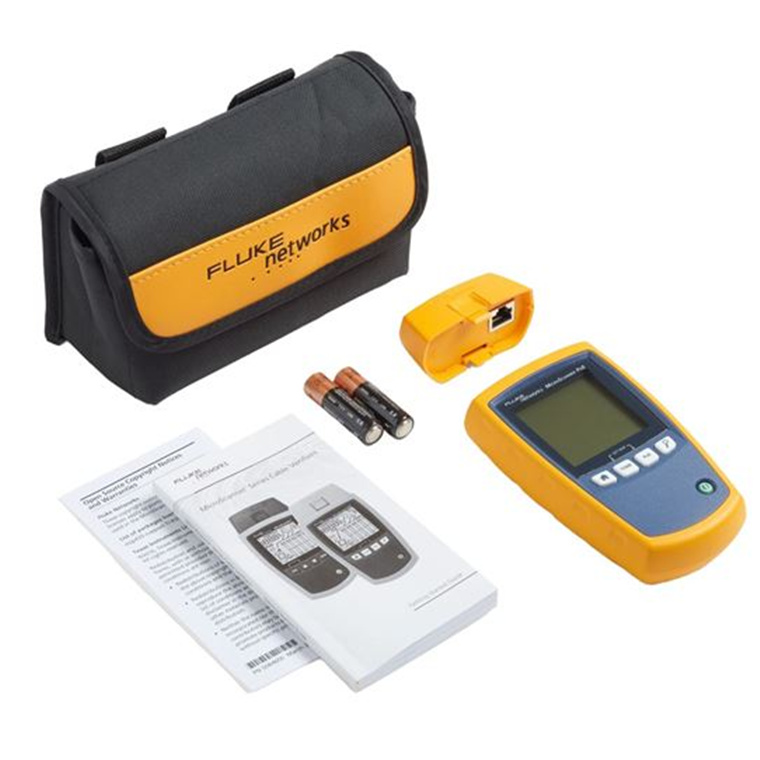

In the Box
MicroScanner2 Cable Verifier with main wire map adapter
Multi-language Getting Started Guide
Batteries
Fluke Networks carry pouch
