Fenix Work & Outdoor HM50R V2.0 Rechargeable LED Headlamp Max 700 Lumens, Powered by 1 x 16340 700mAH Li-ion Battery (Included), Multipurpose Head Flashlight, Torch, Build-In USB-C Charging Port, Charging Cable is Included

Warning:

 - The headlamp is a high-intensity lighting device capable of causing eye damage to the user or others. Avoid shining the lamp directly into anyone's eyes.
 - This headlamp will accumulate a lot of heat when used for extended periods, resulting in a high temperature of the headlamp Pay attention to safe use to avoid scalding.
 - Do not shine an object at close range, avoid burning the object or causing danger due to high temperature.
 - The LED of this headlamp is not replaceable; so the entire lamp should be replaced when the LED reaches the end of its life.
 - If any of the information provided in this manual is changed, the new version of the manual shall prevail; if your included user manual is an old one, it acquiesces that we won't send a new manual.

Warranty: 5-Years Free Repair Warranty (Battery for 1 year)!

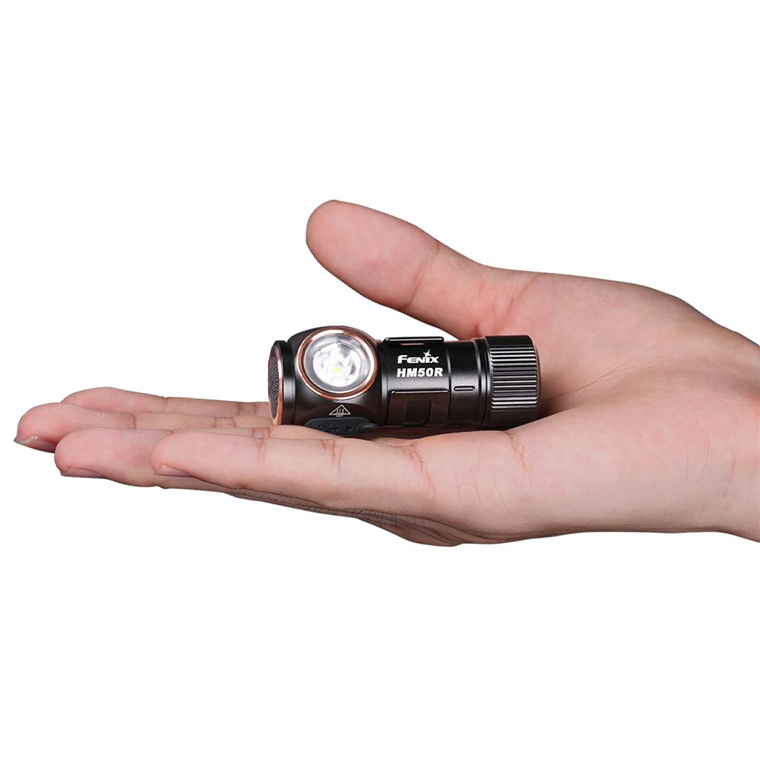

The Fenix HM50R V2.0 is a rechargeable multipurpose headlamp. One 16340 rechargeable Li-ion battery is included to power it. This headlamp is power-packed throwing a 700 lumens beam to a maximum distance of 115 meters. The HM50R V2.0 is outstanding with its solid construction and lightweight size, plus it is detachable to be used as a mini flashlight. This rechargeable headlamp combines white and red lights, comes with a USB Type-C charging cable and features an IP68 rating, all of which make the Fenix HM50R V2.0 perfect for camping, hiking or working in rigged environments.

Size: 2.52'' x 1.42'' x 1.26'' / 64 x 36 x 32 mm
Weight: 2.75 oz / 78 g (including battery and headband)
Battery Type: Included one rechargeable 16340 Li-ion battery

 - 700 lumens maximum output; 115 meters maximum beam distance.
 - Luminus SST20 white light LED with a lifespan of 50,000 hours.
 - Included a 16340 rechargeable Li-ion battery.
 - Detachable structure - can be used as a flashlight.
 - White and red lights
 - USB Type-C charging port for easy and fast charging.
 - Lockout function avoids accidental activation.
 - Made of durable A6061-T6 aluminum.
 - Premium type HAIII hard-anodized anti-abrasive finish.

Operating Instruction:

On/off:

 - With the lamp switched off, press and hold the switch for 0.5 seconds to enter white light mode.
 - With the lamp switched off, double click the switch to enter red light mode.
 - With the lamp switched on, press and hold the switch for 0.5 seconds to turn off the lamp.

Output Selection:

 - White light mode: single click the switch to cycle through Low, Med, High, Turbo. (with intelligent memory circuit)
 - Red light mode: single click the switch to cycle through Red light, Red flash. (without intelligent memory circuit)

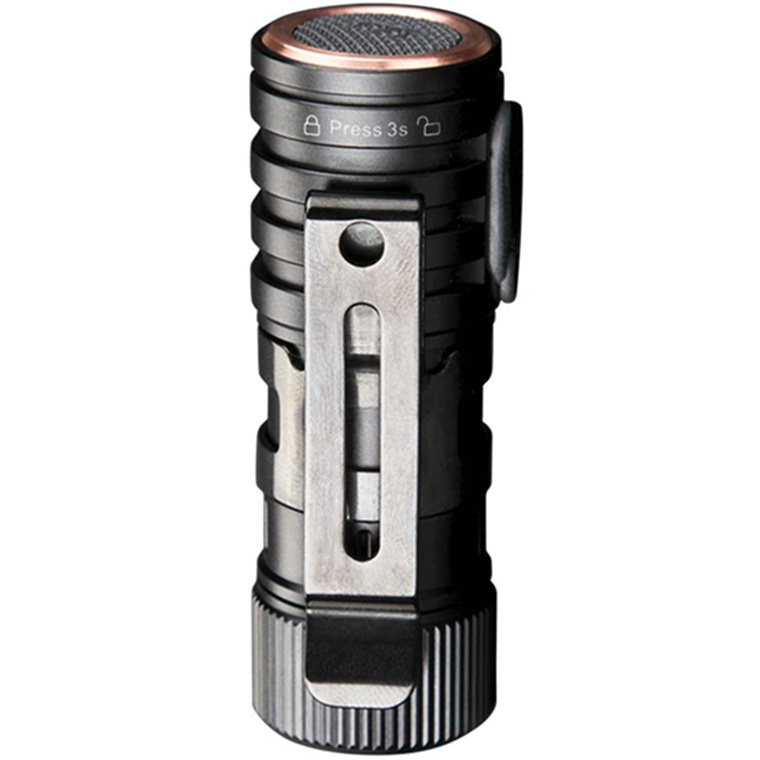

Lockout Function:

 - Lock: when the lamp is switched off, press and hold the switch for 3 seconds, the lamp will be switched on white light and then blink red four times to indicate locked status.
 - Unlock: when the lamp is locked, press the switch for 3 seconds, the lamp will be activated with 4 one-second red blinks and activated on Red Light.In locked status, clicking or pressing the switch will activate 4 one-second red blinks to indicate locked status.

Battery Replacement: Unscrew the cap to insert the battery in accordance with the polarity marks, then screw the cap back on.

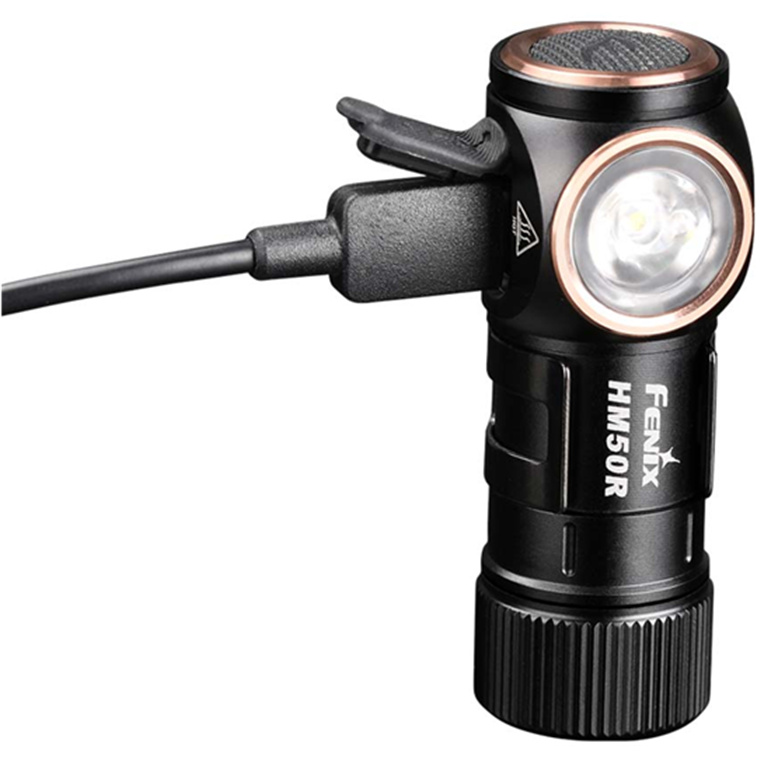

Charging

 - Uncover the cap and plug the USB Type-C side of the charging cable into the charging port of the lamp.
 - The indicator will display red while charging and will turn green when fully charged.
 - The normal charging time of the included Fenix ARB-L16-700P 16340 rechargeable Li-ion battery is about 1.5 hours.
 - When charging, the headlamp can be normally used on Low, Red, Red flash, but charging time will be prolonged.
 - When charging is complete, replace the anti-dust cap to ensure waterproof and dustproof ability.
 - Recharge a stored headlamp every four months to maintain optimal Li-ion battery performance.* Charging protection: when charging, if the lamp reaches a temperature of 60°C or above, the lamp will automatically exit charging status and enter sleeping mode.

Battery Level Indication: With the lamp switched off, single click the switch to check the battery status, the indicator will last for 3 seconds.

 - Green light on: saturated 100% - 80%
 - Green light flashes: sufficient 80% - 50%
 - Red light on: poor 50% - 20%
 - Red light flashes: critical 20% - 0%

Note: This only works with Fenix ARB-L16-700P battery.

Intelligent Overheat Protection: The lamp will accumulate a lot of heat when used at Turbo mode for extended periods. When the lamp reaches a temperature of 60°C or above, the lamp will automatically step down a few lumens to reduce the temperature. When the temperature drops below 60°C, it will then allow the user for the reselection of Turbo mode.

Low-voltage Warning:

When the voltage level drops below the preset level, the headlamp is programmed to downshift to a lower brightness level until Low mode is reached. When this happens in Low mode, the battery level indicator blinks to remind you to timely recharge or replace the battery.

Note: This only works with Fenix ARB-L16-700P battery.

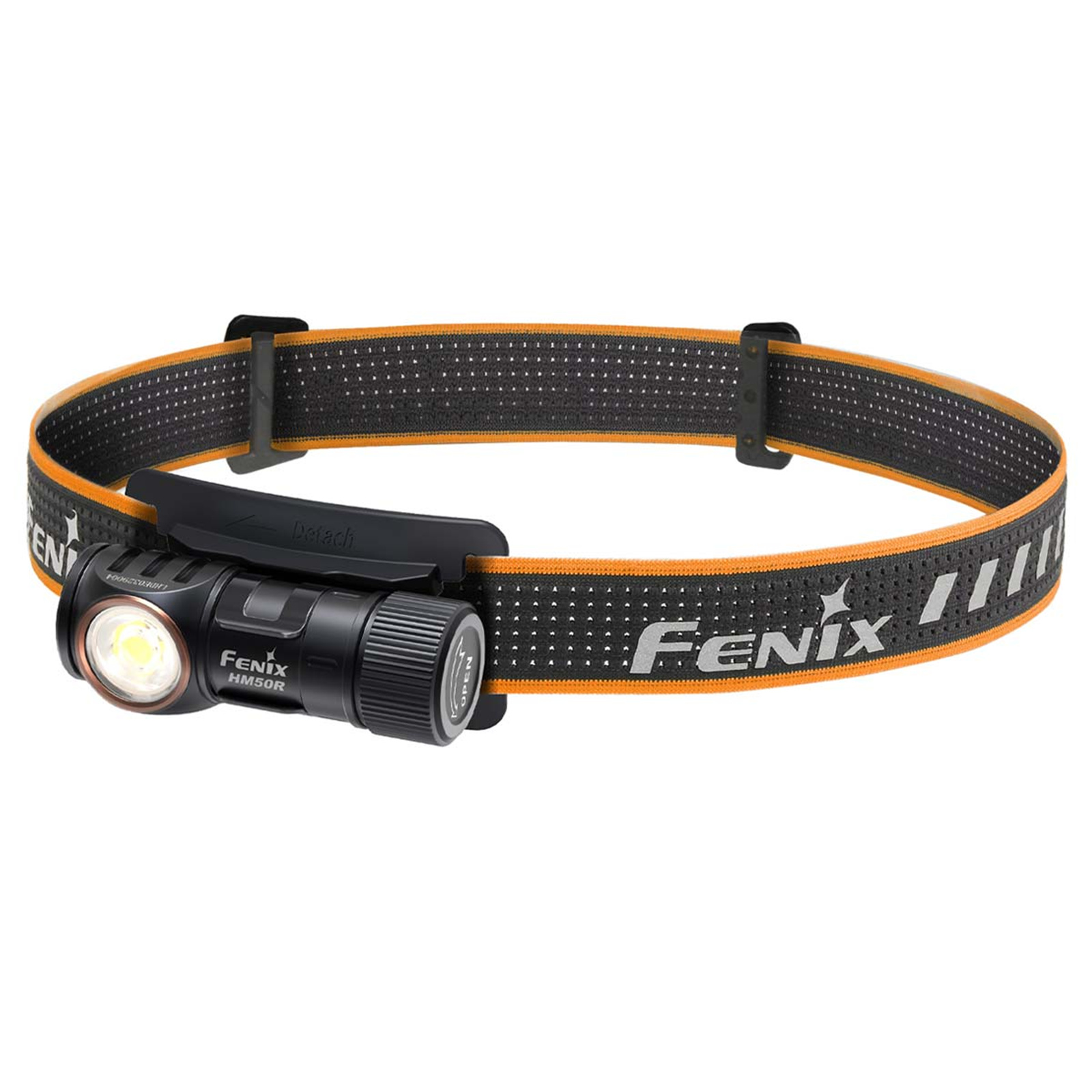

Headband Assembly:

 - The headband is factory assembled by default.
 - The headlamp bracket is made of reinforced silicone material, which has good tear resistance and mechanical strength; it is resistant to low/high temperature, ultraviolet rays, acid and alkali corrosion; it is comfortable to the touch and will not cause corrosion allergy.
 - If the headband is stained with sweat and mud, it can be washed directly.

Other Purpose: Detach the headlamp from the holder it can be used as a work flashlight.

Usage and Maintenance for the Fenix HM50R V2.0 Rechargeable Headlamp

 - Disassembling the sealed head can cause damage to the lamp and will void the warranty.
 - Fenix recommends using an excellent quality Fenix battery.
 - If the lamp will not be used for an extended period, remove the battery, or the lamp could be damaged by electrolyte leakage.
 - Lock the lamp or take out the battery to prevent accidental activation during storage or transportation.
 - Long-term use can result in O-ring wear. To maintain a proper water seal, replace the ring with an approved spare.
 - Periodic cleaning of the battery contacts improves the lamp's performance as dirty contacts may cause the lamp to flicker, shine intermittently or even fail to illuminate for the following reasons:

A: The battery needs replacing.
Solution: Replace the battery (Ensure the battery is inserted according to the manufacturer's specifications).

B: The contact point or contact of the battery or headlamp is dirty.
Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol.If the above methods don't work, please contact the distributor.
